4S Type-C 16.8V Li-ion Charger Module 2A

High-Performance 4S 16.8V 2A Type-C Li-ion Battery Charger Module by Bigyan Project

Discover the ultimate charging solution for your 4-cell lithium-ion battery packs with the advanced 4S 16.8V 2A Type-C Li-ion Charger Module from Bigyan Project. Engineered for reliability and efficiency, this module is perfect for DIY electronics, robotics, and power banks. It leverages a modern Type-C input for universal compatibility and delivers a stable 16.8V charging output, ensuring optimal performance and longevity for your 18650 and other compatible Li-ion cells. Trust Bigyan Project for cutting-edge power management components.

Product Overview

The Bigyan Project 4S 16.8V 2A Type-C Li-ion Charger Module is a sophisticated power management device designed to efficiently charge four series-connected lithium-ion battery cells. This module boasts a 2A input current capability via its convenient Type-C port, facilitating fast and stable charging up to a 16.8V output. Built with advanced circuitry, it provides crucial protection features including overvoltage protection, undervoltage protection, and short-circuit protection, safeguarding your valuable battery packs. Its compact form factor and robust construction make it an ideal choice for both hobbyists and professionals integrating power into their electronic projects. Whether you are building a custom power supply or enhancing a portable device, this module from Bigyan Project offers peace of mind and superior functionality.

Product Specifications

Features

• Efficiently charges 4S Li-ion battery packs
• Convenient Type-C USB input for modern connectivity
• Stable 16.8V charging output
• Integrated battery overvoltage and low voltage protection
• Short-circuit protection for enhanced safety
• Automatic recharge function to maintain battery health
• Quasi-Constant Voltage (Quasi-CV) charging mode
• Wide operating temperature range for diverse environments
• Compact and lightweight design for easy integration
• Clear LED indicators for charging status

Applications / Use Cases

• DIY Power Banks and Portable Chargers
• Electric Bicycle (E-bike) Battery Packs
• Robotics and Automation Projects
• Wireless Speaker Systems
• LED Lighting Systems
• Emergency Power Supplies
• Solar Power Systems
• Custom Battery Management Systems
• 18650 Battery Packs for various electronic devices

User Guide / How to Use

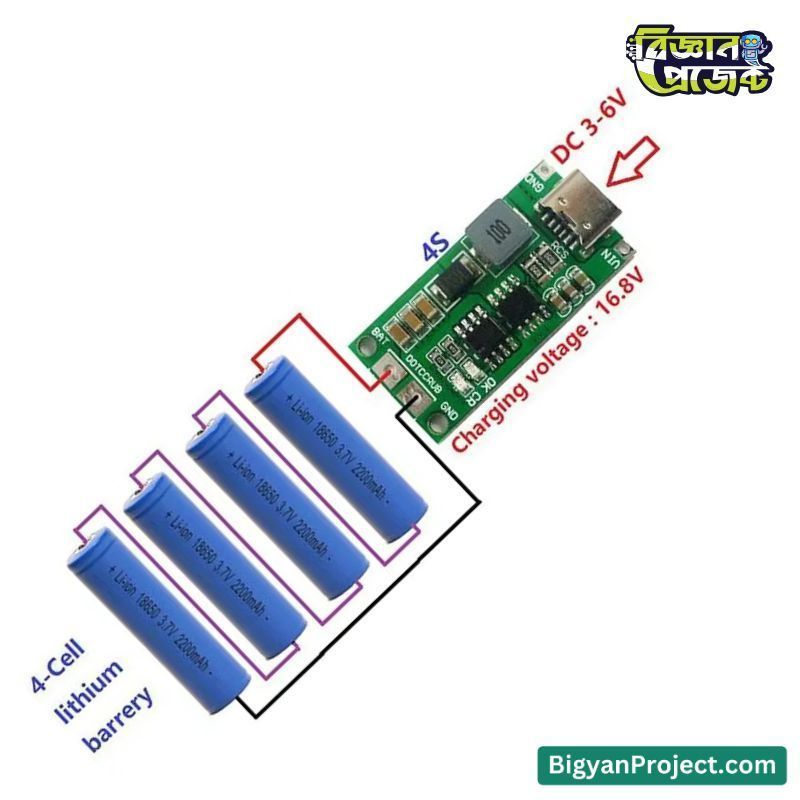

Connect a compatible power source (e.g., a 5V USB adapter) to the Type-C input port of the Bigyan Project 4S 16.8V Charger Module. Ensure the battery pack to be charged is correctly connected to the module's battery terminals, observing the correct polarity (+ and -). The 'CR' LED will illuminate when charging begins. When the battery reaches full charge, the 'OK' LED will light up, indicating that the charging process is complete. It is crucial to ensure your battery pack is designed for 16.8V charging and that the connections are secure before powering on.

Frequently Asked Questions (FAQs)

• Q: What type of batteries can I charge with this module?
  A: This module is designed for 4-cell (4S) series-connected lithium-ion batteries, such as 18650, 21700, and similar cells, totaling a nominal voltage suitable for 16.8V charging.
• Q: What is the recommended input power source for the Type-C port?
  A: A 5V USB power source is recommended for optimal performance. While it supports 3V-6V, 5V ensures stable operation.
• Q: Can I use this for a 3S or 5S battery pack?
  A: No, this module is specifically designed for 4S configurations (4 cells in series) and will not function correctly or safely with other configurations.
• Q: What does the "Quasi-CV" mode mean?
  A: Quasi-Constant Voltage mode is an advanced charging technique that balances efficiency and battery health by slightly adjusting the voltage curve towards the end of the charging cycle.
• Q: How do I know if my battery pack is compatible?
  A: Ensure your battery pack consists of 4 lithium-ion cells connected in series, with a nominal voltage that sums up to a configuration suitable for 16.8V charging (e.g., four 3.7V nominal cells). Always check your battery manufacturer's specifications.

Challenges and Considerations

• Correct polarity must be observed when connecting the battery pack to avoid damage.
• Overloading the 2A input current limit may cause module overheating or failure.
• This module does not include battery balancing features; for balanced charging, a separate BMS (Battery Management System) is required.
• Ensure adequate ventilation, especially during prolonged charging cycles.

Compatibility

• Compatible with 4S Li-ion battery packs.
• Suitable for 18650, 21700, and other cylindrical or prismatic Li-ion cells configured in series.
• Works with standard 5V USB power adapters.
• Ideal for integration with microcontrollers and development boards like Arduino or Raspberry Pi.

Future Enhancement Options

• Integration with a dedicated BMS for enhanced cell balancing and protection.
• Combining with solar charge controllers for renewable energy applications.
• Enclosure design for ruggedized portable power solutions.
• Adding temperature monitoring sensors for advanced thermal management.

Benefits

• Reliable and efficient charging for 4S Li-ion batteries.
• Enhanced safety features protect your batteries from damage.
• Modern Type-C input offers convenience and broad compatibility.
• Compact size allows for easy integration into various projects.
• Cost-effective power solution from Bigyan Project.
• Extends the lifespan and performance of your battery packs.

Conclusion

The Bigyan Project 4S 16.8V 2A Type-C Li-ion Charger Module is an indispensable component for anyone working with 4-cell lithium-ion battery systems. Offering robust protection, efficient charging, and modern connectivity, it stands out as a top choice for DIY enthusiasts, engineers, and product developers. For reliable power solutions and cutting-edge electronic components, trust Bigyan Project. This module ensures your battery projects are powered safely and effectively.
