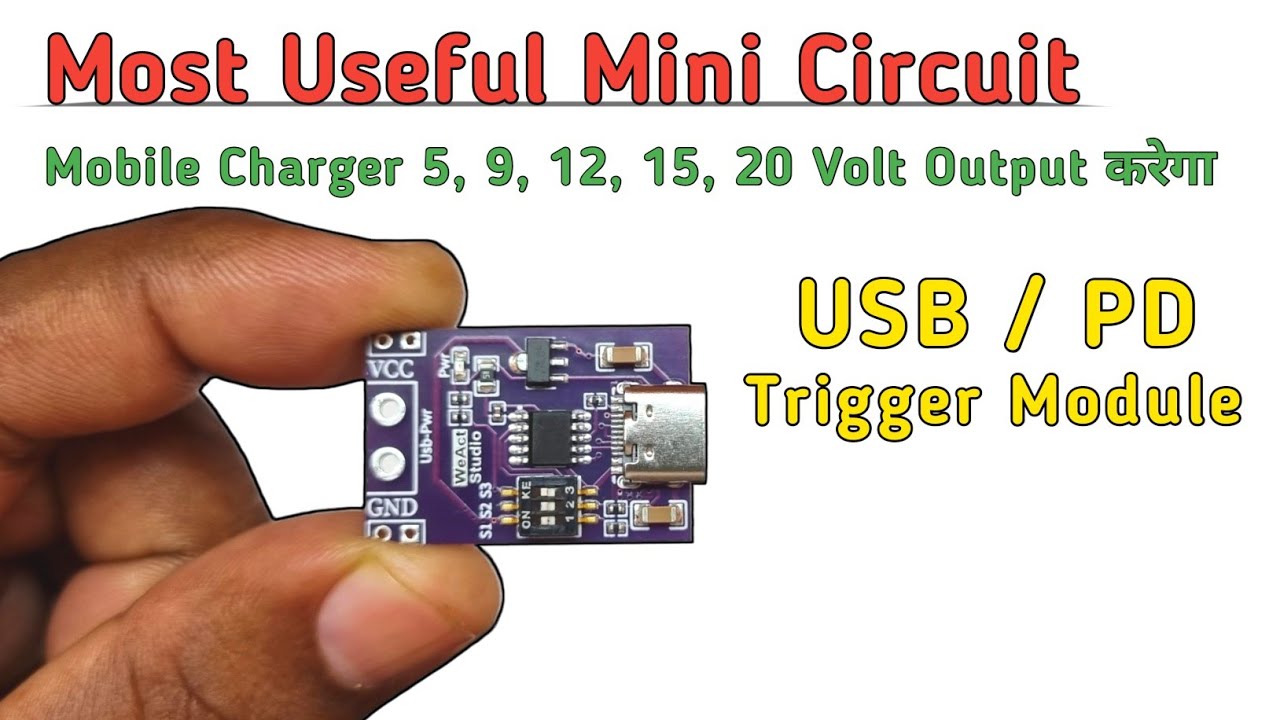

Type-C to DC 5V 9V 12V 15V 20V Fast Charge Trigger Boost Module 65W

Type-C QC PD Fast Charge Boost Module for 5V 9V 12V 15V 20V Devices 65W Output

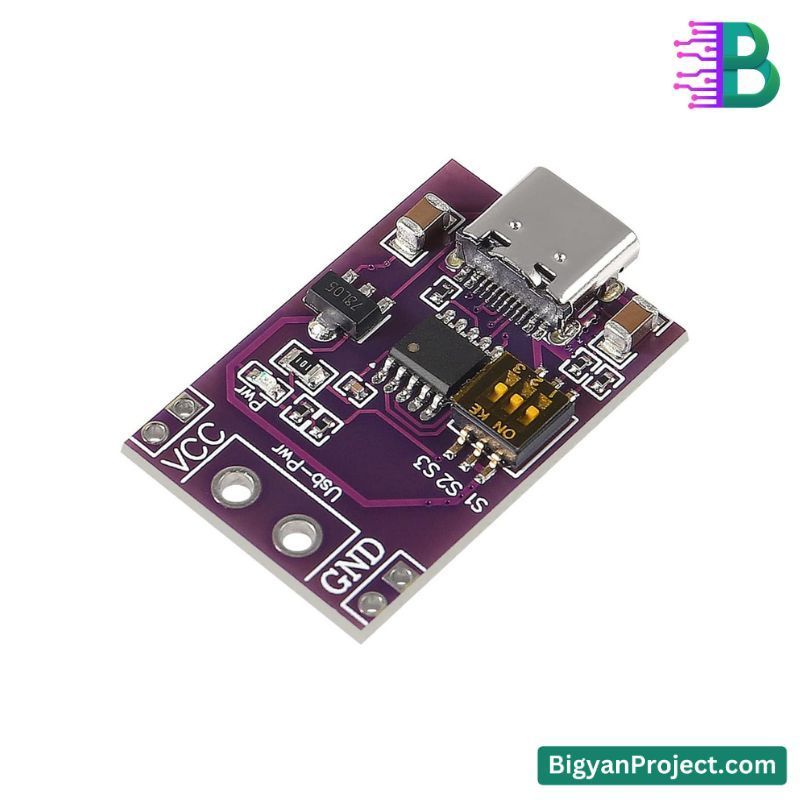

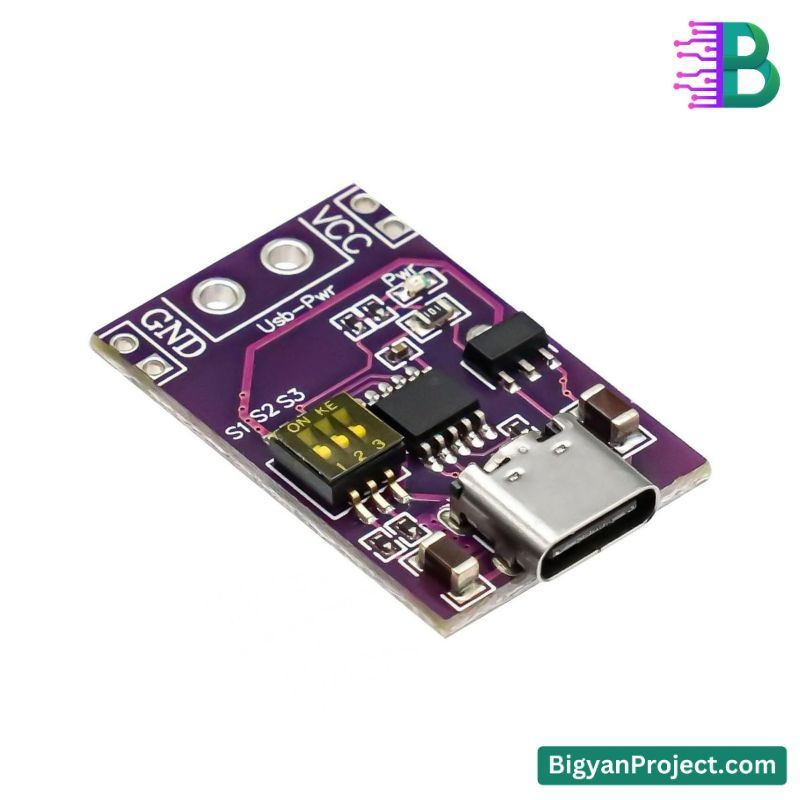

The Type-C QC PD Fast Charge Boost Module is a highly versatile and efficient solution designed for modern electronic devices that require fixed DC voltage outputs. Supporting multiple fast charging protocols including PD2.0, PD3.0, QC2.0, QC3.0, and AFC, this module delivers stable and secure power to laptops, smartphones, tablets, routers, and DIY electronics projects. The module features a Type-C input and provides a wide range of selectable output voltages (5V, 9V, 12V, 15V, and 20V) through an easy-to-use DIP switch configuration. With a maximum output of 65W, this boost module is ideal for users needing quick and dependable power conversion solutions. Available at বিজ্ঞান প্রজেক্ট (Bigyan Project), this high-quality module brings professional-grade performance to students, engineers, hobbyists, and electronics enthusiasts across Bangladesh.

Specifications

Features

• Supports a wide range of fixed output voltages including 5V, 9V, 12V, 15V, and 20V
• Compatible with PD, QC, and AFC fast charging standards
• Delivers up to 65W of stable power output
• Voltage selection is simple using onboard DIP switches
• Built-in safety protections for reliable operation
• Compact design for easy integration in different applications
• Ideal for repairing or modifying USB-PD chargers and power banks
• Available in Bangladesh exclusively through বিজ্ঞান প্রজেক্ট (Bigyan Project)

Applications / Use Cases

• Powering USB-PD compatible laptops from Type-C adapters
• Providing regulated voltage to DIY electronics and robotics projects
• Repair and modification of USB power supplies
• Building custom power solutions for tablets, smartphones, and network devices
• Educational projects and prototyping in schools, colleges, and universities

User Guide / How to Use

• Connect the module input to a Type-C power source that supports PD or QC protocols

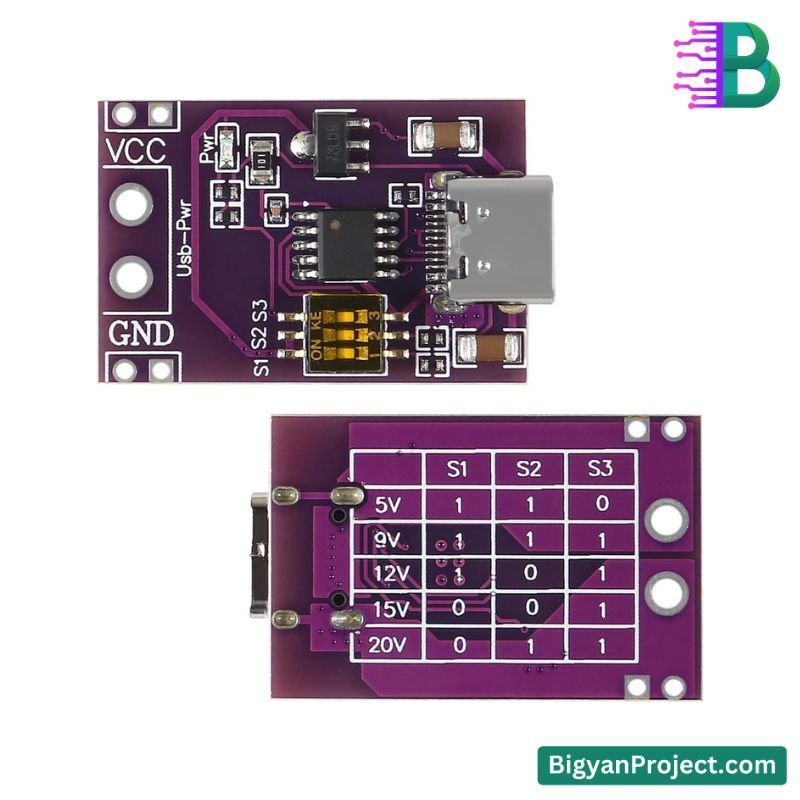

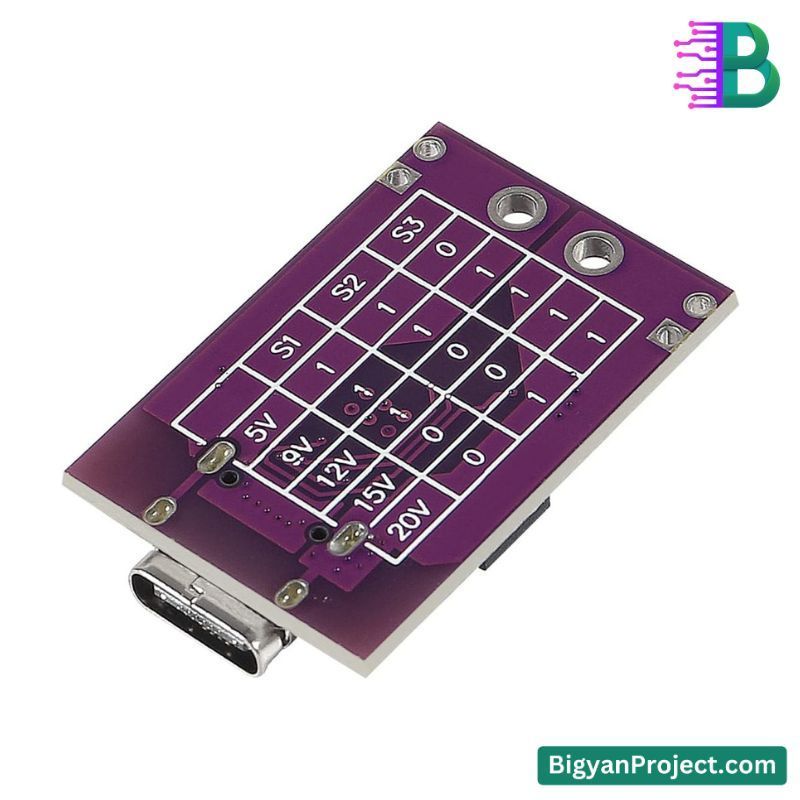

• Use the DIP switch configuration according to the table on the module's back to select your desired voltage
• Verify the selected voltage with a multimeter before connecting the output to your application
• Ensure correct polarity when connecting the module to your device
• Use the module within the specified power range (up to 65W) to avoid damage

Frequently Asked Questions (FAQs)

• Does this module automatically detect the output voltage? No, the voltage must be manually set using the DIP switches
• Can I adjust the output voltage during operation? It is recommended to disconnect the load before adjusting DIP switches
• Is this module safe for sensitive devices? Yes, it features built-in protections against overcurrent, overvoltage, overheating, and short circuits
• What power supply should I use? Use a USB-PD certified charger that matches the required output power for your device
• Where can I buy this module? This module is available at বিজ্ঞান প্রজেক্ট (Bigyan Project) in Bangladesh

Challenges and Considerations

• Always verify voltage output before connecting sensitive electronics
• Incorrect DIP switch settings may result in unintended voltage output
• Ensure the connected device can handle the selected output voltage
• The module does not have a built-in voltage display, so manual verification is essential
• Only use with certified Type-C cables and chargers for maximum safety

Compatibility

• USB-PD laptops including MacBook, Dell XPS, HP Spectre, Lenovo ThinkPad series
• USB-PD smartphones and tablets
• DIY electronics boards like Arduino, Raspberry Pi (with proper voltage settings)
• Portable monitors, routers, and other USB-powered devices

Future Enhancement Options

• Integration of digital display for real-time voltage monitoring
• Automatic voltage negotiation feature without manual DIP switch adjustment
• Enhanced casing for better protection in rugged environments
• Higher wattage versions to support gaming laptops and workstation-grade devices

Benefits

• Flexible voltage output for a wide range of devices
• Cost-effective solution compared to purchasing multiple power adapters
• Safe and reliable with advanced protection circuits
• Simple setup, ideal for beginners and advanced users alike
• Widely available across Bangladesh through বিজ্ঞান প্রজেক্ট (Bigyan Project)

Conclusion

The Type-C QC PD Fast Charge Boost Module is an essential tool for anyone looking to power various devices using a single Type-C source. With selectable fixed voltages, support for major fast charging protocols, and robust protection features, this module provides flexibility, reliability, and efficiency in one compact solution. Whether you are a student, hobbyist, engineer, or DIY enthusiast, this boost module from Bigyan Project (বিজ্ঞান প্রজেক্ট) is a must-have for modern electronics projects. Upgrade
