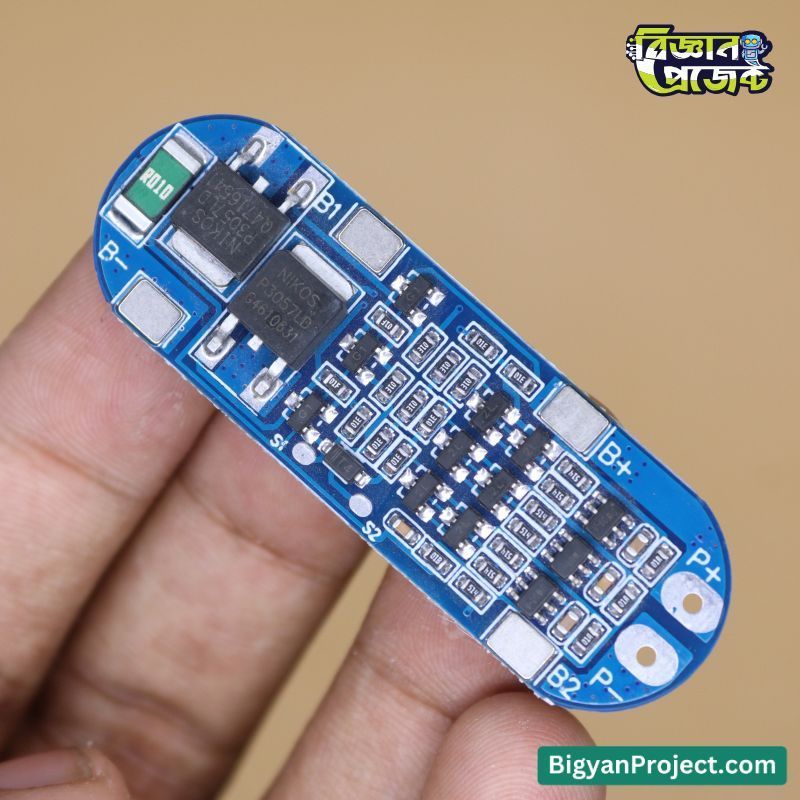

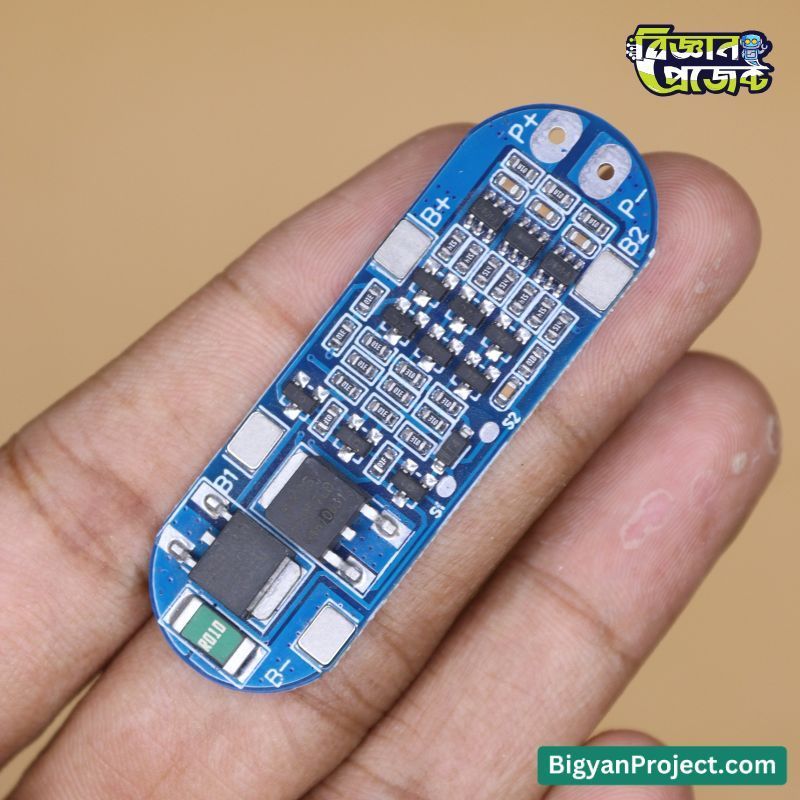

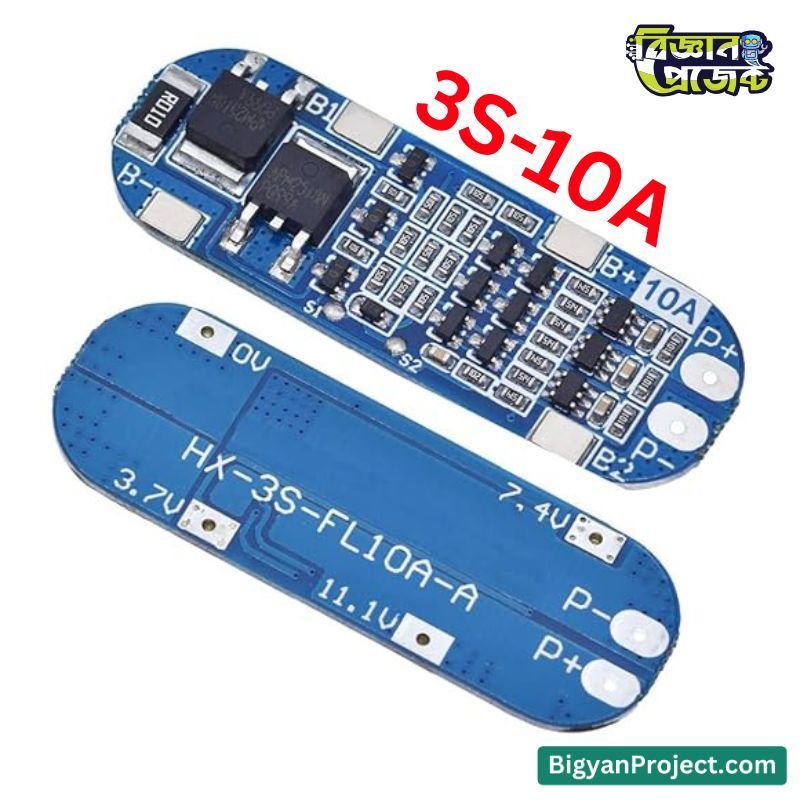

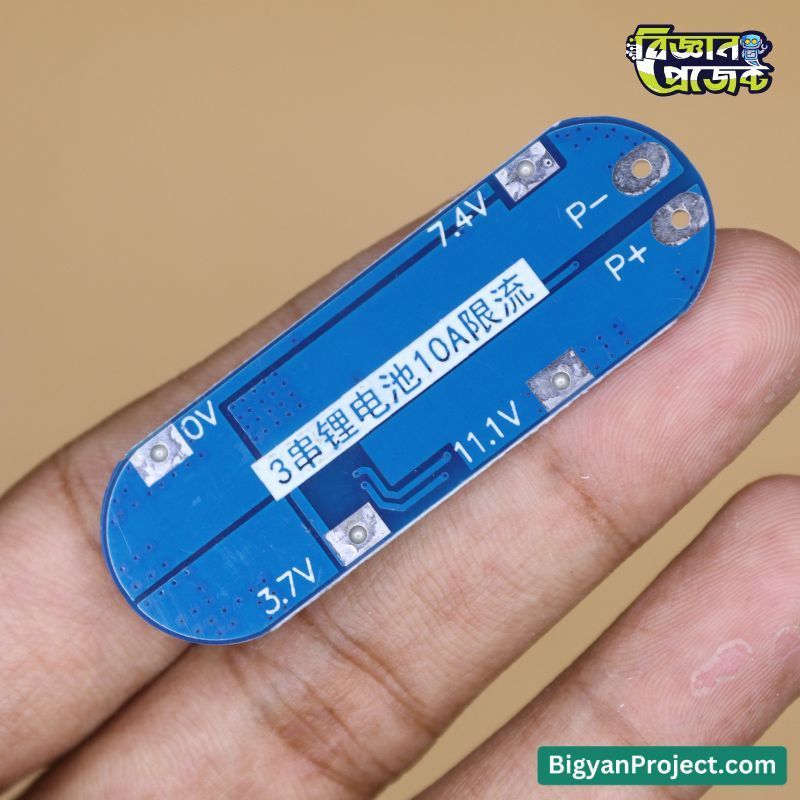

3S 12V 10A BMS Module for 18650 Li-ion Battery Pack

3S 12V Lithium Battery BMS Protection Board for 18650 Battery Packs

The 3S 12V Lithium Battery BMS Protection Board is a vital component for anyone working with lithium-ion battery packs, especially those using 18650 cells. Designed to ensure the safety and longevity of your battery pack, this BMS (Battery Management System) module from বিজ্ঞান প্রজেক্ট (Bigyan Project) offers comprehensive protection features including overcharge, over-discharge, overcurrent, and short circuit protection. Compact yet robust, it is engineered to maintain optimal battery performance while preventing damage caused by electrical faults. Whether you are building a DIY power bank, solar lighting system, or backup power supply, this BMS board is an essential addition to your project.

Product Specifications

Features

• High-accuracy voltage detection for precise battery monitoring
• Multiple protection modes including overcharge, over-discharge, overcurrent, and short circuit
• Three-stage overcurrent detection providing enhanced safety

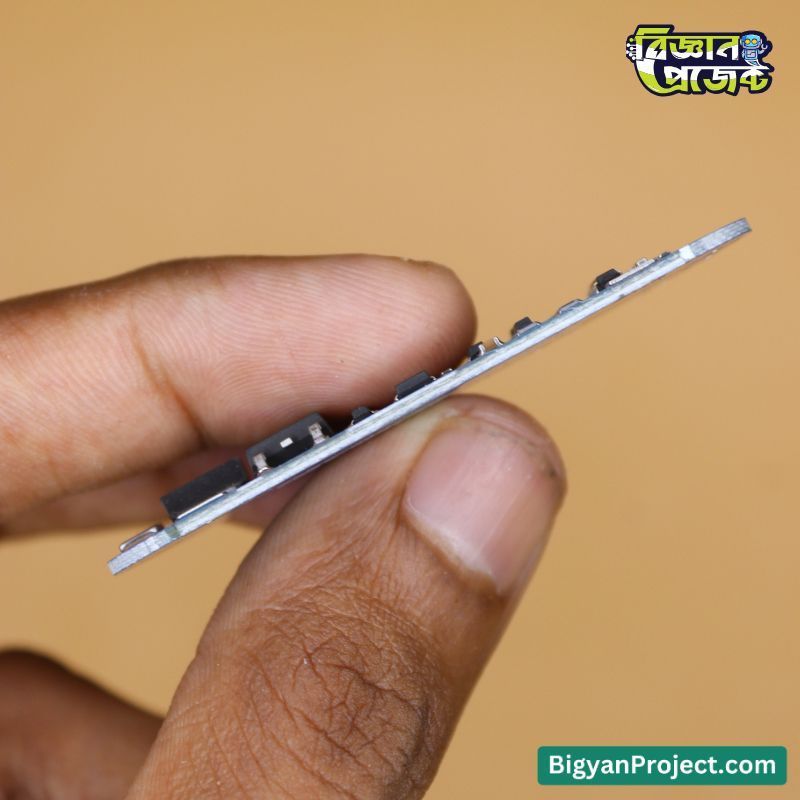

• Compact and lightweight design suitable for various electronic projects
• Low quiescent current to reduce power loss during standby
• Automatic recovery after short circuit to prevent permanent damage
• Wide operating temperature range for versatile environmental conditions
• Durable construction ensuring long-term reliability and performance

Applications / Use Cases

• Battery packs for vacuum cleaners and handheld massagers
• Backup power supplies for LED lighting and monitoring systems
• Solar street light battery management
• 12V electronic devices requiring stable and safe power sources
• DIY power banks and portable battery packs
• Electric scooters and small electric vehicles

User Guide / How to Use

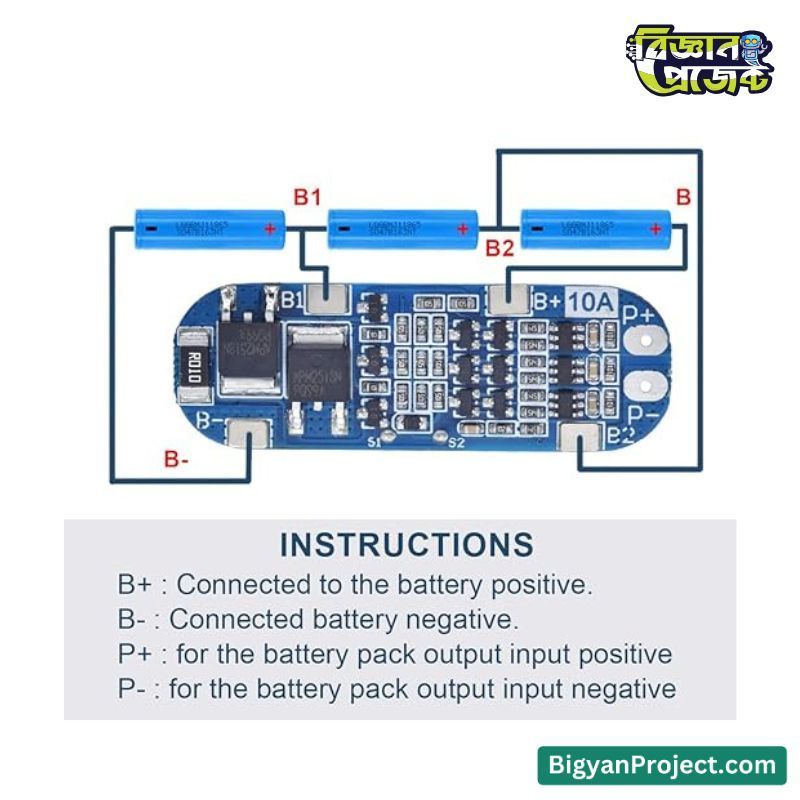

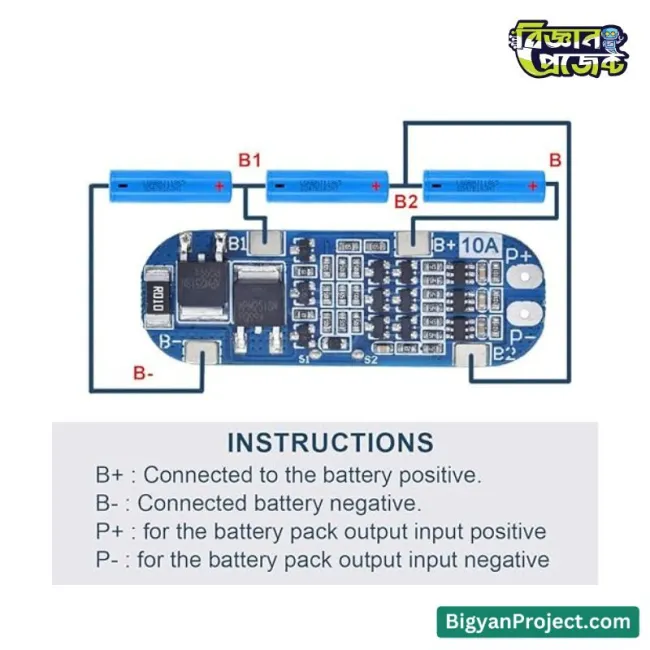

To use the 3S 12V BMS Protection Board, first connect the three lithium-ion cells in series according to the wiring diagram provided by বিজ্ঞান প্রজেক্ট. Ensure correct polarity to avoid damage. Connect the BMS board’s battery terminals to the battery pack and the load terminals to your device or charger. The BMS will automatically monitor the battery status and protect against unsafe conditions. It is recommended to use a compatible charger designed for 3S lithium batteries and to regularly check connections for safety. For optimal performance, avoid exposing the board to extreme temperatures or moisture.

Frequently Asked Questions (FAQs)

• What types of batteries are compatible with this BMS board? It supports 3S lithium-ion batteries including 18650 cells and polymer lithium batteries.
• Can this BMS handle high current loads? Yes, it supports continuous working currents up to 8A and peak currents up to 13A.
• Is the BMS board easy to install for beginners? Yes, with basic understanding of battery wiring, installation is straightforward. Always follow safety precautions.
• Does the board recover automatically after a short circuit? Yes, it features delayed self-recovery to protect the battery and the circuit.
• What is the expected lifespan of this BMS board? The board is designed to last over 30,000 hours under normal operating conditions.

Challenges and Considerations

While the 3S 12V BMS board offers robust protection, users should consider proper heat dissipation during high current use to avoid overheating. Ensuring correct wiring and polarity is critical to prevent damage. Compatibility with chargers and loads should be verified to maintain battery health. Additionally, environmental factors such as humidity and temperature extremes can affect performance, so it’s advisable to use the board within the recommended operating conditions. For large or high-power battery packs, consulting with an expert or using a BMS with higher current ratings might be necessary.

Compatibility

This BMS board is compatible with 3S lithium-ion battery configurations, including 18650 cells and polymer lithium batteries. It works well with most 12V electronic devices, solar lighting systems, and portable power packs. The board can be integrated into DIY projects, electric scooters, and backup power supplies where 3-cell lithium battery management is required. Compatibility with chargers designed for 3S lithium batteries is essential to ensure safe and efficient charging.

Future Enhancement Options

For users looking to expand functionality, integrating Bluetooth or wireless monitoring modules can offer real-time battery status updates. Advanced BMS boards with cell balancing features can further extend battery life and performance. Adding temperature sensors and external cooling solutions can improve safety in high-demand applications. বিজ্ঞান প্রজেক্ট is continuously exploring upgrades and future versions with enhanced diagnostics and communication capabilities to meet evolving user needs.

Benefits

• Protects lithium battery packs from damage due to electrical faults
• Extends overall battery lifespan by maintaining safe operating conditions
• Improves safety by preventing dangerous overcharge and short circuits
• Supports a wide range of applications from DIY projects to commercial devices
• Compact design allows easy integration without adding bulk
• Reduces maintenance needs by automating battery protection functions

Conclusion

The 3S 12V Lithium Battery BMS Protection Board from বিজ্ঞান প্রজেক্ট is an essential component for anyone working with lithium battery packs. Its comprehensive protection features, reliable performance, and versatile application make it a top choice for DIY enthusiasts, hobbyists, and professionals alike. By incorporating this BMS board into your battery system, you ensure safety, enhance battery life, and gain peace of mind. Trust বিজ্ঞান প্রজেক্ট for quality products that empower your electronic projects with safety and efficiency.
