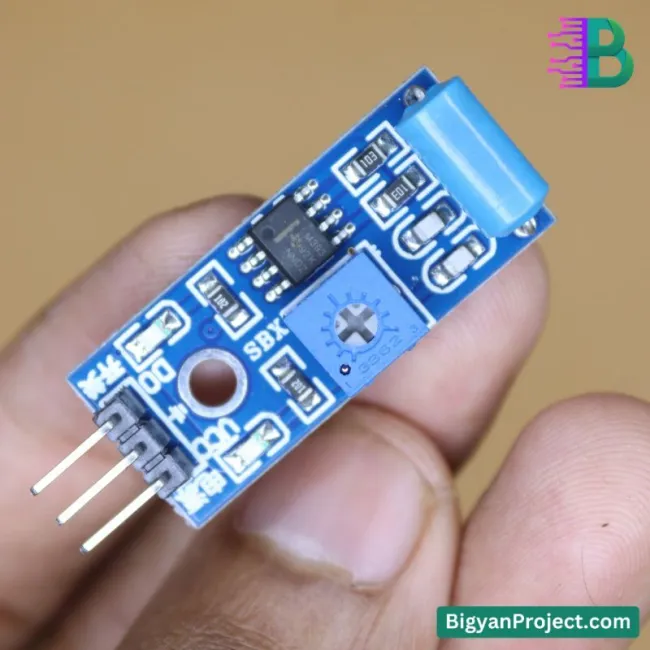

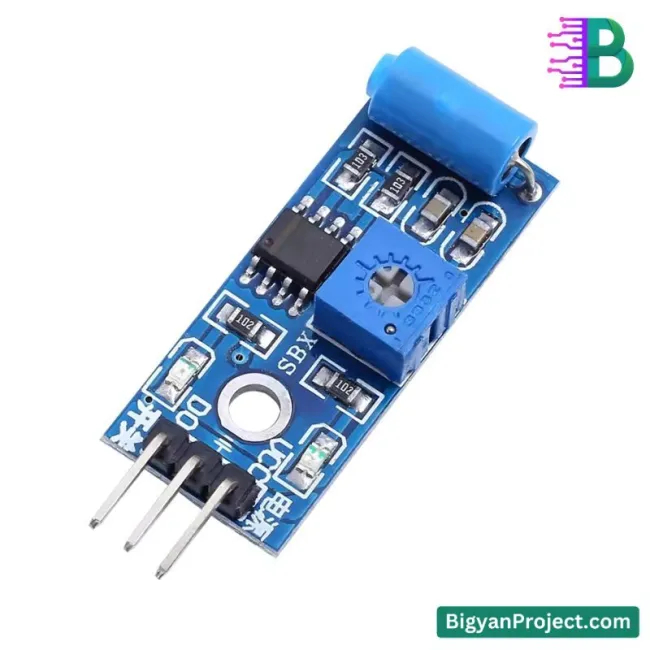

SW-420 Vibration Sensor Module for Arduino Projects

High Sensitivity SW-420 Vibration Sensor Module for Security and Robotics

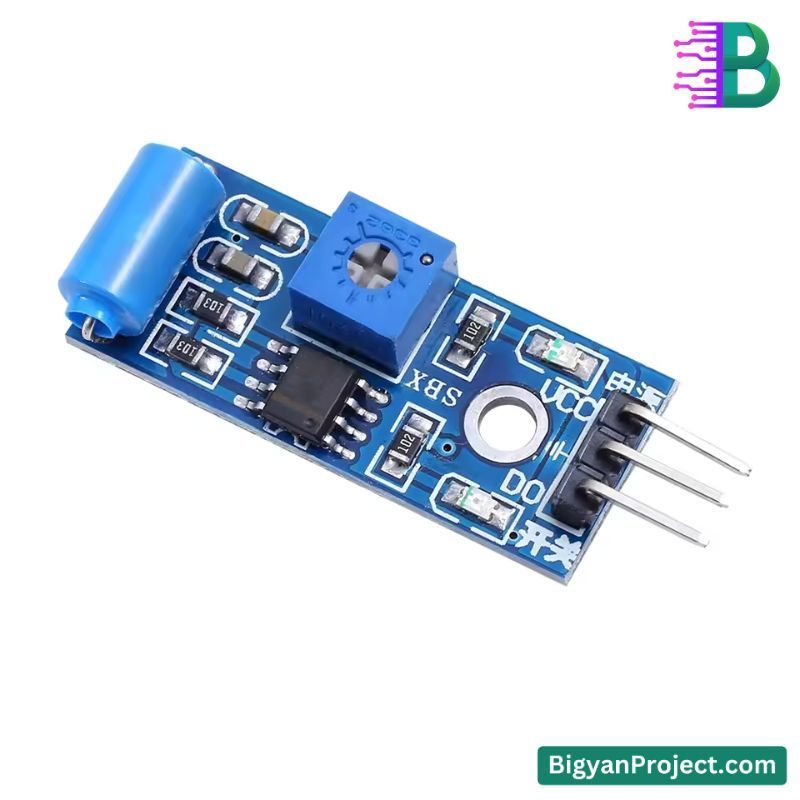

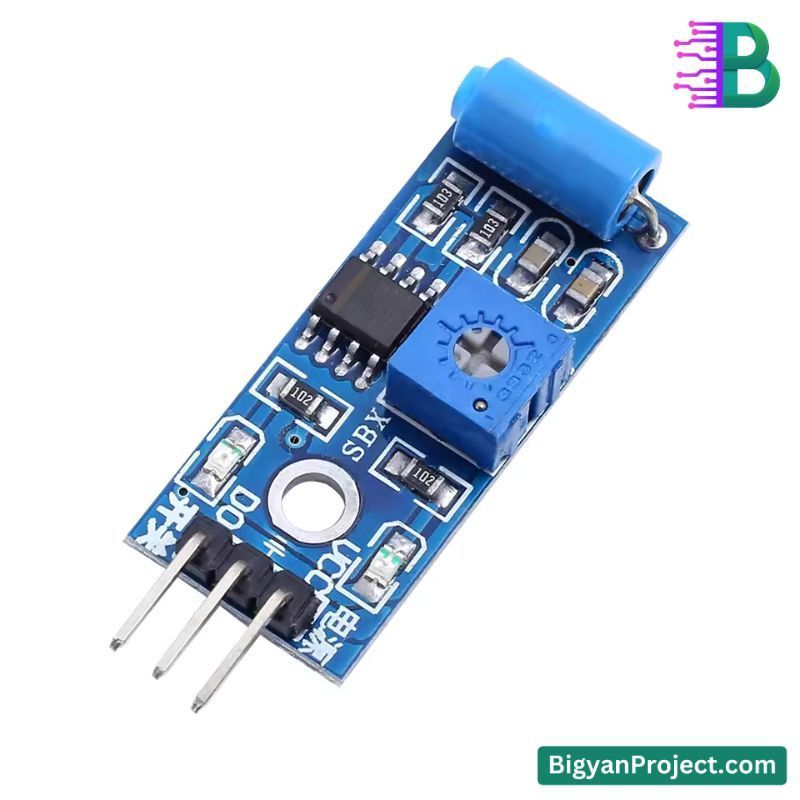

The SW-420 Vibration Sensor Module is an essential component for detecting shocks, movements, and vibrations in electronics and robotics projects. Built with the SW-420 vibration switch and LM393 voltage comparator, this module provides stable and accurate digital output for various security and automation applications. Whether you are designing a theft detection system, an earthquake alert device, or a smart vehicle project, this module ensures precise performance. Available now at Bigyan Project, this vibration sensor is perfect for hobbyists, students, and professional developers looking for reliable components at an affordable price in Bangladesh.

Product Specifications

Features

• Built-in SW-420 vibration sensor with high sensitivity
• Equipped with LM393 comparator for clean and stable output
• Adjustable sensitivity for different environments
• Digital output compatible with Arduino, Raspberry Pi, and other controllers
• Low power consumption with stable performance
• Green LED indicators for power and signal output
• Wide operating voltage range from 3.3V to 5V

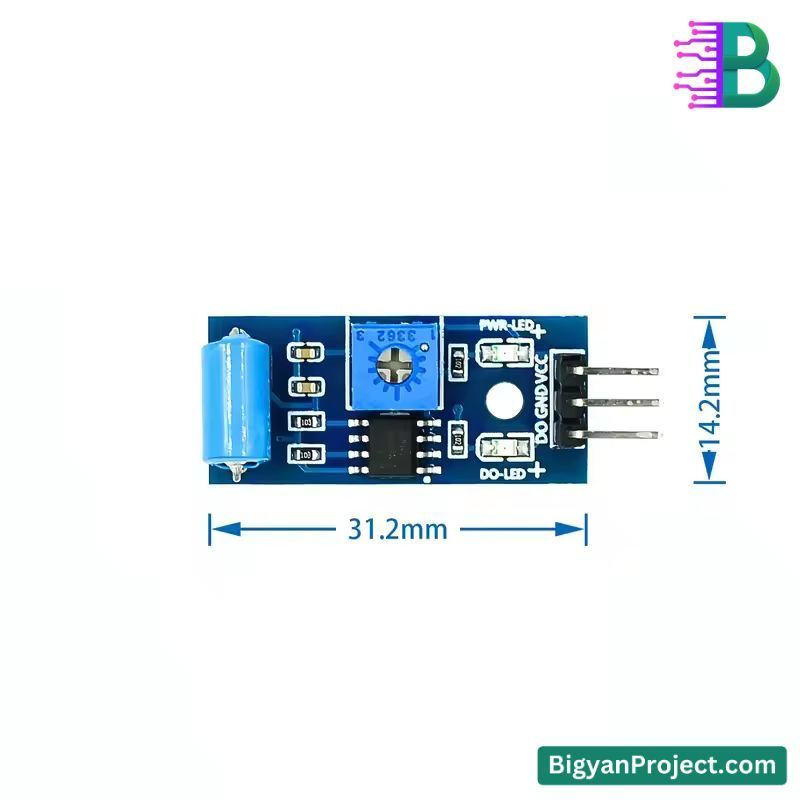

• Compact size with pre-drilled mounting holes for easy installation
• Reliable performance for various security and automation applications
• Affordable and available in Bangladesh at Bigyan Project

Applications / Use Cases

• Anti-theft alarm systems for vehicles and homes
• Earthquake early warning systems
• Shock detection systems in smart cars and robotics
• Vibration monitoring in industrial equipment
• Door and window security alarm triggers
• Motorcycle anti-theft systems
• Home automation safety enhancements
• Scientific experiment and educational projects

User Guide / How to Use

• Connect the VCC and GND pins of the module to the 3.3V to 5V DC supply
• Connect the OUT pin to a digital input pin of your microcontroller
• Use the onboard potentiometer to set the desired vibration sensitivity
• Monitor the OUT pin; LOW signal indicates no vibration, HIGH indicates vibration detected
• Integrate the sensor output into your project code to trigger alarms or actions

Frequently Asked Questions (FAQs)

• Q: Can I use the SW-420 Vibration Sensor directly with Arduino?
  A: Yes, it can be easily connected to Arduino or any microcontroller with a digital input pin.
• Q: How do I adjust the sensitivity of the sensor?
  A: Rotate the onboard potentiometer clockwise or counterclockwise to increase or decrease sensitivity.
• Q: What does the green LED on the module indicate?
  A: The green LED shows the status of the sensor output, lighting up when vibration is detected.
• Q: Is the SW-420 suitable for outdoor use?
  A: It is designed for indoor projects. For outdoor use, additional waterproofing and casing are recommended.
• Q: Where can I buy the SW-420 Vibration Sensor Module in Bangladesh?
  A: You can purchase it easily from Bigyan Project online store.

Challenges and Considerations

• The sensor might detect false positives in extremely noisy environments
• Need proper adjustment of sensitivity for accurate operation
• Protection from moisture and dust is necessary for long-term outdoor use
• Proper debouncing in software might be needed to avoid false triggers

Compatibility

• Arduino Uno, Nano, Mega
• Raspberry Pi and other development boards
• ESP32 and ESP8266 modules
• PIC Microcontrollers
• STM32 boards
• Digital Logic Circuits

Future Enhancement Options

• Integration with wireless modules for remote vibration monitoring
• Connecting to IoT platforms for real-time alerts and monitoring
• Combining with GSM modules to send SMS alerts
• Using multiple sensors for comprehensive environment monitoring
• Custom casing designs for rugged and outdoor applications

Benefits

• Simple and cost-effective vibration detection solution
• Easy to integrate into any digital project
• Highly sensitive and adjustable according to the environment
• Durable design suitable for long-term projects
• Available at an affordable price from trusted sources like Bigyan Project

Conclusion

The SW-420 Vibration Sensor Module is a highly versatile and efficient tool for detecting motion, shocks, and vibrations across various applications. Whether you are a student working on a science project, a hobbyist building a security system, or a professional developing advanced automation, this module offers dependable performance and flexibility. Available at Bigyan Project in Bangladesh, the SW-420 Vibration Sensor Module is the perfect choice to make your projects more intelligent and responsive to their surroundings.
