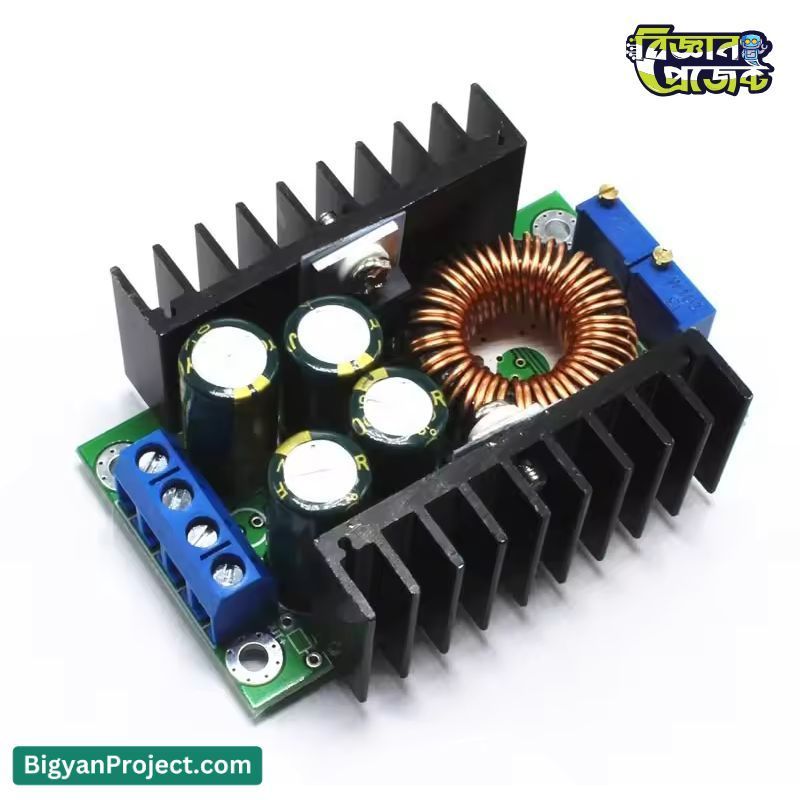

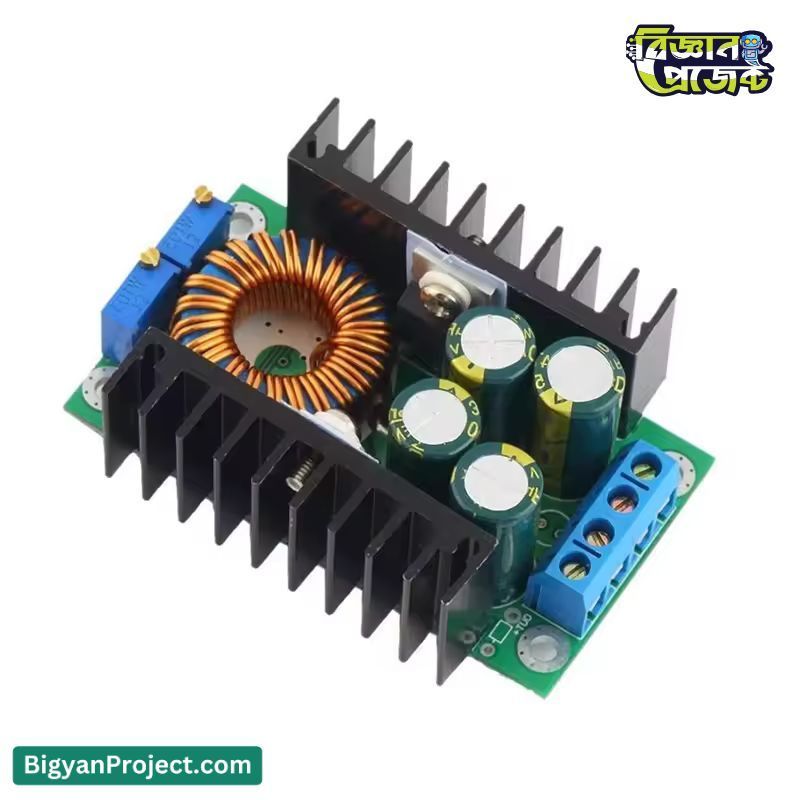

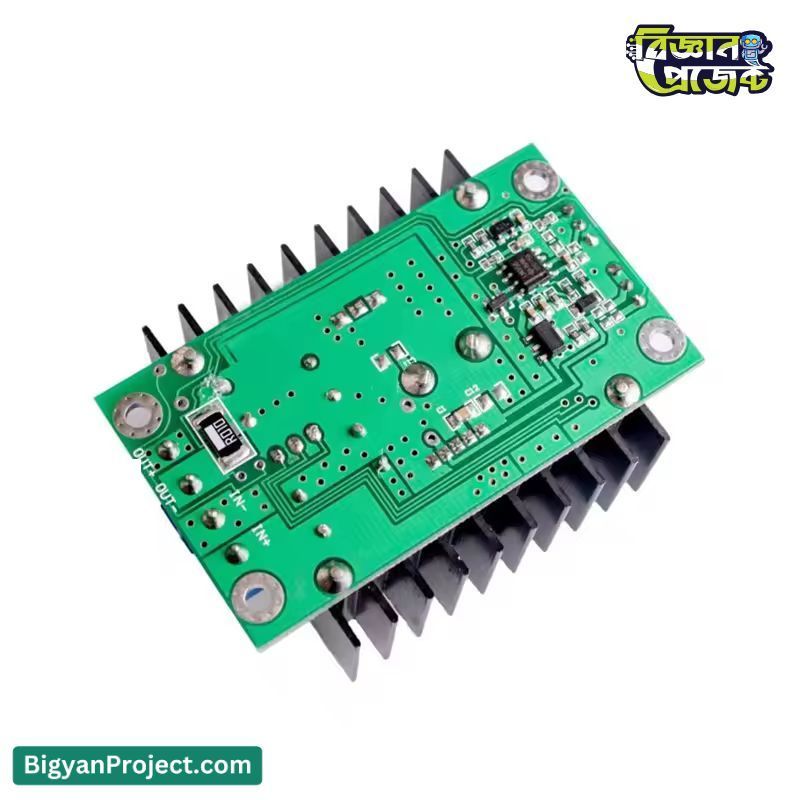

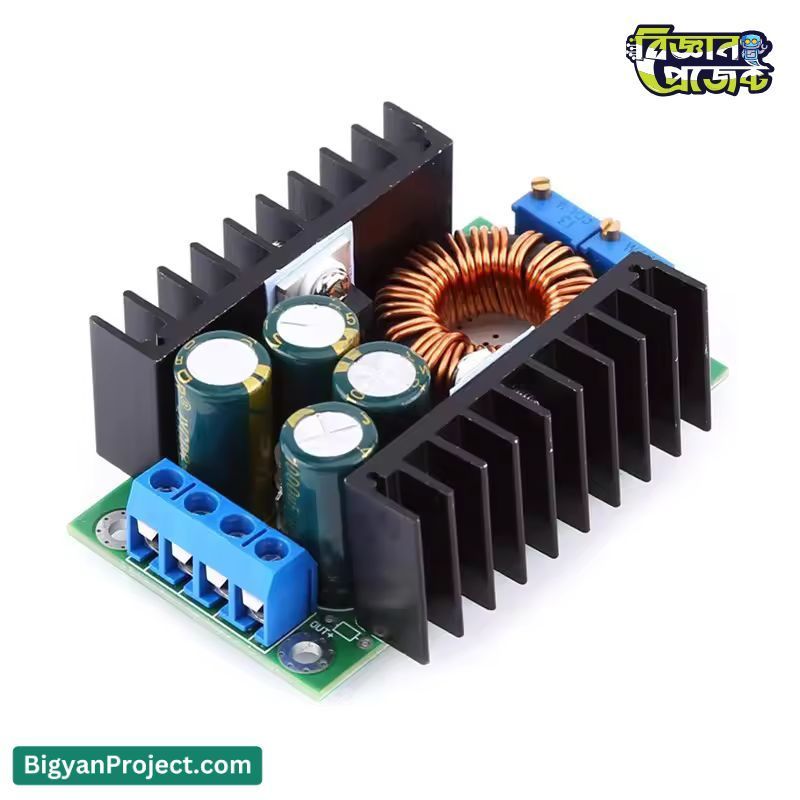

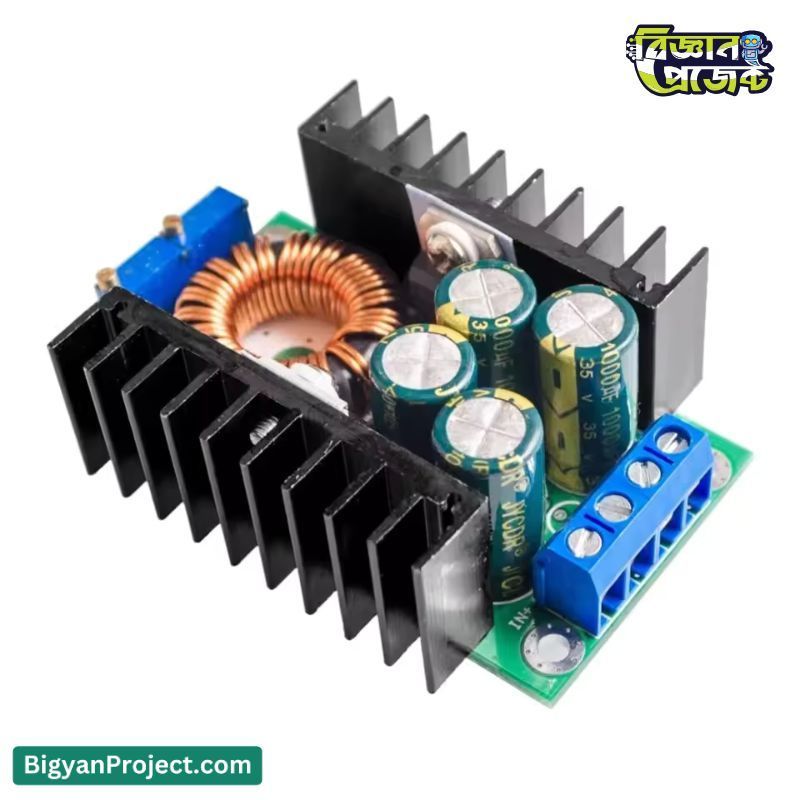

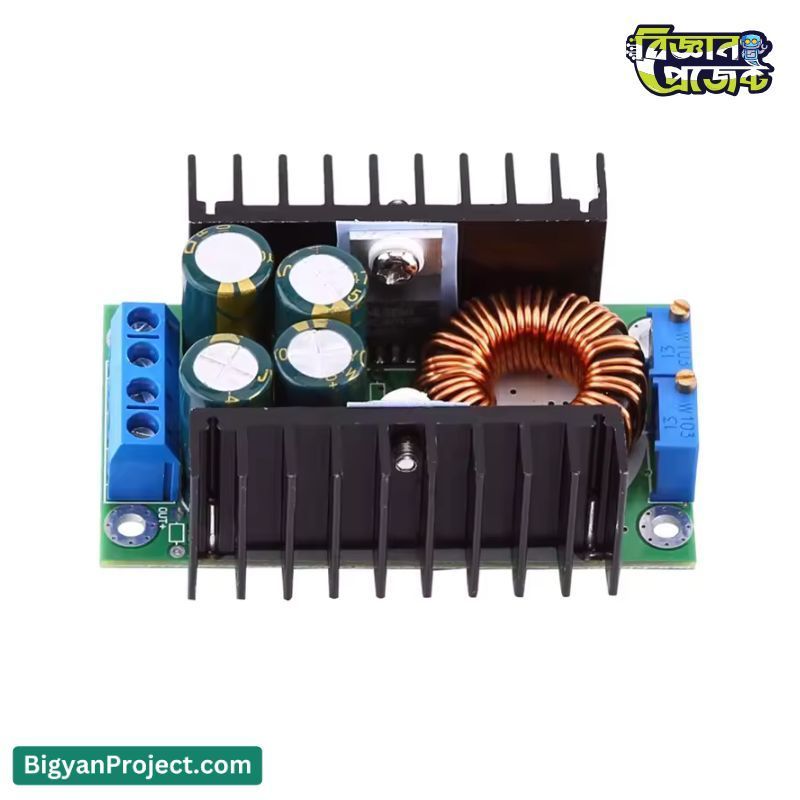

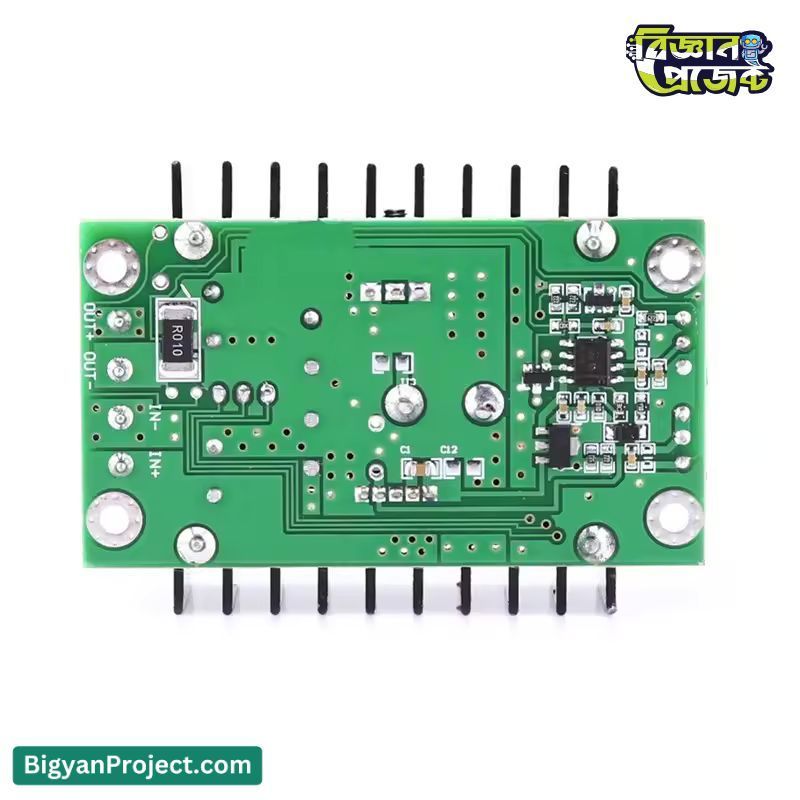

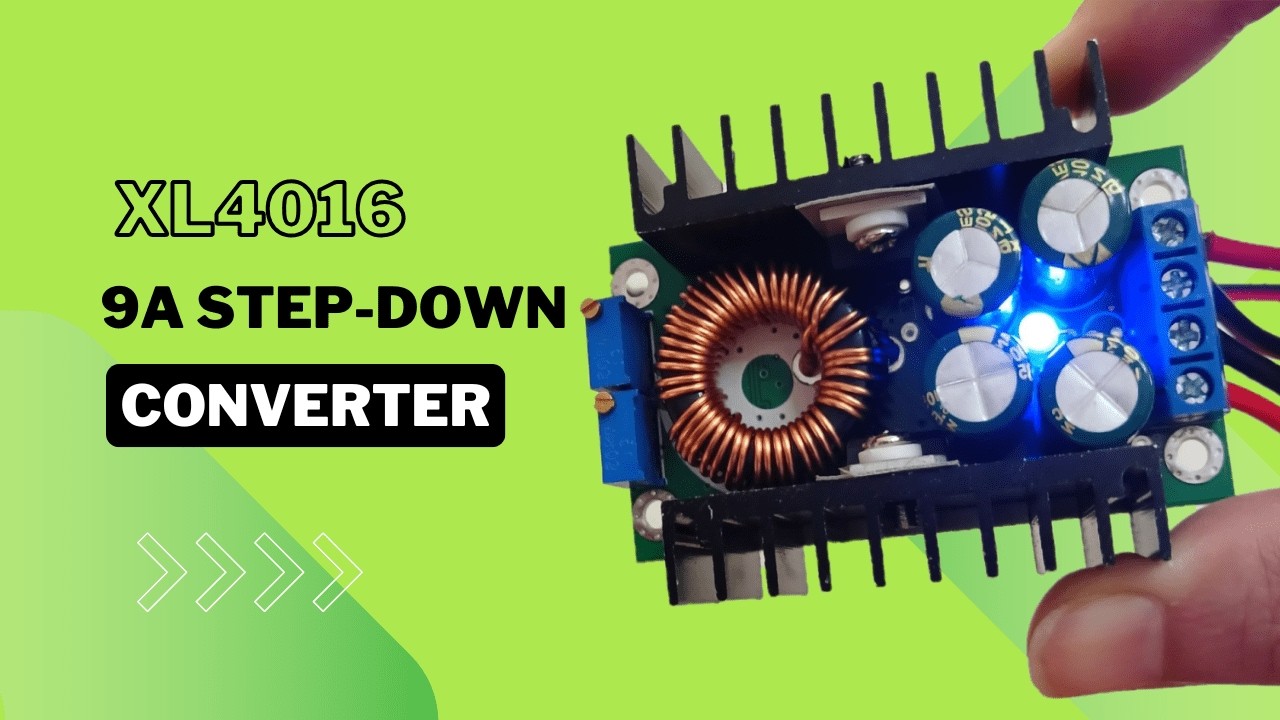

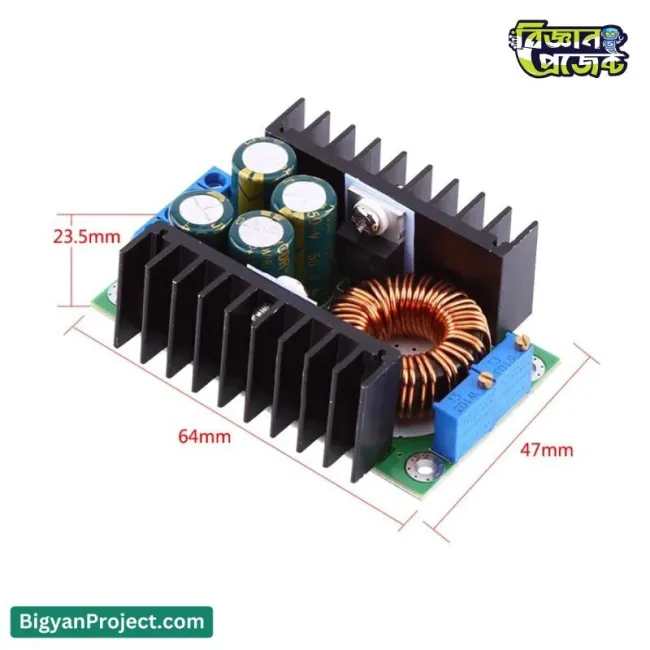

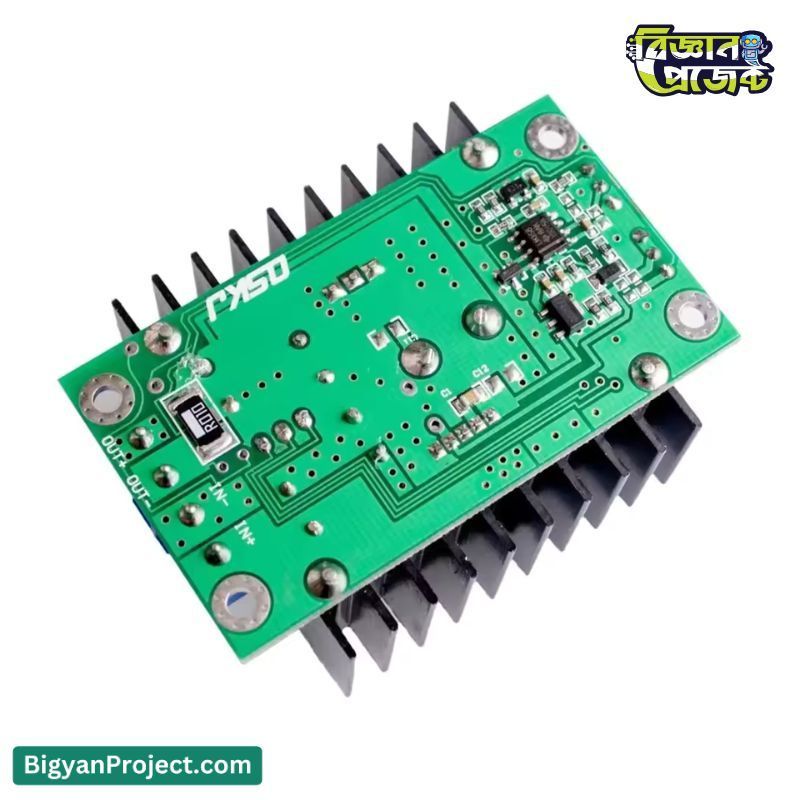

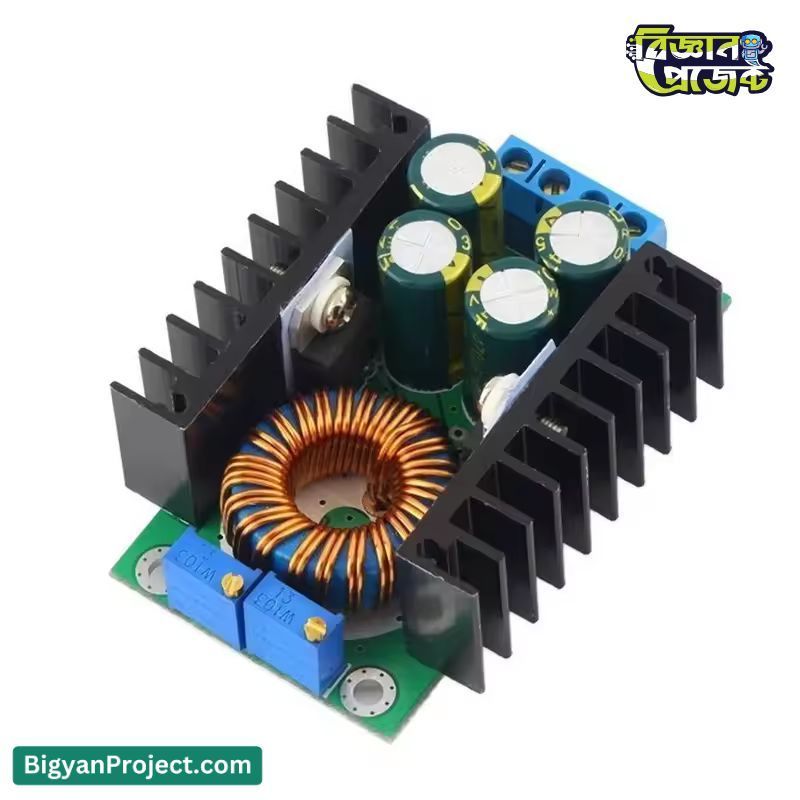

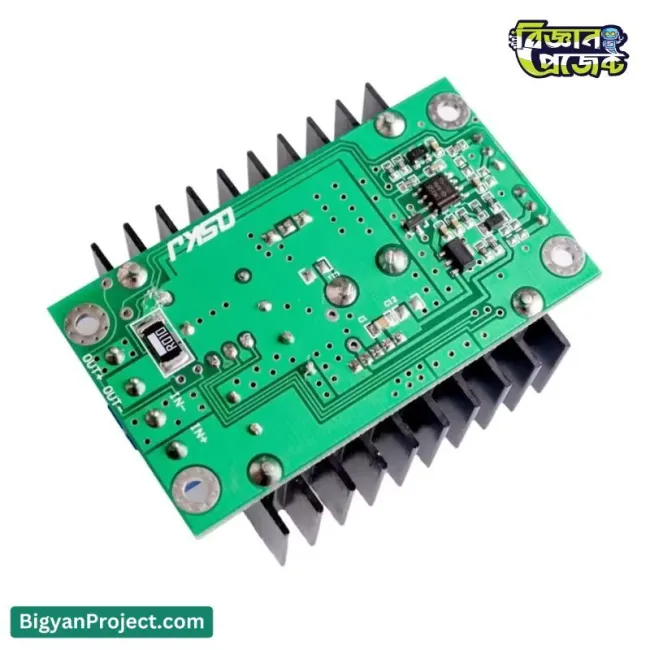

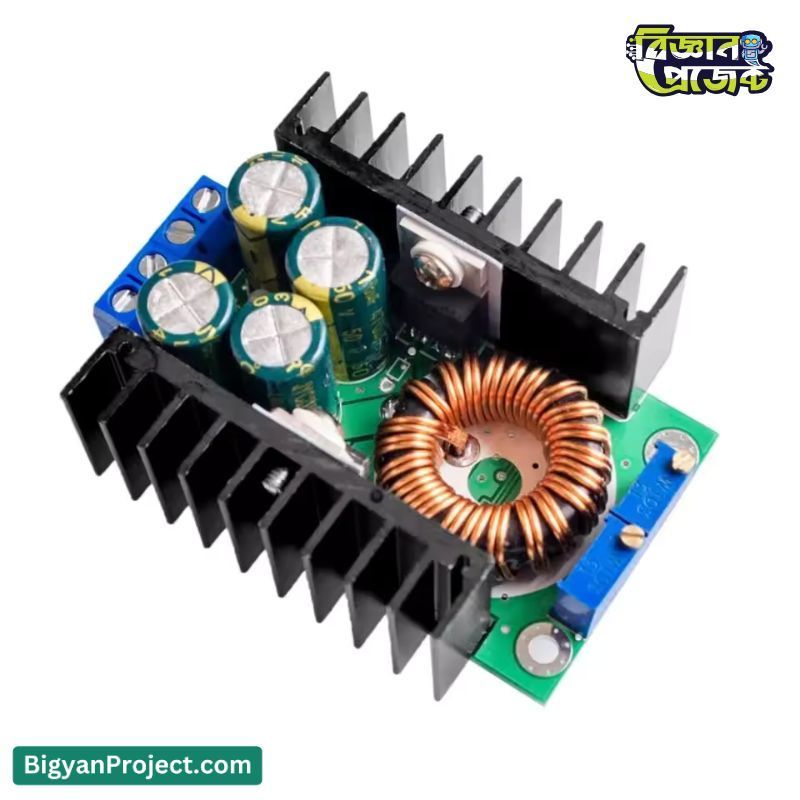

300W 9A CC CV Step Down Buck Converter XL4016

High Power 300W 9A CC CV Adjustable Step-Down Power Supply Module XL4016

Unlock the potential of your high-power electronics projects with the 300W 9A XL4016 Step-Down Buck Converter. This is an essential and powerful DC-DC power supply module, designed for efficiency and precision. It expertly converts a high input voltage (from 5V up to 40V) into a stable, lower, and adjustable output voltage (from 1.2V to 35V). What sets this module apart is its Constant Current (CC) and Constant Voltage (CV) capability, making it the perfect all-in-one solution for a huge range of applications. Whether you are building a high-power LED driver, a reliable battery charging station, or a custom variable power supply for your lab, the XL4016 delivers. This module is a favorite at Bigyan Project for its robustness and suitability for student science projects and advanced DIY electronics in Bangladesh.

Product Specifications

Key Features

• High-Precision Adjustment: Features 3296 multi-turn potentiometers for exceptionally fine-tuned voltage and current settings.
• Dual Control Modes: Integrated Constant Voltage (CV) and Constant Current (CC) modes are perfect for safely charging batteries and driving LEDs.
• High Power Output: Capable of delivering up to 300W of power and a robust 9A of current to handle demanding projects.
• Efficient Heat Dissipation: A double heat sink design effectively cools the MOS tube and Schottky diode, ensuring stability under load.
• Stable Operation: Uses high-frequency capacitors and a large Sendust core inductor to reduce output ripple and improve efficiency.
• Clear Status Indicator: The two-color indicator light provides an immediate visual status (Red for charging/CC, Green for no-load/fully charged).
• Wide Application Range: The broad input and output voltage ranges make it suitable for countless power regulation tasks.

Applications / Use Cases

• Driving high-power single or multiple LED arrays with stable constant current.
• Charging various batteries, including lithium-ion, LiPo, LiFePO4, and lead-acid battery packs.
• Creating a variable DIY benchtop power supply for your electronics lab or workshop.
• Powering vehicle-mounted devices and car laptops by stepping down a 12V or 24V battery.
• Regulating power from solar panels for charging or running low-voltage systems.
• Providing stable power for Arduino, Raspberry Pi, ESP32, and other microcontroller projects.
• A popular choice for science fair and robotics projects available at Bigyan Project.

User Guide / How to Use

This module has two main potentiometers: CV (near the input) adjusts voltage, and CC (near the output) adjusts current. Always set the limits before connecting your load.

As a Constant Current (CC) LED Driver:

1. Set Output Voltage: Power the module. Adjust the CV potentiometer until the output voltage matches your LED's maximum operating voltage.
2. Set Current Limit: Turn the CC potentiometer counter-clockwise about 10-20 turns. Short-circuit the output terminals with a multimeter (set to 10A or 20A scale).
3. Adjust Current: Turn the CC potentiometer clockwise slowly until the multimeter reads the desired operating current for your LED.
4. Connect LED: Disconnect the multimeter and connect your LED. The module will now supply the exact current you set.

As a Battery Charger (CV/CC Mode):

1. Set Float Voltage: Power the module. Adjust the CV potentiometer to set the "float voltage" (the voltage when the battery is full, e.g., 12.6V for a 3S Li-ion pack).
2. Set Charge Current: Turn the CC potentiometer counter-clockwise. Short-circuit the output with a multimeter (on 10A/20A scale) and adjust the CC potentiometer to your battery's desired charging current (e.g., 1A or 2A).
3. Connect Battery: Disconnect the multimeter. Connect the battery to the output. The indicator light will turn RED, showing it is charging in Constant Current mode. When the battery is nearly full, it will switch to Constant Voltage mode, and the light will turn GREEN when fully charged.

Frequently Asked Questions (FAQs)

• Q: What is the difference between the CV and CC potentiometers?
  A: The CV (Constant Voltage) potentiometer sets the maximum output voltage. The CC (Constant Current) potentiometer sets the maximum output current.
• Q: How do I know if I need a fan?
  A: If the module's heat sink or power tube feels too hot to touch (over 65°C), or if you are running it continuously above 8A, adding a small cooling fan is highly recommended for long-term reliability.
• Q: Why is my output voltage not changing when I turn the CV pot?
  A: This can happen if the module is in Constant Current (CC) mode. Check if your CC setting is too low or if your output is shorted. Adjust the CC pot clockwise to increase the current limit, and the CV pot should start working.
• Q: Can I use this for my Arduino project?
  A: Yes, this is an excellent choice. You can use a 12V or 24V adapter as input and adjust the output to a stable 5V or 3.3V to power your Arduino and other components.
• Q: Is this 300W XL4016 module suitable for student science projects in Bangladesh?
  A: Absolutely. This is one of our most recommended modules at Bigyan Project for students due to its versatility. It can power motors, charge batteries, and drive LEDs, all in one package.

Challenges and Considerations

• This module does not have input reverse polarity protection. Double-check your positive and negative connections before powering it on.
• This module does not have output backflow protection. If you are charging a battery, you must add an external Schottky diode on the positive output line to prevent the battery from discharging back into the module.
• The 300W rating is a maximum. For continuous high-power operation (e.g., above 200W or 8A), active cooling with a fan is required.
• The potentiometers are multi-turn (up to 25 turns). You may need to turn them many times to see a significant change in voltage or current.

Compatibility

• Microcontrollers: Arduino UNO, Mega, Nano, ESP32, ESP8266, Raspberry Pi (all models).
• LEDs: High-power 10W, 50W, 100W COB LEDs, and series/parallel LED strings.
• Batteries: 4V, 6V, 12V, 14V, 24V Lead-Acid batteries, and 1S to 7S Lithium-ion/LiPo battery packs (by setting correct voltage).
• Power Sources: Laptop adapters, 12V/24V power supplies, car batteries, and solar panels.

Future Enhancement Options

• Integrate a digital voltmeter and ammeter display to the output for real-time monitoring.
• Build a custom 3D printed or acrylic enclosure to create a complete, professional-looking benchtop power supply.
• Add a small 12V or 24V fan (powered from the input side) for active cooling to unlock its full 300W potential.
• Combine two or three modules to create a dual-output or triple-output isolated power supply (requires separate input sources).

Benefits

• A highly cost-effective solution for high-power DC-DC regulation.
• An all-in-one module for charging, LED driving, and power regulation, saving space and cost.
• Stable and reliable power output for sensitive electronic components, backed by precise controls.
• High conversion efficiency (up to 95%) means less power is wasted as heat.
• Flexible and adaptable to a wide variety of DIY and professional electronics projects.

Conclusion

The 300W 9A XL4016 CC CV Step-Down Buck Converter is an essential, high-performance powerhouse for any electronics workbench. Its combination of high power, wide voltage ranges, and precise dual control (CC/CV) makes it incredibly versatile. Whether you are a student in Bangladesh building a science fair project, a hobbyist creating a custom LED setup, or a professional needing a reliable power solution, this module delivers. Get this dependable and adjustable power supply from Bigyan Project and take your projects to the next level.
