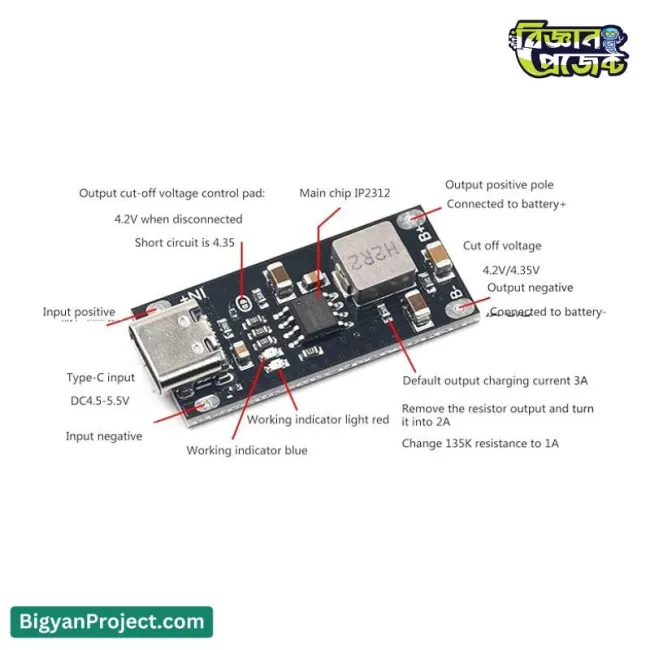

Type-C USB 3A Quick Fast Charging Board IP2312

USB Type-C 3A Quick Fast Charging Lithium Battery Module IP2312

The USB Type-C Lithium Battery Charging Module with IP2312 chip is a compact and highly efficient solution for powering lithium polymer and ternary lithium batteries. Designed to support up to 3A current with quick fast charging, this charging board ensures safe, reliable, and optimized battery charging using advanced CC/CV technology. Whether you are a DIY enthusiast, an electronics developer, or a professional engineer, this module from Bigyan Project provides the right balance of performance, safety, and durability.

Product Specifications:

Features:

• Supports USB Type-C input for universal compatibility
• Quick fast charging with up to 3A high current
• Advanced IP2312 chip for stable and safe charging
• Constant current and constant voltage (CC/CV) charging control
• High efficiency power transfer for reduced heat and energy loss
• Compact and lightweight design suitable for portable projects
• Automatic cut-off and resume protection for battery safety

Applications / Use Cases:

• DIY electronics projects powered by lithium batteries
• Battery charging module for RC devices and drones
• Embedded system development and prototyping
• Power supply for IoT devices and sensors
• Backup battery charging solution in portable devices
• Educational electronics projects offered by Bigyan Project

User Guide / How to Use:

Connect the USB Type-C input to a 5V power source. Attach the lithium battery to the output terminals, ensuring proper polarity. If the battery voltage is below 3V, the module will start with a pre-charge current of 100mA. As the battery voltage rises above 3V, it will switch to constant current mode. Once the voltage nears 4.2V, it enters constant voltage charging and reduces the current until full charge is reached. When the battery is fully charged, the module automatically stops charging and monitors battery health.

Frequently Asked Questions (FAQs):

• Q: Can I use this module for all lithium batteries?
  A: It is designed for lithium polymer and ternary lithium batteries only.
• Q: Does it support Type-A USB input?
  A: This model is optimized for Type-C input for better stability.
• Q: What is the maximum current supported?
  A: The module supports up to 3A charging current.
• Q: Does it have overcharge protection?
  A: Yes, the IP2312 chip provides automatic cut-off and safety monitoring.
• Q: Can I use it for DIY projects?
  A: Yes, it is highly suitable for DIY electronics and educational projects by Bigyan Project.

Challenges and Considerations:

• Requires a stable 5V power supply for reliable charging
• Not suitable for non-lithium battery types
• Proper heat dissipation recommended for long-term 3A use
• Ensure correct polarity when connecting the battery

Compatibility:

• Lithium Polymer batteries (3.7V nominal)
• Ternary Lithium batteries
• DIY electronics circuits requiring quick charging
• USB Type-C input power supplies

Future Enhancement Options:

• Integration with battery management systems (BMS)
• Adding LED indicators for charge status
• Upgrading to higher voltage charging options
• Wireless charging compatibility in future models

Benefits:

• Faster charging with up to 3A output current
• Safe and reliable battery charging using CC/CV control
• Energy-efficient performance with up to 95% efficiency
• Compact size makes it easy to integrate into projects
• Trusted by hobbyists, students, and professionals at Bigyan Project

Conclusion:

The USB Type-C 3A Quick Fast Charging Lithium Battery Module with IP2312 chip is a powerful, efficient, and reliable charging solution for modern electronics projects. Its compact design, high efficiency, and intelligent CC/CV charging make it an excellent choice for DIY hobbyists, students, and professionals. Bigyan Project proudly offers this module to support innovative projects and to help users achieve safe, efficient, and long-lasting battery performance.
