ESP32 Footstep Power Generator Science Project

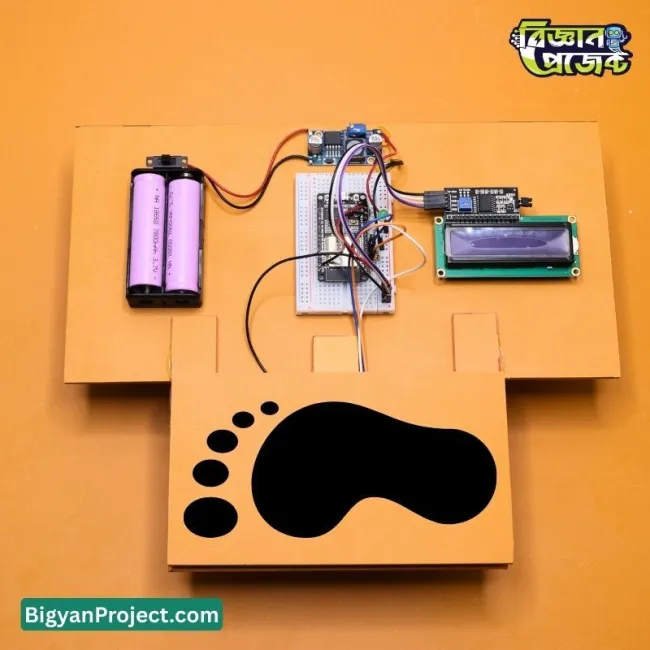

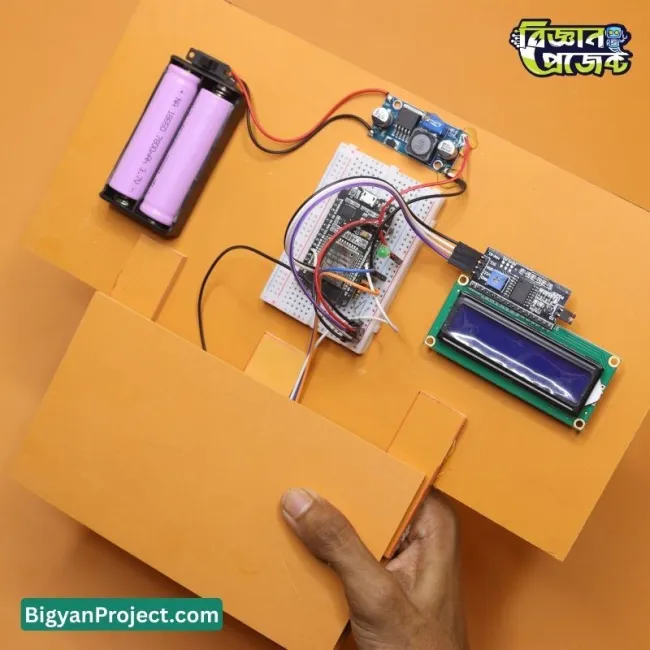

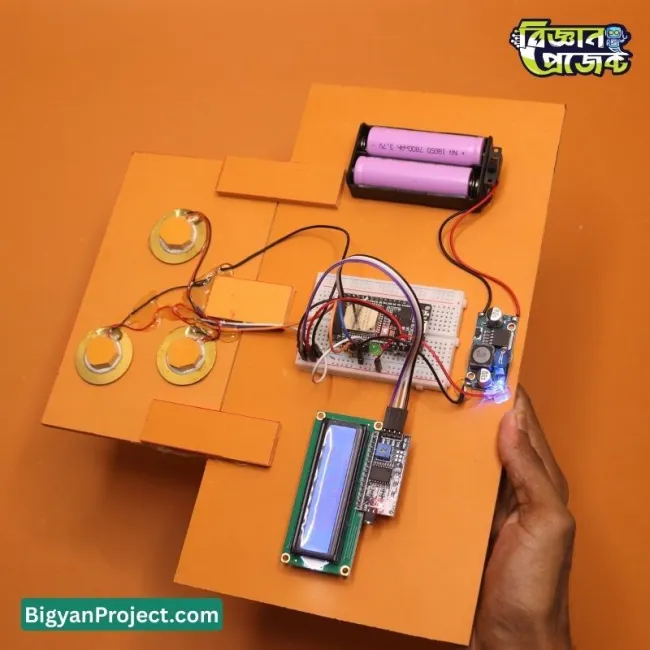

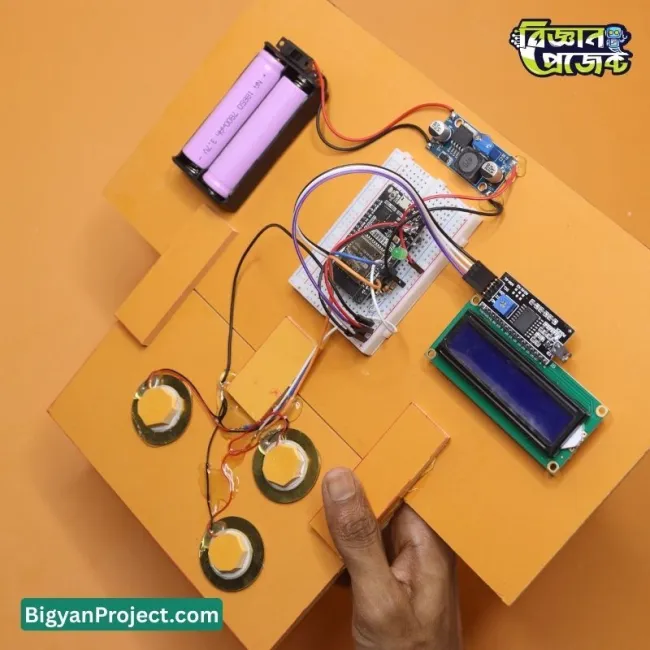

ESP32 Footstep Energy Harvesting and Power Generation Project Kit

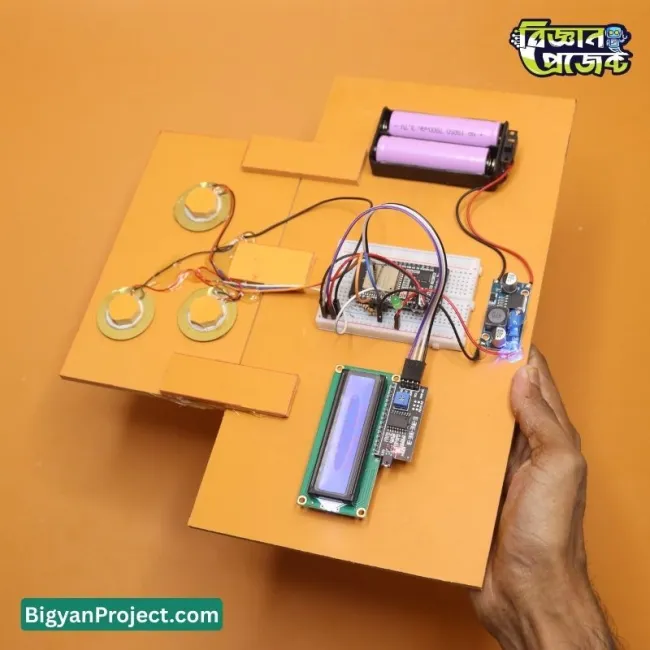

The ESP32 Footstep Energy Harvesting Project Kit is an educational and practical demonstration system designed to convert mechanical pressure from human footsteps into usable electrical energy. This project uses piezoelectric sensors to detect pressure, condition the generated signals, store energy in rechargeable batteries, and manage power distribution through a regulated supply. It is purpose-built for science fairs, engineering exhibitions, and university final year project submissions.

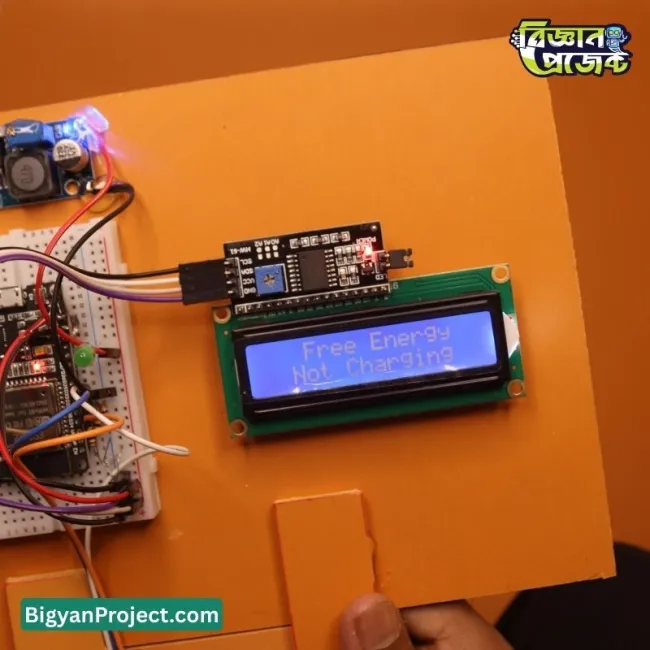

Powered by an ESP32 development board, the system provides real-time feedback using a 16x2 LCD display and a green LED indicator. The LED glow duration varies according to applied pressure, allowing students to visually understand the relationship between force and energy generation. This project is widely used by learners associated with Bigyan Project and বিজ্ঞান প্রজেক্ট as a hands-on introduction to renewable energy concepts, embedded systems, and IoT-ready controllers.

Product Specifications

Features

• Demonstrates real-world footstep-based power generation
• ESP32-based control with WiFi and Bluetooth capability
• Visual energy feedback through LED glow duration
• Real-time system status display on LCD
• Rechargeable battery-based energy storage
• Stable 5V regulated output using buck converter
• Low-noise piezo signal conditioning circuit

Applications / Use Cases

• Science fair and STEM exhibition projects
• University final year engineering projects
• Renewable energy and energy harvesting demonstrations
• Embedded systems and ESP32 learning kits
• IoT and smart energy concept prototyping

User Guide / How to Use

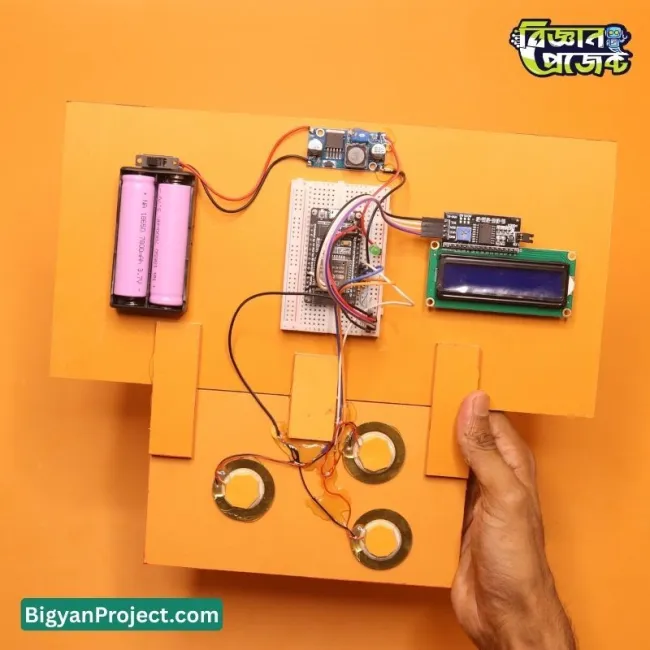

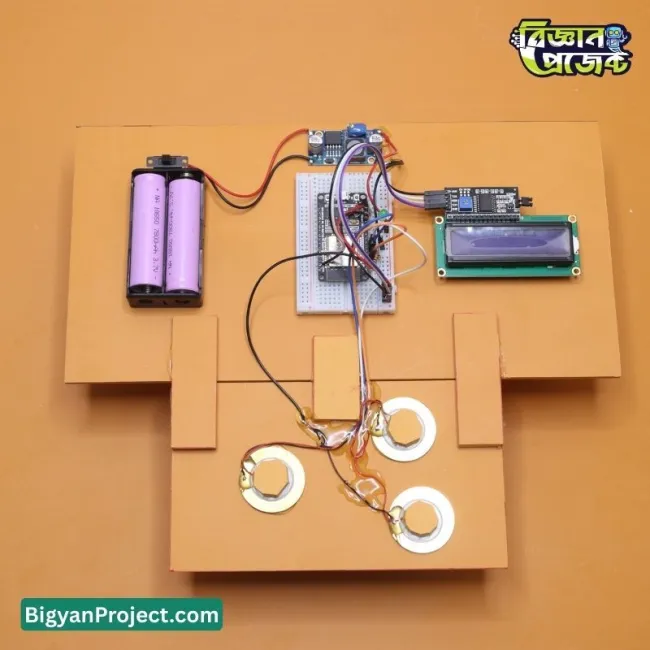

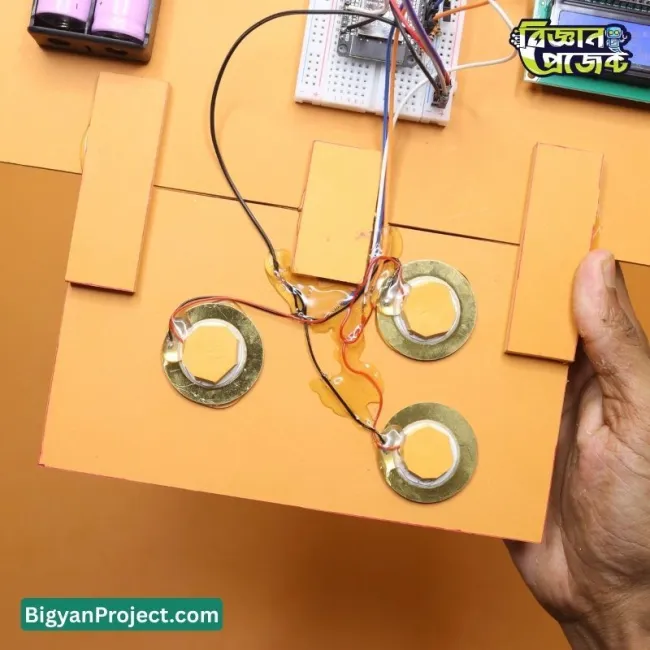

• Mount the piezo sensors securely under the footstep surface
• Connect sensors to the breadboard with noise bypass resistors

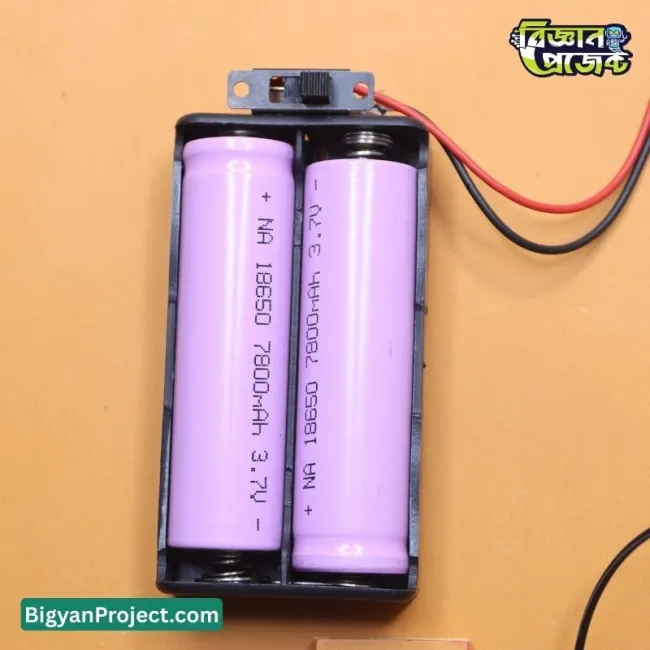

• Insert the 18650 batteries into the holder with correct polarity

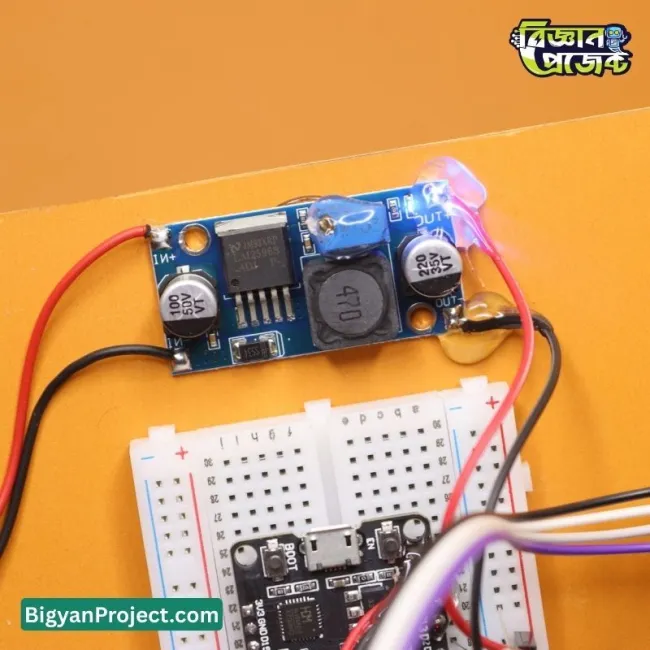

• Adjust LM2596 output voltage to stable 5V before powering ESP32
• Power on the system using the DPDT slide switch
• Apply pressure on the sensor surface to observe LED and LCD output

Frequently Asked Questions (FAQs)

• Q: How does the project generate electricity?
  A: Piezo sensors generate voltage when mechanical pressure is applied through footsteps.
• Q: Does higher pressure produce more output?
  A: Yes, higher pressure results in longer LED glow time and higher energy generation.
• Q: Is this suitable for final year project submission?
  A: Yes, it is designed specifically for academic demonstrations and submissions.
• Q: Can the ESP32 WiFi features be used in this project?
  A: Yes, the ESP32 allows future IoT data logging and wireless monitoring.

Challenges and Considerations

• Piezo sensors generate low current and require energy accumulation
• Mechanical mounting affects sensor performance
• Voltage regulation must be calibrated carefully
• Not suitable for powering high-load devices directly

Compatibility

• Compatible with ESP32 programming via Arduino IDE
• Works with standard 18650 Li-Ion batteries
• Supports I2C-based LCD modules
• Expandable with additional sensors and modules

Future Enhancement Options

• Wireless energy data logging using ESP32 WiFi
• Integration with IoT dashboards
• Use of supercapacitors for faster energy storage
• Multiple footstep zones for higher output
• Mobile app-based monitoring

Benefits

• Hands-on learning of renewable energy concepts
• Clear visualization of force-to-energy conversion
• Ideal for academic and educational environments
• Reusable and modular design
• Widely supported by Bigyan Project learning resources

Conclusion

The ESP32 Footstep Energy Harvesting Project Kit is a comprehensive educational solution that bridges renewable energy principles with modern embedded systems. It offers students and educators a practical, scalable, and engaging way to explore energy generation concepts, making it a valuable addition to science fairs, laboratories, and academic projects under Bigyan Project and বিজ্ঞান প্রজেক্ট initiatives.
