Dual Axis Solar Tracker with Arduino and LDR

Smart Dual Axis Solar Tracker with Arduino and LDR Control

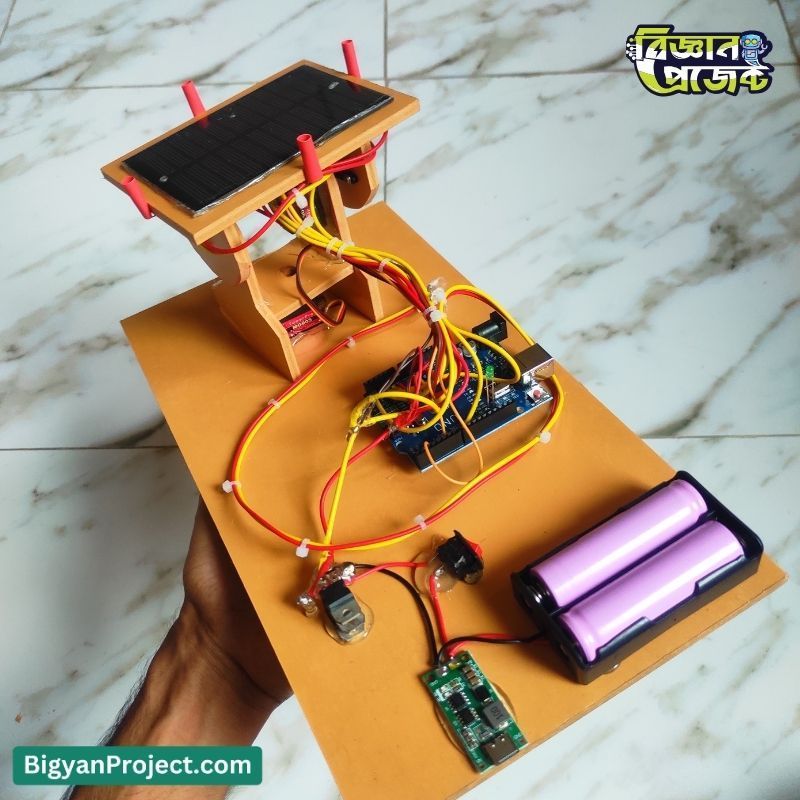

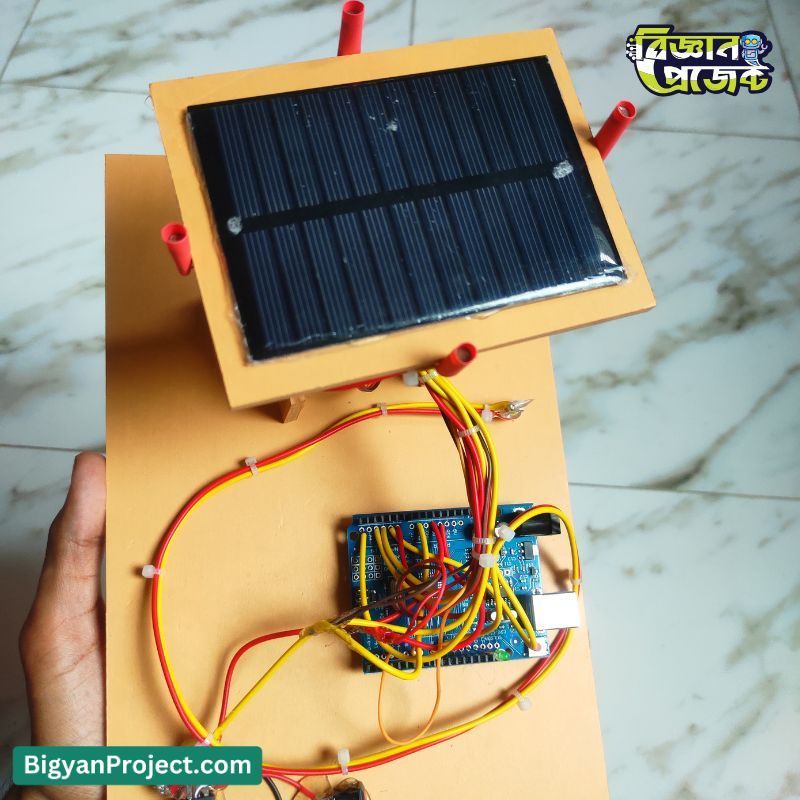

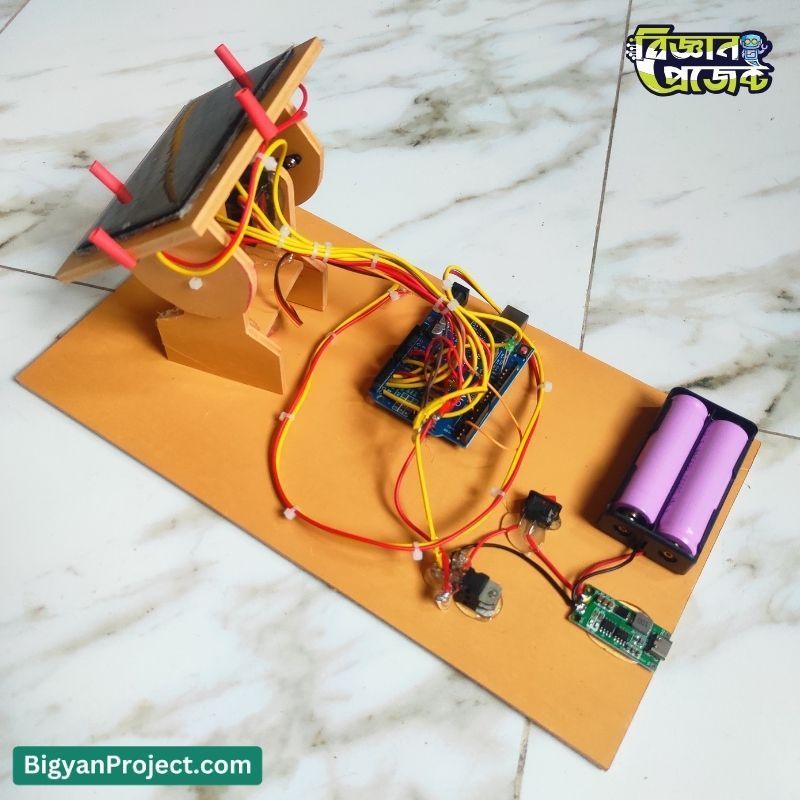

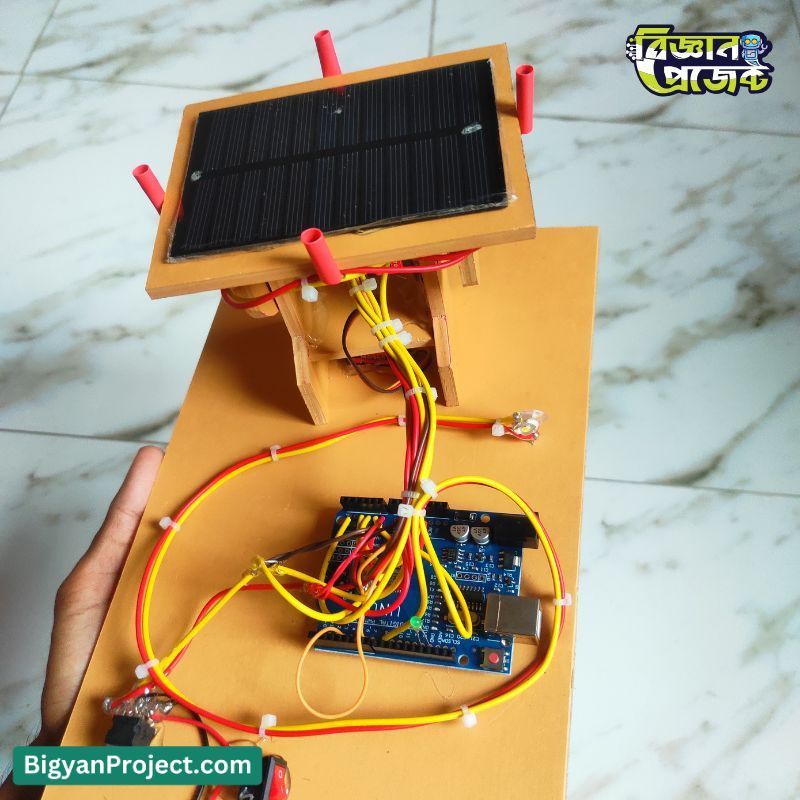

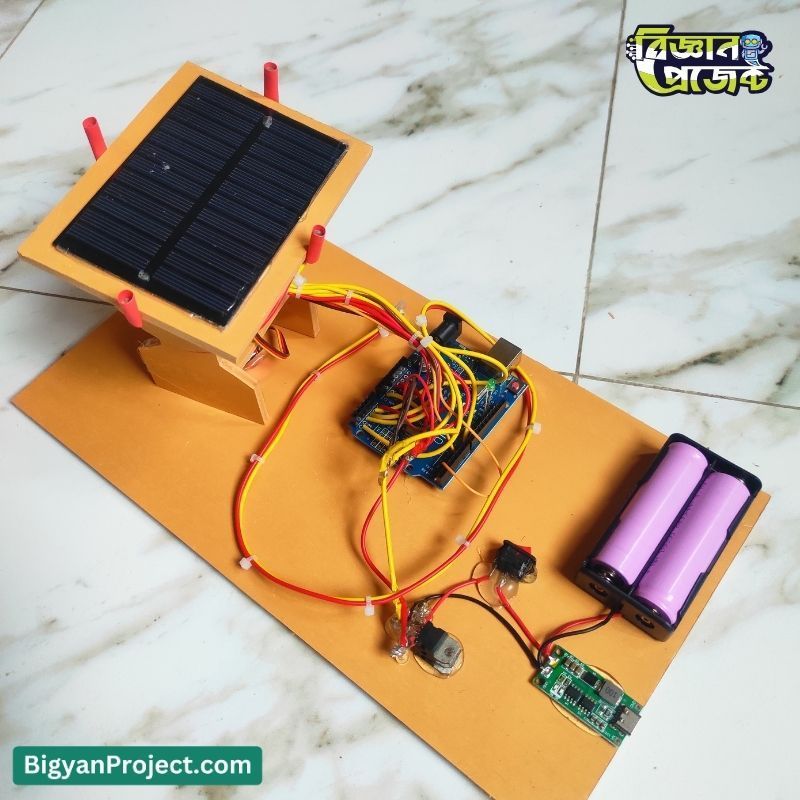

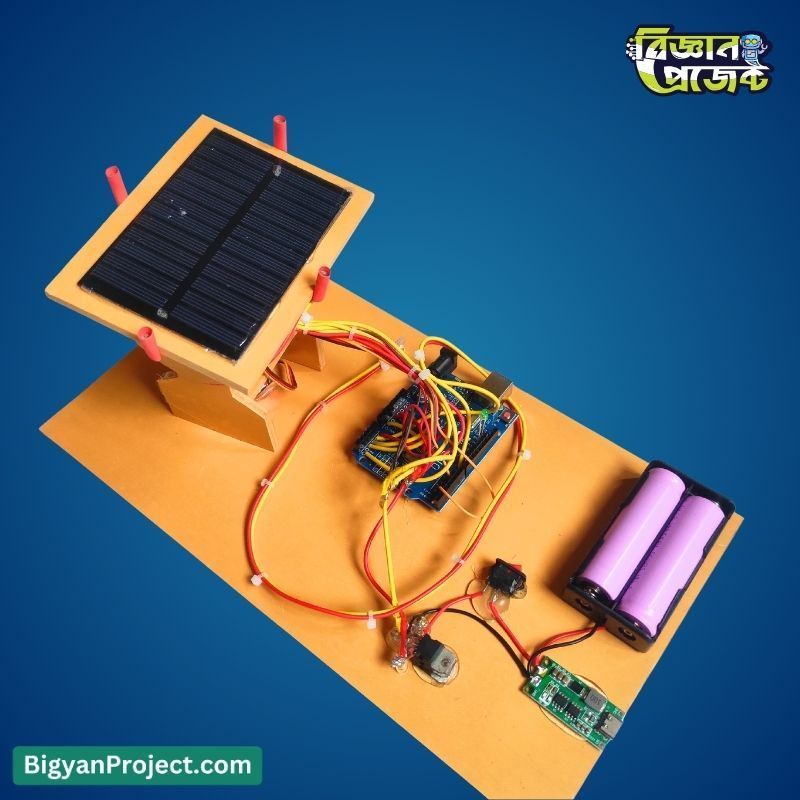

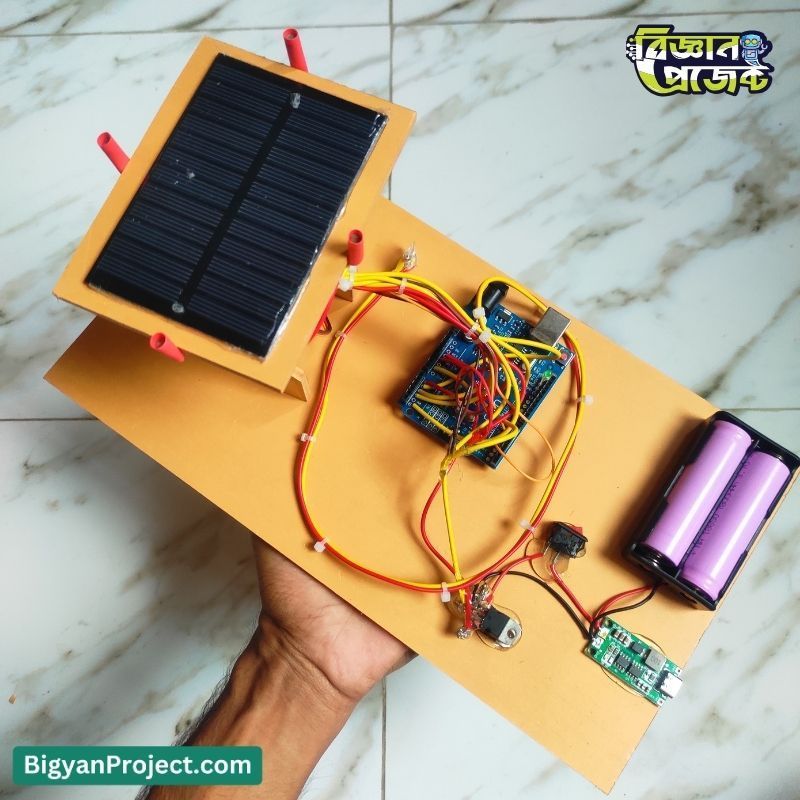

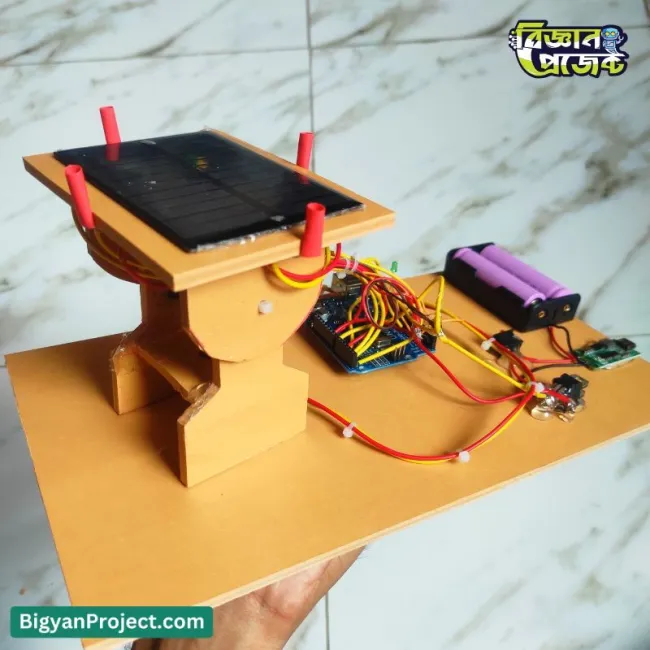

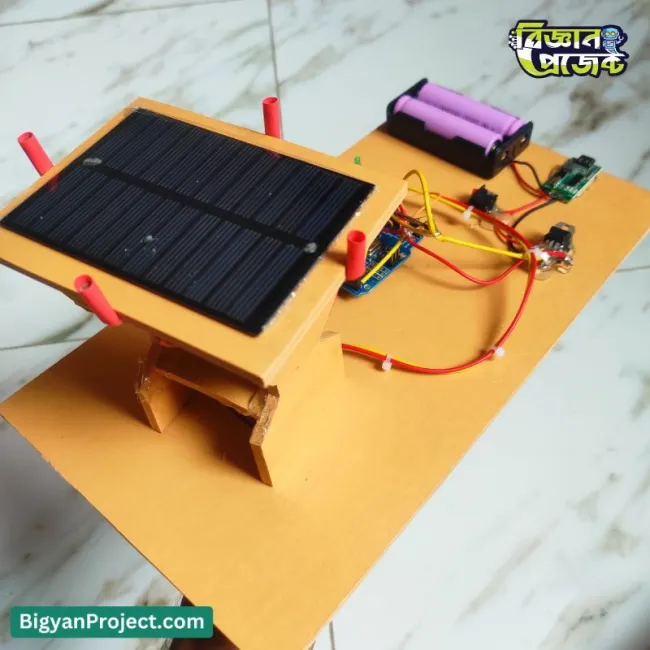

The Smart Dual Axis Solar Tracker is an advanced science project developed with Arduino Uno, MG90s servo motors, and LDR light sensors. This system is designed to maximize solar energy efficiency by automatically adjusting the solar panel position both vertically and horizontally. By continuously tracking sunlight, it ensures the solar panel captures the highest possible amount of energy throughout the day. This project from Bigyan Project is ideal for students, hobbyists, and renewable energy enthusiasts who want to learn the principles of solar tracking, automation, and smart energy systems. The solar tracker also features an automatic day and night light control system, making it practical for real-life demonstration and learning purposes.

Product Specifications

Features

• Dual axis solar tracking for maximum sunlight capture
• Automatic horizontal and vertical panel adjustment
• Arduino Uno based intelligent control system
• Integrated LDR light sensor modules for accurate detection
• Automatic day-night LED control system
• Rechargeable lithium-ion battery powered system
• Portable science project suitable for educational purposes
• Sturdy 5mm PVC body with compact design

Applications / Use Cases

• Educational science projects for schools and universities
• Renewable energy awareness programs
• DIY projects for students and hobbyists
• Solar energy research and demonstrations
• Prototype development for smart solar systems
• Exhibitions, science fairs, and project competitions

User Guide / How to Use

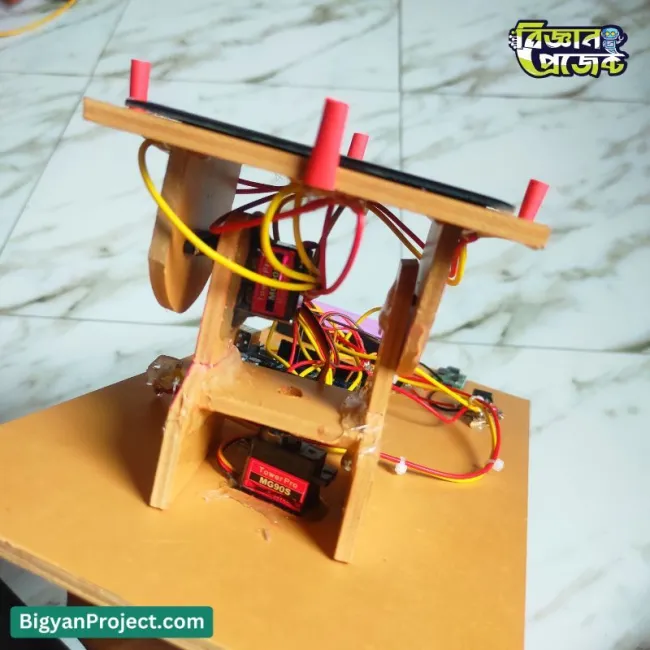

To use the dual axis solar tracker, place the system in an open area with direct sunlight. The Arduino Uno receives input from the four LDR sensors and controls the MG90s servo motors to adjust the solar panel’s angle. When sunlight is available, the tracker automatically positions the panel for maximum light exposure. During daylight, the charging indicator LED remains ON, while the home light remains OFF. When no sunlight is detected, the COB LED automatically switches ON, providing night-time illumination. Recharge the lithium-ion batteries using the provided Type-C charger for continuous operation.

Frequently Asked Questions (FAQs)

• Q: What is the purpose of a dual axis solar tracker?
  A: It increases solar efficiency by tracking sunlight in both horizontal and vertical directions.
• Q: Can this project be used for real household solar panels?
  A: This version is mainly for science projects and demonstrations, but the principle can be applied to larger systems.
• Q: Which microcontroller is used in this project?
  A: The system is powered by an Arduino Uno R3 SMD board.
• Q: How is the power managed in this system?
  A: It uses 18650 lithium-ion batteries with an external Type-C charger and voltage regulators.
• Q: Is it suitable for beginners?
  A: Yes, it is designed for students and DIY hobbyists to easily understand solar tracking concepts.

Challenges and Considerations

• Limited weight capacity due to MG90s servo motors
• Requires direct sunlight for accurate tracking
• Battery life depends on quality of 18650 cells
• Outdoor usage may need waterproof casing
• Proper calibration of LDR sensors is necessary

Compatibility

• Works with Arduino Uno and similar boards
• Supports 5V small-scale solar panels
• Compatible with LDR sensor modules
• Can be extended with additional sensors

Future Enhancement Options

• Integration with IoT for remote monitoring
• Use of stronger servo motors for larger panels
• Battery protection circuit for long life
• Weather-proof casing for outdoor installation
• Data logging system for solar efficiency tracking

Benefits

• Improves solar energy efficiency through dual axis tracking
• Enhances student knowledge in renewable energy and Arduino programming
• Low-cost and DIY friendly science project
• Portable and easy to assemble design
• Practical demonstration of smart automation and solar technology

Conclusion

The Smart Dual Axis Solar Tracker with Arduino and LDR sensors is an innovative educational project offered by Bigyan Project. It demonstrates the practical application of renewable energy, automation, and smart tracking technology. By using simple components like MG90s servo motors, Arduino Uno, and rechargeable batteries, this project provides a hands-on learning experience for students, researchers, and DIY makers. It is an excellent choice for anyone interested in solar energy experiments, robotics, or electronics. Bigyan Project ensures this science project is both educational and effective for real-world demonstrations.
