Footstep Power Generator Project - Piezoelectric

Kinetic Footstep Power Generator Project by Bigyan Project

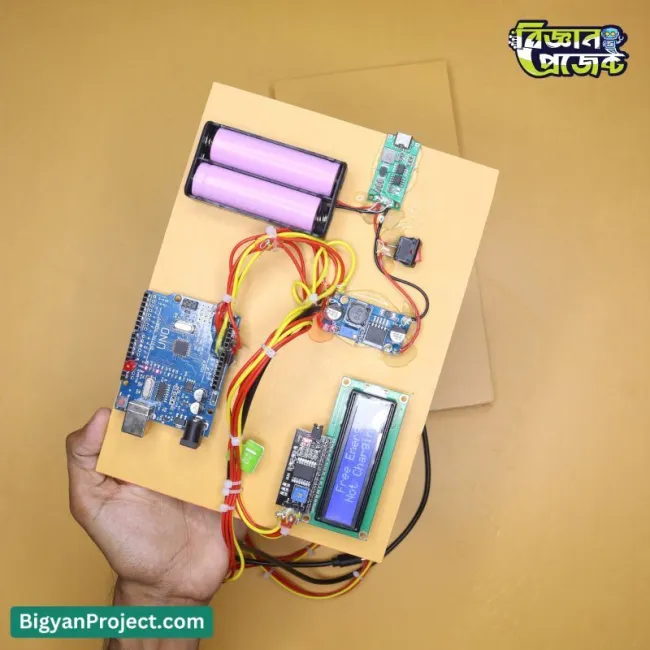

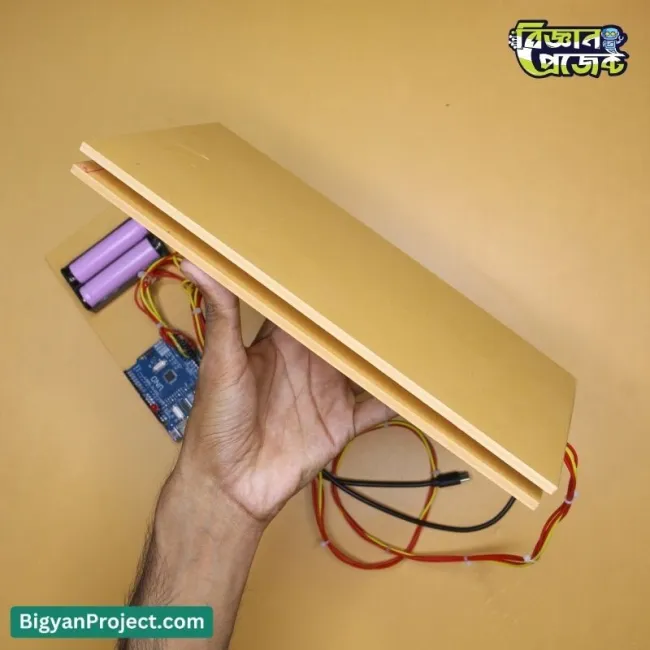

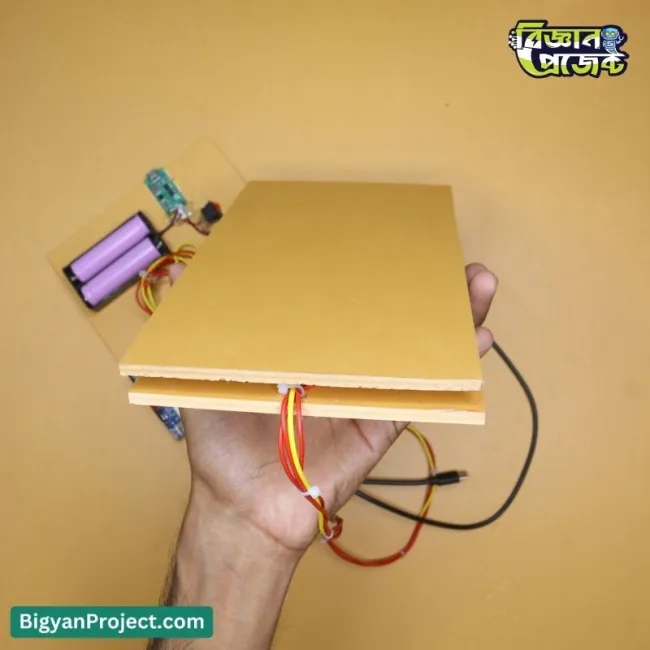

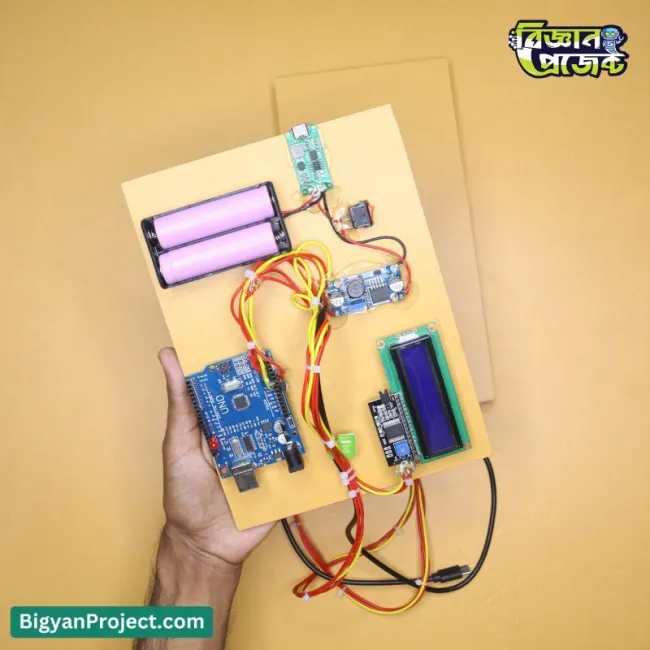

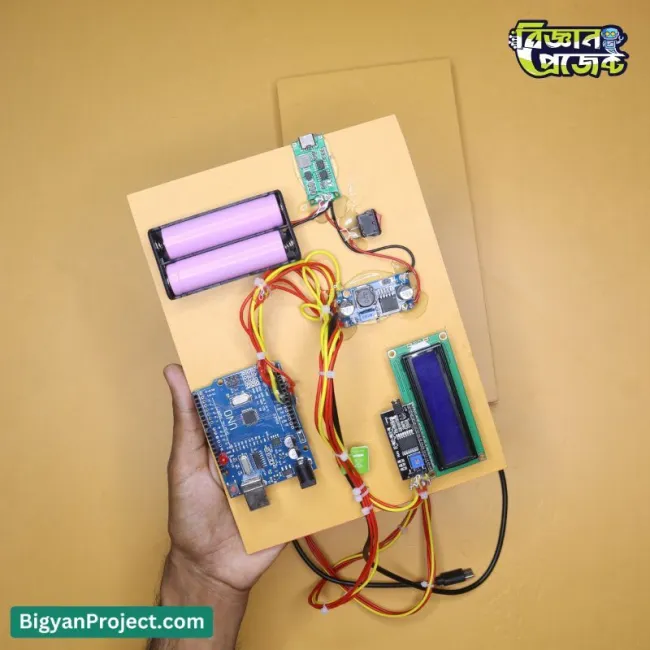

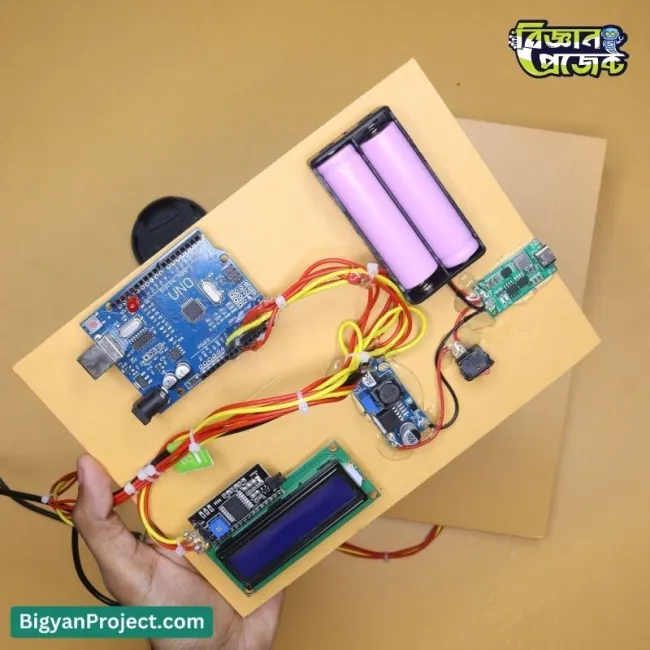

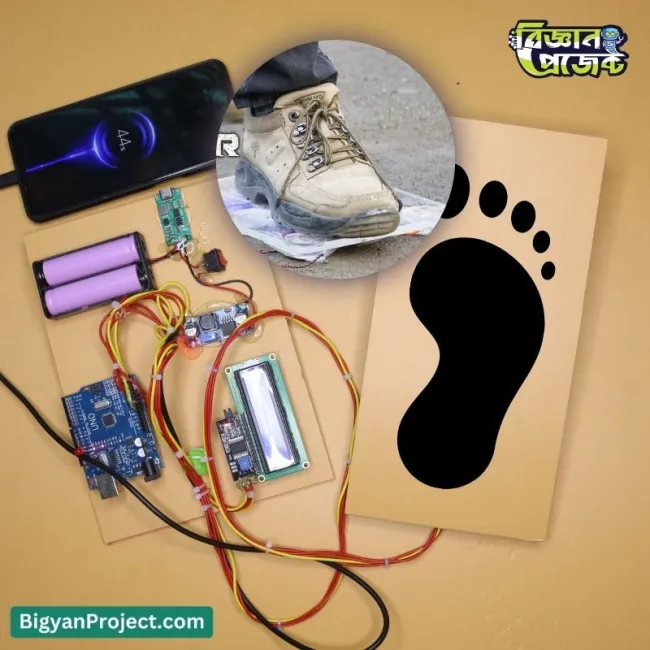

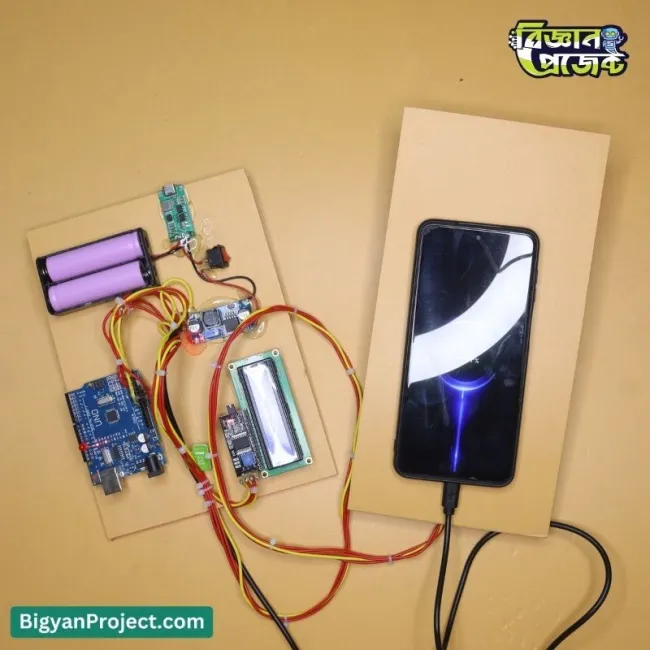

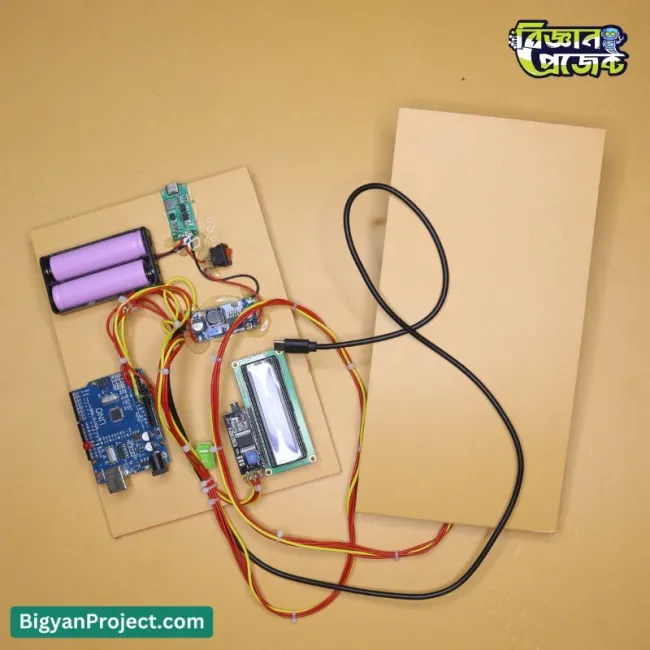

Introducing the ultimate solution for sustainable personal power generation: the Kinetic Footstep Power Generator Project by Bigyan Project. This cutting-edge system harnesses the ambient kinetic energy generated by everyday foot traffic and light vehicular movement, transforming it into usable electrical power. Imagine a world where every step you take contributes to a cleaner energy future and keeps your essential devices charged. Our innovative design captures this energy, stores it efficiently in high-capacity batteries, and makes it readily available for charging your mobile phones and other USB-powered gadgets. This project is not just a product; it's a statement for a sustainable lifestyle and a fantastic educational tool for understanding renewable energy principles. Experience the power of motion with the Bigyan Project's Kinetic Footstep Power Generator.

Product Specifications

Key Features

• Harnesses kinetic energy from footsteps and light foot traffic.
• Utilizes reliable piezoelectric technology for energy generation.
• Stores energy in high-capacity rechargeable 18650 Li-Ion batteries.
• Provides a stable 5V USB output for charging mobile devices and other electronics.

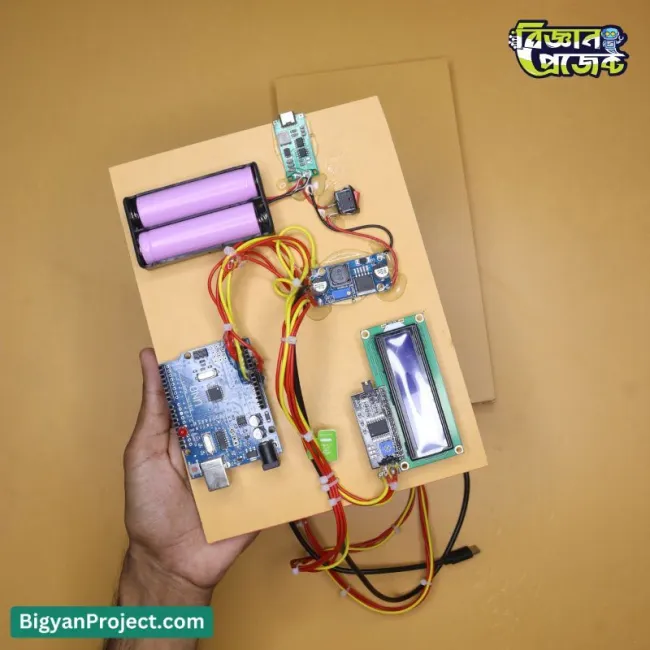

• Features a clear 16x2 LCD display for system monitoring.
• Controlled by the versatile Arduino Uno R3 SMD board.
• Durable and compact design suitable for various installations.
• Environmentally friendly and promotes renewable energy use.
• Integrated Type-C charging port for the internal battery.
• Simple on/off control with a rocker switch.
• Designed and supplied by Bigyan Project.

Applications & Use Cases

• Public Walkways and Sidewalks: Generate power from pedestrian movement in high-traffic areas.
• Educational Institutions: An excellent tool for STEM education, demonstrating physics and renewable energy concepts.
• Residential Areas: Supplement power needs or provide charging points in communal spaces.
• Event Venues and Stadiums: Capture energy from crowds and make it available for device charging.
• Eco-tourism Sites: Offer sustainable charging solutions in off-grid or nature-focused locations.
• Smart City Initiatives: Contribute to urban energy harvesting strategies.
• DIY Projects: A comprehensive kit for hobbyists interested in energy harvesting.
• Outdoor Charging Stations: Create self-sufficient charging spots in parks or public squares.

User Guide / How to Use

• Installation: Place the unit in an area with consistent foot or light vehicle traffic. Ensure it is securely mounted to prevent displacement. Connect the power output USB port to your device's charging cable.
• Operation: The unit automatically begins generating and storing power as people walk over it. The LCD screen will display current status, battery level, and power output.

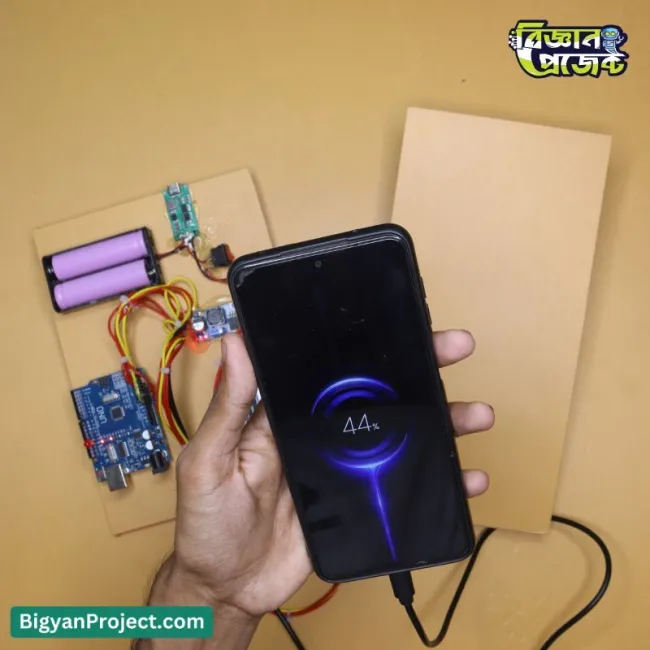

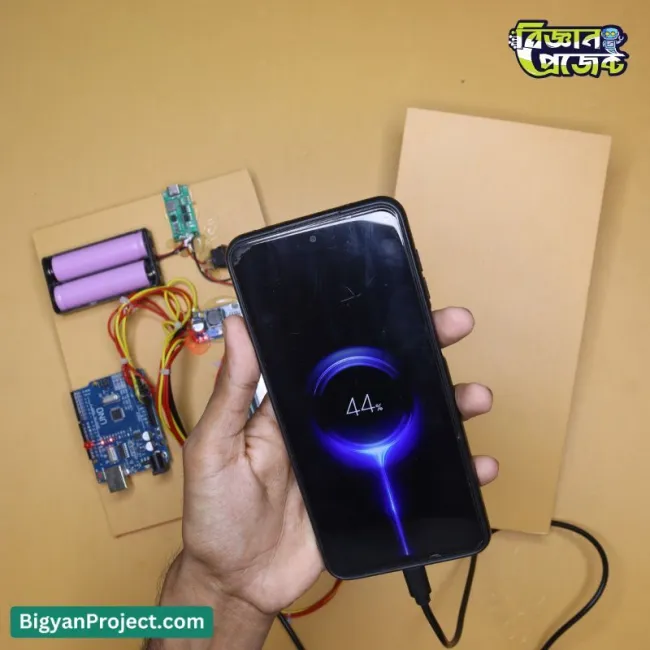

• Charging Your Device: Connect your smartphone or USB device to the 5V USB output port. The device will begin charging as long as there is sufficient stored power.
• Internal Battery Charging: If the internal battery needs a boost or to ensure full charge, connect a Type-C power source to the input charging port.
• Power Management: Use the 2-Pin Rocker Switch to turn the system on or off.
• Maintenance: Periodically check for debris and clean the surface. Ensure all connections are secure.

Frequently Asked Questions (FAQs)

• Q: How much power can this generator produce?
  A: The power output is dependent on the frequency and force of footsteps. It is designed for supplemental charging and powering low-demand devices rather than high-power appliances.
• Q: What types of devices can I charge?
  A: You can charge any standard USB-powered device, including most smartphones, power banks, smartwatches, and small portable electronics.
• Q: Is the unit weather-resistant?
  A: The unit is constructed with durable materials, but it is recommended to protect it from extreme weather conditions such as prolonged heavy rain or submersion to ensure longevity.
• Q: How long does it take to fully charge my phone?
  A: Charging time varies greatly depending on your phone's battery capacity and the amount of kinetic energy generated. It's best suited for topping up or slow charging.
• Q: Can it generate power from car tires?
  A: It is designed primarily for pedestrian footfalls and light vehicle traffic (like bicycles or small carts). Heavy vehicular traffic might damage the piezoelectric sensors.
• Q: What is the lifespan of the piezoelectric sensors?
  A: Piezoelectric sensors are generally durable, but their lifespan depends on the applied stress and frequency. With moderate use, they can last for many years.
• Q: Where is the best place to install this generator?
  A: High-traffic areas like building entrances, busy pathways, and school corridors are ideal for maximizing energy generation.

Challenges and Considerations

• Energy output is intermittent and depends on usage.
• Not suitable for powering high-demand appliances.
• Requires regular foot traffic for optimal performance.
• Installation location must be considered for maximum exposure to footsteps.
• Piezoelectric efficiency can be affected by temperature and humidity.

Compatibility

• Compatible with all standard USB charging cables.
• Works with most smartphones (Android, iOS), power banks, and USB-powered gadgets.
• The Arduino Uno R3 provides a flexible platform for potential future integrations.

Future Enhancement Options

• Integration of higher-efficiency piezoelectric materials.
• Addition of solar charging capabilities for a hybrid system.
• Development of a mobile app to monitor energy generation in real-time.
• Increased battery storage capacity for longer charging duration.
• Weatherproofing improvements for outdoor permanent installations.
• Scalability for larger walkway installations.

Benefits

• Promotes renewable energy adoption and sustainability.
• Provides a convenient source of off-grid charging.
• Reduces reliance on conventional power sources.
• Excellent educational tool for learning about kinetic and piezoelectric energy.
• Contributes to greener urban environments.
• Cost-effective for users looking to supplement their charging needs.
• Empowers individuals to generate their own clean energy.

Conclusion

The Kinetic Footstep Power Generator Project from Bigyan Project is a testament to innovation in sustainable energy. It offers a practical, eco-friendly, and educational way to generate power from the most ubiquitous source: human movement. Whether for personal use, educational demonstrations, or contributing to smart city infrastructure, this system provides a reliable method to convert wasted kinetic energy into valuable electrical power. Embrace the future of personal energy generation with this remarkable project by Bigyan Project.
