Electricity Generation Road Project Using Piezo Sensor

Smart Piezo Road Power Generator Science Project by Bigyan Project

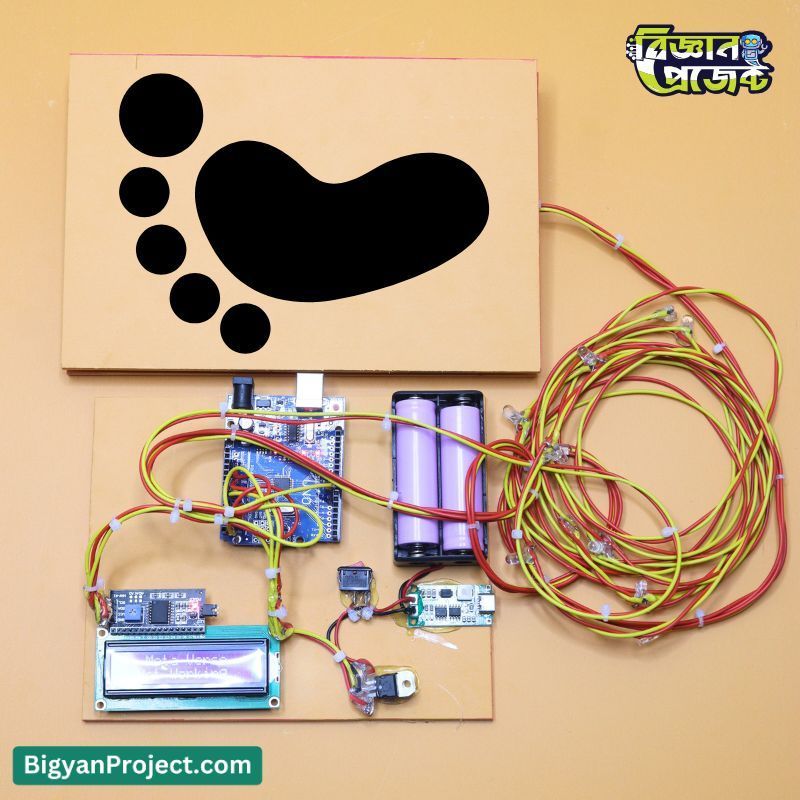

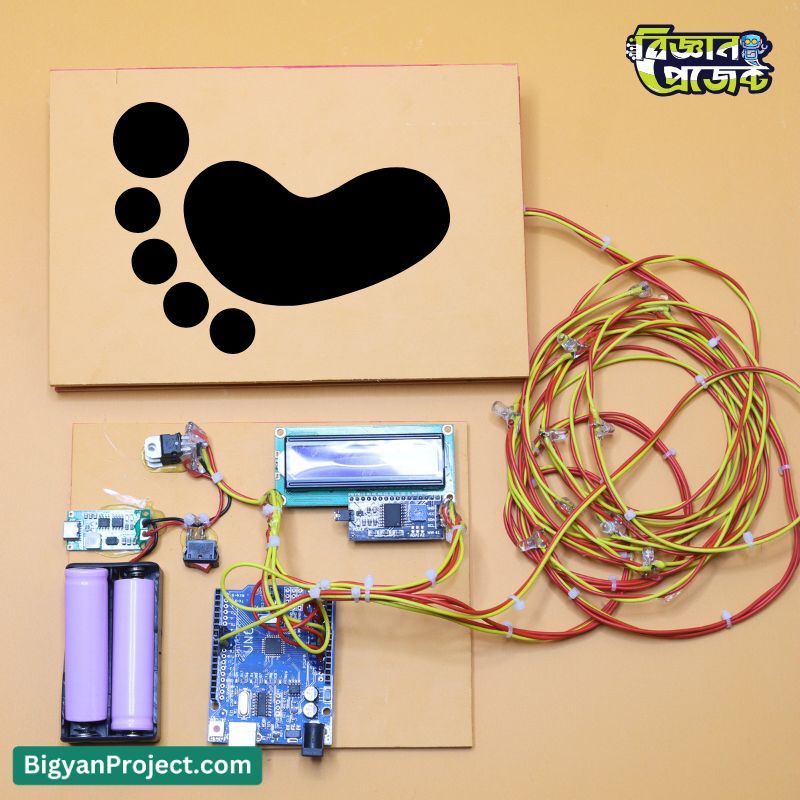

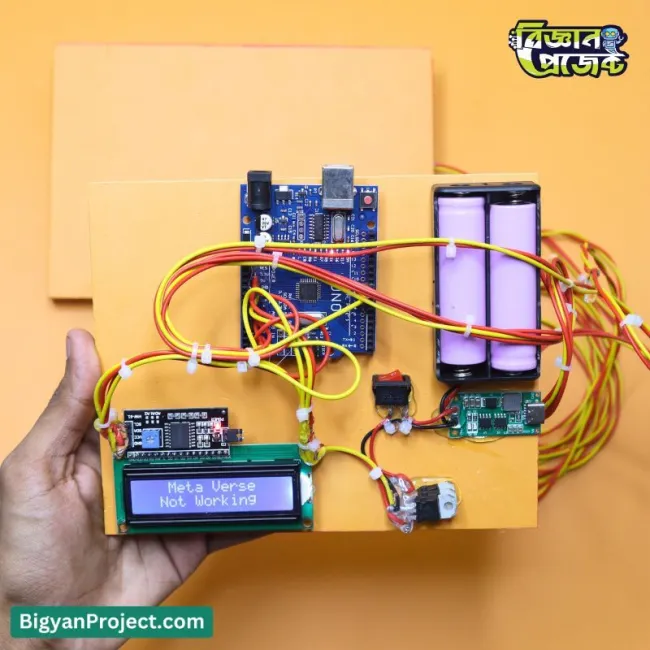

The Smart Piezo Road Power Generator Project from Bigyan Project is an innovative science project designed to demonstrate real-time electricity generation from road movement, footstep pressure, and vehicle load. This advanced educational model showcases how renewable energy can be harvested from mechanical stress using piezoelectric sensors. The system uses three high-quality 35mm prewired piezo discs to generate electricity whenever pressure is applied. The generated voltage is stored in two 18650 Li-ion rechargeable batteries through a regulated energy conversion circuit. An Arduino Uno R3 microcontroller with an I2C 16x2 LCD display shows real-time voltage output and system status, making it a complete learning tool for students, researchers, and innovators.

This project is perfect for school and college exhibitions, DIY hobbyists, renewable energy demonstrations, and STEM learning labs. It is designed to make science engaging, practical, and interactive while showing the future of smart road systems that can power lights and sensors using movement-based energy harvesting. Bigyan Project proudly presents this as a ready-to-use educational kit for understanding piezoelectric energy conversion.

Product Specifications

Features

• Generates electricity from footstep and vehicle movement using piezoelectric effect
• Real-time voltage display on 16x2 I2C LCD module
• Fully functional educational demo project designed by Bigyan Project
• Includes 2×18650 rechargeable battery system for power storage
• Arduino Uno based monitoring and control for easy understanding
• Compact and portable setup on PVC baseboard
• Simple ON/OFF switch for user control
• Ideal for renewable energy awareness and educational display
• Demonstrates real-world piezoelectric energy harvesting concept

Applications / Use Cases

• Science fair and exhibition projects
• Renewable energy education model
• STEM and engineering training kit
• DIY home experiment for students
• Road energy harvesting demonstration
• Research prototype for smart city systems

User Guide / How to Use

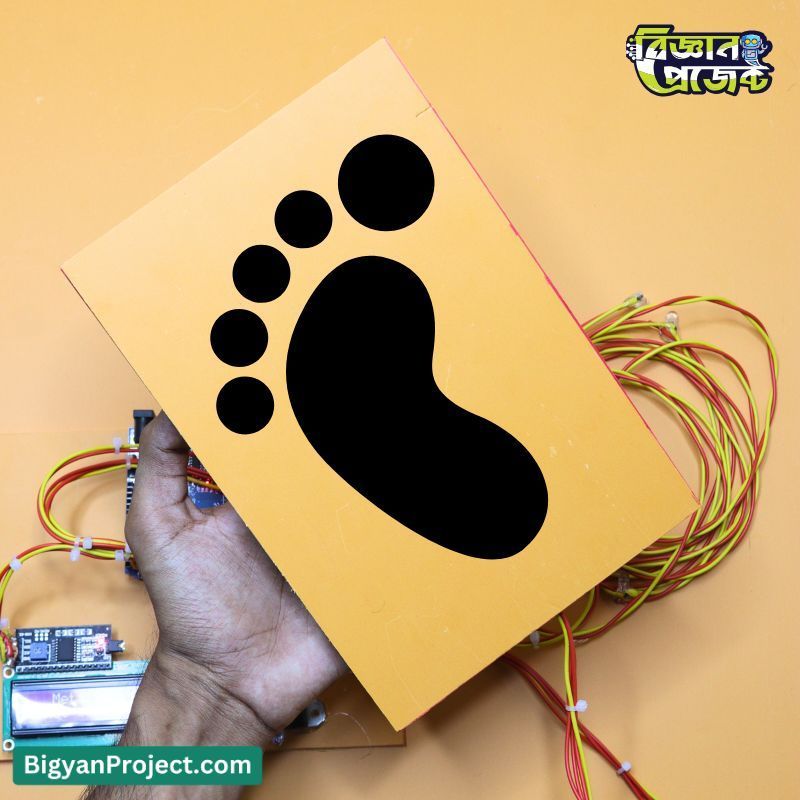

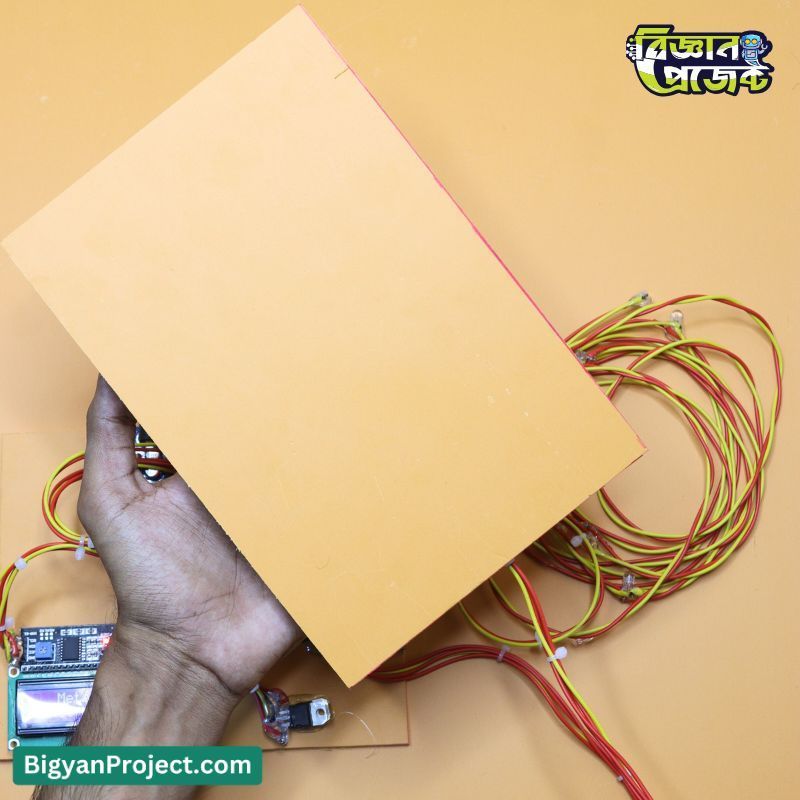

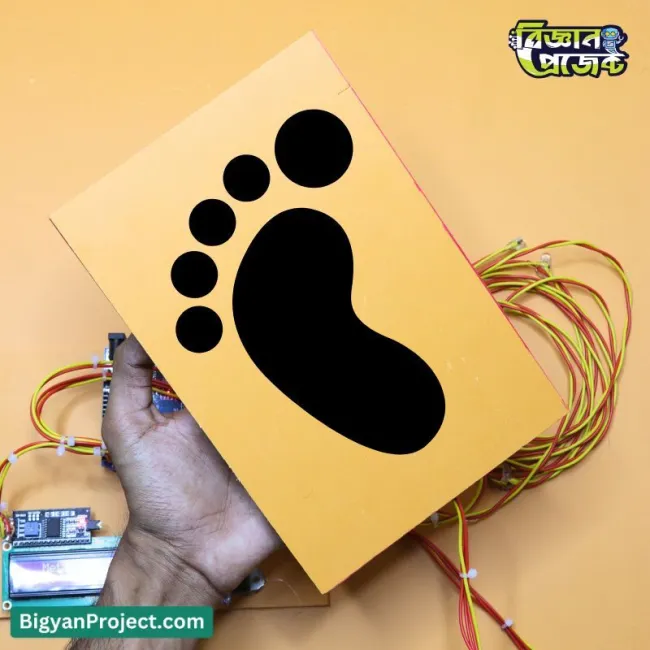

• Place the piezo road panel on a flat surface or inside a model road.
• Connect the piezo discs to the rectifier and storage circuit as shown in the wiring diagram (included in product manual).
• Ensure the 2×18650 batteries are securely inserted in the holder.
• Turn on the rocker switch to activate the Arduino Uno and LCD display.
• Apply foot pressure or roll a small vehicle over the piezo pads to generate power.
• Observe the generated voltage displayed on the LCD screen in real-time.
• Use the stored power to glow the LEDs or power small loads for demonstration.

Frequently Asked Questions (FAQs)

• Q: How much power can this project generate?
  A: It can generate small voltages from 1V to 20V depending on the pressure, but current is low — suitable for educational display.
• Q: Can it charge a phone or large battery?
  A: No, it is designed for educational and low-power demonstration only, not for large power applications.
• Q: Can I add more piezo discs?
  A: Yes, you can expand by connecting more discs in parallel to increase current output.
• Q: Is Arduino programming required?
  A: The Arduino is pre-programmed by Bigyan Project to display voltage automatically.
• Q: Can this be used on a real road?
  A: The current setup is for demo purposes only. Industrial versions require high-durability sensors and proper mechanical design.

Challenges and Considerations

• Low current output from piezo sensors requires proper energy harvesting circuits
• Charging Li-ion batteries must be handled with a suitable BMS module
• Voltage regulation and efficiency depend on circuit design quality
• Environmental factors such as moisture or vibration may affect performance
• Not suitable for heavy power applications or long-term outdoor use

Compatibility

• Compatible with Arduino Uno, Nano, and Mega boards
• Supports 16x2 LCD modules with I2C communication
• Works with most standard 18650 Li-ion rechargeable cells
• Can integrate with power banks or DC LED circuits for demo
• Expandable with sensors and IoT modules for data logging

Future Enhancement Options

• Add wireless data monitoring via Wi-Fi or Bluetooth
• Integrate supercapacitors for faster energy storage
• Combine with solar panels for hybrid renewable power
• Add IoT-based power tracking and analytics
• Use waterproof housing for outdoor demonstration

Benefits

• Educational understanding of piezoelectric power generation
• Encourages renewable energy innovation among students
• Practical and visual demonstration of energy harvesting
• Environmentally friendly and reusable science kit
• Low maintenance and easy to assemble
• Enhanced learning experience with live voltage monitoring

Conclusion

The Smart Piezo Road Power Generator Project by Bigyan Project is an outstanding renewable energy science kit designed for students, teachers, and innovators. It demonstrates how everyday movements like walking or driving can be converted into usable electrical energy using piezoelectric technology. With Arduino control, LCD monitoring, and real-time output display, this project helps users explore the potential of smart road systems and sustainable energy generation. Perfect for school science fairs, academic projects, and DIY enthusiasts looking to learn about real-world renewable energy applications.
