Object Detection Alarm Project Using Ultrasonic Sensor

Advanced Ultrasonic Object Detection Alarm System

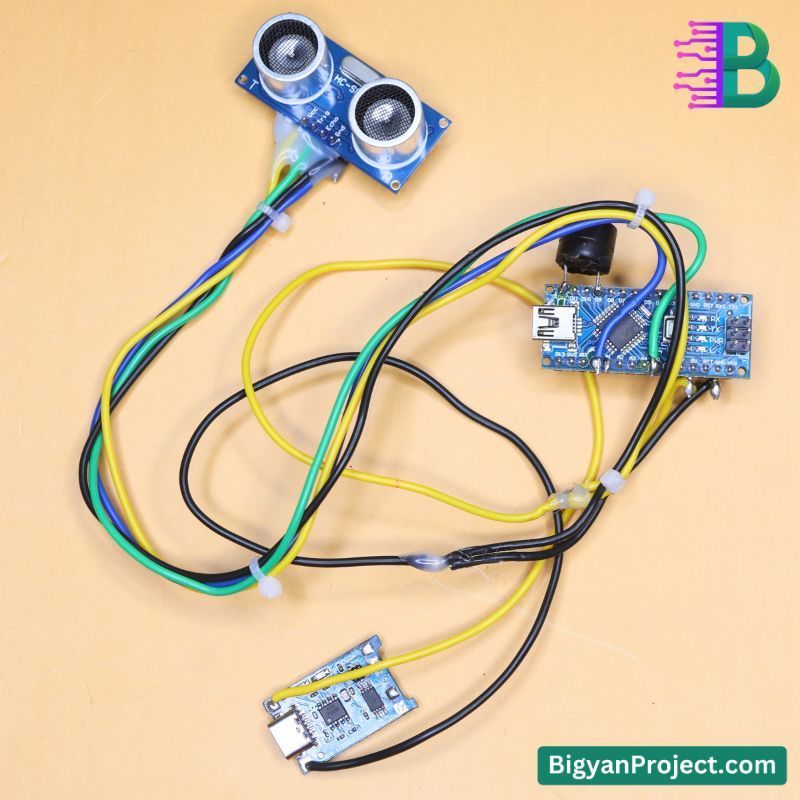

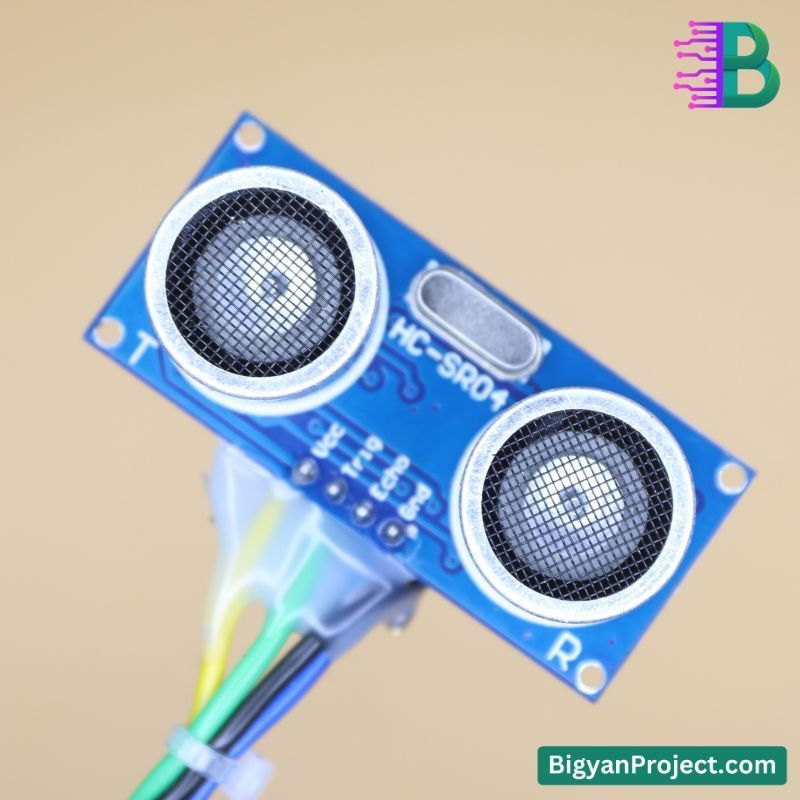

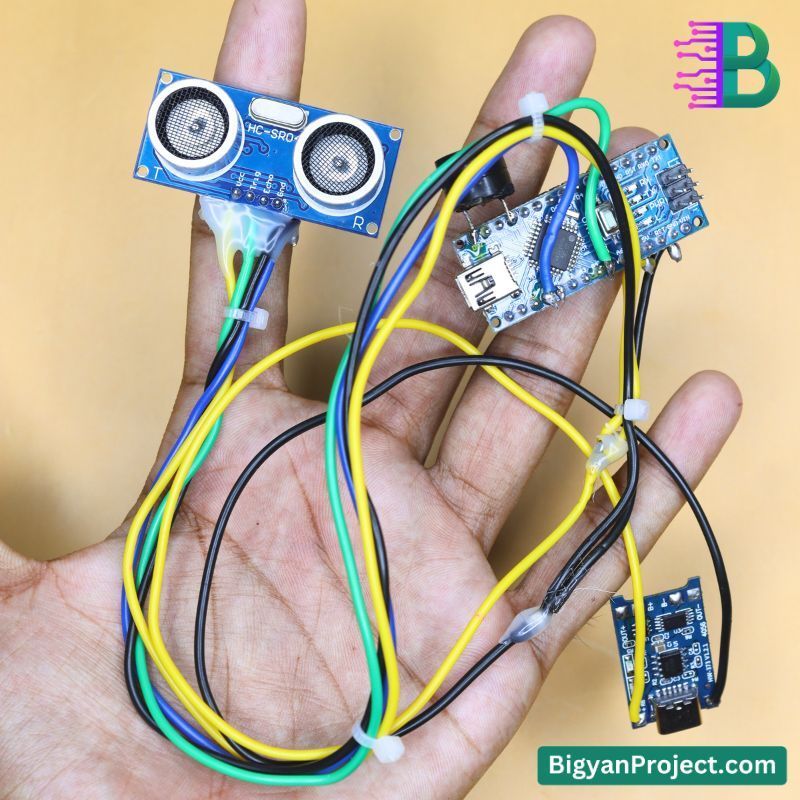

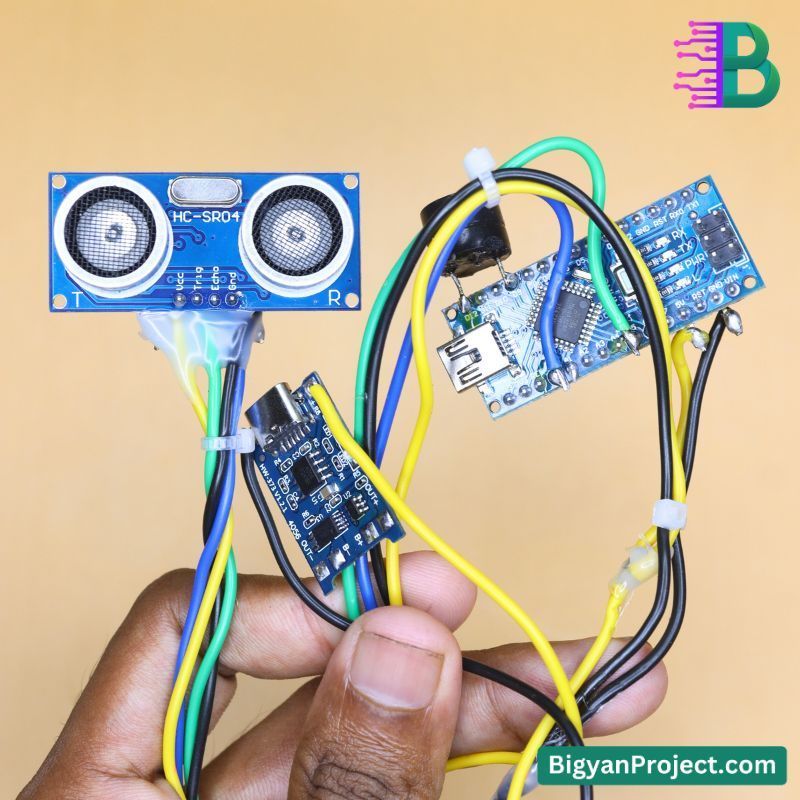

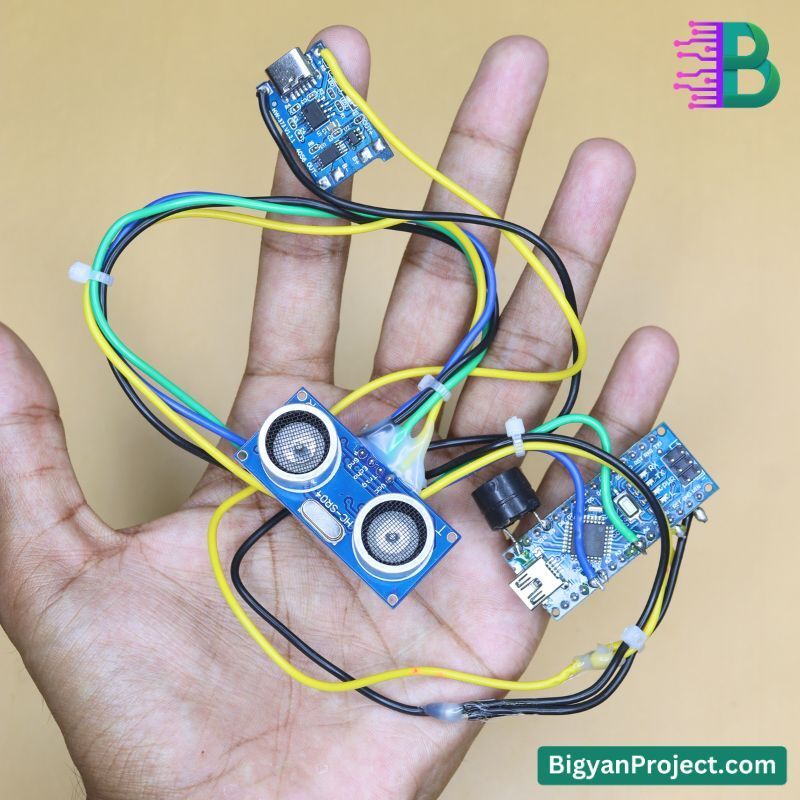

The Advanced Ultrasonic Object Detection Alarm System developed by Bigyan Project is a versatile solution designed to detect objects within a specific range and trigger an alarm. Utilizing the highly accurate HC-SR04 ultrasonic sensor and powered by the Arduino Nano R3, this device can sense objects up to 15 centimeters or more depending on user settings. Its compact design, rechargeable power module, and clear sound alert make it ideal for diverse applications ranging from water tank level monitoring to crop protection and security alerts. Bigyan Project ensures this product is both user-friendly and reliable for everyday use.

Product Specifications

Features

• Accurate object detection within customizable distance range
• Compact and lightweight design for easy installation
• Rechargeable power system with convenient Type-C charging
• Loud and clear buzzer alarm for immediate notification
• Low power consumption suitable for extended use
• Simple wiring with 1.6mm slim cables for tidy setup
• Compatible with various applications like security and agriculture

Applications / Use Cases

• Water tank level alert to prevent overflow or dry running
• Intruder detection for home, office, or shop security
• Crop field monitoring to deter animals such as cows and goats
• Parking assistance by detecting vehicle proximity
• Automatic object detection in robotics or smart home projects

User Guide / How to Use

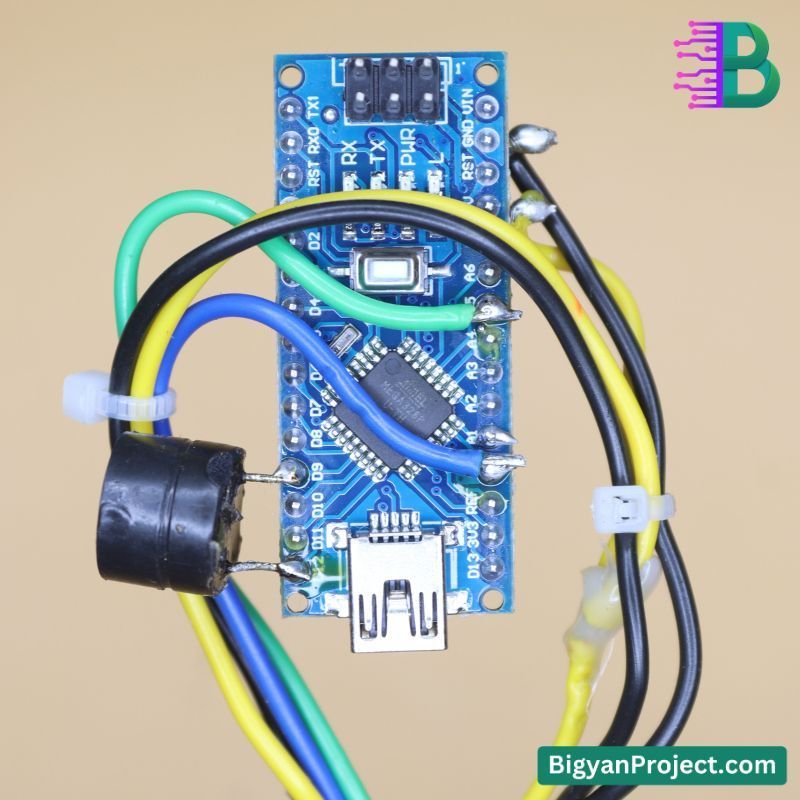

Setting up the object detection alarm system by Bigyan Project is straightforward. Connect the HC-SR04 sensor to the Arduino Nano R3 using the provided 22AWG cable, ensuring proper wiring of the trigger and echo pins. Connect the 5V active buzzer to the Arduino output pin. Power the system with a rechargeable battery charged via the TP4056 Type-C module. Upload the pre-written Arduino code to customize detection distance and alarm trigger parameters. Once powered on, the sensor continuously monitors the designated range and activates the buzzer when an object is detected.

Frequently Asked Questions (FAQs)

• What is the maximum detection distance of the sensor? The default is set to 15 cm but can be adjusted via the Arduino code to suit different needs.
• Can this system work outdoors? Yes, with proper waterproof casing and power supply, it can be used outdoors.
• How long does the battery last? Battery life depends on usage, but the low-power design maximizes operational time between charges.
• Is programming knowledge required? Basic knowledge of Arduino programming helps in customizing the system, but pre-configured code can be provided.

Challenges and Considerations

While this object detection alarm system is highly reliable, some environmental factors like heavy rain, fog, or dust can affect ultrasonic sensor accuracy. Proper housing and regular maintenance are recommended to ensure consistent performance. Users should also consider power management for extended outdoor use and secure mounting to avoid sensor misalignment.

Compatibility

The system is compatible with Arduino Nano R3 and can be integrated with other microcontroller platforms supporting ultrasonic sensors. The 5V active buzzer and TP4056 charging module also follow standard specifications, making replacements or upgrades simple. This flexibility allows users from beginners to advanced developers to incorporate the device into various DIY projects or commercial applications.

Future Enhancement Options

• Adding wireless connectivity such as Bluetooth or Wi-Fi for remote monitoring
• Integrating an LCD or OLED display for distance readouts
• Expanding detection range with more advanced sensors
• Incorporating solar power for sustainable energy use
• Implementing multiple sensors for 360-degree coverage

Benefits

• Provides real-time alerts to prevent damage or loss
• Reduces manual monitoring effort with automated detection
• Portable and easy to install in diverse environments
• Energy efficient, suitable for long-term use
• Versatile for many applications, adding value to agriculture and security sectors

Conclusion

Bigyan Project’s Advanced Ultrasonic Object Detection Alarm System offers an effective, affordable, and flexible solution for detecting objects within a set range and triggering alarms for various practical uses. With its accurate sensing capabilities, rechargeable power, and ease of customization, this product is ideal for anyone looking to enhance safety, security, or automation in their home, farm, or workspace. Trust বিজ্ঞান প্রজেক্ট for quality innovation that meets everyday needs.
