Portable Fire Alarm System – Flame Sensor Science Project

Advanced Flame Detection Fire Alarm System - STEM Learning Kit by Bigyan Project

Introducing our cutting-edge Fire Alarm Science Project Kit, designed to provide students and electronics enthusiasts with hands-on experience in fire safety technology. This comprehensive kit from Bigyan Project combines practical electronics with essential safety concepts, making it perfect for science fairs, school projects, and STEM education. The system utilizes infrared flame detection technology to identify fire hazards and trigger an audible alarm, offering both educational value and practical application.

Key Features

• Advanced infrared flame detection technology for accurate fire sensing
• Instant audible alarm with 5V buzzer when fire is detected
• Compact and portable design for easy demonstration and storage

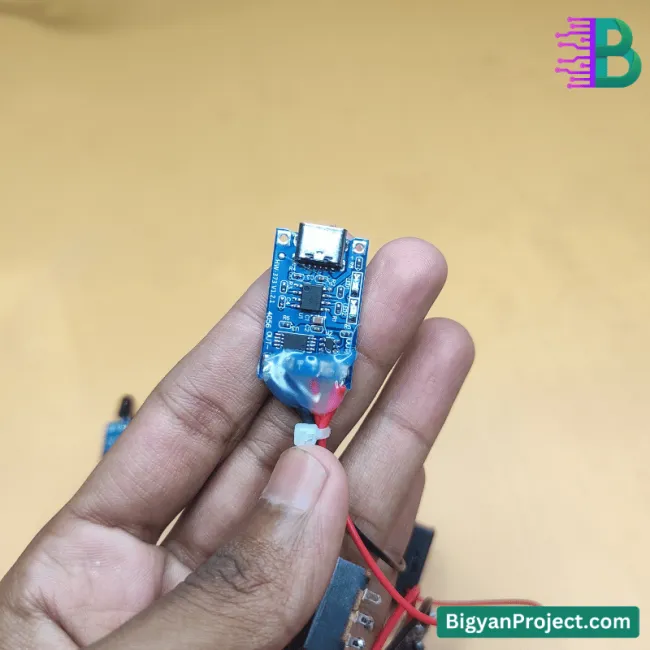

• Rechargeable battery system with built-in charging circuit
• Complete DIY kit with all necessary components included
• Educational documentation with circuit diagrams and theory
• Safe low-voltage operation suitable for student projects
• Durable construction with quality electronic components

Applications and Use Cases

• School science fair projects and exhibitions
• STEM education and electronics learning programs
• Basic fire safety demonstration for educational institutions
• Electronics hobbyist projects and DIY experiments
• Introductory sensor technology learning tool
• Science club activities and workshops

User Guide - How to Use

1. Assemble all components according to the provided circuit diagram

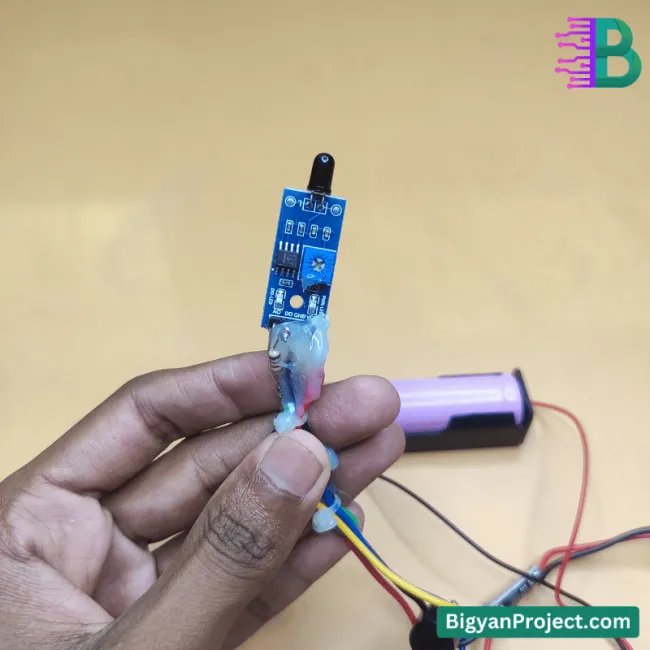

2. Connect the flame sensor module to the detection circuit
3. Install the BC557 transistor for signal amplification

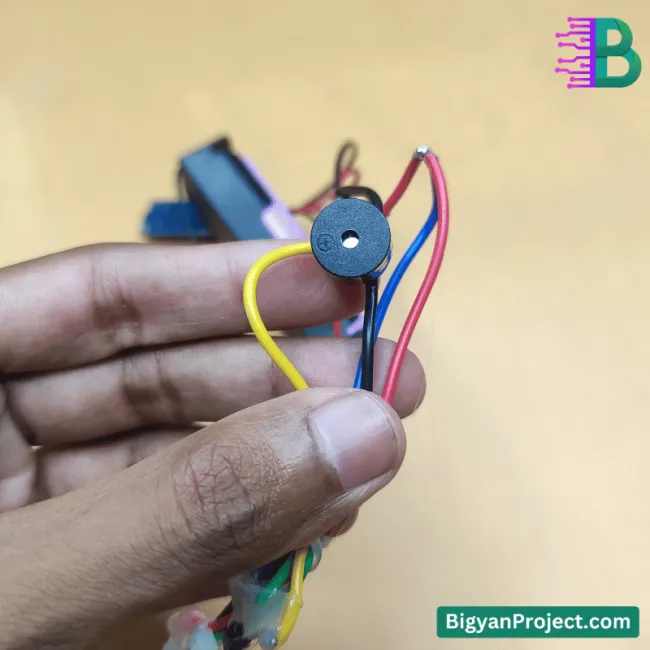

4. Connect the 5V buzzer to the output circuit

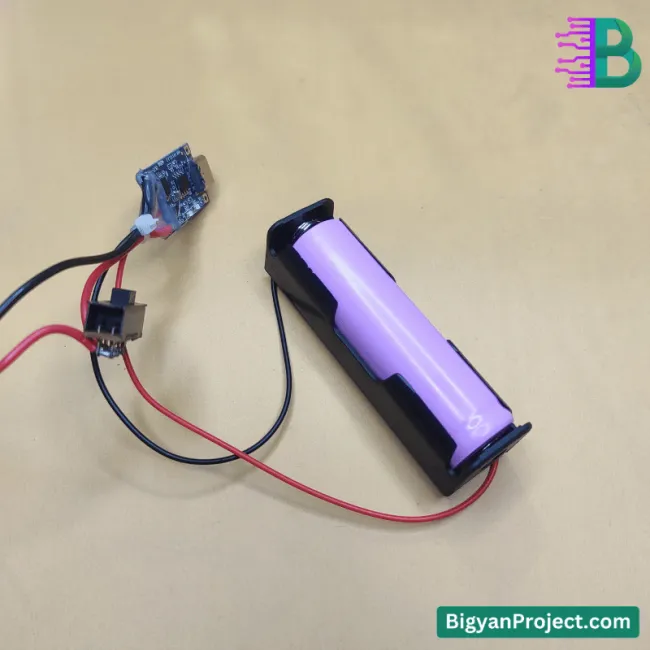

5. Power the system using the included 8650 battery
6. Test the system by exposing the flame sensor to a safe flame source
7. Adjust sensor sensitivity if necessary for optimal performance
8. The buzzer should sound immediately when flame is detected

Frequently Asked Questions (FAQs)

• What is the detection range of the flame sensor? The sensor can detect flames up to 1 meter away under ideal conditions
• How long does the battery last? The 1200mAh battery provides approximately 8-10 hours of continuous operation
• Is this kit suitable for beginners? Yes, it's designed for students and beginners with basic instructions included
• Can this be used for actual home fire detection? This is primarily an educational demonstration kit, not a commercial-grade fire alarm
• What age group is this suitable for? Recommended for ages 12 and above with adult supervision

Challenges and Considerations

• Proper calibration of the flame sensor is required for optimal performance
• The system may respond to other infrared sources besides flames
• Battery life depends on usage patterns and charging practices
• Environmental factors like strong light may affect sensor accuracy
• Requires careful handling of electronic components during assembly

Compatibility

• Compatible with standard breadboards for easy prototyping
• Works with most standard 3.7V Li-ion batteries
• Can be integrated with Arduino for advanced modifications
• Standard 5V USB charger compatible for battery charging

Future Enhancement Options

• Integration with IoT for remote fire alerts
• Adding SMS notification capability using GSM module
• Incorporating multiple sensors for improved accuracy
• Adding visual indicators like LED warning lights
• Developing a mobile app for system monitoring

Benefits of Choosing Bigyan Project's Kit

• Comprehensive learning package with all necessary components
• Developed specifically for educational purposes
• Affordable alternative to commercial fire alarm systems for learning
• Hands-on experience with real electronic components
• Supports creative thinking and problem-solving skills
• Perfect for developing scientific temperament in students

Conclusion

The Flame Detection Fire Alarm System from Bigyan Project offers an exceptional opportunity for students and electronics enthusiasts to explore fire safety technology. This comprehensive STEM learning kit provides practical experience with infrared sensors, circuit design, and alarm systems while teaching important safety concepts. Whether for school projects, science fairs, or personal learning, this kit delivers both educational value and practical application. Order your Fire Alarm Science Project Kit today from Bigyan Project and take the first step in understanding fire detection technology.
