Rain Alert Alarm DIY Science Project for Students

Complete DIY Rain Alert Science Project Kit by Bigyan Project

Unlock the world of electronics with our all-in-one DIY Rain Alert Science Project Kit, specially curated by Bigyan Project. This kit is perfect for students, hobbyists, and anyone in Bangladesh looking to build a practical and functional device for a science fair. It is an excellent STEM project that teaches the fundamentals of sensor technology, transistor switching, and power management. This kit includes everything you need to build a device that sounds a loud alarm as soon as it detects raindrops.

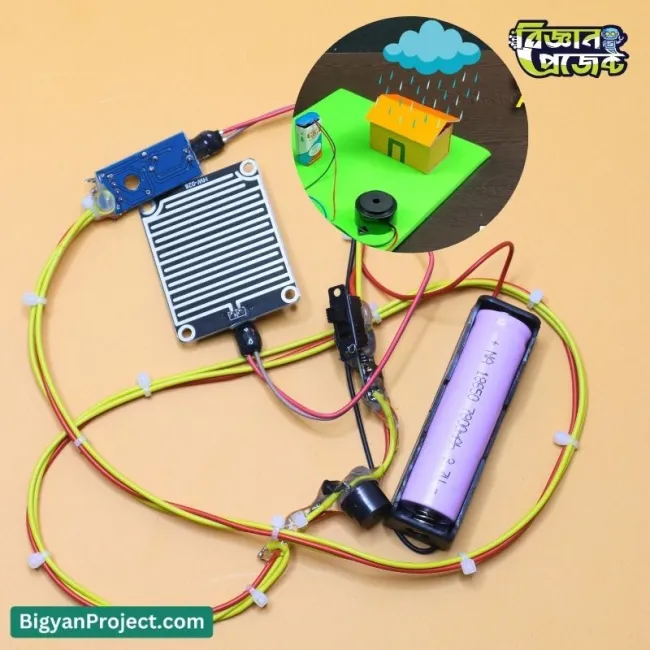

The project is built around a highly sensitive rain detection module. When water bridges the contacts on the sensor plate, it sends a signal. We use a BC557 PNP transistor as a switch to amplify this signal and trigger a loud 5V active buzzer. The entire project is powered by a reliable 3.7V 18650 Li-Ion battery, making it portable. To ensure the 5V components work correctly, the kit includes a mini boost converter to step up the voltage. We've also included a TP4056 charging module, allowing you to easily recharge the battery without removing it. Order this complete science fair project kit from Bigyan Project and start building today!

Product Specifications

Features

• Complete All-in-One Kit: Includes all necessary electronic components, from sensor to buzzer.
• Rechargeable Power System: Features a high-capacity 18650 battery and a TP4056 charger module for sustainable use.
• Loud Audio Alert: The 5V active buzzer provides a clear and audible alarm as soon as rain is detected.
• Educational and Fun: An excellent STEM project for students to learn about sensors, transistors, and power circuits.
• Reliable Transistor Switching: Uses a BC557 PNP transistor to reliably switch the buzzer, protecting the sensor module from high current draw.
• Stable 5V Operation: The included boost converter ensures the 5V sensor and buzzer receive a stable power supply from the 3.7V battery.
• Easy to Assemble: A straightforward project for students with basic soldering skills.

Applications / Use Cases

• Perfect for school and college science fair projects.
• A practical home alert system to warn of rain (e.g., for open windows or drying clothes).
• An educational tool for STEM/STEAM workshops and classrooms.
• A foundational project for learning basic electronics and sensor technology.
• A great gift for aspiring engineers and hobbyists in Bangladesh.
• Can be adapted for other liquid leakage detection alarms.

User Guide / How to Build

This is a DIY kit that requires assembly and soldering. While a detailed circuit diagram is recommended, here is the general workflow:

1. Assemble the Power Unit: Connect the 18650 battery to the holder. Wire the holder's output to the 2-pin rocker switch, and then to the IN+ and IN- of the 3.7V to 5V boost module.
2. Connect the Charger: Wire the TP4056 charger module's B+ and B- pads to the battery holder's positive and negative terminals, respectively, for recharging.
3. Power the Components: Connect the VCC and GND of the Rain Sensor Module to the 5V output of the boost module.
4. Build the Alert Circuit: Connect the Emitter pin of the BC557 transistor to the 5V output. Connect the Collector pin to the positive (+) leg of the 5V active buzzer. Connect the buzzer's negative leg to GND.
5. Connect the Sensor Signal: Connect the 1K resistor between the Rain Sensor's DO (Digital Out) pin and the Base pin of the BC557 transistor.
6. Test the Project: Turn on the switch. The buzzer should be silent. Place a few drops of water on the rain sensor plate. The buzzer should immediately sound.
7. Final Assembly: Use the hot glue sticks to secure your components and wiring onto a piece of cardboard or plastic, making the project neat and durable.

Frequently Asked Questions (FAQs)

• Q: Is soldering required for this project?
  A: Yes, soldering is recommended to make permanent and reliable connections using the provided 22AWG cable.
• Q: Is the 18650 battery included?
  A: Yes, this kit includes one 3.7V 18650 Li-Ion battery to get you started.
• Q: Why is a boost module needed?
  A: The battery is 3.7V, but the rain sensor and active buzzer run best at 5V. The boost module safely steps up the voltage to ensure reliable operation.
• Q: Is this project suitable for a beginner?
  A: Yes, it is an excellent project for beginners with some basic knowledge of soldering. It teaches fundamental circuit concepts.
• Q: Can I get this kit from Bigyan Project with cash on delivery?
  A: Please check our website's shipping and payment policies. We, at Bigyan Project, strive to provide flexible options for our customers in Bangladesh.
• Q: Can I make the alarm louder?
  A: The 5V active buzzer is quite loud. For a different sound, you could replace it with another 5V alarm, but this one is very effective for a science project.

Challenges and Considerations

• Battery Safety: Li-Ion batteries (18650) are powerful. Always handle with care, ensure correct polarity, and use the provided TP4056 charger. Never short-circuit the battery.
• Sensor Placement: The rain sensor plate is designed for water contact, but the main circuit (charger, battery, boost module) must be kept in a waterproof enclosure (not included) to prevent damage.
• Transistor Polarity: Pay close attention to the BC557 PNP transistor's pins (Emitter, Base, Collector). Connecting them incorrectly will stop the circuit from working.
• Sensor Sensitivity: The sensor module has a potentiometer (blue screw) to adjust sensitivity. You may need to tune this for your desired water detection level.

Compatibility

• The rain sensor module is also compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi (for future upgrades).
• The power system (battery, charger, boost) can be used to power other 5V DIY projects.
• The circuit's output can be modified to trigger a relay module or an LED instead of a buzzer.

Future Enhancement Options

• Add a Microcontroller: Replace the transistor circuit with an Arduino to read the analog value (for *how much* rain) and send SMS alerts.
• Control Other Devices: Use the sensor signal to trigger a 5V relay module, allowing you to turn on/off high-voltage devices.
• Build a Case: Design and 3D print or build a custom enclosure to make the project look professional and protect the electronics.
• Add a Solar Panel: Connect a 5V solar panel to the TP4056 charger input for a fully autonomous, off-grid rain alert system.

Benefits of This DIY Kit

• Hands-On Learning: Gain practical experience with sensors, transistors, power modules, and soldering.
• Complete and Convenient: Saves you the time and hassle of sourcing individual components. Get everything you need from Bigyan Project in one package.
• Practical Utility: Creates a useful device that has real-world applications, moving beyond simple theory.
• Affordable: A cost-effective way to build a fully functional science project for your science fair in Bangladesh.
• Builds Confidence: Successfully completing this project gives students the confidence to tackle more complex electronic projects.

Conclusion

The DIY Rain Alert Science Project Kit is more than just a collection of parts; it's a gateway to innovation. It’s the perfect choice for students in Bangladesh looking to impress at their next science fair. By building this project, you will not only create a useful gadget but also gain invaluable skills in electronics. This all-in-one kit from Bigyan Project provides everything you need for a successful and educational experience. Order yours today and start building!
