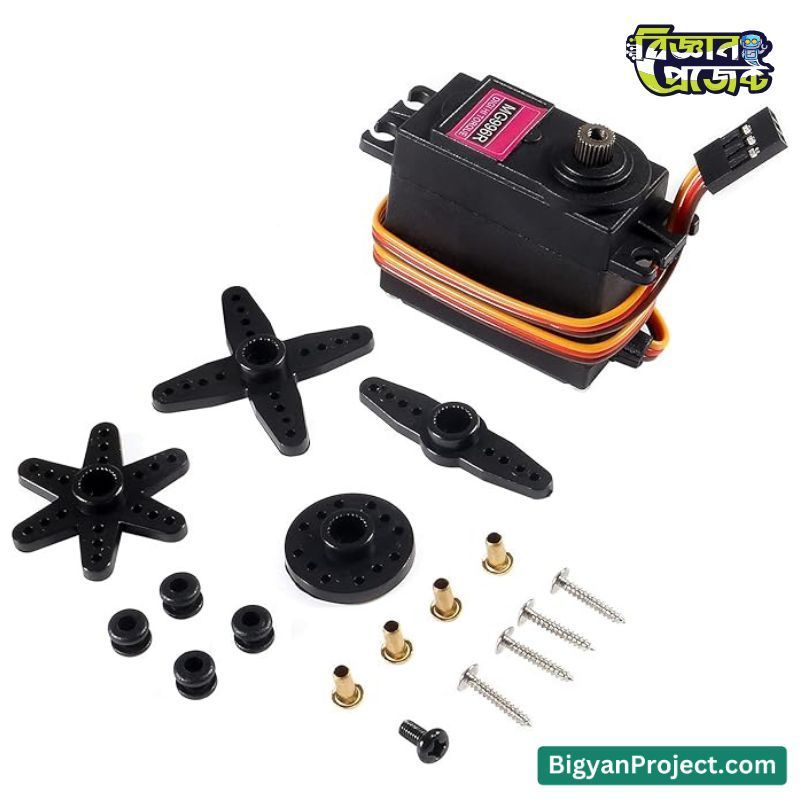

MG996R Metal Gear Servo Motor 180° for Robot and RC

MG996R Digital Servo Motor 180 Degree High Torque for Robotics and RC Projects

The MG996R is a high-performance digital servo motor engineered for precision, power, and durability. With full metal gears and a robust build, it delivers high torque output suitable for advanced robotics and remote-control systems. Whether you're building an Arduino project, a robotic arm, or an RC car, the MG996R offers reliable, consistent performance in a wide range of demanding applications. Available now at Bigyan Project, your trusted source for electronics and robotics components in Bangladesh.

Product Specifications

Key Features

• High torque output suitable for heavy-duty projects

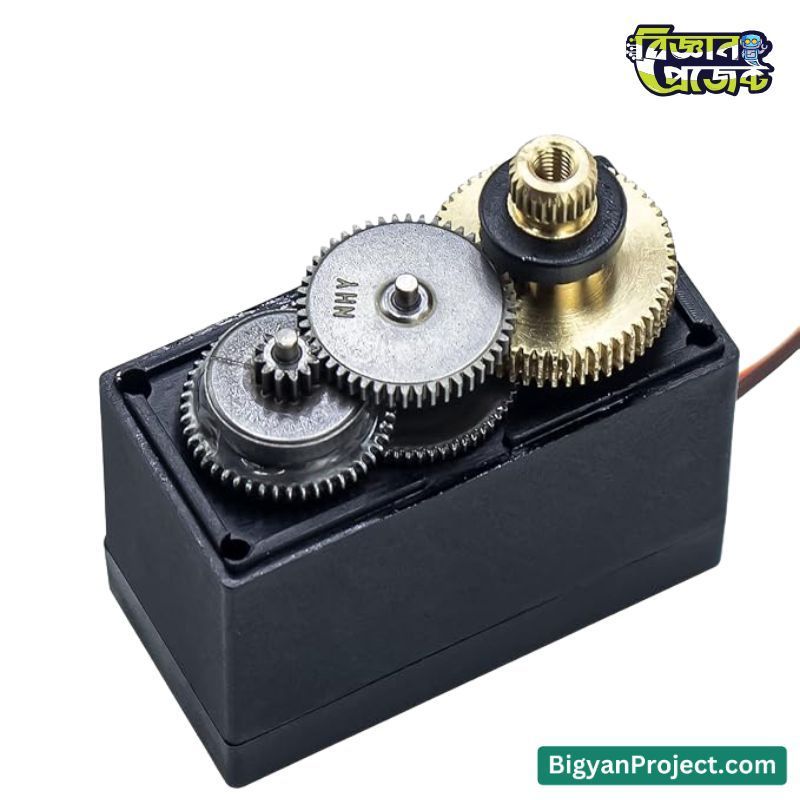

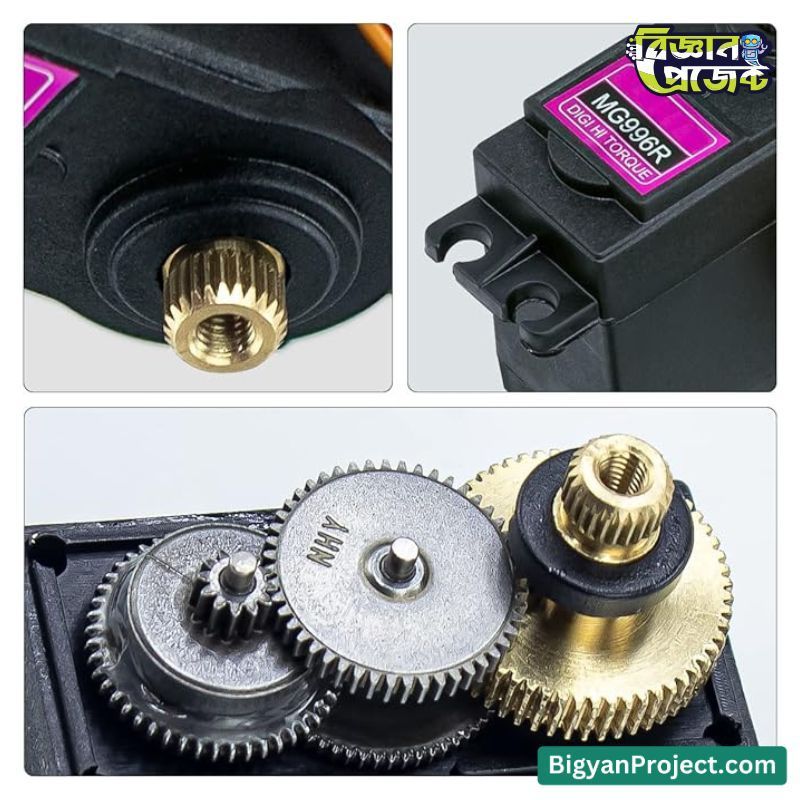

• Durable full metal gear system for extended lifespan

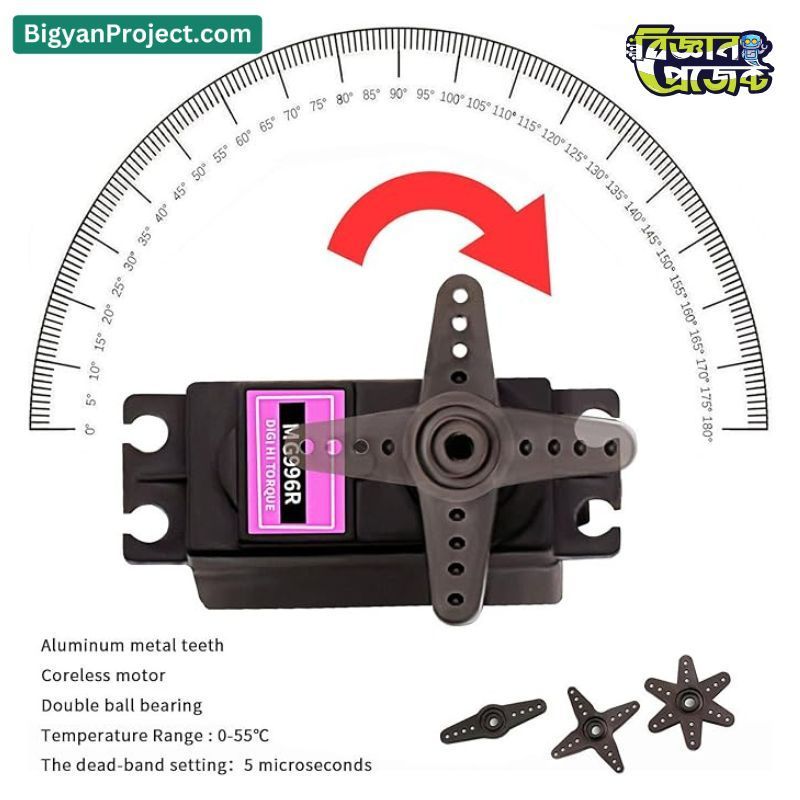

• Precise angle control from 0° to 180° with high resolution
• Compatible with most microcontrollers including Arduino

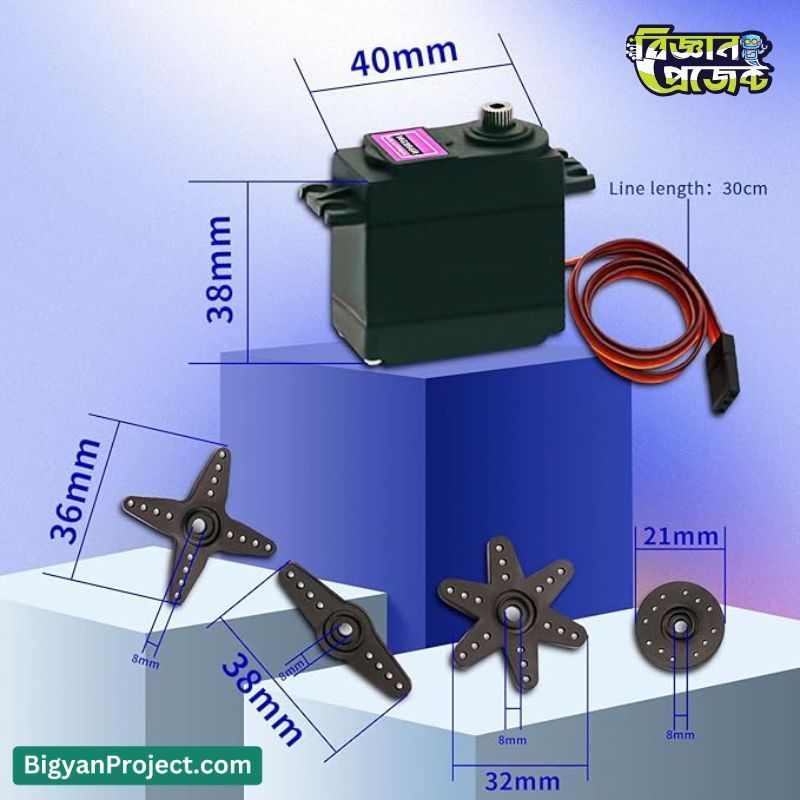

• 300mm servo wire for easy installation and flexibility
• Fast response time for real-time movements
• Standard PWM control input for easy integration

Applications

• Robotic arms and manipulators
• Arduino-based automation systems
• RC cars, boats, helicopters, and airplanes
• Smart vehicles and obstacle avoidance systems
• Camera gimbals and pan/tilt systems
• Humanoid robots and interactive toys

User Guide / How to Use

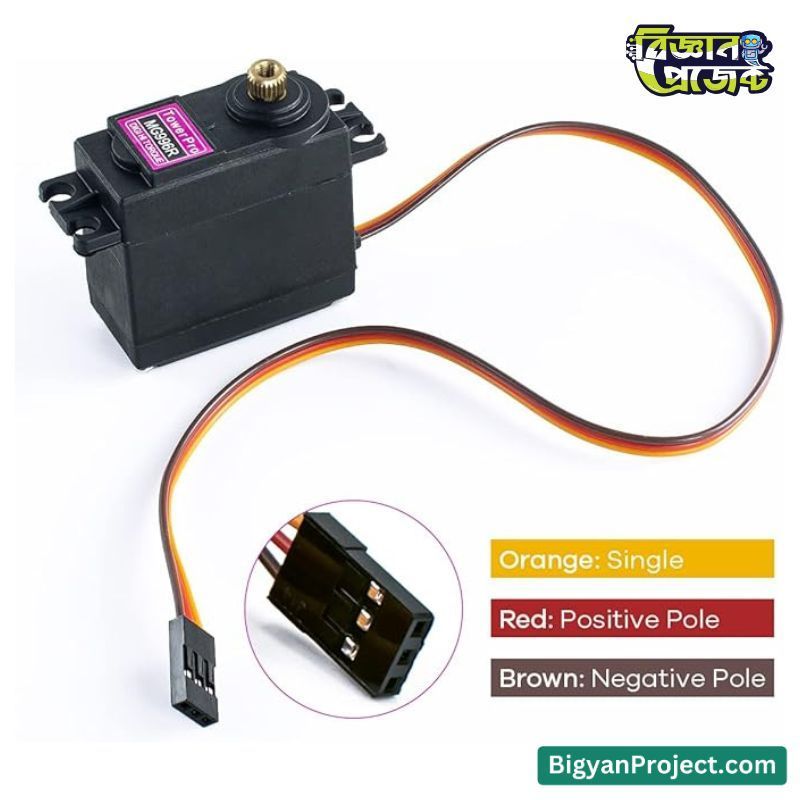

• Connect the servo motor's 3 wires to your controller: Brown to GND, Red to VCC, and Yellow to PWM
• Use a compatible servo library if using Arduino, such as Servo.h
• Initialize the servo in your code and define the rotation angles
• Power the motor using an external supply (recommended 5V-6V with 2-3A current capacity)
• Avoid sudden voltage drops or incorrect polarity to prevent damage

Frequently Asked Questions (FAQs)

• Q: Can the MG996R rotate 360 degrees?
  A: Under power, it operates from 0° to 180°. It can be rotated manually 360° when unpowered.
• Q: Is this servo compatible with Arduino?
  A: Yes, MG996R is fully compatible with Arduino and other microcontroller platforms.
• Q: Does it work with 5V?
  A: Yes, it operates between 4.8V and 7.2V. For best performance, 6V is recommended.
• Q: Can I use this for heavy loads?
  A: Yes, its 12-13kg/cm torque supports mechanical arms and load-bearing applications.

Challenges and Considerations

• Requires sufficient current supply (up to 3A) for smooth operation
• Heats up under continuous or high-load use—ensure cooling or rest intervals
• Not suitable for continuous 360° rotation as a motor replacement
• Must be mounted securely to avoid gear misalignment

Compatibility

• Works with all Arduino boards: Uno, Mega, Nano, etc.
• Compatible with Raspberry Pi and ESP32
• Supported by major RC brands like Futaba, Hitec, and Sanwa
• Fits easily into standard robotic chassis and mechanical kits

Future Enhancement Options

• Integrate with feedback sensors for closed-loop control
• Use with PWM control boards for multi-servo projects
• Upgrade to digital controller for finer motion profiles
• Combine with gears or actuators for advanced robotics

Benefits

• Offers exceptional control for robotics and automation
• Highly durable and reliable in long-term use
• Cost-effective for both beginners and professionals
• Widely used and supported in the maker and RC community
• Available at Bigyan Project with trusted local support

Conclusion

If you're looking for a powerful, versatile, and budget-friendly servo motor for your robotic or remote-control projects, the MG996R from Bigyan Project is the ideal choice. With its metal gears, high torque, and precision control, this servo motor is a favorite among engineers, students, and hobbyists across Bangladesh. Build smart, reliable, and efficient projects with components you can trust—available now at বিজ্ঞান প্রজেক্ট.
