MG996R 360° High Torque Metal Gear Servo Motor

MG996R 360 Degree Digital Servo Motor with Metal Gear for Robotics and Arduino

The MG996R 360° Metal Gear Digital Servo Motor is a high-performance component designed for precision control in robotics, automation, and RC projects. Engineered for accuracy and durability, this servo motor is ideal for makers, hobbyists, and students working with Arduino and other microcontroller platforms. With an upgraded aluminum gear set, high torque, and 360-degree rotation capability, the MG996R is a versatile and powerful tool for a wide range of applications.

At Bigyan Project, we offer the MG996R as part of our growing collection of high-quality robotics components, suitable for science projects, educational purposes, and professional engineering prototypes.

Product Specifications

Features

• 360-degree continuous rotation suitable for drive systems
• High torque for heavy-load applications
• Fast response time with accurate positioning
• Compatible with Arduino, Raspberry Pi, and other microcontrollers
• Universal JR connector supports most RC receivers

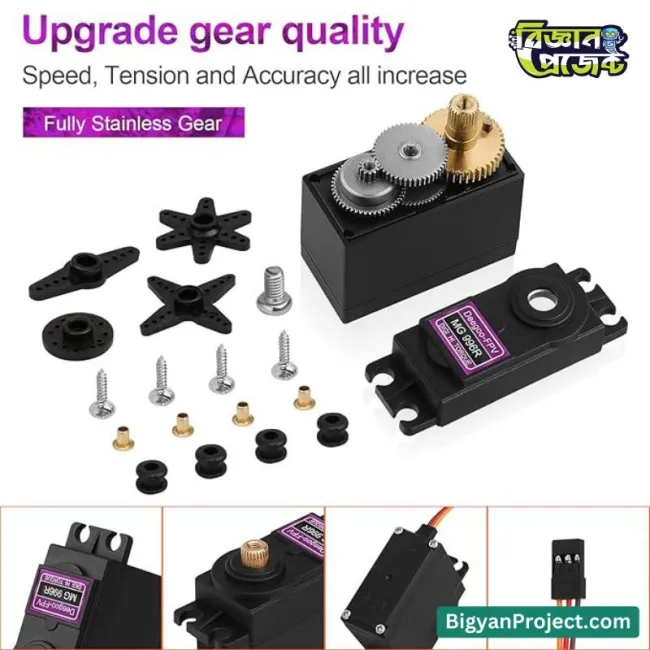

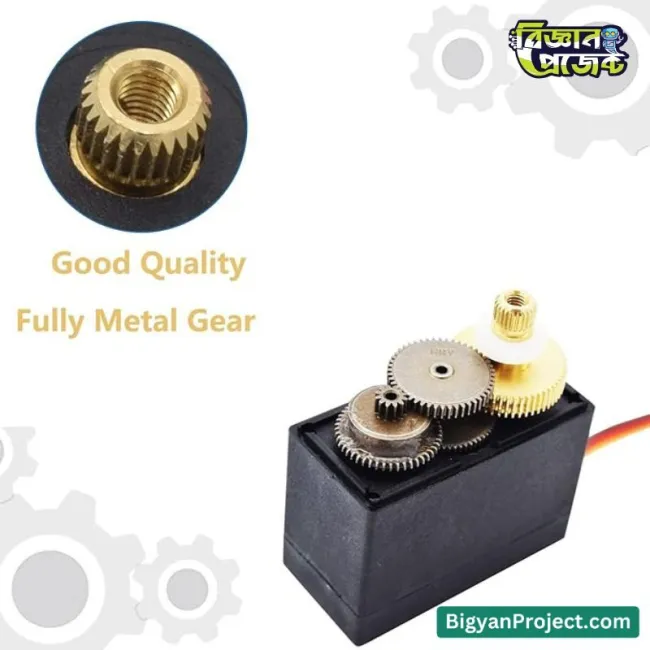

• Upgraded aluminum gear ensures durability and strength
• CE & RoHS certified for safe and compliant use
• Trusted by educators and hobbyists in Bangladesh via বিজ্ঞান প্রজেক্ট

Applications / Use Cases

• RC cars, helicopters, and boats
• Arduino-based robotics and automation
• Object tracking and rotating platforms
• Robotic arms and pan-tilt systems
• DIY science fair projects and school competitions
• Engineering prototypes requiring precision movement

User Guide / How to Use

To use the MG996R with an Arduino or similar controller:

• Connect the red wire to 5V power source
• Connect the brown or black wire to ground (GND)
• Connect the orange or yellow signal wire to a PWM-capable digital pin
• Use libraries such as Arduino Servo library to control movement
• Upload your code and test movement through serial monitor or input device

Ensure that your power supply provides enough current, ideally 3A or more, to avoid jitter or overheating.

Frequently Asked Questions (FAQs)

• Q: Is the MG996R compatible with Arduino?
  A: Yes, it works perfectly with Arduino Uno, Nano, Mega, and other platforms that support PWM control.
• Q: Can this servo rotate continuously?
  A: Yes, this is a 360° continuous rotation version of MG996R, suitable for drive systems rather than angle positioning.
• Q: What kind of connector does it have?
  A: It has a standard JR “S” connector, compatible with most RC receivers and controllers.
• Q: Is external power required?
  A: Yes, a separate 5V–6V power supply with sufficient current (3A recommended) is required.

Challenges and Considerations

• Not ideal for precise angular positioning in the 360° version
• Requires stable external power supply to avoid jitter
• Should not be powered directly from Arduino board due to high current draw
• May need calibration in software for smooth speed control

Compatibility

• Compatible with Arduino Uno, Nano, Mega, Due
• Works with Raspberry Pi using GPIO PWM
• Can be connected to RC receivers from Futaba, JR, Hitec, and others
• Supports use in 3.3V and 5V logic with signal level shifting

Future Enhancement Options

• Add encoder for feedback-based speed and position control
• Pair with motor driver boards for improved current control
• Integrate with Bluetooth or Wi-Fi modules for wireless control
• Use in swarm robotics or AI-based tracking systems

Benefits

• Affordable and powerful for most robotics needs
• Widely supported by open-source code and community
• Durable and long-lasting due to aluminum gears
• Ideal for beginners and advanced users alike
• Available from trusted Bangladeshi source – Bigyan Project

Conclusion

The MG996R 360 Degree Metal Gear Servo Motor is a must-have for robotics, RC, and automation enthusiasts. Whether you are building a mobile robot, controlling a pan-tilt camera, or prototyping a DIY mechanism, this servo provides the performance and reliability you need. At Bigyan Project, we ensure that every product we deliver is tested and ready for integration into your next innovation. Choose MG996R to bring precision and power to your project.
