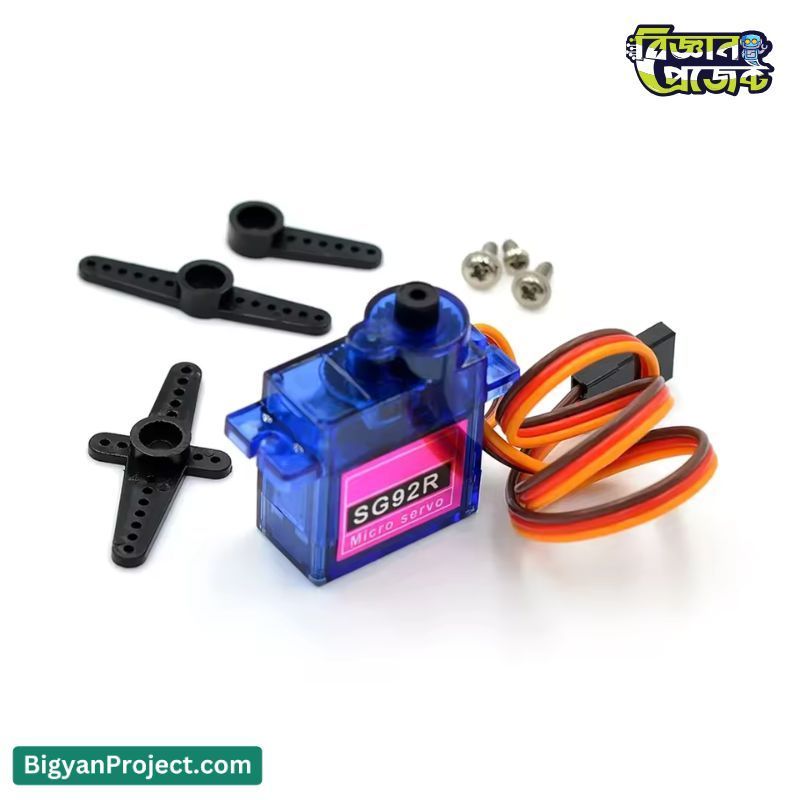

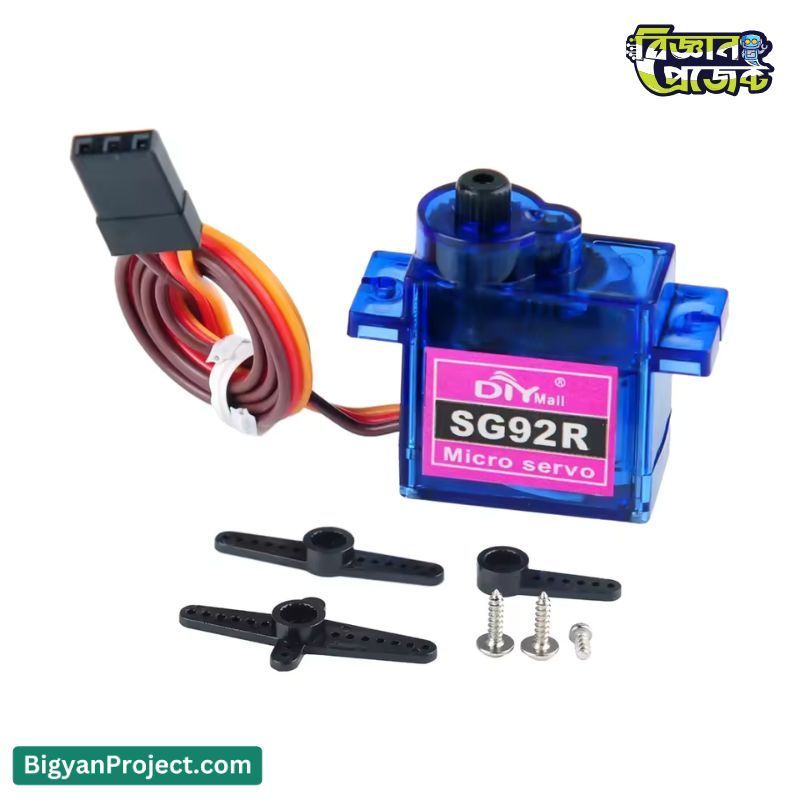

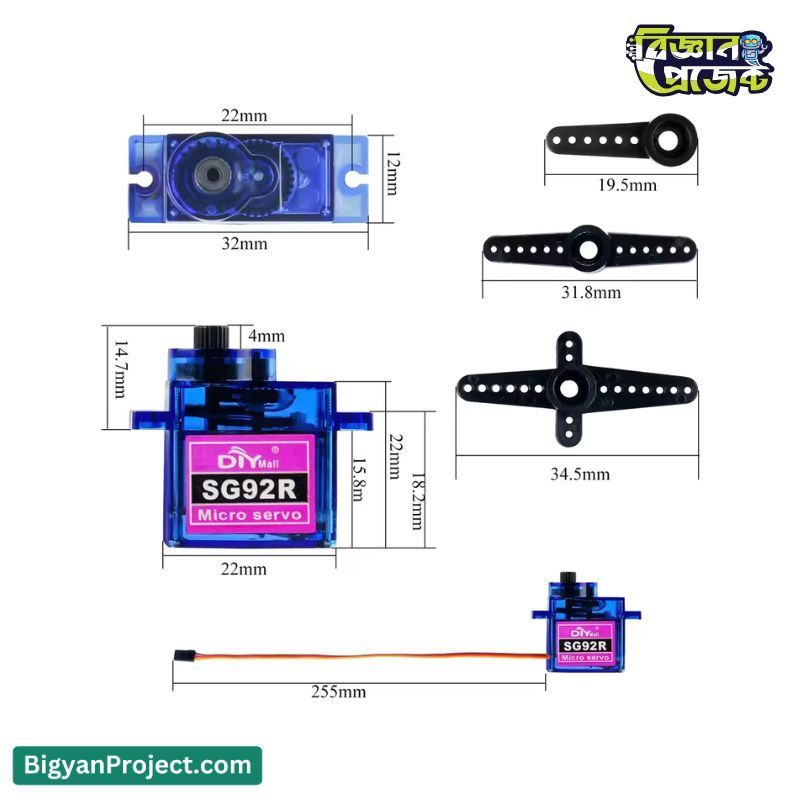

SG92R 9g Micro Servo 180 Degree for RC Projects

SG92R 9g Micro Servo Motor: Precision, Versatility, and Performance for Your RC and DIY Electronics Projects by Bigyan Project

Discover the exceptional performance and reliability of the SG92R 9g Micro Servo Motor, a cornerstone component for any serious hobbyist or electronics enthusiast. This servo motor is engineered for precision, offering a smooth 180-degree operating angle, making it an indispensable tool for a vast array of radio-controlled (RC) applications, robotic endeavors, and innovative DIY electronic projects. Whether you are building a high-performance RC car, a complex robot arm, or an intricate automated system, the SG92R delivers consistent and accurate control. Its remarkably compact size and feather-light construction (just 9 grams) allow for seamless integration into even the most space-constrained designs, without compromising on the power or responsiveness you need. Bigyan Project is proud to offer this versatile servo, empowering you to bring your most ambitious electronic creations to life with confidence and unparalleled control.

• Compact and lightweight design, weighing only 9 grams.
• 180-degree rotation capability for precise directional control.
• High torque output for its size, ensuring strong performance.
• Fast operating speed for responsive actions.
• Durable plastic gears built for longevity and reliability.
• Stable performance with minimal jitter and low noise.
• Wide operating voltage range (4.8V to 6.0V), compatible with common power sources.
• Standard connector for easy integration with most RC receivers and microcontrollers.
• Comes with essential accessories for immediate use.
• Excellent value for money from Bigyan Project.

• RC Aircraft: Control of ailerons, elevators, and rudders for precise flight maneuvers.
• RC Cars and Trucks: Steering mechanisms for dynamic and responsive handling.
• Robotics: Actuating robotic arms, grippers, and joint movements in hobbyist robots.
• DIY Electronics Projects: Building custom gadgets, automated systems, and interactive art installations.
• Model Building: Adding realistic movement and functionality to scale models.
• Camera Pan/Tilt Mechanisms: Creating adjustable camera mounts for photography or surveillance.
• Educational Kits: An ideal component for STEM education and learning about mechatronics.

User Guide / How to Use

1. Mounting: Securely attach the SG92R servo to your project using the provided mounting tabs or appropriate brackets. Ensure it has a clear range of motion without obstruction.
2. Horn Attachment: Select the appropriate servo horn from the included accessory pack and attach it to the servo output shaft. Tighten the small screw to ensure a firm connection.
3. Wiring: Connect the servo's three wires to your control board (e.g., Arduino, Raspberry Pi, RC receiver).
   • Brown/Black wire: Ground (GND)
   • Red wire: Positive Voltage (VCC) - Connect to the 4.8V-6.0V power source.
   • Orange/Yellow wire: Signal (PWM) - Connect to a PWM-capable digital pin on your microcontroller or the signal pin of an RC receiver channel.
4. Power: Ensure your power supply can provide sufficient current for the servo, especially during startup or under load. For multiple servos or high-demand applications, consider using an external power supply.
5. Programming/Control:
   • RC Receiver: Connect the servo directly to a suitable channel on your RC receiver. The servo will respond to your transmitter inputs.
   • Microcontroller (e.g., Arduino): Use a servo library (like Servo.h for Arduino) to control the servo's position by sending Pulse Width Modulation (PWM) signals. You will need to write code to define the desired angles and movement sequences.
6. Testing: Before final integration, power up your system and test the servo's movement range to ensure it operates as expected. Calibrate if necessary for your specific application.

Frequently Asked Questions (FAQs)

• Q: What is the maximum angle of rotation for the SG92R servo?

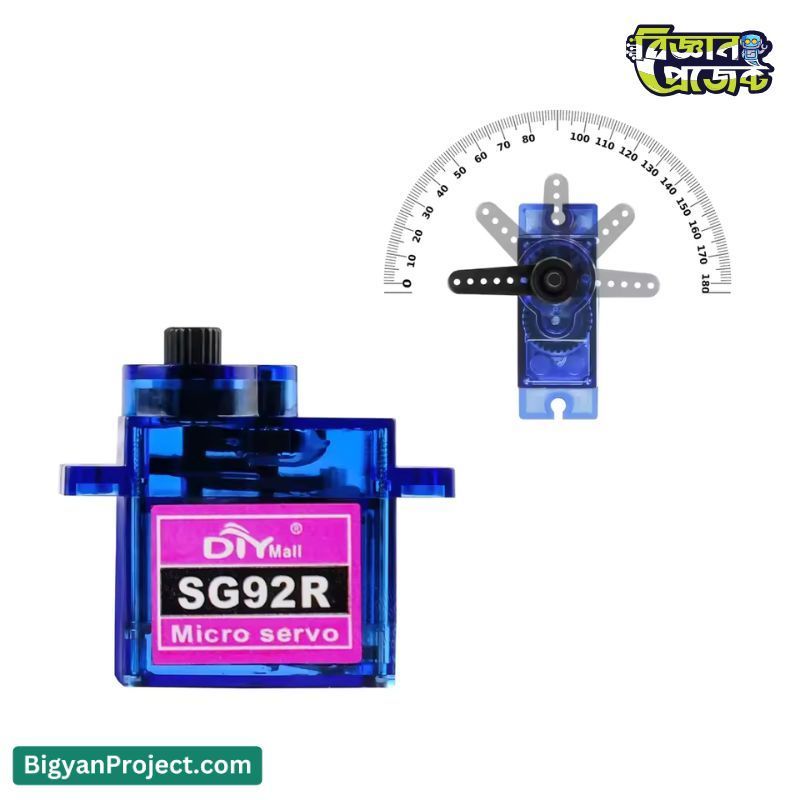

  A: The SG92R servo offers a maximum operating angle of 180 degrees.
• Q: Can I power this servo directly from an Arduino Uno 5V pin?
  A: Yes, you can power it from an Arduino Uno's 5V pin for simple, single-servo projects. However, for multiple servos or when the servo is under significant load, it's highly recommended to use an external power supply to avoid overloading the Arduino's voltage regulator.
• Q: What type of gears does the SG92R use?
  A: The SG92R servo features durable plastic gears.
• Q: Is this servo suitable for outdoor RC applications?
  A: While it performs well, the SG92R is not waterproof or highly weather-resistant. For harsh outdoor conditions, consider servos with higher IP ratings or apply protective measures.
• Q: How do I connect this servo to my project?
  A: It connects via a standard 3-pin connector (typically brown/black for GND, red for VCC, and orange/yellow for signal) to your RC receiver or microcontroller.
• Q: What is the torque rating of the SG92R?
  A: The stall torque is approximately 1.5 kg/cm at 4.8V and 1.7 kg/cm at 6.0V.
• Q: Does it come with servo horns?

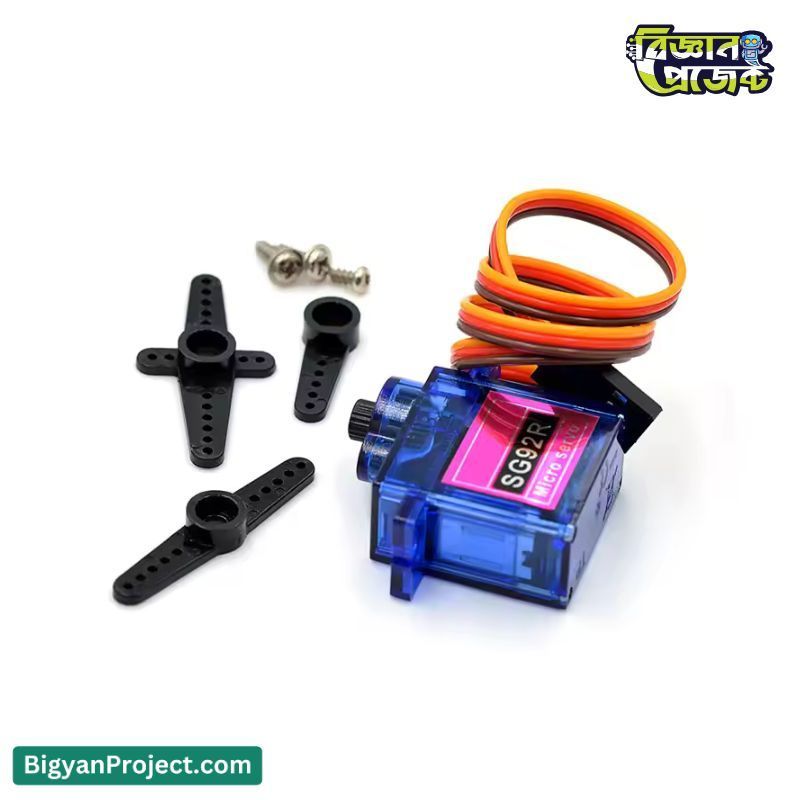

  A: Yes, the SG92R typically includes a set of assorted servo horns and mounting screws.
• Q: Can I use this servo for continuous rotation?
  A: No, the SG92R is designed for a 180-degree positional control and does not support continuous rotation.
• Q: Where can I buy this servo in Bangladesh?
  A: You can purchase the SG92R servo from trusted suppliers like Bigyan Project (বিজ্ঞান প্রজেক্ট), ensuring authenticity and quality.

• Power Supply Limitations: Overloading the power supply can lead to erratic servo behavior or system brownouts. Always ensure adequate current is available.
• Gear Stripping: Although durable, the plastic gears can strip under extreme stress or if the servo is forced beyond its limits. Proper mechanical design is crucial.
• Environmental Factors: Exposure to moisture, dust, or extreme temperatures can affect performance and lifespan.
• Signal Noise: In electrically noisy environments, signal interference can cause jitter or loss of control. Proper wiring and shielding might be necessary.
• Weight Sensitivity in Drones/Aircraft: While light, 9g might be too heavy for ultra-lightweight drones.

• Microcontrollers: Compatible with Arduino, Raspberry Pi, ESP32, ESP8266, and other development boards that support PWM signal output.
• RC Systems: Works with standard RC receivers from brands like Futaba, JR, Spektrum, and others using the standard servo connector.
• Power Sources: Operates reliably with 4.8V NiMH battery packs, 2S LiPo batteries (regulated down to 6.0V), or regulated DC power supplies.

• Integrating with more advanced control systems for smoother, more complex movements.
• Adding feedback mechanisms (e.g., potentiometers) for position monitoring in DIY projects.
• Using the servo in conjunction with sensors for automated environmental responses.
• Custom 3D printed mounts or linkages for specialized applications.
• Pairing multiple servos for coordinated multi-axis movements in robotics.

• Affordable Precision: Offers high accuracy and control at a budget-friendly price point.
• Lightweight Design: Ideal for applications where weight is a critical factor.
• Versatile Application: Suitable for a wide range of hobbyist and professional projects.
• Ease of Use: Simple to wire and control with common microcontrollers and RC systems.
• Reliable Performance: Provides consistent and stable operation for demanding tasks.
• Enhances Project Sophistication: Adds advanced functionality and realism to creations.
• Supported by Bigyan Project: Buy with confidence from a trusted supplier dedicated to quality electronic components.

The SG92R 9g Micro Servo Motor is an exceptional component for anyone looking to add precise, dynamic movement to their RC vehicles, robots, or custom electronic projects. Its balance of performance, size, and affordability makes it a top choice for hobbyists and makers alike. Whether you're a seasoned professional or just starting out, this servo from Bigyan Project (বিজ্ঞান প্রজেক্ট) offers the reliability and control needed to elevate your creations. Empower your designs with the precision and versatility of the SG92R, and turn your innovative ideas into reality with confidence.
