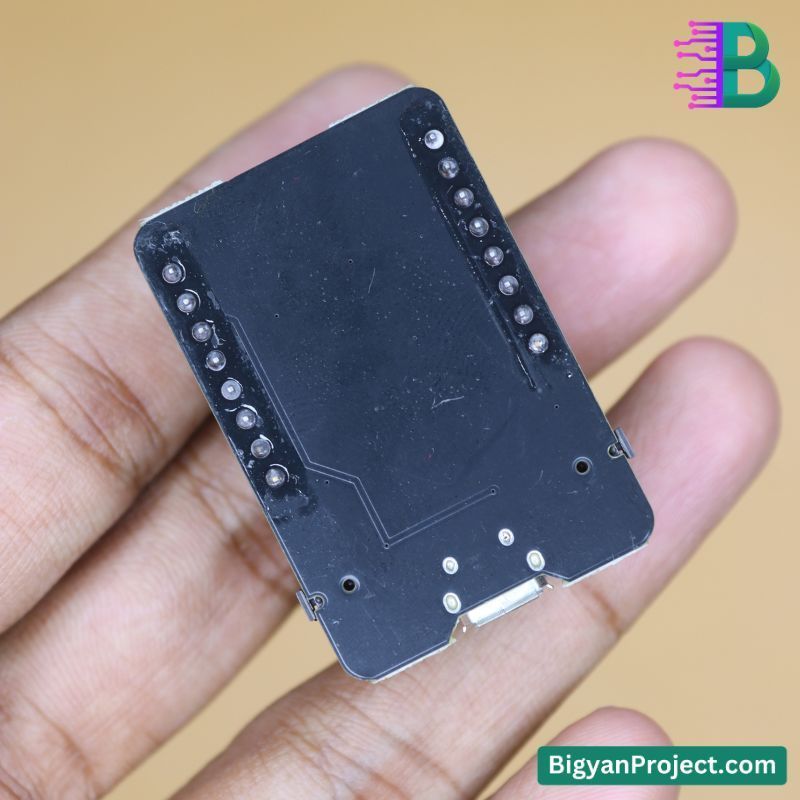

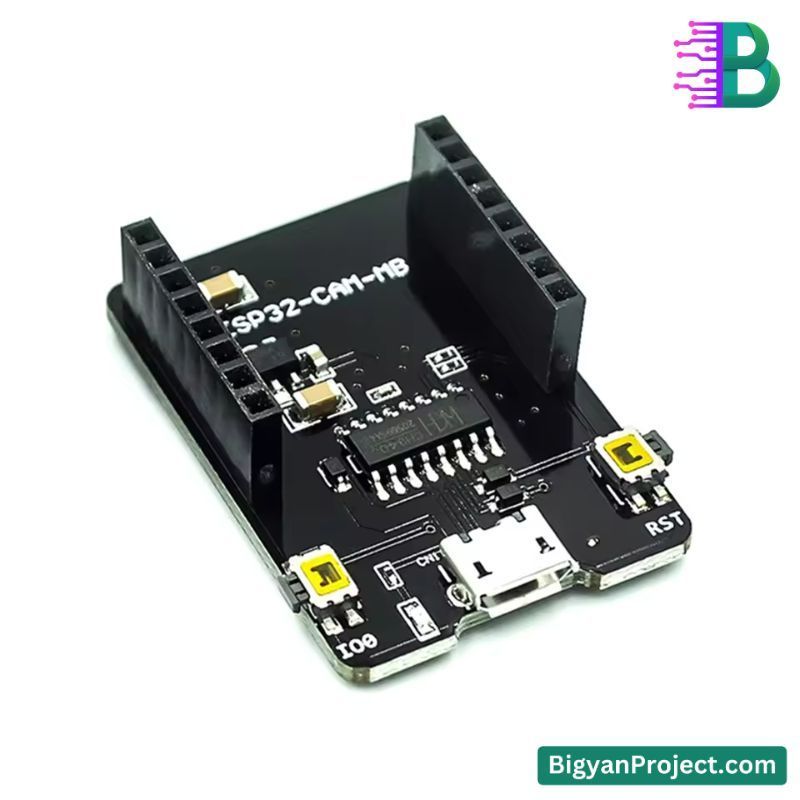

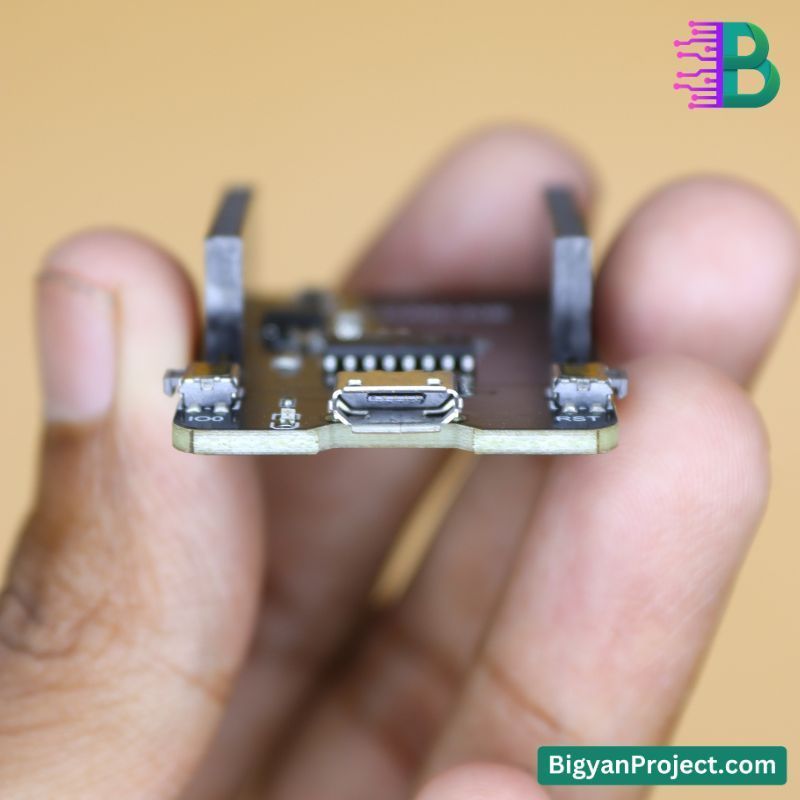

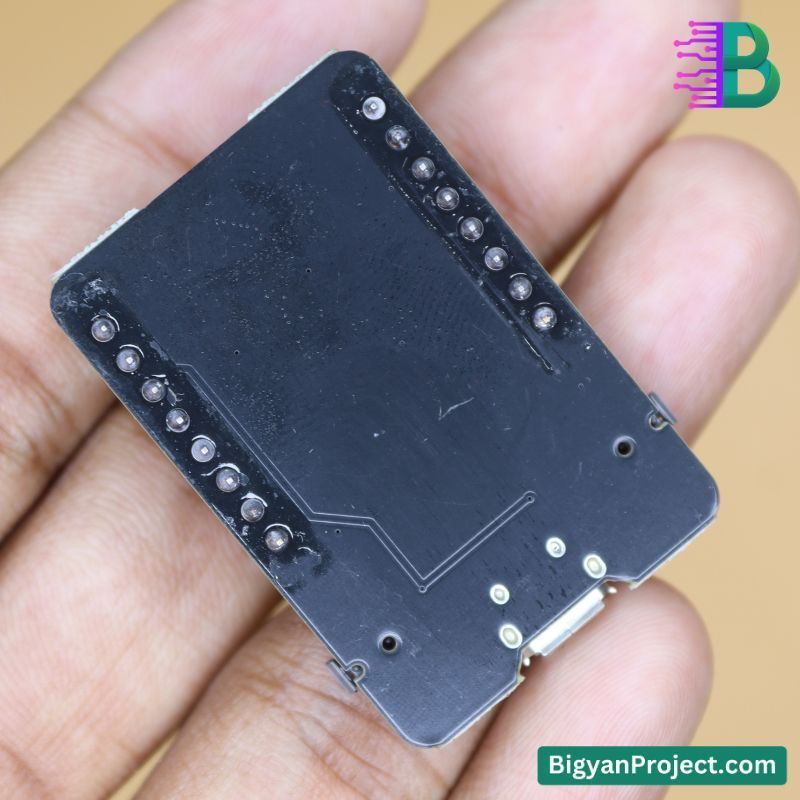

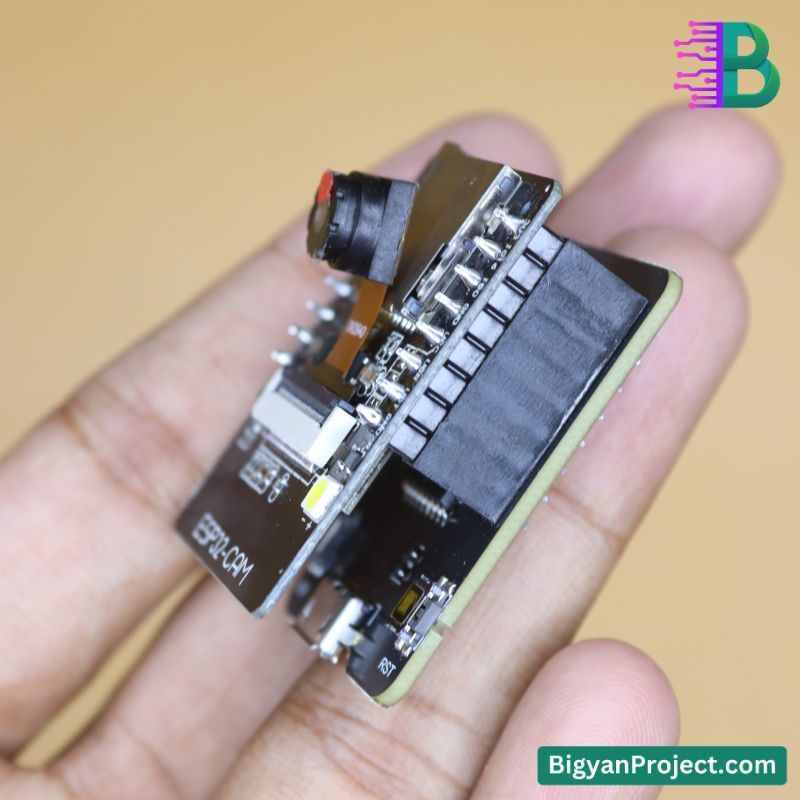

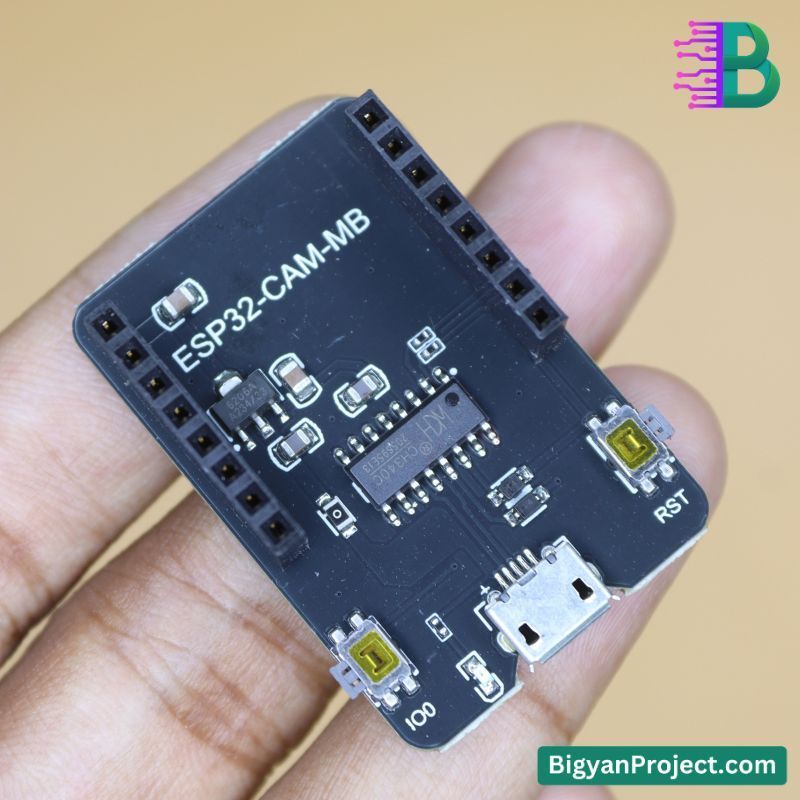

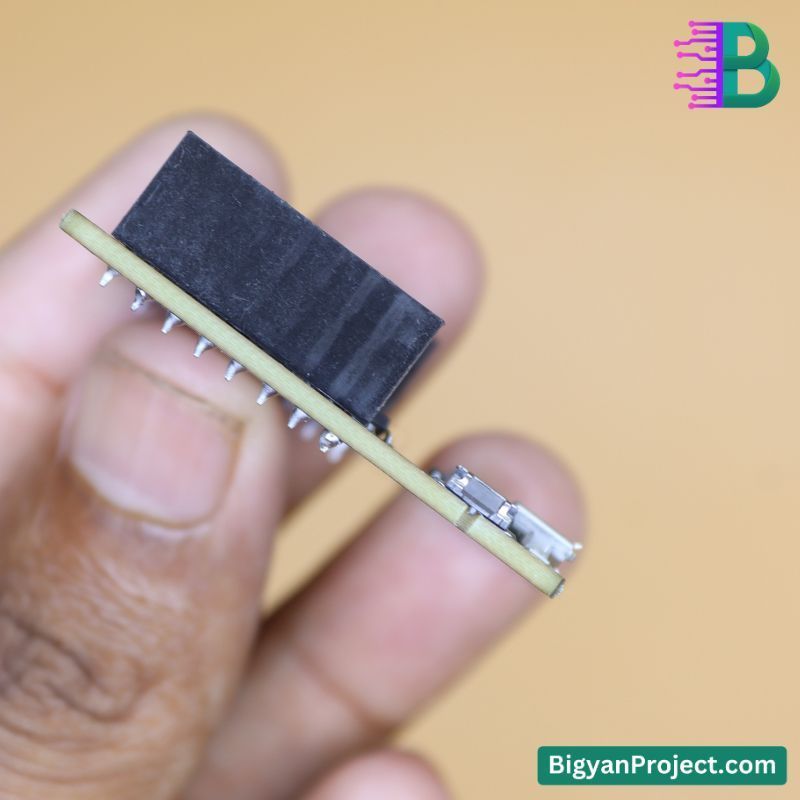

ESP32-CAM Programmer Base / Adapter Board

ESP32-CAM USB Adapter Board with CH340 Programmer for IoT Projects

The ESP32-CAM USB Adapter Board with CH340 Programmer is a compact, reliable, and plug-and-play solution designed to simplify programming and flashing of ESP32-CAM development boards. With built-in CH340 USB-to-serial chip, it removes the hassle of using separate FTDI converters. It connects directly to your PC via Micro USB, providing seamless access for uploading firmware, testing applications, and rapid development of IoT-based camera solutions.

This programmer base is engineered to work flawlessly with the ESP32-CAM module, making it an essential tool for developers, makers, and students working on smart surveillance, remote monitoring, and AI-enabled camera projects. Its small size, compatibility, and ease of use make it an ideal choice for embedded system development environments, home automation projects, and wireless IoT camera setups.

Product Specifications

Features

• Plug-and-play USB programming for ESP32-CAM
• CH340 USB-to-serial chip ensures stable data transfer
• No need for external FTDI modules
• Supports OTA and local firmware flashing
• Works with OV2640 and OV7670 camera modules
• Supports multiple wireless modes including STA and AP
• Integrated microSD card support for up to 4GB
• Supports FreeRTOS and LwIP stacks
• Compact and breadboard-friendly design

Applications / Use Cases

• Smart home surveillance systems
• Remote environmental monitoring
• Wireless image transmission projects
• IoT camera-based automation systems
• QR code-based access systems
• Wireless sensor integration for industries
• Educational and hobbyist electronics projects

User Guide / How to Use

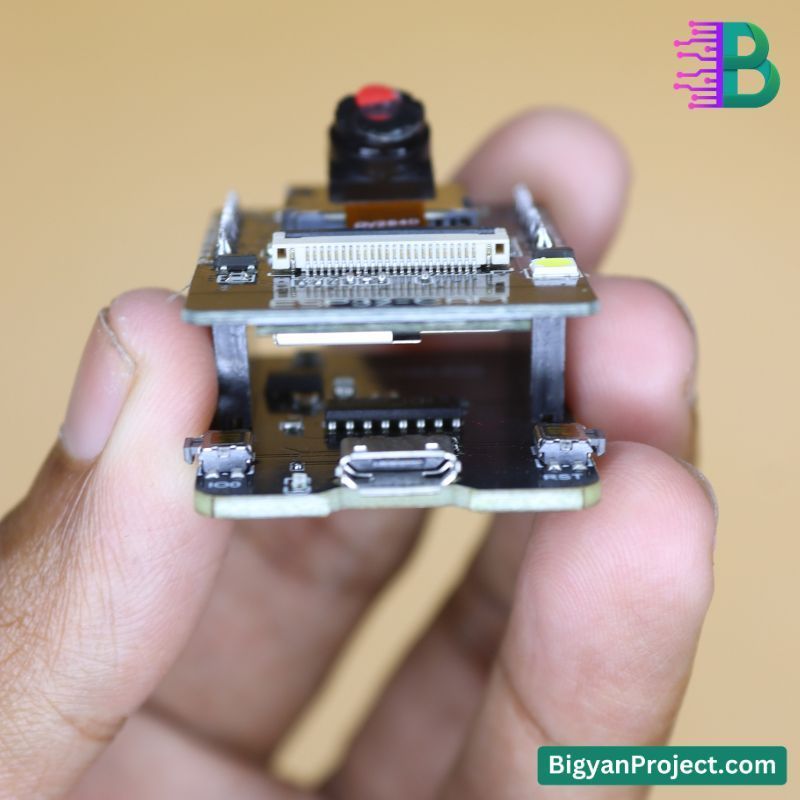

• Connect the ESP32-CAM module to the programmer board using the onboard pin headers
• Plug the USB cable into your computer
• Select the appropriate port and board in your Arduino IDE or flashing tool

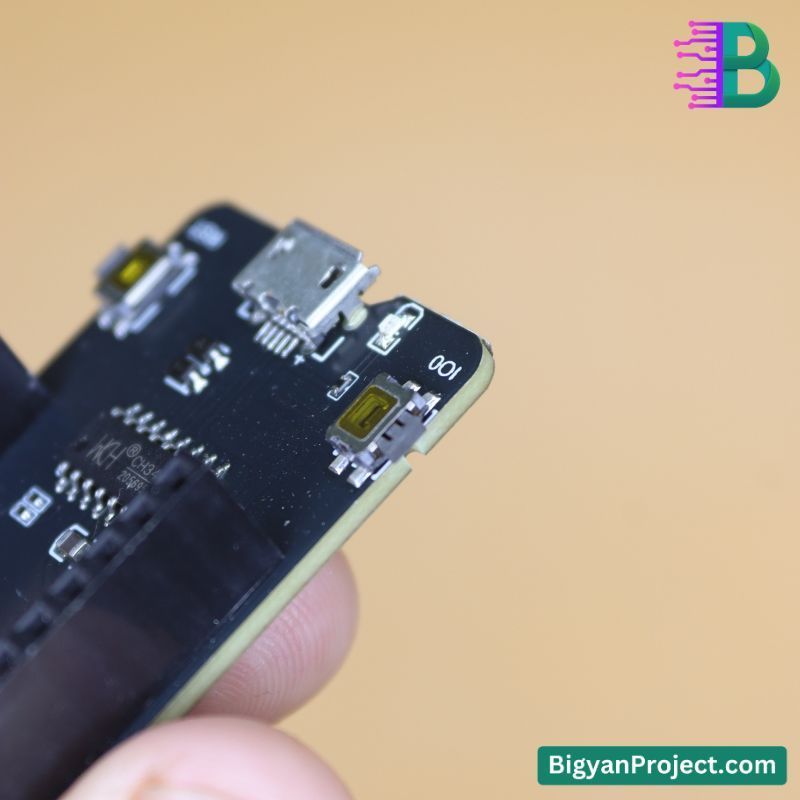

• Press the reset and IO0 buttons (if needed) to enter flashing mode
• Upload your sketch or firmware through the selected COM port
• Once flashed, reset the board to run your program

Frequently Asked Questions (FAQs)

• Q: Do I need an external programmer?
  A: No, this board includes a CH340 USB-to-serial chip that replaces the need for an FTDI programmer.
• Q: Can I use this board with other ESP modules?
  A: This adapter is specifically designed for ESP32-CAM modules. It may not fit or work properly with other ESP variants.
• Q: Is the camera module included?
  A: The programmer base is typically sold separately. Check product listings from Bigyan Project for combo offers.
• Q: How do I upload code?
  A: Use Arduino IDE or ESP Flash Download Tool and connect via Micro USB. Select board: "AI Thinker ESP32-CAM".

Challenges and Considerations

• Ensure drivers for CH340 are installed on your PC
• Board does not include a built-in USB port; that’s the role of the adapter
• Camera cable must be securely connected to avoid errors
• Incorrect boot mode may prevent uploading — use IO0 grounding properly
• MicroSD card should be FAT32 formatted

Compatibility

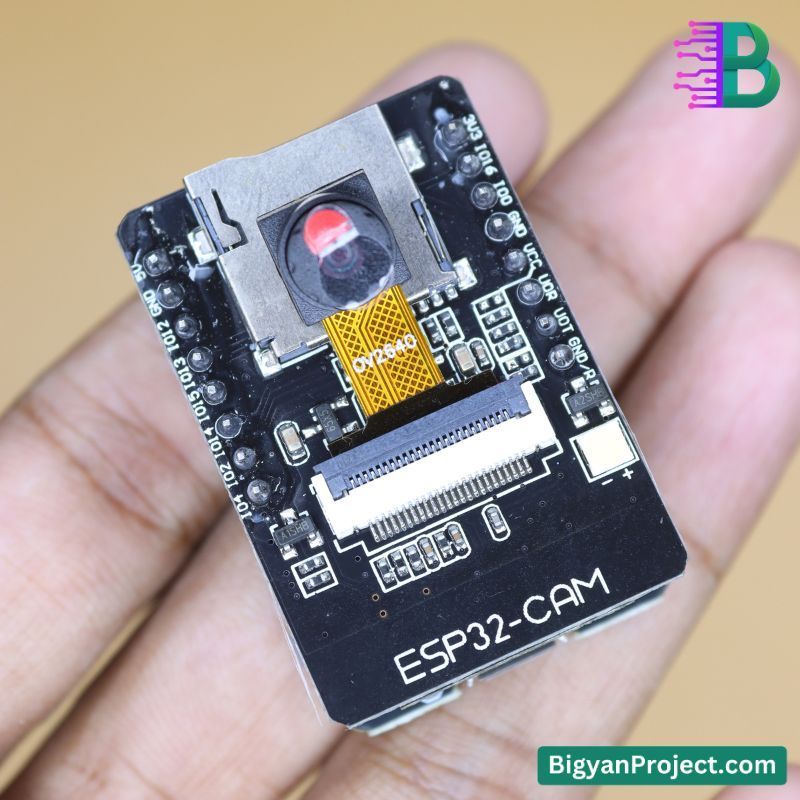

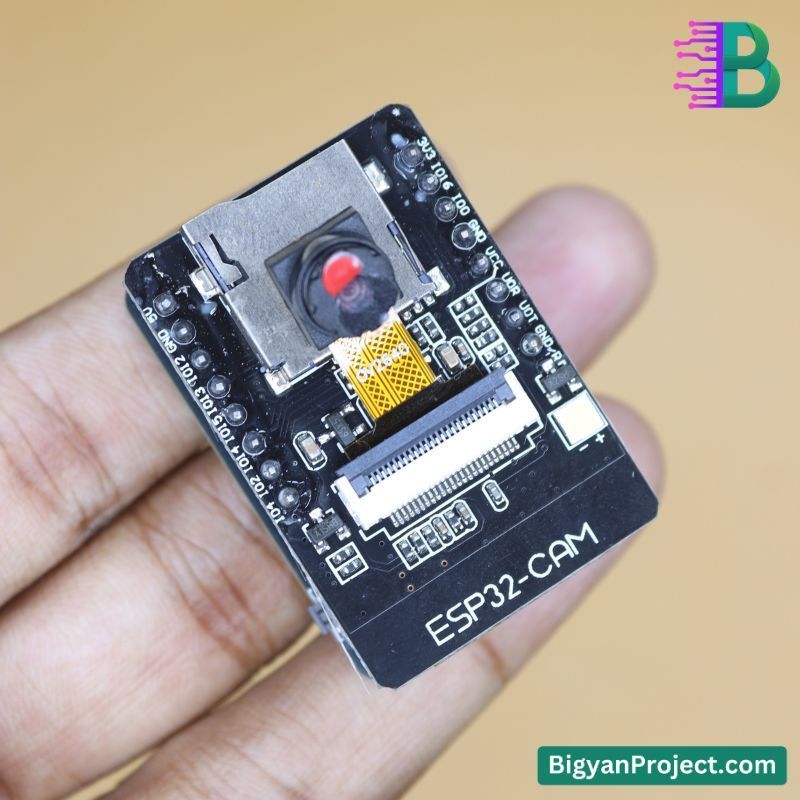

• Designed for use with ESP32-CAM modules
• Supports Arduino IDE, PlatformIO, and other ESP32 environments
• Compatible with Windows, macOS, and Linux systems
• Works with OV2640 and OV7670 camera modules

Future Enhancement Options

• Upgrade to a higher resolution camera like OV5640 (if supported in firmware)
• Add external antenna for improved WiFi signal strength
• Integrate with cloud services for real-time monitoring
• Use deep sleep modes for energy-saving applications
• Add AI-based image processing using ESP32-AI frameworks

Benefits

• Simplifies development with the ESP32-CAM module
• Eliminates the need for extra programming hardware
• Improves upload stability and connection consistency
• Ideal for IoT product prototyping and educational purposes
• Sold and supported by trusted local shop Bigyan Project

Conclusion

The ESP32-CAM Programmer Base / Adapter Board is a powerful, convenient, and essential tool for anyone working with ESP32-CAM modules. Its built-in CH340 USB-to-serial chip, micro USB interface, and stable performance make it a go-to solution for IoT developers and electronics hobbyists. Whether you’re building a smart security system, experimenting with wireless cameras, or learning embedded programming, this board simplifies your workflow. For reliable ESP32 accessories and fast support, choose Bigyan Project — your trusted electronics partner.
