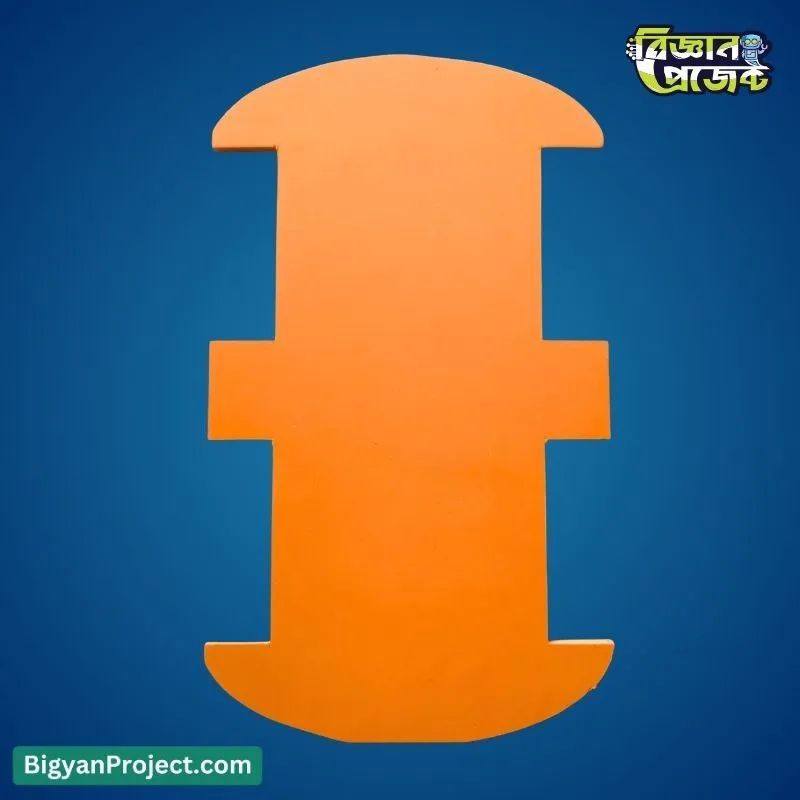

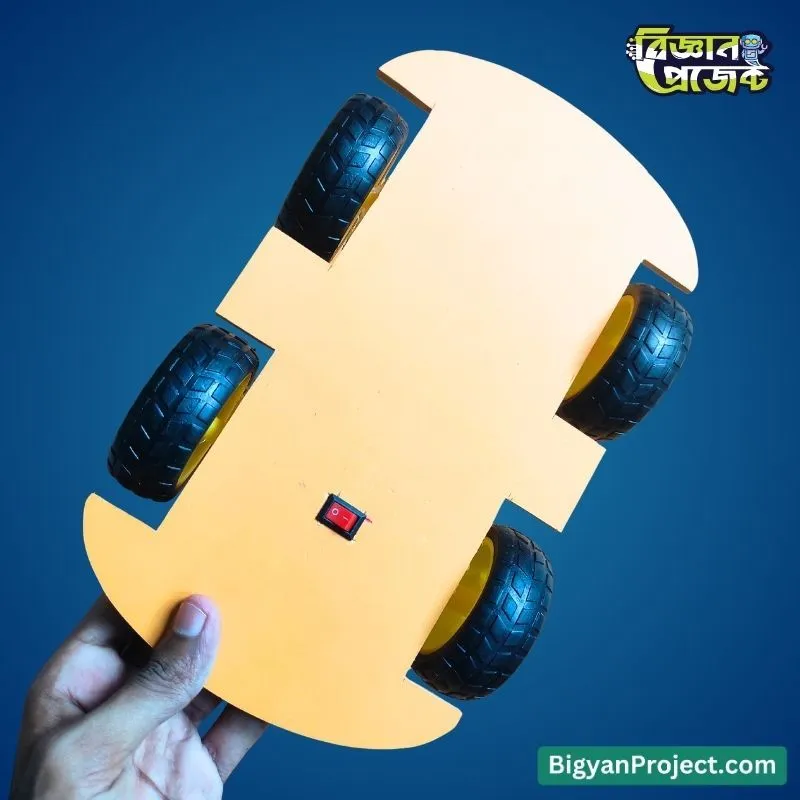

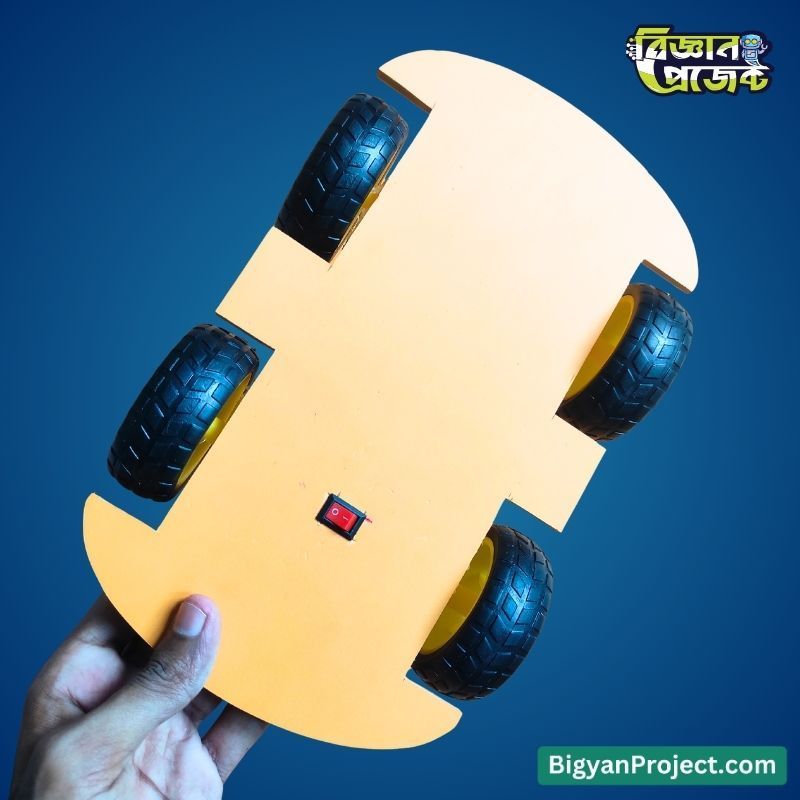

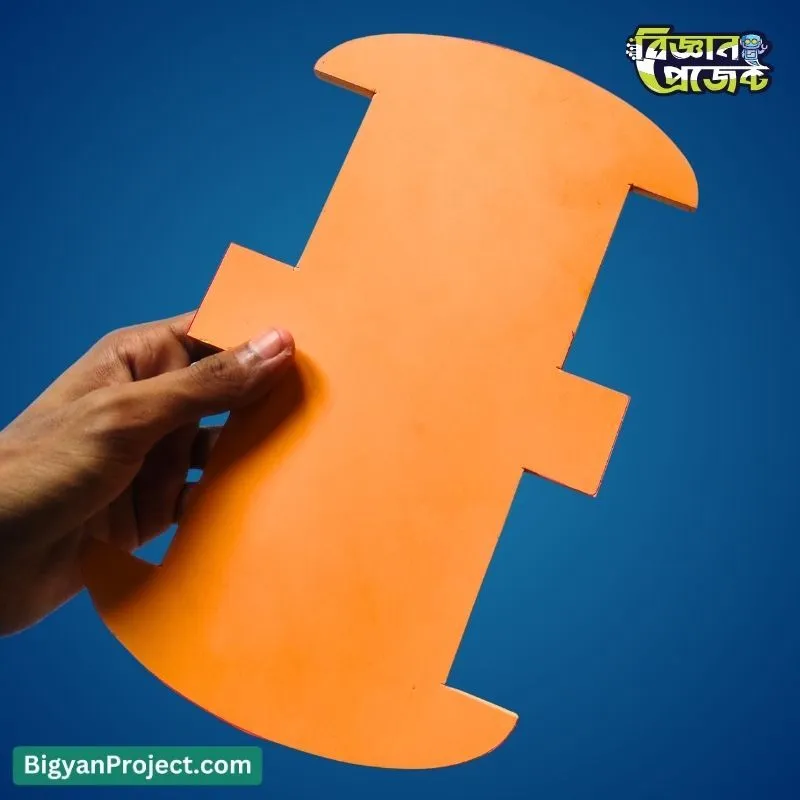

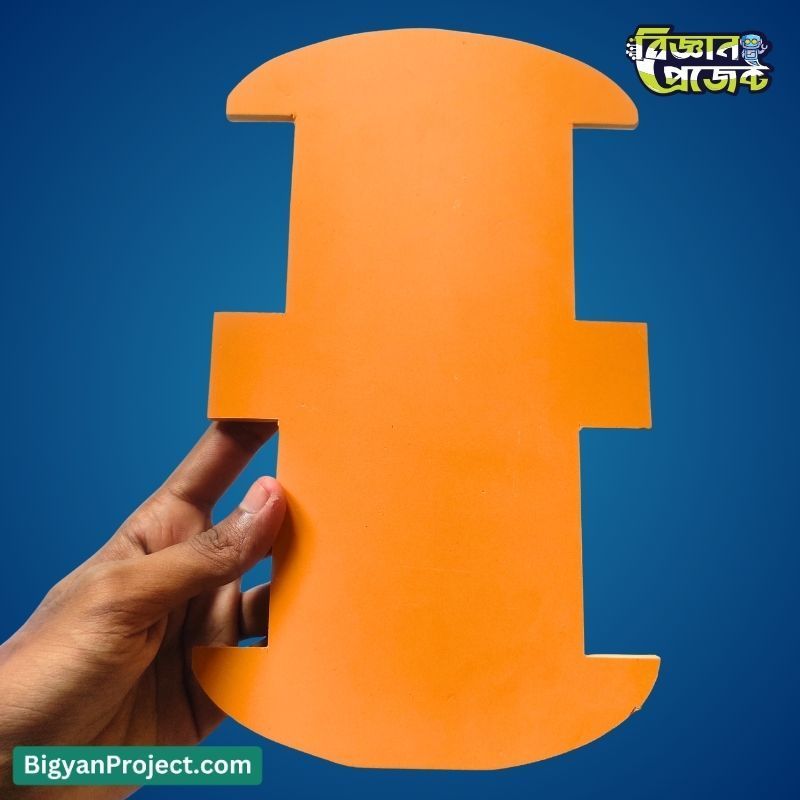

5MM PVC 4-Wheel DIY Robot Car Chassis

Customizable 5MM PVC 4-Wheel Robot Chassis Base for Arduino and DIY Science Projects

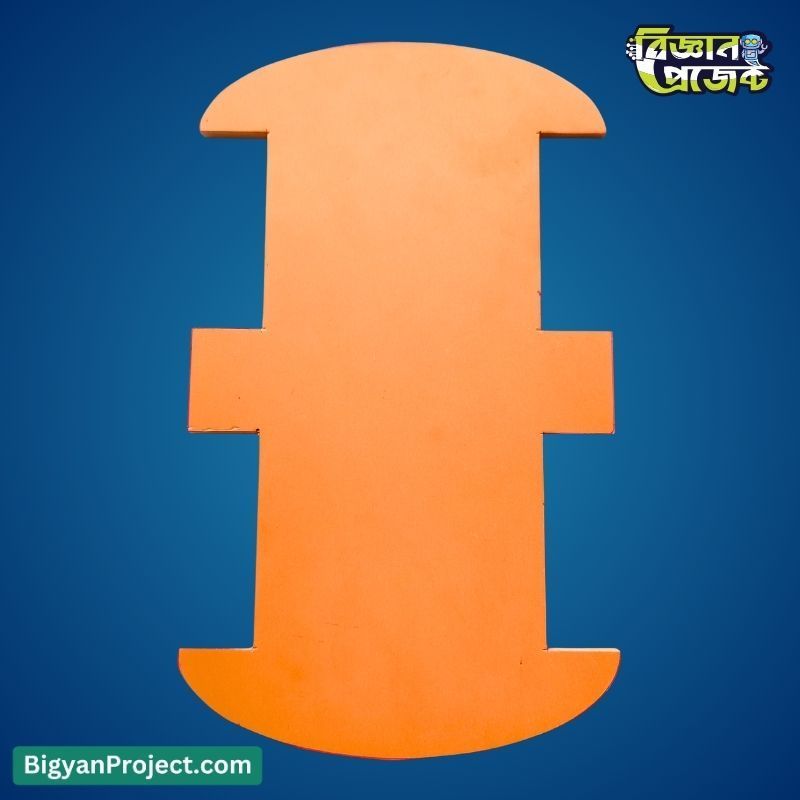

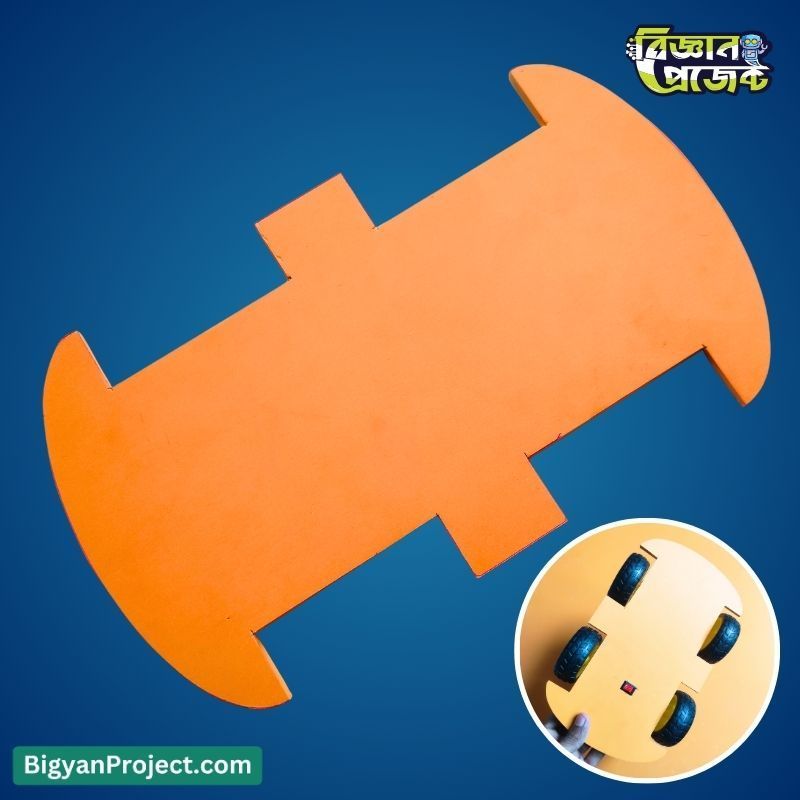

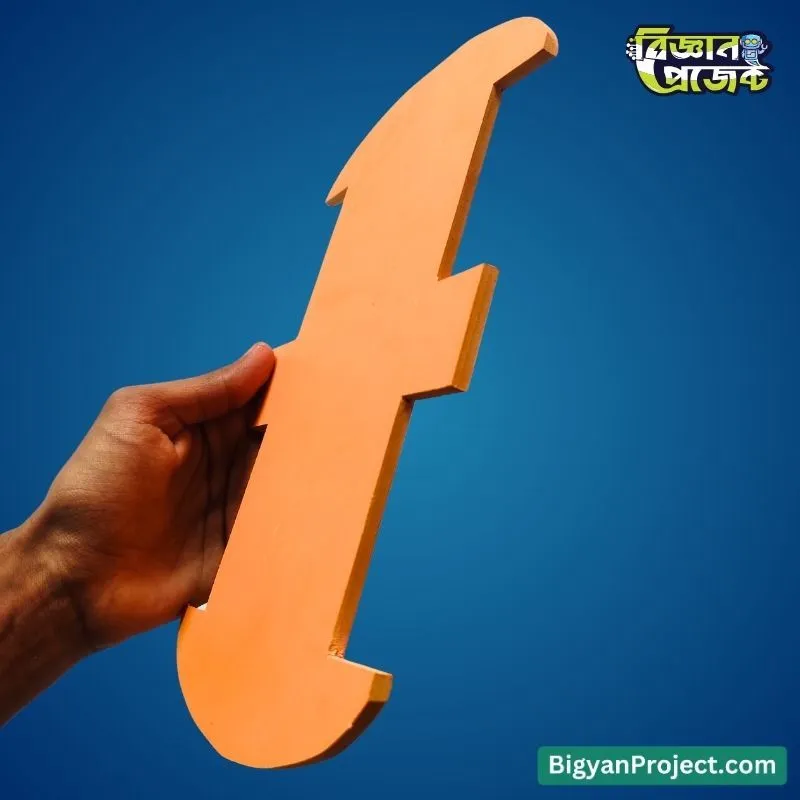

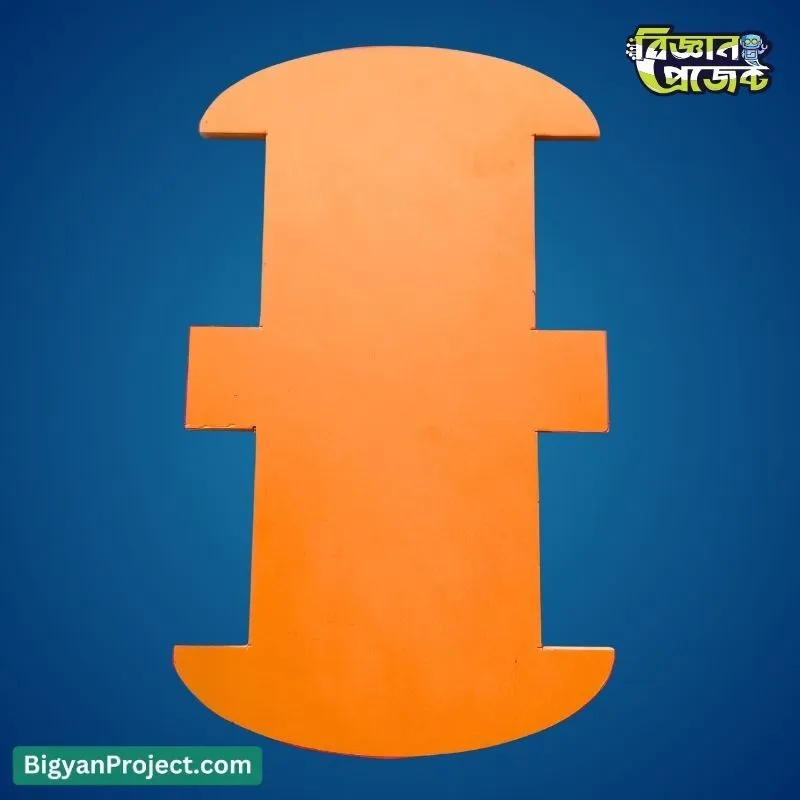

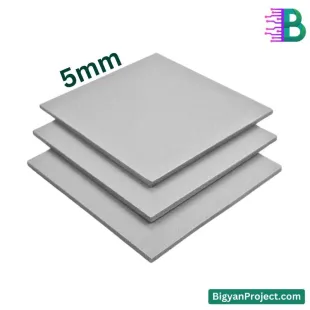

Embark on your next robotics adventure with the Custom 5MM PVC 4-Wheel Robotic Car Chassis, brought to you by Bigyan Project. This chassis is the ultimate blank canvas for students, hobbyists, and DIY enthusiasts across Bangladesh who want to build a robot from scratch. We designed this platform to be simple, affordable, and incredibly versatile, making it the perfect starting point for your journey into the world of electronics and automation. Crafted from a lightweight yet surprisingly rigid 5mm PVC foam board, this base provides a spacious and sturdy foundation for all your components without adding unnecessary weight. Unlike pre-drilled metal or acrylic chassis, this board gives you complete freedom to design your layout, making it an excellent tool for learning and experimentation.

Product Specifications

Features

• Completely Customizable: The blank surface allows you to drill holes and mount components exactly where you need them for optimal balance and performance.
• Lightweight Construction: The PVC foam material keeps the total weight of your robot low, improving battery life and motor efficiency.
• Easy to Work With: Requires only basic hand tools like a drill, screwdriver, and utility knife to modify, making it perfect for home or classroom settings.
• Spacious Platform: The 26cm x 16cm surface area provides ample room for motors, wheels, controllers, sensors, and batteries without being cramped.
• Ideal for Education: An excellent, cost-effective choice for school science projects, university-level robotics, and STEM learning workshops. At Bigyan Project, we believe in learning by doing, and this chassis is the perfect tool for that.

Applications / Use Cases

This versatile chassis is the foundation for countless robotics projects, including:

• Line Follower Robots
• Obstacle Avoiding Robots using Ultrasonic or IR sensors
• Bluetooth or Wi-Fi Controlled RC Cars
• Lightweight Sumo Robots
• Mobile IoT platforms for environmental sensing
• Autonomous delivery robot prototypes
• Platforms for robotics competitions in Bangladesh

User Guide / How to Use

Getting started is simple. Here’s a basic workflow to build your robot:
1. Plan Your Layout: Sketch out where you want to place your components. Consider weight distribution for better stability.
2. Mark and Drill: Use a pencil or marker to mark the drilling points for motor mounts, standoffs, and sensors. Carefully drill the holes using an appropriate drill bit.

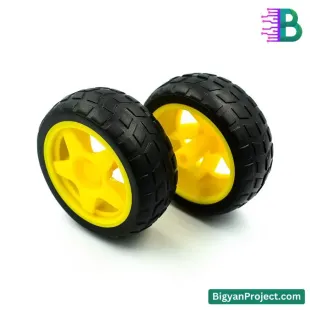

3. Mount Hardware: Securely attach your TT gear motors, wheels, caster ball, and any standoffs for mounting your Arduino or Raspberry Pi.

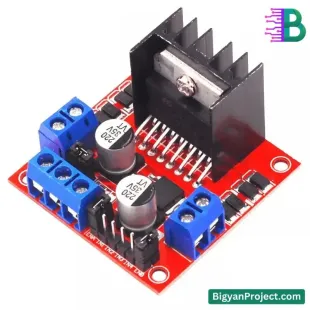

4. Install Electronics: Fix your microcontroller, motor driver (like the L298N), sensors, and battery holder onto the chassis.
5. Wire and Program: Connect all the components according to your circuit diagram, upload your code, and begin testing your creation!

Frequently Asked Questions (FAQs)

• Q: What tools do I need to work with this PVC chassis?
  A: You only need simple hand tools. A drill for making holes, a screwdriver for mounting components, and a ruler for measurements are usually sufficient.
• Q: Can this chassis support heavy components like large batteries?
  A: It is designed for standard hobbyist components. While it is durable, for very heavy items, you might consider adding simple reinforcements or ensuring the weight is distributed evenly.
• Q: Is this chassis suitable for a complete beginner in robotics?
  A: Absolutely. We at Bigyan Project highly recommend this chassis for beginners because its simplicity and customizability make it an excellent learning platform.
• Q: What microcontrollers can I mount on this board?
  A: It's a universal platform compatible with virtually any popular microcontroller, including the Arduino UNO, Nano, Mega, Raspberry Pi (all models), ESP32, and NodeMCU.

Challenges and Considerations

• The PVC material is durable for most projects but can scratch more easily than metal.
• As it is not pre-drilled, it requires careful measurement to ensure components are aligned correctly.
• It is not intended for extremely high-speed or heavy-duty applications without modification.

Compatibility

• Motors: Standard TT Gear Motors, N20 Micro Gear Motors
• Motor Drivers: L298N, L293D, TB6612FNG, and similar modules
• Microcontrollers: Arduino series, Raspberry Pi series, ESP series
• Sensors: HC-SR04 Ultrasonic, IR Obstacle Avoidance, Line Following sensors

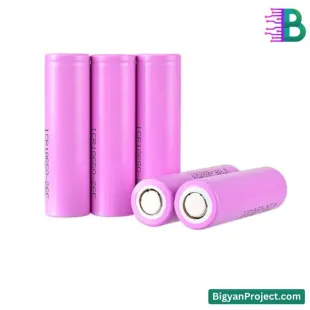

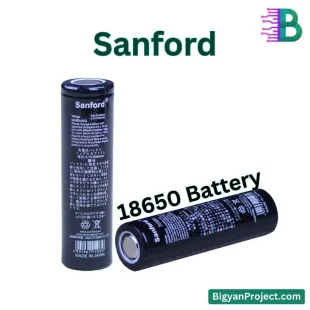

• Power: 18650 Li-ion battery holders, AA battery packs, 9V battery snaps

Future Enhancement Options

• Add a second deck using brass or nylon standoffs to create more space.
• Mount a servo-based robotic arm or gripper for object manipulation.
• Integrate a camera module for vision-based navigation or surveillance.
• Customize the look with paint or vinyl stickers to make your robot truly unique.

Benefits

• Achieve a true "homemade" and custom feel for your robotics project.
• Gain invaluable hands-on experience in mechanical assembly and design.
• Build sophisticated robots on a student-friendly budget.
• Enjoy the flexibility to adapt and upgrade your design as your skills grow.

Conclusion

The Custom 5MM PVC 4-Wheel Robotic Car Chassis is more than just a piece of plastic; it's the beginning of your next great invention. Offering the perfect balance of simplicity, customizability, and affordability, it is the ideal choice for anyone in Bangladesh looking to dive into the exciting field of robotics. Get your chassis from Bigyan Project and start bringing your ideas to life today!
