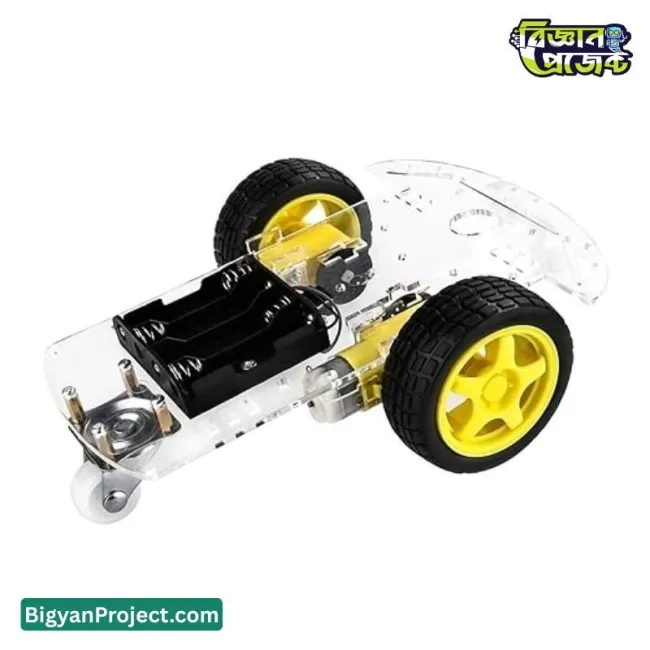

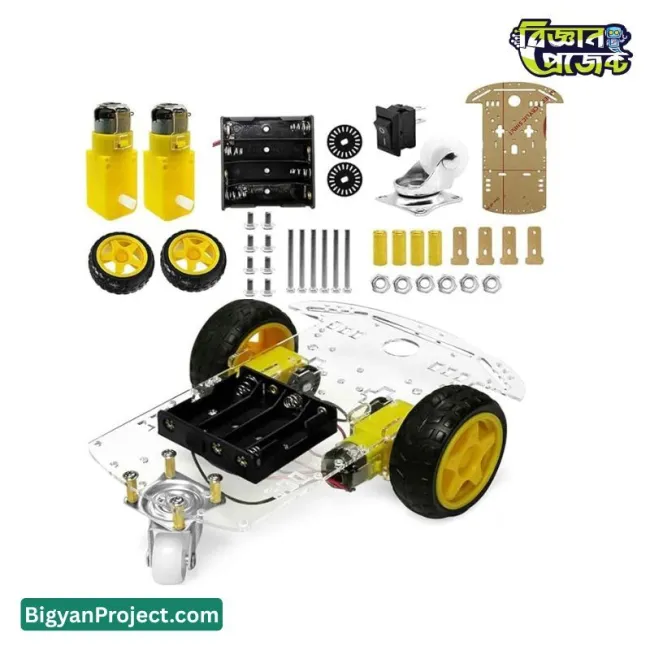

The 2WD Smart Robot Car Chassis Kit is an ideal mobile robot platform for Arduino and robotics learning projects. It includes dual geared motors with speed encoders, a stable acrylic chassis, and a caster wheel for balanced movement. This kit can be used to build line follower robots, obstacle avoidance robots, distance measurement systems, and wireless controlled cars. The modular design makes assembly simple and suitable for students, hobbyists, and STEM robotics experiments.
The 2WD Smart Robot Car Chassis Kit is a practical and beginner-friendly mobile robotics platform designed for Arduino based learning and experimentation. This kit provides a complete mechanical base to build intelligent robots such as line follower cars, obstacle avoidance robots, and wireless remote-controlled vehicles. It combines a stable transparent acrylic body, dual geared DC motors, and wheel encoders that allow accurate speed and distance measurement.
Because the motors include tachometer encoder discs, users can implement feedback control algorithms such as speed regulation, RPM counting, and odometry calculation. This makes the chassis suitable not only for school projects but also for advanced robotics research and STEM education. Students and hobbyists who purchase components from Bigyan Project commonly use this platform to learn robotics fundamentals including motor control, sensor integration, and autonomous navigation.
The modular mounting holes allow easy installation of Arduino boards, motor drivers, ultrasonic sensors, IR sensors, Bluetooth modules, WiFi modules, and battery packs. The included caster wheel provides balance while the two main wheels supply traction and maneuverability.

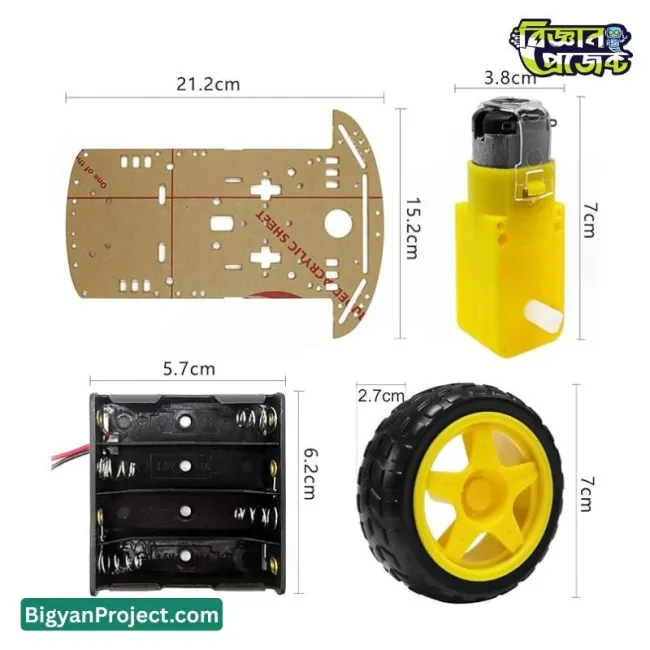

| Parameter | Details |
|---|---|
| Drive System | 2WD (Two Wheel Drive) |
| Motor Type | Dual DC Geared Motors with Encoder |
| Rated Voltage | 3V – 6V DC |
| No Load Speed | Approx. 120 RPM |
| Load Current | 190mA (Max 250mA) |
| Maximum Torque | ≥800 gf·cm |
| Battery Holder | 4 × AA Battery Box |
| Wheel Diameter | 6.5 cm |
| Chassis Material | Transparent Acrylic |
| Platform Size | Approx. 21 × 15 cm |
| Wheel Configuration | Two drive wheels + One caster wheel |
| Mounting Support | Supports Arduino and sensor modules |
The 2WD Smart Robot Car Chassis Kit is an essential foundation for learning and experimenting with robotics. Whether you are a student, hobbyist, or educator, this platform enables practical understanding of motion control, sensors, and automation. Many makers obtain their robotics components through Bigyan Project and use this chassis as their first step toward building intelligent robots.
2WD robot car chassis, Arduino robot platform, smart car robot kit, encoder motor robot, DIY robot car kit, line follower robot base, obstacle avoidance robot chassis, robotics learning kit, mobile robot platform, Arduino robotics kit
Important Information
The product details on this page are collected from multiple reliable sources to provide you with the best information. However, minor discrepancies may occur. We recommend thoroughly checking the product labels, instructions, and warnings before use.
Note: Images shown are for illustration purposes only and may slightly differ from the actual product.
The latest price of 2WD Smart Robot Car Chassis Kit with Encoder for Arduino in Bangladesh is ৳599 Taka. You can buy the 2WD Smart Robot Car Chassis Kit with Encoder for Arduino at best price from বিজ্ঞান প্রজেক্ট.
