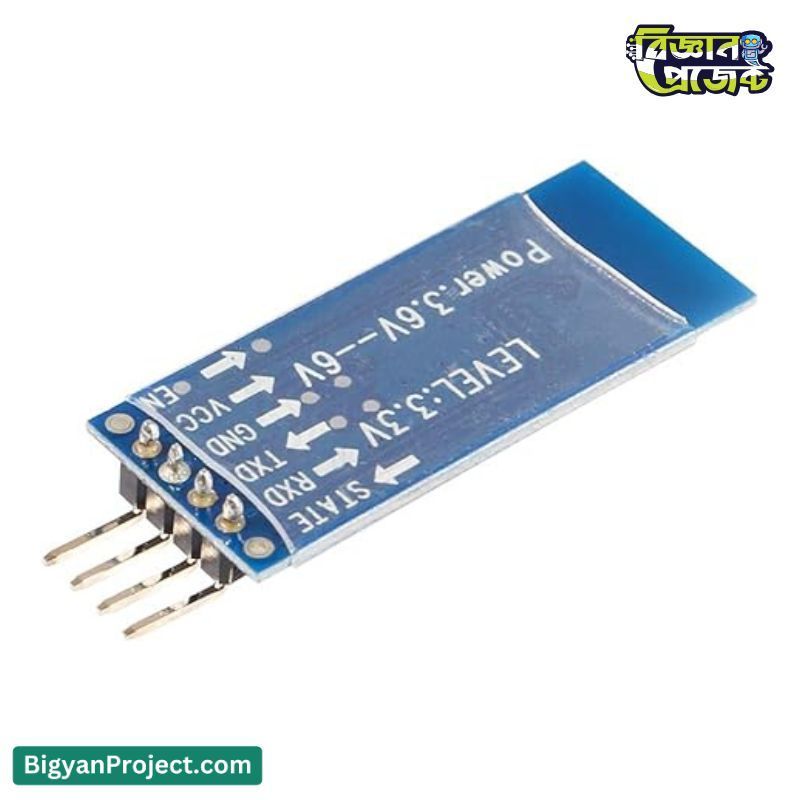

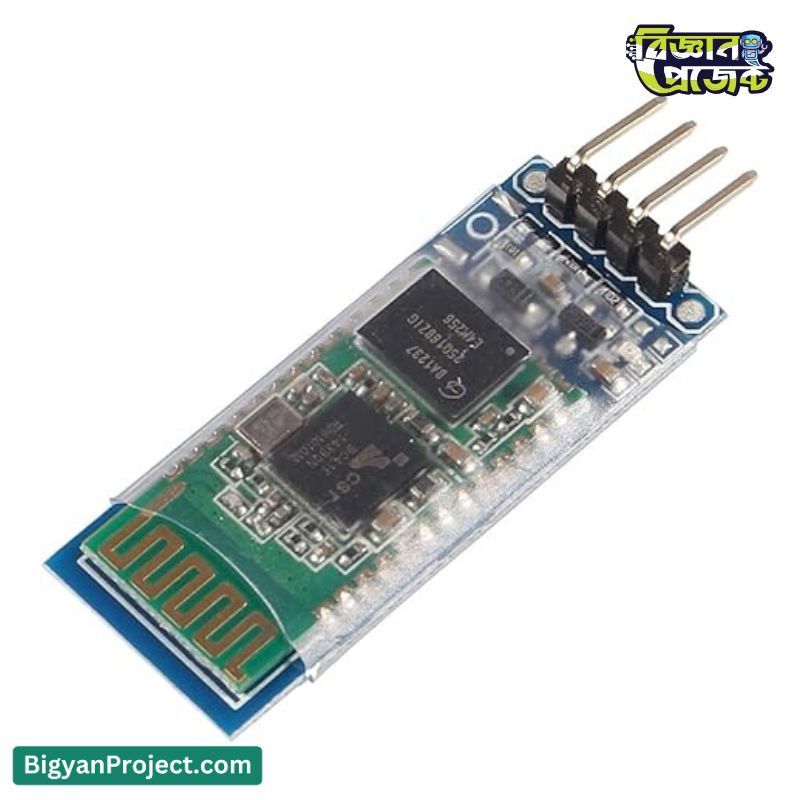

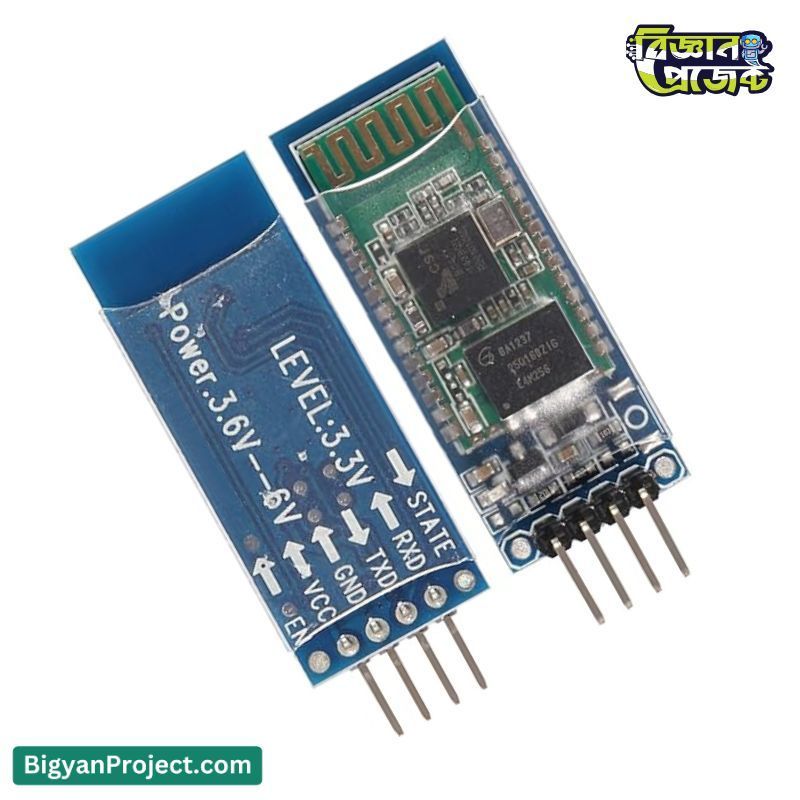

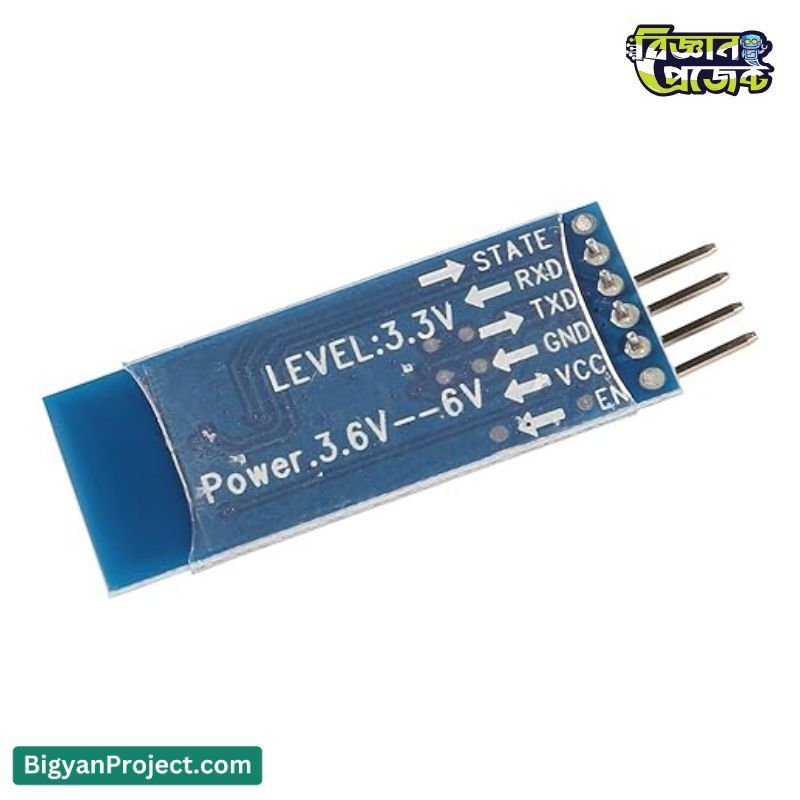

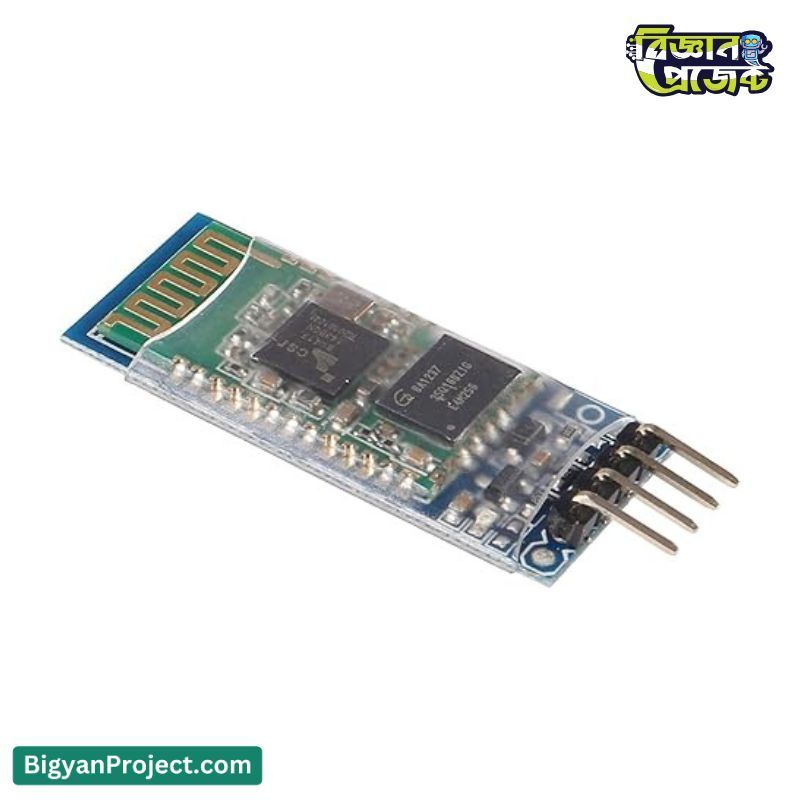

HC-06 Bluetooth Serial Transceiver Module

HC-06 Bluetooth Serial Transceiver Module for Wireless Communication

Product Overview / Introduction:
The HC-06 Bluetooth Serial Transceiver Module is a versatile and compact wireless solution designed for seamless communication between devices. Whether you're working on embedded systems, microcontroller-based projects, or remote control applications, the HC-06 offers reliable and efficient Bluetooth connectivity. With support for both master and slave modes, it enables easy integration of Bluetooth functionality into a wide range of electronics and industrial applications. Ideal for low power wireless data transmission, the HC-06 Bluetooth module offers compatibility with various MCUs and GPS systems, making it perfect for use in various consumer electronics and smart home devices.

Product Specifications:

Features:

• Supports both master and slave communication modes.
• Operates on Bluetooth V2.0+EDR for stable data transmission.
• Low power consumption, ideal for battery-operated devices.
• Compatible with a wide range of microcontrollers, including Arduino and Raspberry Pi.
• Compact size and easy integration into various projects.
• LED indicators for Bluetooth connection status.
• Supports wireless communication over a range of up to 30 feet (10 meters).
• Built-in PCB antenna for optimal connectivity.
• Simple to use with a UART 3.3V TTL level interface.

Applications / Use Cases:

The HC-06 Bluetooth Serial Transceiver Module is ideal for a variety of applications that require wireless communication. Some of the most common use cases include:

• Microcontroller-based projects and embedded systems.
• Wireless data transmission between a computer and peripheral devices.
• GPS data transmission for tracking and navigation systems.
• Industrial control and automation systems.
• Remote control for robotics and other wireless devices.
• Smart home systems for controlling lighting, temperature, and security devices.
• Data acquisition systems for wireless monitoring and reporting.

User Guide / How to Use:

To get started with the HC-06 Bluetooth Serial Transceiver Module, follow these simple steps:

• Connect the HC-06 module to your microcontroller or development board (such as Arduino or Raspberry Pi) using the TX, RX, VCC, and GND pins.
• Power the module by providing 3.3V to the VCC pin and grounding the GND pin.
• Ensure the TX and RX pins are properly connected for serial communication between the HC-06 and your MCU.
• Configure the baud rate of your MCU to 9600 to match the default baud rate of the HC-06 module.
• Use the module in master or slave mode depending on your project's requirements.
• Pair the HC-06 with a Bluetooth-enabled device, such as a smartphone or computer, by entering the default pairing code "1234" if needed.

Frequently Asked Questions (FAQs):

• Q: Does the HC-06 module support iOS devices?
• A: No, iOS devices are not supported by the HC-06 Bluetooth module.
• Q: Can the HC-06 be used for long-range communication?
• A: The HC-06 module is designed for short-range communication, with a maximum range of 30 feet (10 meters).
• Q: Is the HC-06 compatible with Arduino?
• A: Yes, the HC-06 Bluetooth module is compatible with Arduino and other popular microcontroller boards.
• Q: How do I change the default pairing password?
• A: To change the pairing password, you'll need to reconfigure the module using AT commands.

Challenges and Considerations:

While the HC-06 Bluetooth module is an excellent choice for short-range wireless communication, there are a few considerations to keep in mind:

• The module operates at 3.3V, so level shifting is required if you want to connect it to a 5V system.
• Limited range (30 feet) may not be sufficient for some long-range applications.
• Incompatibility with iOS devices may limit its use in certain projects.

Compatibility:

The HC-06 Bluetooth module is compatible with a wide range of platforms, including:

• Arduino boards (e.g., Arduino Uno, Nano, Mega)
• Raspberry Pi and other single-board computers
• MCU platforms such as ESP32, STM32, and others
• Bluetooth-enabled computers and smartphones (excluding iOS devices)

Future Enhancement Options:

Future versions of the HC-06 module could include improvements such as:

• Extended communication range for greater flexibility in larger projects.
• Enhanced compatibility with iOS devices.
• Improved power management features for energy-efficient operation in battery-powered devices.

Benefits:

The HC-06 Bluetooth module offers several key benefits:

• Reliable and stable wireless communication over short distances.
• Low power consumption, making it suitable for mobile and embedded systems.
• Easy integration into various projects due to its compact size and simple interface.
• Compatible with popular platforms like Arduino and Raspberry Pi, offering versatility for hobbyists and professionals.
• Cost-effective solution for adding Bluetooth functionality to your devices.

Conclusion:

The HC-06 Bluetooth Serial Transceiver Module is an essential component for projects that require reliable, short-range wireless communication. Whether you're building a remote control system, integrating GPS data, or creating a smart home setup, the HC-06 module offers an easy-to-use and affordable solution. With its compatibility with microcontrollers and embedded systems, it is an ideal choice for both beginners and experienced developers. The product is available at Bigyan Project (বাংলাদেশ বিজ্ঞান প্রজেক্ট), offering high-quality Bluetooth modules for your next project. By choosing the HC-06, you are ensuring that your projects will have seamless and efficient Bluetooth connectivity.
