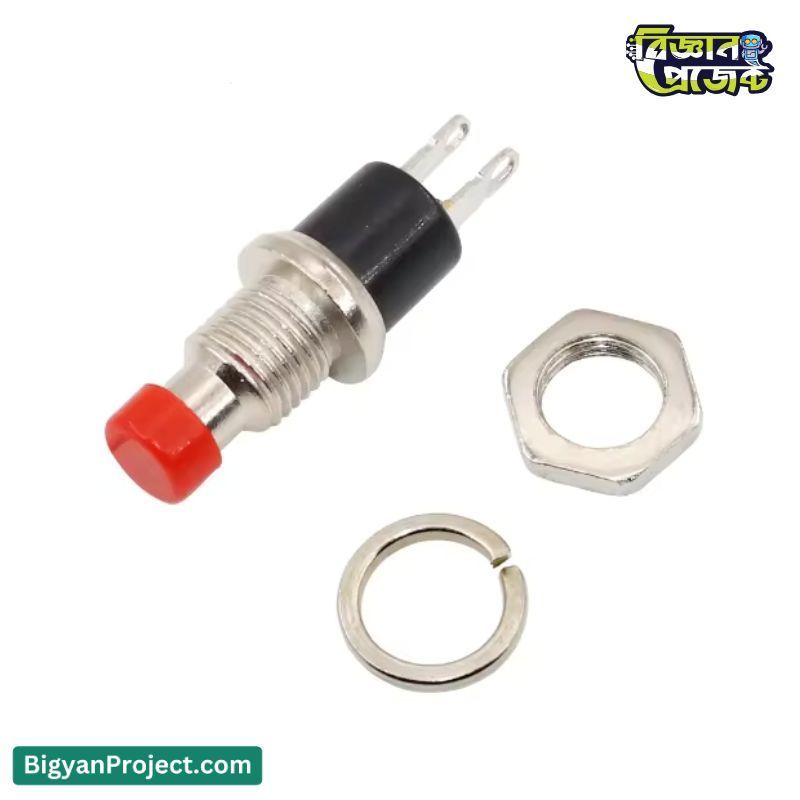

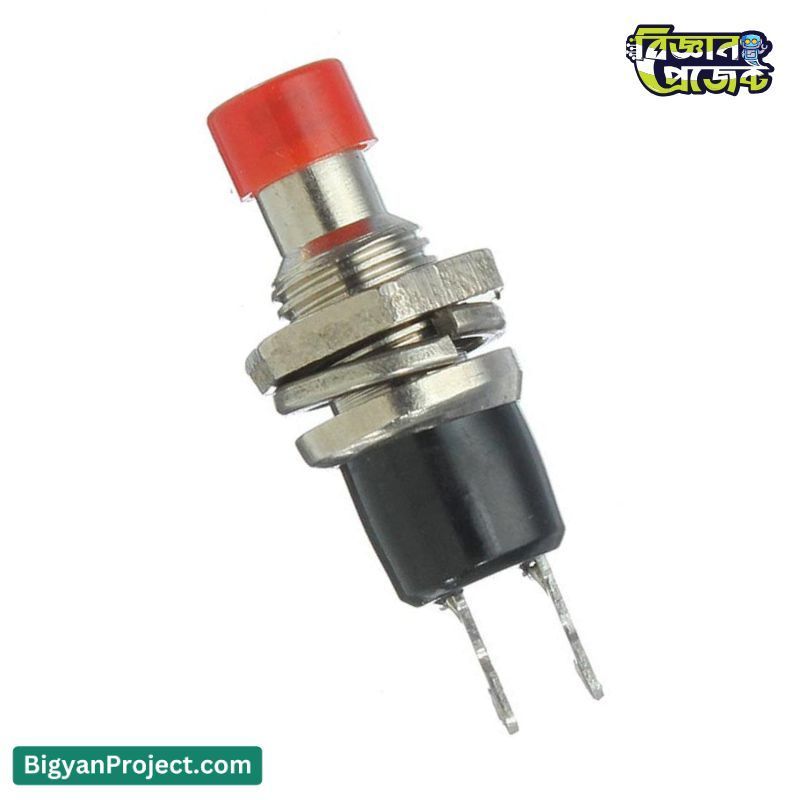

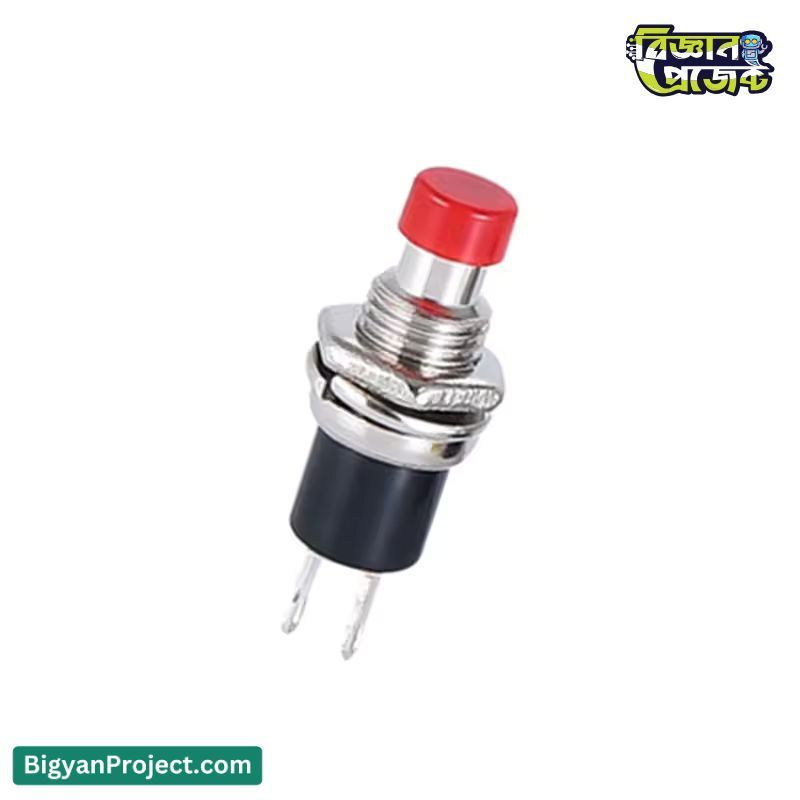

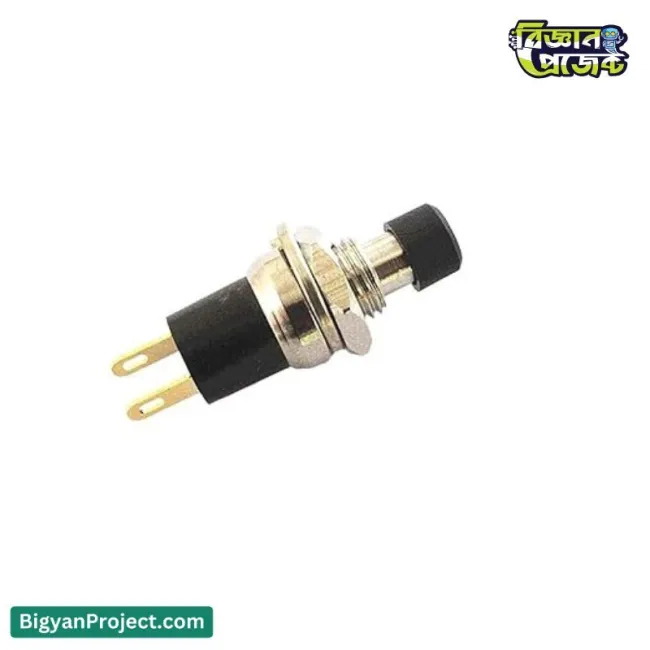

PBS-110 7mm Round Pushbutton Switch 2 Pin

PBS-110 7mm Round Momentary Push Button Switch 2 Pin

The PBS-110 7mm round momentary push button switch is a compact and reliable component widely used in DIY electronics, household appliances, audio devices, and toys. This 2 pin copper terminal switch is designed for durability and smooth operation. With its self-resetting function, the switch only stays active when pressed and automatically returns to its default state when released. Available in multiple colors including red, yellow, green, blue, black, and white, this button switch is perfect for projects requiring precise control. At Bigyan Project, we provide original components like the PBS-110 switch to help students, hobbyists, and professionals build quality electronic projects.

Product Specifications

Features

• Compact 7mm round head design suitable for space-saving projects
• Reliable momentary self-resetting action for precision control
• Durable copper feet terminals ensure long-lasting connectivity

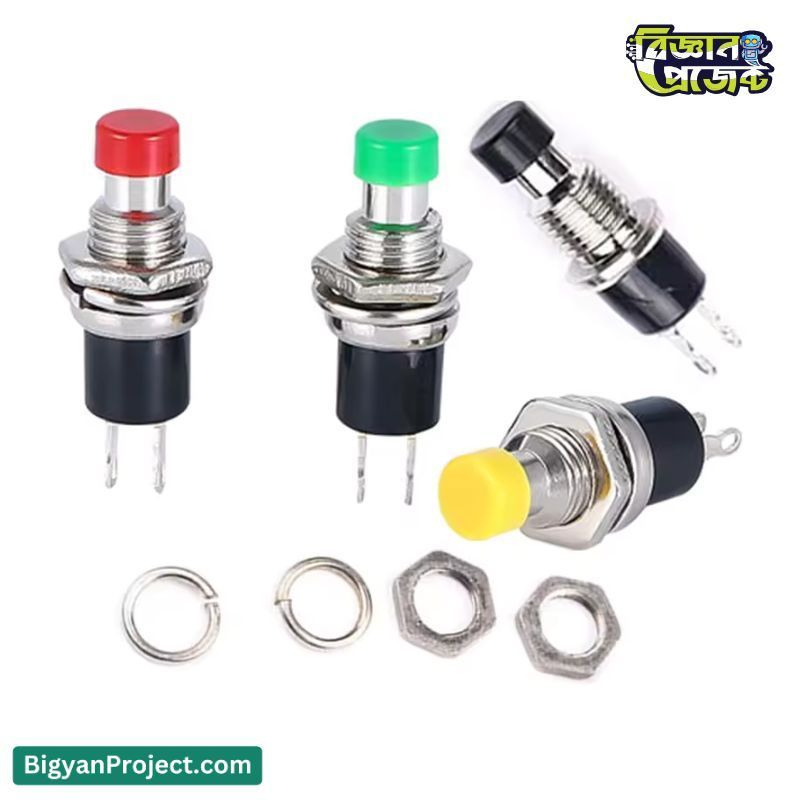

• Available in six different colors for flexible project design
• Supports both low and high voltage applications
• Lightweight and easy to install in any DIY or professional project
• RoHS certification ensures safety and environmental compliance

Applications / Use Cases

• DIY electronics projects requiring small, responsive switches
• Audio equipment for on/off and control functions
• Household appliances like lamps, fans, and gadgets
• Toy manufacturing and repair for push-button control
• Educational projects at Bigyan Project for STEM learning
• Prototyping and testing new circuit designs

User Guide / How to Use

Using the PBS-110 push button switch is simple and beginner-friendly:

• Identify the two copper terminal pins at the bottom of the switch
• Solder or connect the pins to your circuit depending on the design
• When the button is pressed, the circuit completes and allows current flow
• When released, the switch resets and the circuit disconnects automatically
• Always use within the rated voltage and current to ensure safety and durability

Frequently Asked Questions (FAQs)

• Q: Is PBS-110 a latching switch?
  A: No, PBS-110 is a momentary push button that resets when released.
• Q: What is the size of this switch?

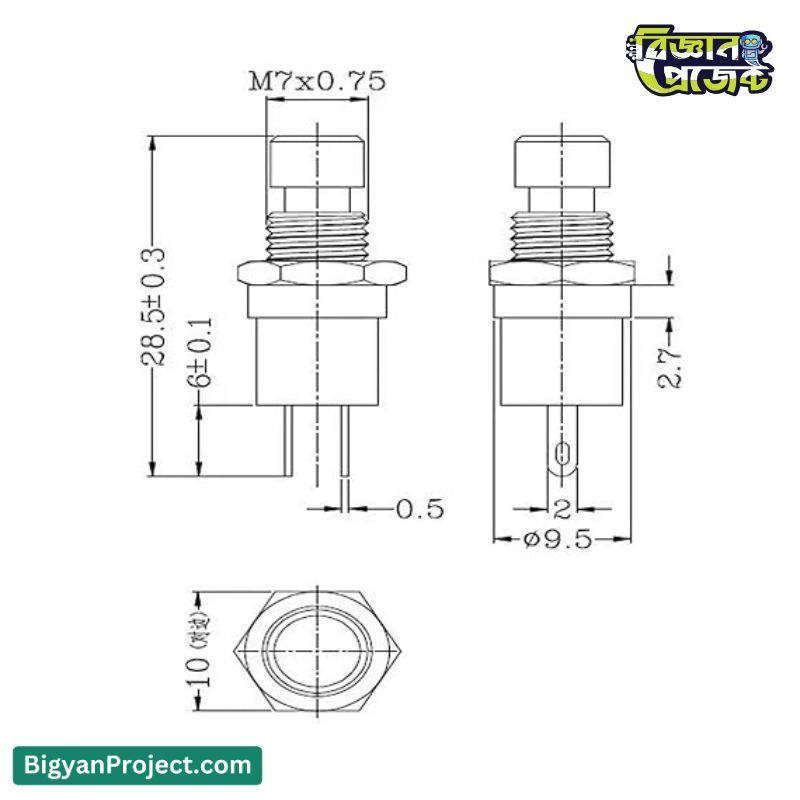

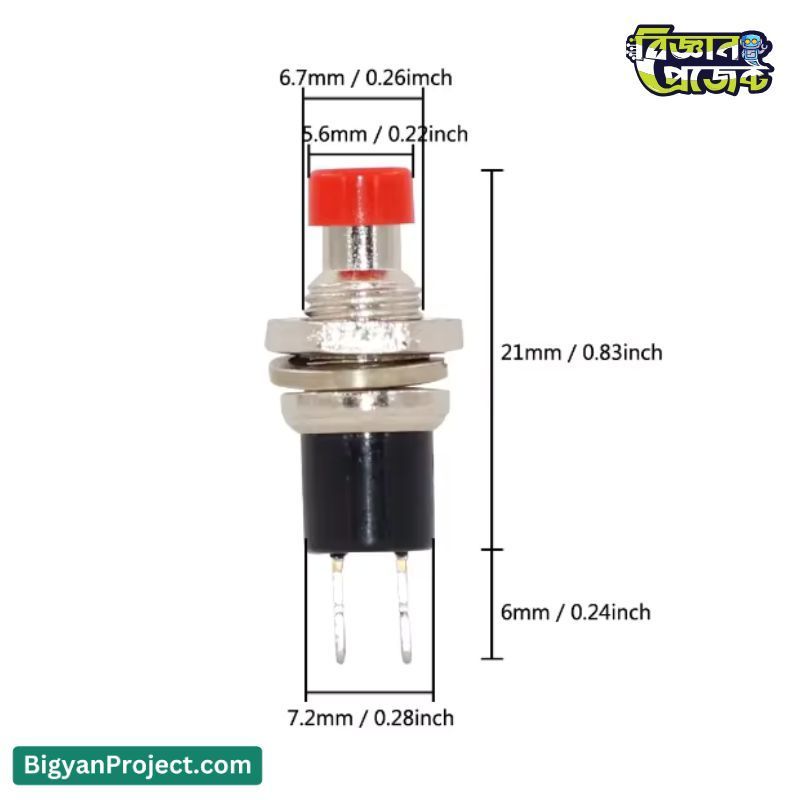

  A: It has a 7mm round head which makes it suitable for compact circuits.
• Q: Can this switch handle 220V appliances?
  A: It is rated up to 250V at 1A. Ensure the load is within the rating.
• Q: What colors are available?
  A: Red, Yellow, Green, Blue, Black, and White.
• Q: Does Bigyan Project provide bulk quantity?
  A: Yes, Bigyan Project supplies both single units and bulk orders.

Challenges and Considerations

• Limited to momentary action only, not suitable where latching is required
• Small size may not fit heavy-duty equipment without modification
• Must ensure correct current rating to avoid overheating
• Not waterproof, additional protection needed for outdoor use

Compatibility

• Works with breadboards and PCB circuits
• Compatible with Arduino, Raspberry Pi, and other microcontrollers
• Suitable for low-voltage DC circuits
• Can be integrated into educational kits from Bigyan Project

Future Enhancement Options

• Adding waterproof housing for outdoor applications
• Including LED indicator versions for visual feedback
• Expanding to larger head sizes for industrial use
• Integrating with smart switches for IoT projects

Benefits

• Affordable and reliable push button solution
• Perfect choice for student projects and DIY makers
• Enhances circuit functionality with minimal effort
• Available in multiple colors for better design flexibility
• Backed by Bigyan Project for quality assurance

Conclusion

The PBS-110 7mm momentary push button switch is an essential component for electronics enthusiasts, students, and professionals. Its compact design, durable construction, and reliable performance make it suitable for a wide range of applications, from simple toys to advanced DIY electronics. By choosing components from Bigyan Project, you ensure quality, reliability, and access to trusted electronic solutions. This small switch plays a big role in enhancing the usability of your circuits, making it a must-have in any electronics toolkit.
