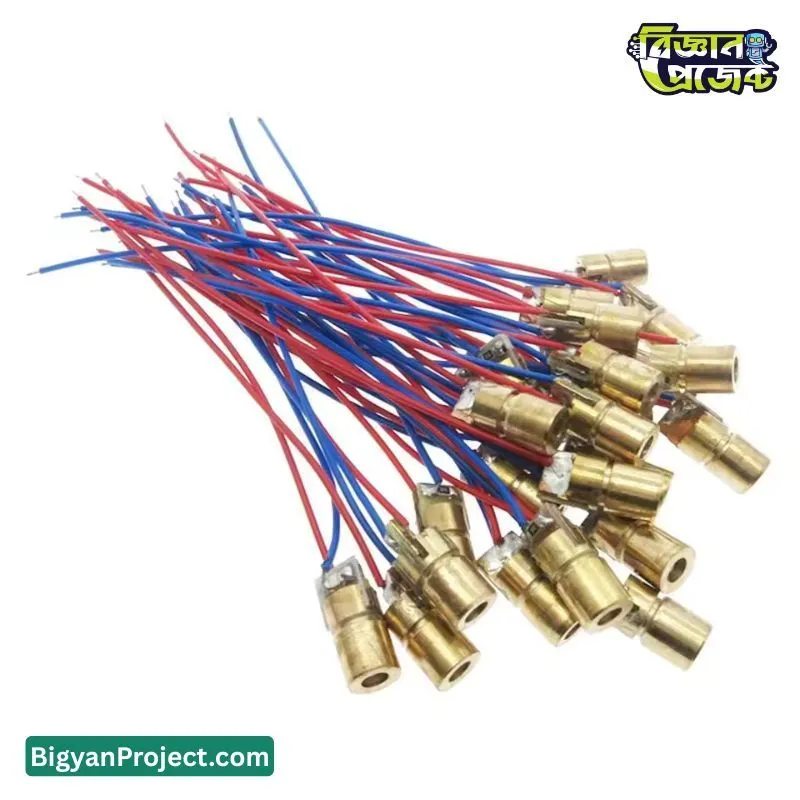

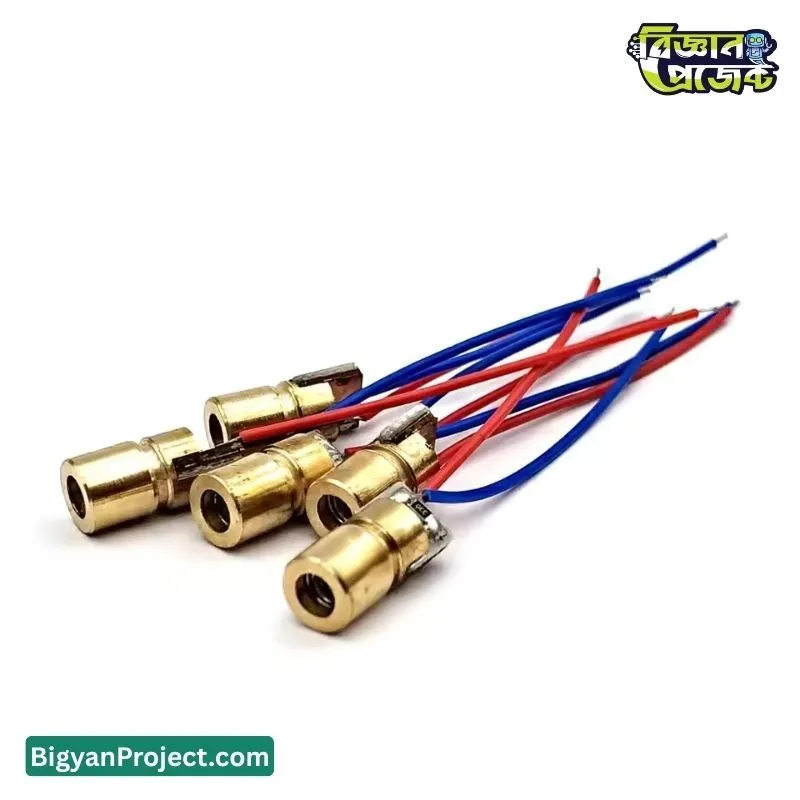

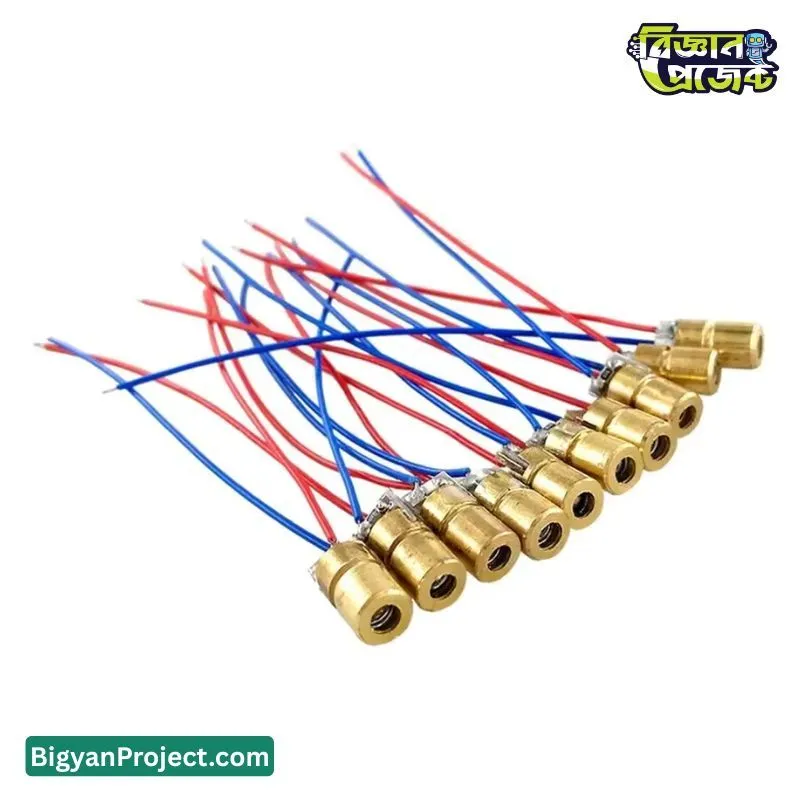

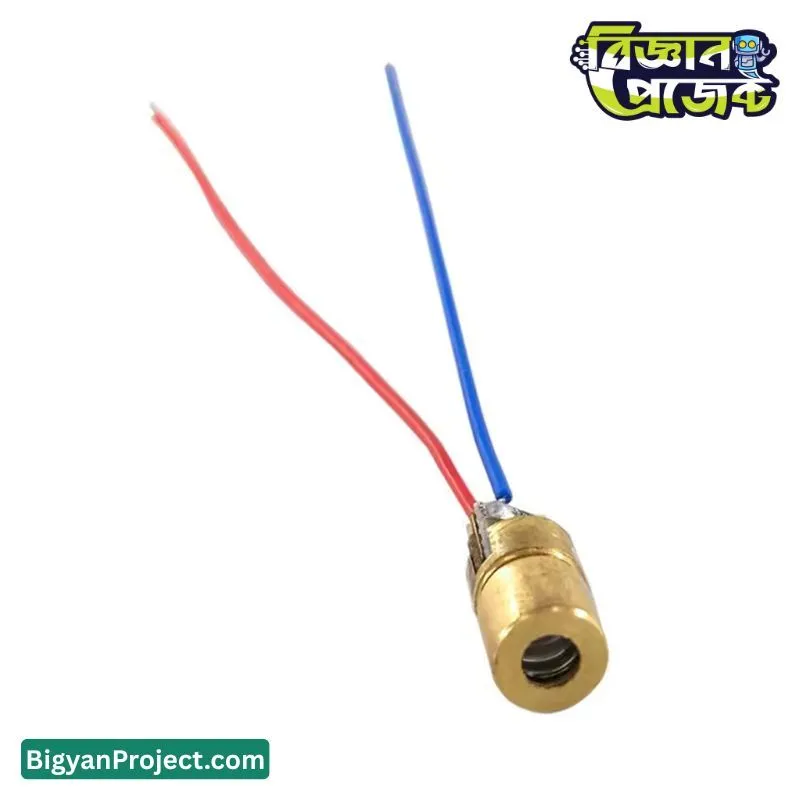

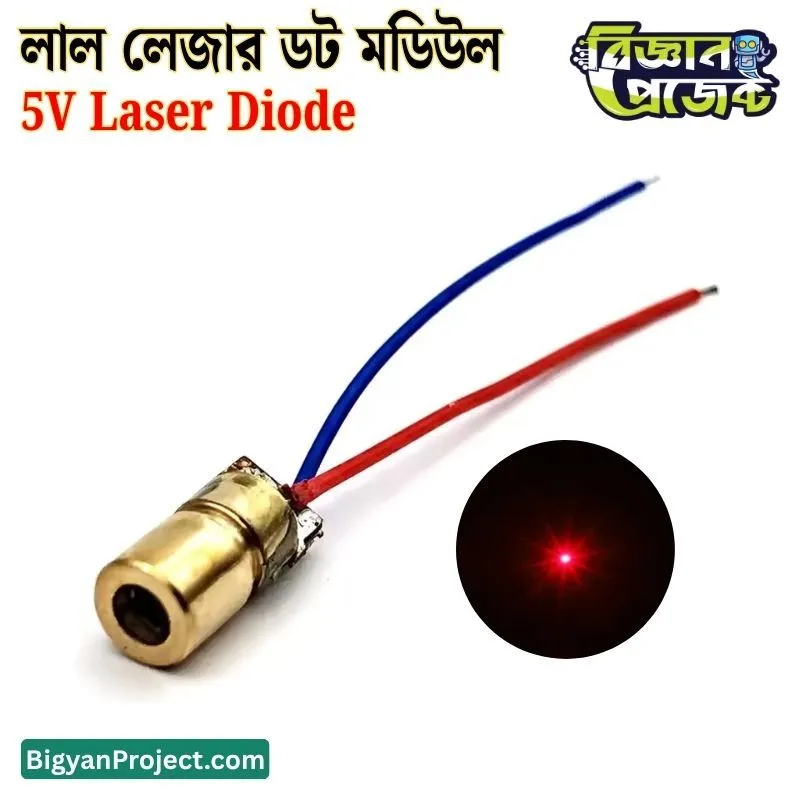

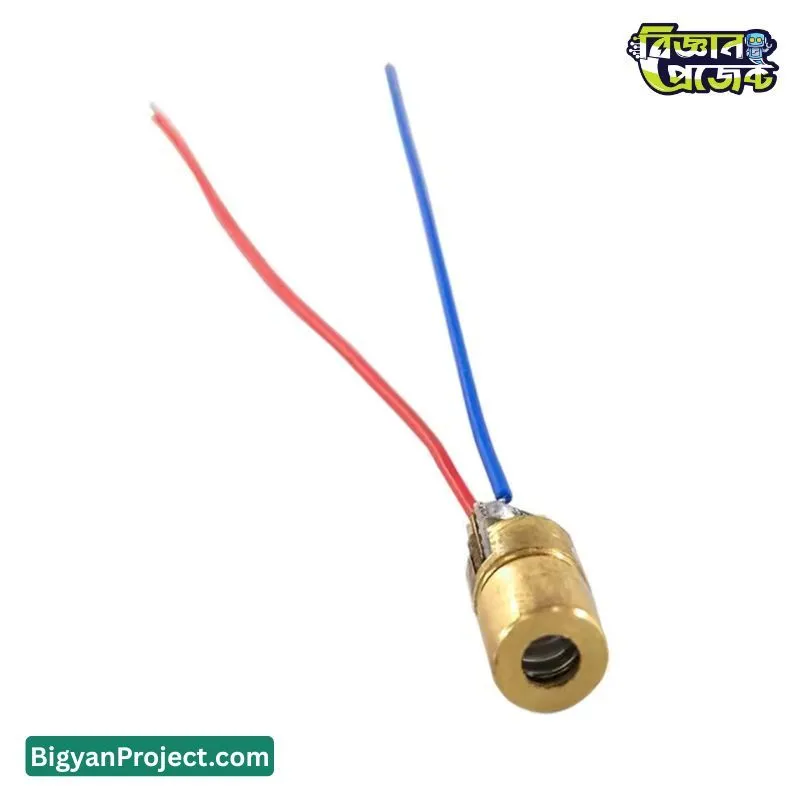

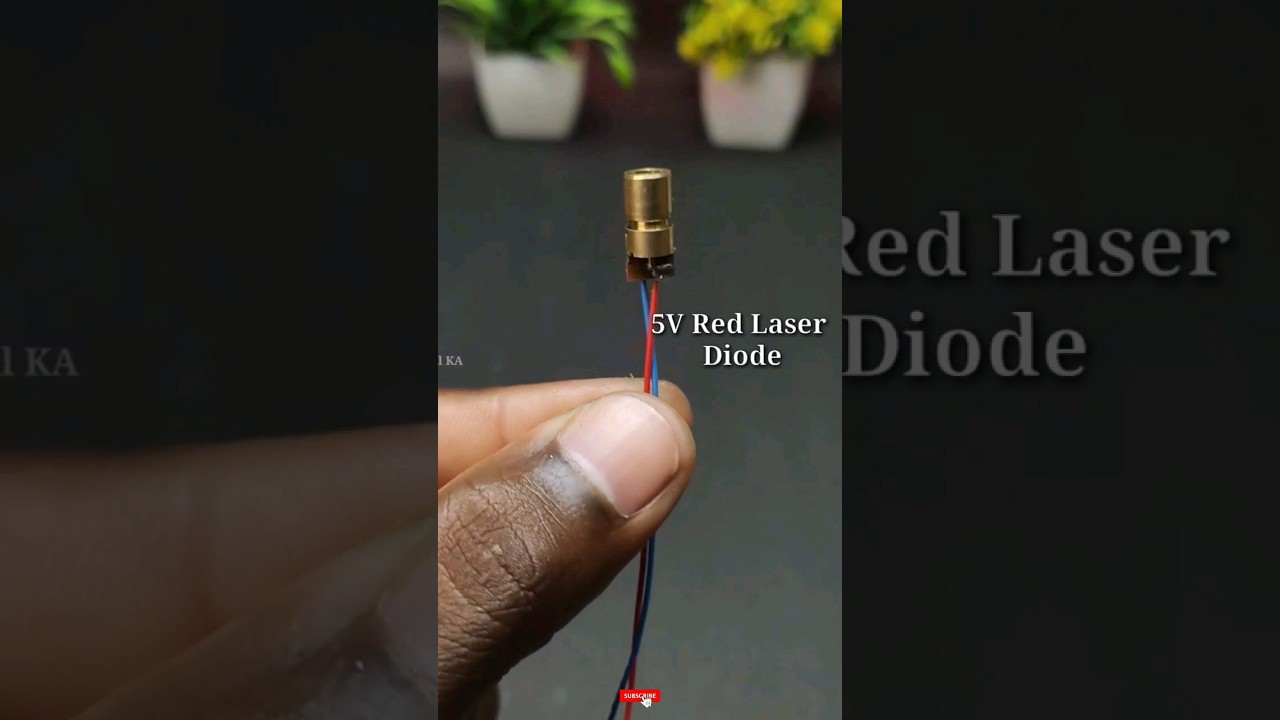

Red Laser Diode Module 650nm 6mm 5V Adjustable Dot

High Precision 650nm 6mm 5V Red Laser Diode Module with Adjustable Focus

The 650nm 6mm 5V Red Laser Diode Module is a compact and efficient optical component designed for precision alignment, measurement, and DIY electronics projects. With its adjustable focus and stable output, this red dot laser module provides a clear, concentrated beam suitable for both hobbyist and professional applications. The module features a durable copper/brass housing that ensures efficient heat dissipation and long operational life. Commonly used in robotics, positioning systems, and optical experiments, this module is a reliable choice for any laser-based project offered by Bigyan Project.

Product Specifications

Features

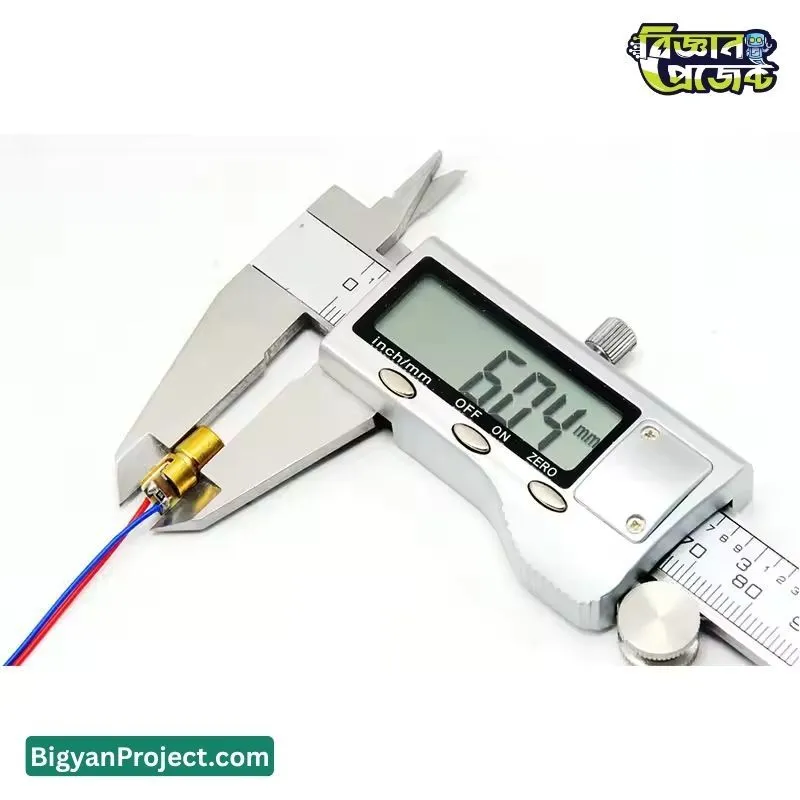

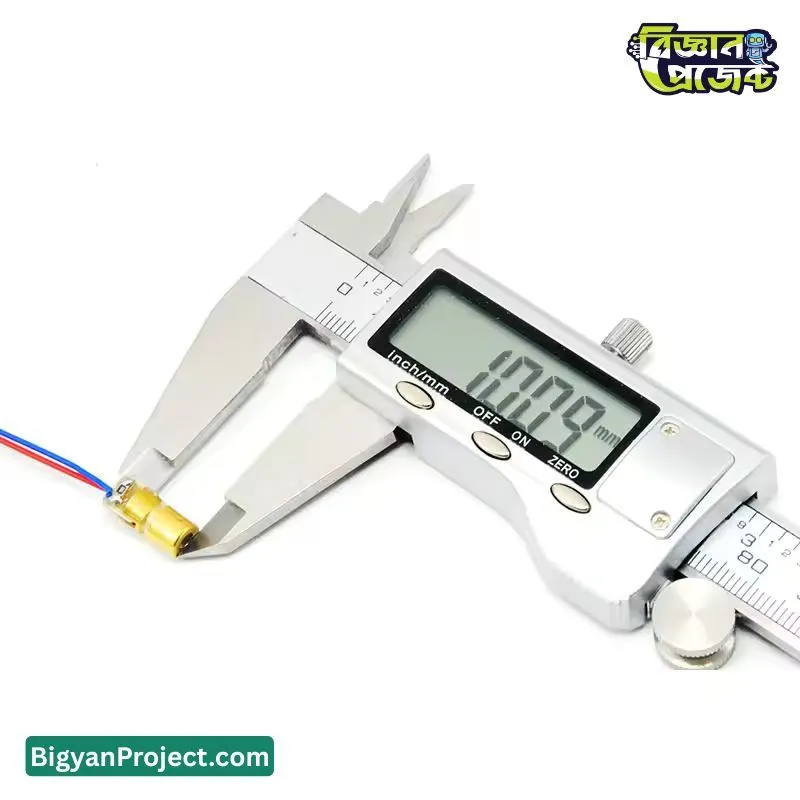

• Compact and lightweight 6mm module for easy installation.
• Adjustable focus for precise beam control.
• Stable and continuous red laser output at 650nm.
• Durable copper housing enhances thermal performance.
• Operates efficiently on 5V DC supply.
• Ideal for both industrial and educational projects by Bigyan Project.

Applications / Use Cases

• DIY and educational science projects.
• Robotics and automation systems for flame or object detection.
• Laser alignment and positioning tools.
• Optical instrumentation and calibration devices.
• Target pointing and sighting systems.
• Signal generation and laser indication tasks.

User Guide / How to Use

• Connect the module’s red wire to +5V DC and black wire to GND.
• Adjust the focus ring carefully to control beam sharpness.
• Avoid direct eye exposure to the laser dot during operation.
• Mount the module on a stable surface or bracket for accurate alignment.
• Use in a clean, dry environment for consistent performance.

Frequently Asked Questions (FAQs)

• Q: Can this laser module run directly from an Arduino 5V pin?
  A: Yes, it can safely operate from a 5V Arduino output within current limits (<40mA).
• Q: Is the beam focus adjustable?
  A: Yes, the lens can be rotated to adjust beam size and focus distance.
• Q: What color is the laser output?
  A: The laser emits a bright red light at 650nm wavelength.
• Q: Can I use this in a fire-detecting robot project?
  A: Yes, this module is suitable for targeting or guiding systems in DIY robots, such as those featured in Bigyan Project builds.
• Q: How long can it operate continuously?
  A: The module can operate continuously for several hours within its rated temperature range.

Challenges and Considerations

• Not suitable for outdoor use in bright daylight without optical filtering.
• Laser intensity decreases slightly with temperature rise.
• Ensure polarity is correct to avoid damage.
• Eye safety precautions must always be followed.

Compatibility

• Compatible with Arduino, ESP32, Raspberry Pi, and similar microcontrollers.
• Can be integrated with PWM circuits for light modulation.
• Works with Bigyan Project sensor modules and DIY robotics kits.

Future Enhancement Options

• Add an optical lens for beam shaping or distance measurement.
• Integrate with servo motors for auto-tracking systems.
• Combine with light sensors for smart detection applications.
• Upgrade to a line laser module for alignment projects.

Benefits

• Reliable performance for long-term use.
• Simple plug-and-play installation.
• High visibility laser dot for accurate positioning.
• Low power consumption for battery-powered projects.
• Supported by Bigyan Project for educational and maker communities.

Conclusion

The 650nm 6mm 5V Red Laser Diode Module is a perfect choice for students, hobbyists, and engineers working on laser-based electronics or robotics projects. Its solid copper body, stable output, and adjustable focus make it versatile and durable. Whether you are designing a fire-hunting robot, alignment tool, or optical experiment setup, this module delivers precision and reliability trusted by Bigyan Project users.
