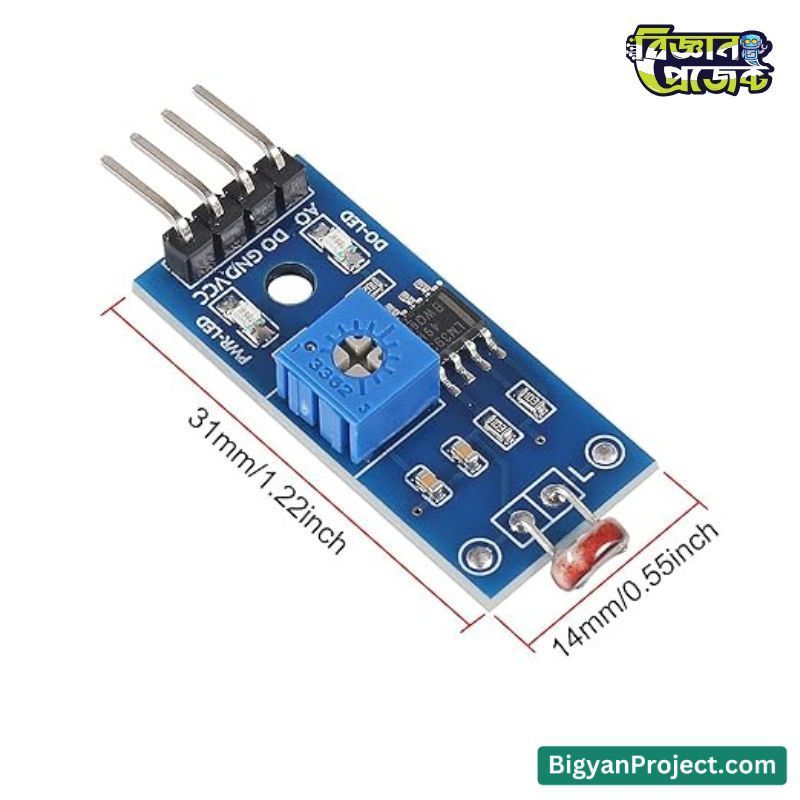

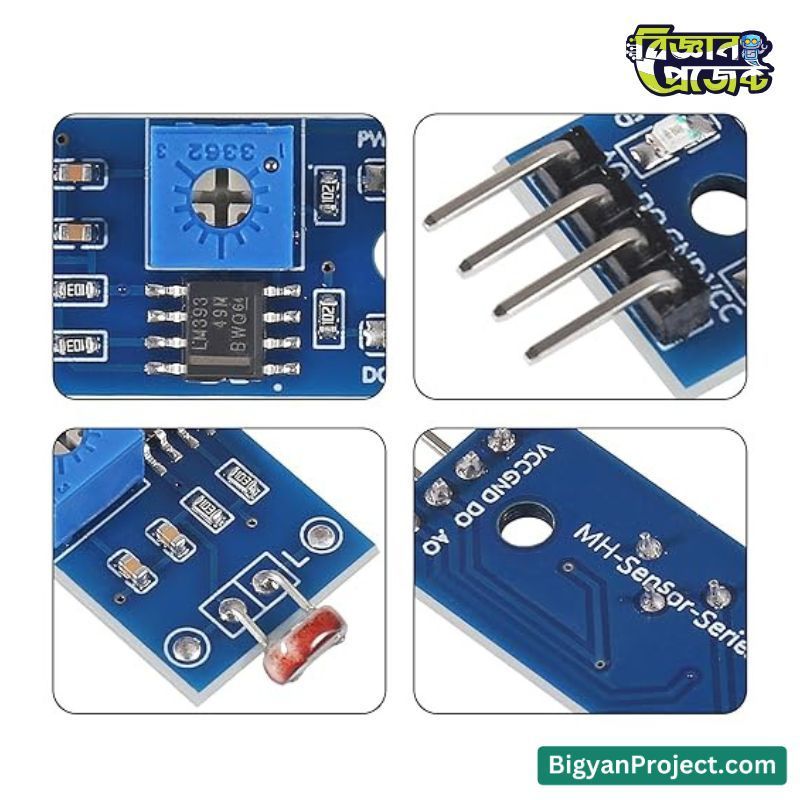

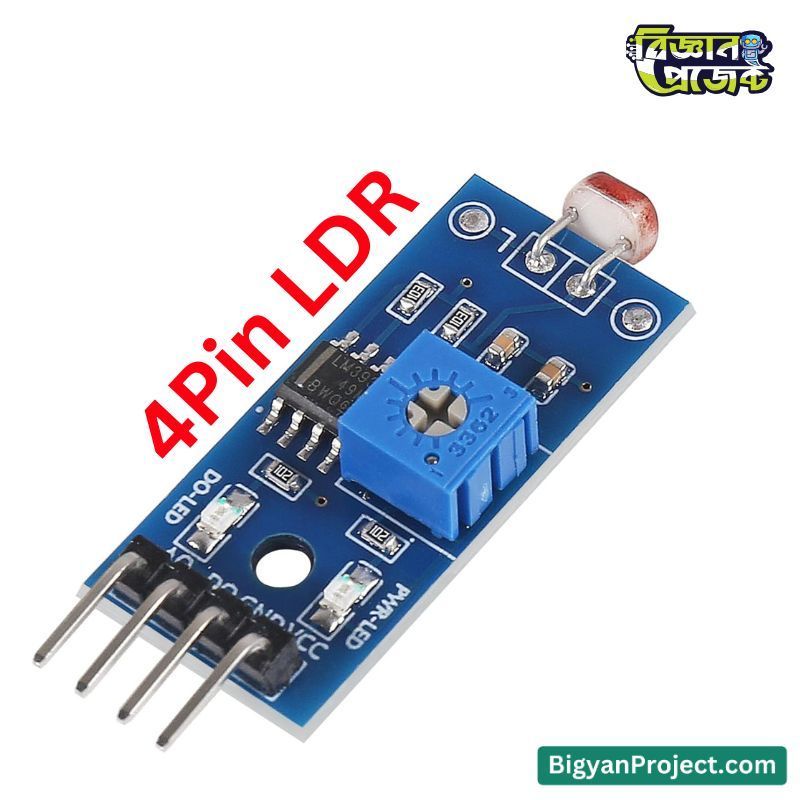

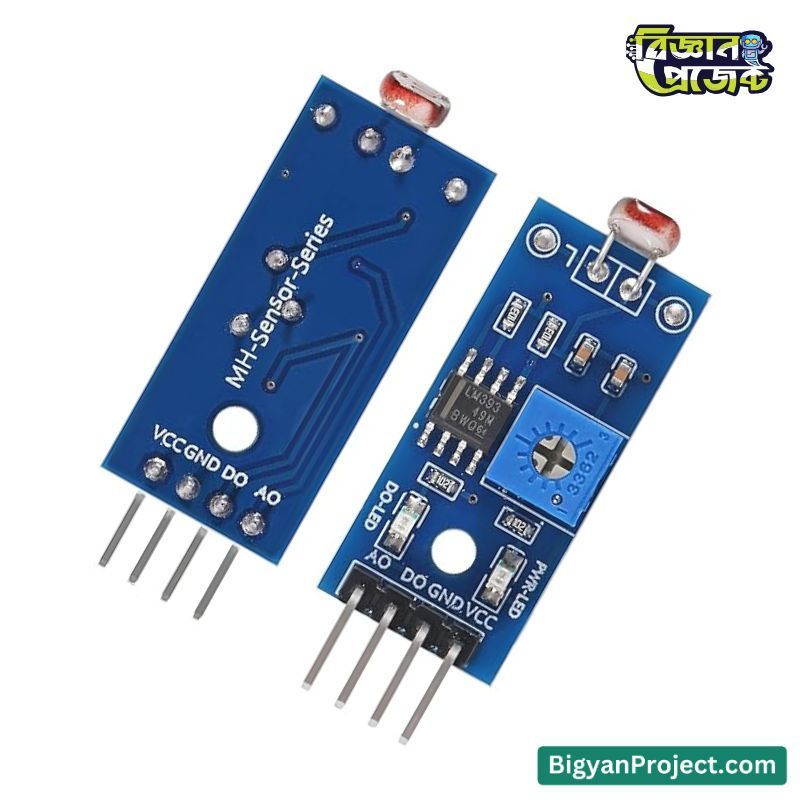

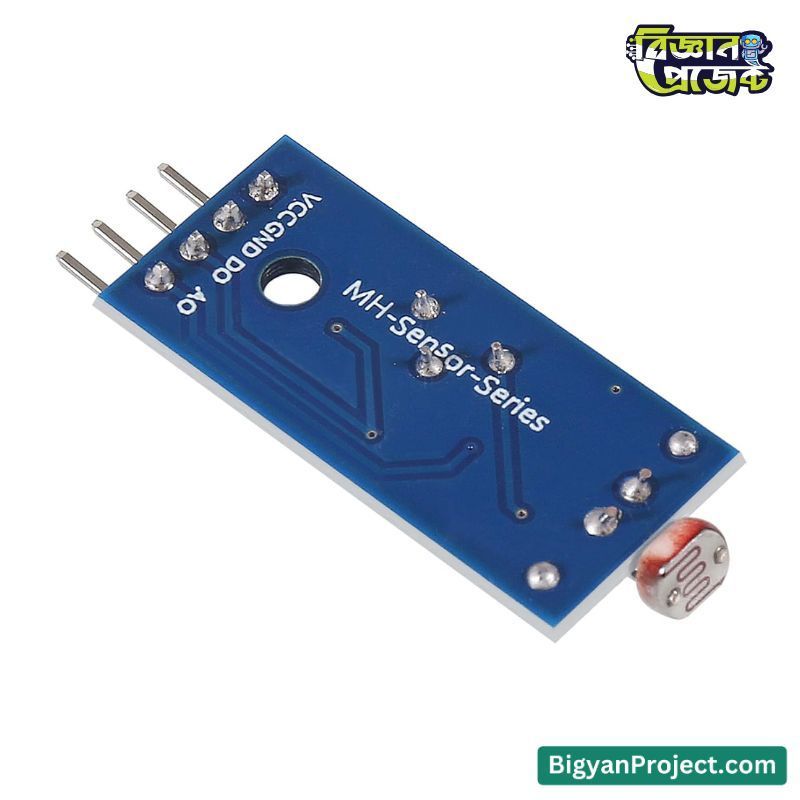

5mm LDR Light Sensor 4 Pin Module Analog And Digital

Advanced 5mm LDR Light Sensor 4 Pin Analog Digital Module

The Advanced 5mm LDR Light Sensor 4 Pin Analog Digital Module is a versatile and reliable component designed for makers, hobbyists, and engineers who need precise light detection in their electronics projects. This sensor module offers both analog and digital outputs, making it ideal for a wide range of applications such as robotics, home automation, smart lighting, and educational experiments. Featuring an adjustable sensitivity potentiometer, it enables accurate tuning of light detection thresholds. Compatible with 3.3V and 5V systems, it seamlessly integrates with Arduino, ESP32, ESP8266, Raspberry Pi, and other popular microcontroller platforms. Bigyan Project proudly offers this high-quality module to support your innovative ideas.

Specifications

Features

• 5mm photoresistor for reliable light detection
• Supports both analog and digital output signals
• Adjustable sensitivity using built-in potentiometer

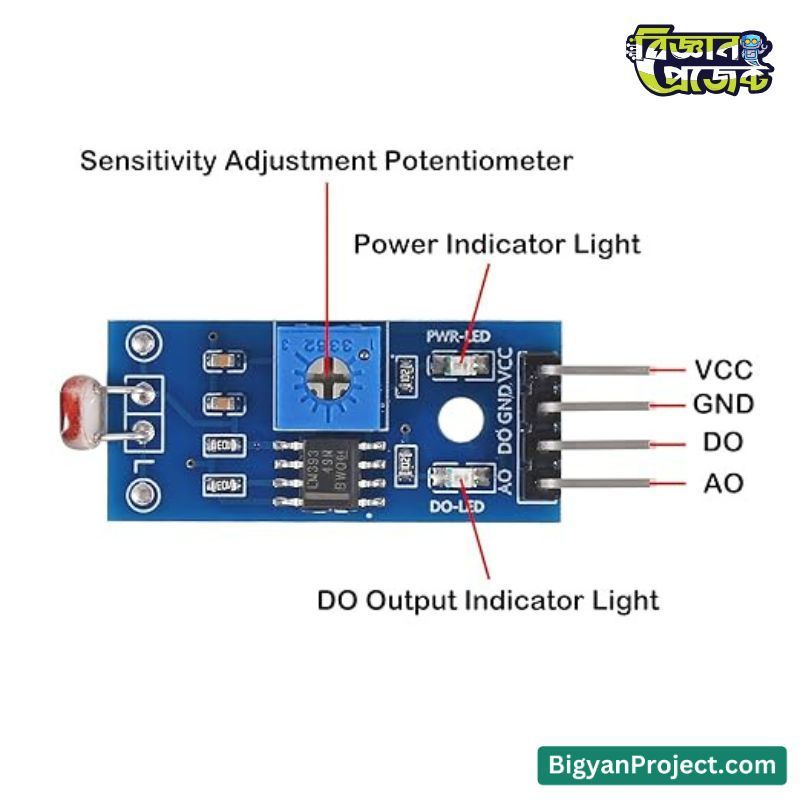

• Easy-to-use 4-pin interface: VCC, GND, D0 (digital), A0 (analog)
• Wide operating voltage range of 3.3V to 5V
• Compatible with popular microcontroller platforms
• Stable performance for indoor and outdoor projects

Applications / Use Cases

• Automatic lighting control systems
• Robotics light-following or avoidance
• Smart home automation projects
• Streetlight automation based on ambient light
• Educational electronics and STEM learning kits
• IoT devices requiring ambient light measurement
• Solar tracking systems

User Guide / How to Use

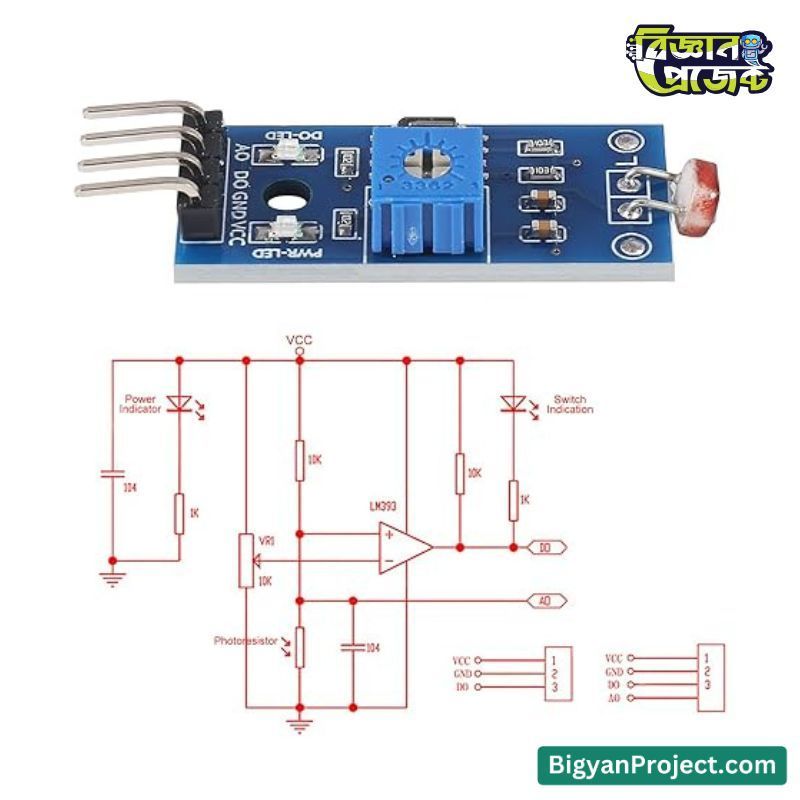

To use the 5mm LDR Light Sensor Module, connect the 4 pins to your microcontroller. Connect VCC to 3.3V or 5V power, GND to ground, D0 to a digital input pin, and A0 to an analog input pin. Use the built-in potentiometer to adjust the light sensitivity threshold for the digital output. The analog output provides a variable voltage proportional to the light intensity. For Arduino or ESP32 users, read the analog pin to get precise light levels, or use the digital pin for simple on/off detection. Bigyan Project recommends testing the module under different lighting conditions to fine-tune performance for your specific application.

Frequently Asked Questions (FAQs)

• Q: What is the operating voltage range?
  A: It works with 3.3V to 5V DC, compatible with most development boards.
• Q: How do I adjust the sensitivity?
  A: Use the onboard potentiometer to set the desired light threshold for the digital output.
• Q: Can I use this with Raspberry Pi?
  A: Yes. The analog output can be read with an ADC converter or external ADC module for Raspberry Pi.
• Q: What do the 4 pins do?
  A: VCC and GND provide power, D0 is the digital output, and A0 is the analog output.
• Q: Does it work outdoors?
  A: Yes, but it's recommended to protect it from moisture for long-term use.

Challenges and Considerations

• Exposure to excessive light or darkness may require frequent sensitivity adjustments
• Outdoor installations need weatherproof housing
• Limited to visible light detection
• Analog readings may fluctuate with electrical noise—consider filtering in software
• Calibration may be needed for consistent results across multiple modules

Compatibility

• Fully compatible with Arduino Uno, Nano, Mega
• ESP32 and ESP8266 boards with 3.3V logic support
• Raspberry Pi (with external ADC for analog readings)
• Other 3.3V or 5V microcontroller systems
• Breadboards and jumper wires for prototyping

Future Enhancement Options

• Integrate with Wi-Fi or Bluetooth for IoT control
• Combine with relay modules for direct load control
• Use multiple sensors for directional light tracking
• Connect to data loggers for light intensity monitoring
• Implement machine learning for adaptive lighting systems

Benefits

• Low-cost solution for light detection
• Simple 4-pin connection for easy wiring
• Analog and digital outputs offer flexibility
• Adjustable sensitivity improves accuracy
• Supports 3.3V and 5V systems seamlessly
• Enhances automation and robotics projects
• Available at Bigyan Project with reliable quality

Conclusion

The 5mm LDR Light Sensor 4 Pin Analog Digital Module is an essential component for anyone building light-sensitive electronics. With its easy integration, adjustable threshold, and dual output modes, it is perfect for automation, robotics, and IoT applications. Bigyan Project is committed to providing quality components to support your creative and technical endeavors. Upgrade your project today with this versatile and dependable light sensor module.
