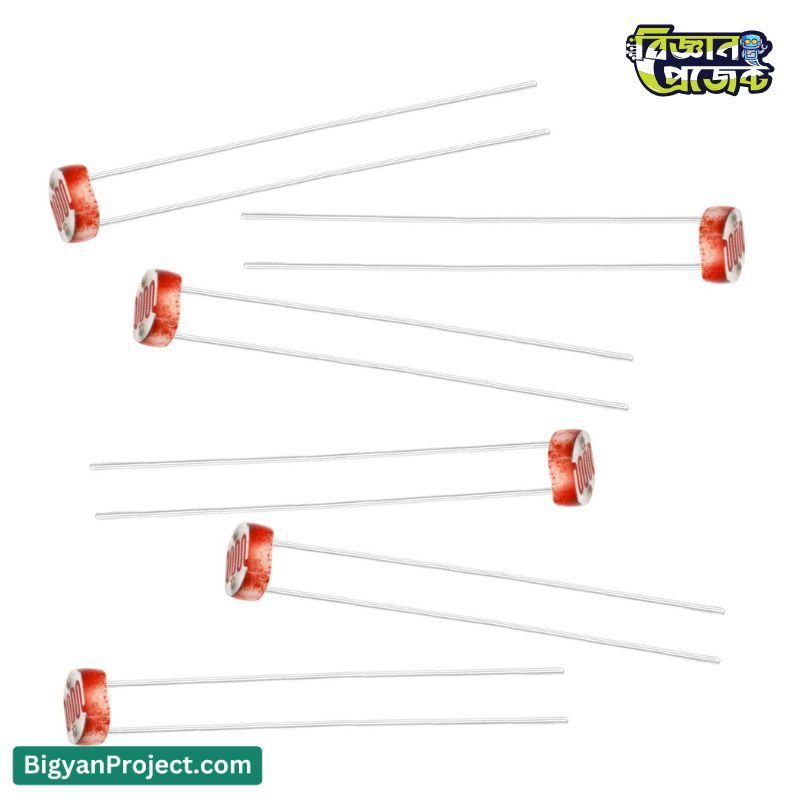

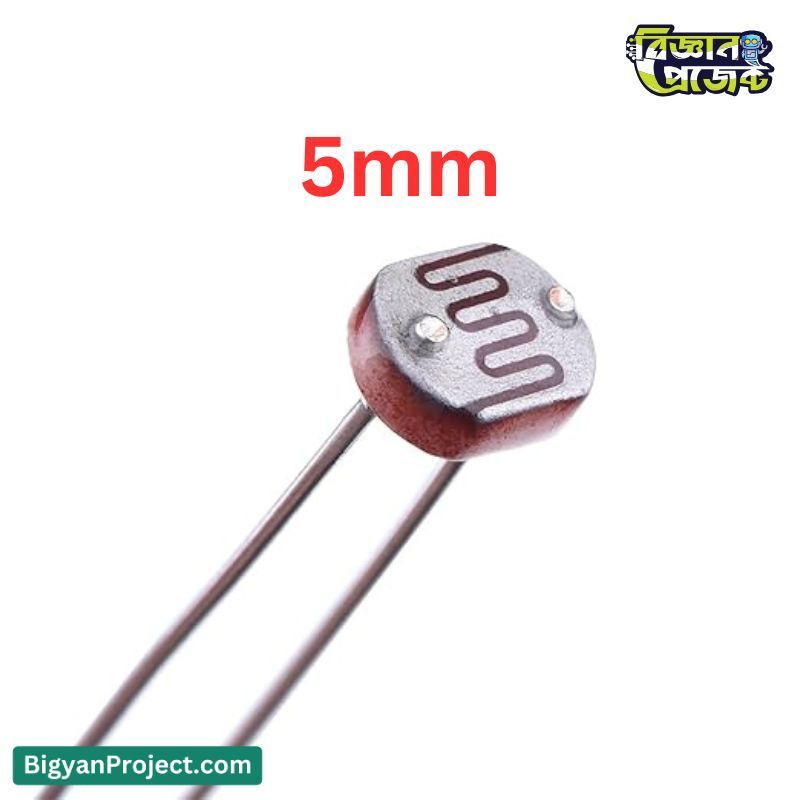

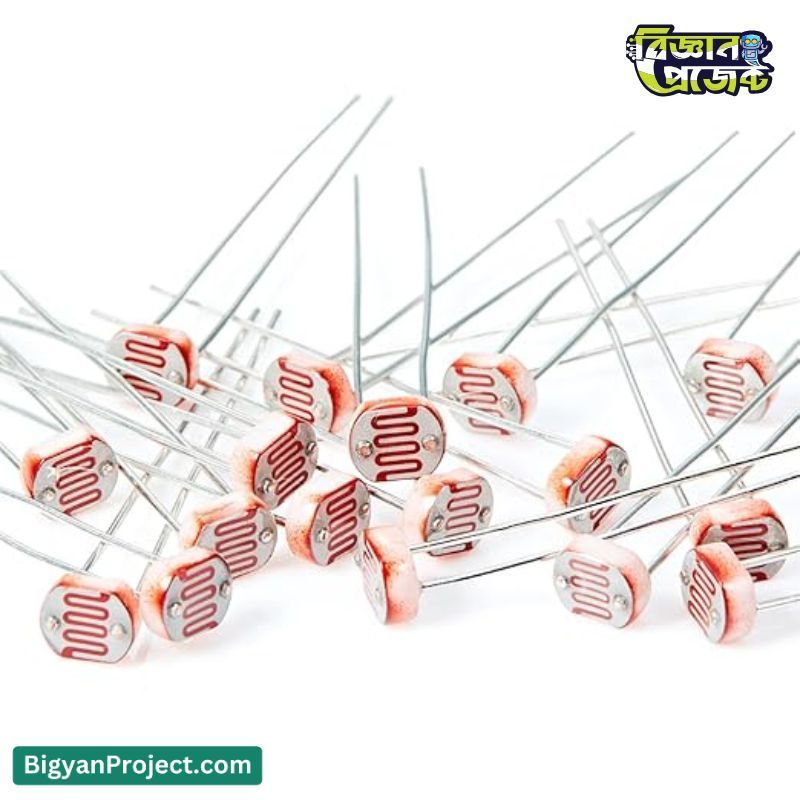

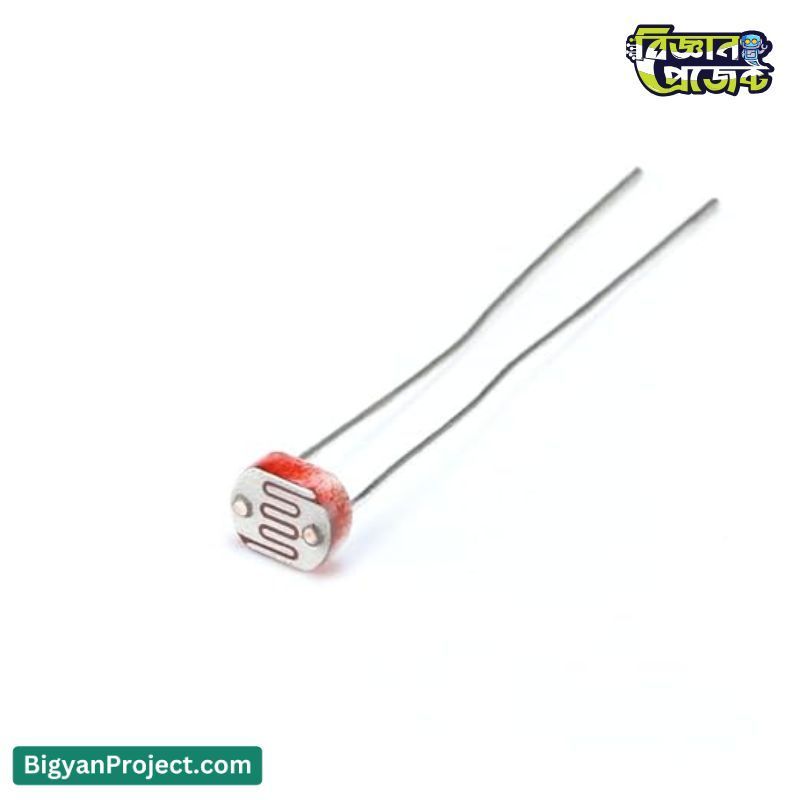

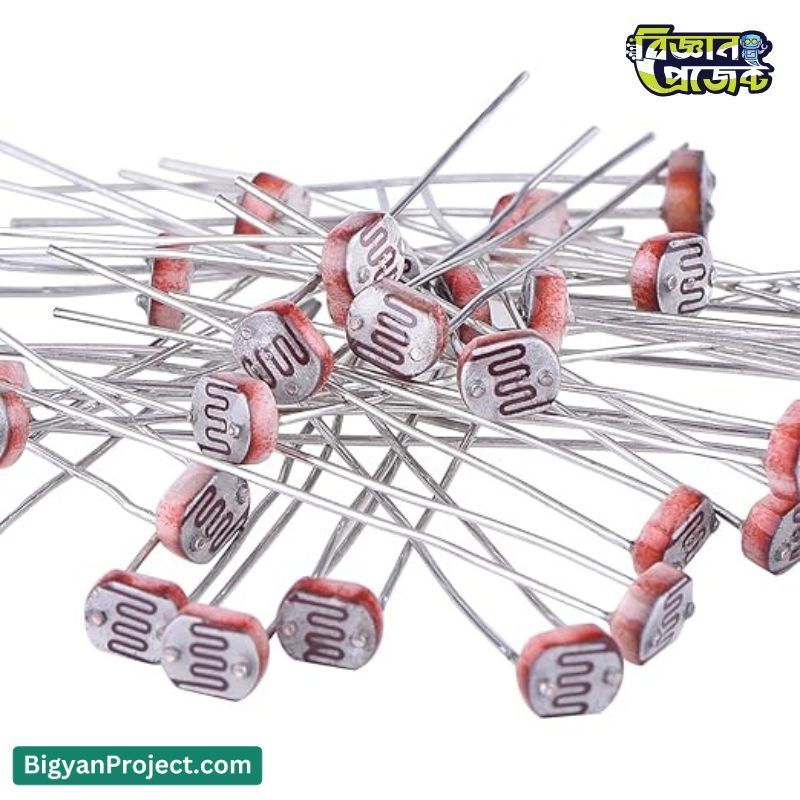

5mm GL5516 Photoresistor LDR 150V 100mW

5mm GL5516 Light Dependent Resistor for Arduino and Electronics Projects

The 5mm GL5516 Photoresistor, also known as a Light Dependent Resistor (LDR), is a fundamental component for any electronics enthusiast looking to incorporate light-sensing capabilities into their projects. From simple automatic light controls to more complex robotics and environmental monitoring systems, this versatile component from Bigyan Project offers exceptional responsiveness and reliability. Its small size and epoxy coating make it suitable for a wide range of applications, ensuring durability and ease of integration. Whether you are a beginner exploring Arduino or a seasoned professional developing advanced circuits, the GL5516 LDR provides a cost-effective and high-performance solution for detecting ambient light levels. This component is crucial for creating intelligent systems that react to changes in their environment.

Product Specifications

Features

• High sensitivity to ambient light variations.
• Quick response time for dynamic light changes.
• Epoxy coating provides good reliability and protection.
• Small volume for easy integration into compact designs.
• Good spectral characteristic around 540nm for effective light detection.
• Wide operating temperature range for diverse environments.
• Capable of handling up to 150V DC for robust applications.
• Cost-effective component for DIY and commercial projects.
• Ensures accurate light measurements for precise circuit control.

Applications / Use Cases

The 5mm GL5516 Photoresistor is incredibly versatile and finds its place in numerous electronic projects:

• Automatic Streetlight Controllers: Turns lights on at dusk and off at dawn.
• Home Automation Systems: Triggering lights, alarms, or other devices based on light levels.
• Robotics: Enabling robots to navigate or react to light sources.
• Solar Power Systems: Optimizing energy harvesting based on sunlight intensity.
• Toy Circuits: Creating interactive toys that respond to light.
• Light-Activated Switches: Simple on/off switches controlled by ambient light.
• Camera Exposure Controls: In rudimentary light metering systems.
• Security Systems: Detecting if lights are on or off.
• Plant Growth Monitoring: Adjusting artificial lighting for plants.
• Educational Electronics Kits: For learning about sensor input and control.

User Guide / How to Use

To effectively use the 5mm GL5516 Photoresistor, it's typically incorporated into a voltage divider circuit. One common setup involves connecting the photoresistor in series with a fixed resistor (often around 10kΩ, depending on your microcontroller's analog input range and desired sensitivity). The output voltage from the junction of these two resistors is then fed into an analog input pin of a microcontroller like an Arduino. 1. Identify Pins: The photoresistor has two leads; it is non-polarized, meaning you can connect them in either direction. 2. Voltage Divider Circuit: Connect one lead of the GL5516 to VCC (e.g., 5V) and the other lead to an analog input pin (e.g., A0 on Arduino). Connect a fixed resistor (e.g., 10kΩ) from the same analog input pin to GND. 3. Reading Values: When light falls on the photoresistor, its resistance decreases, increasing the voltage at the analog pin. In darkness, its resistance increases, decreasing the voltage at the analog pin. 4. Microcontroller Programming: Read the analog value using your microcontroller's analog-to-digital converter (ADC). You can then map these readings to control other components (e.g., turning on an LED, a relay, or a motor).

Frequently Asked Questions (FAQs)

• Q: What is the primary function of a photoresistor like the GL5516?
  A: A photoresistor's primary function is to detect ambient light levels. Its resistance changes based on the intensity of light falling upon it.
• Q: Can I use this photoresistor with a 3.3V microcontroller?
  A: Yes, you can. The GL5516 photoresistor can be used in a voltage divider with a 3.3V system. You might need to adjust the fixed resistor value in the voltage divider and your code's mapping to suit the 3.3V ADC range.
• Q: How does the resistance change with light?
  A: As light intensity increases, the resistance of the photoresistor decreases. Conversely, as light intensity decreases (in darkness), its resistance increases significantly.
• Q: Is the GL5516 photoresistor polarized?
  A: No, the GL5516 photoresistor is not polarized. You can connect its leads in either direction.
• Q: What does "Spectral Peak: 540 nm" mean?
  A: This indicates that the photoresistor is most sensitive to light with a wavelength of approximately 540 nanometers, which is in the green part of the visible light spectrum.
• Q: What is the difference between light resistance and dark resistance?
  A: Light resistance is the resistance value measured under a specific level of illumination (e.g., 10 Lux), while dark resistance is the resistance when the component is in complete darkness.
• Q: Can I use this for outdoor applications?
  A: With its epoxy coating and operating temperature range, it is suitable for many outdoor applications, but it's advisable to provide additional protection from direct rain and prolonged UV exposure for maximum longevity.
• Q: How accurate is the light resistance reading?
  A: Photoresistors provide a relative measurement of light. For highly precise lux measurements, a dedicated lux sensor might be more appropriate. However, for most DIY and automation tasks, the GL5516 offers sufficient accuracy.

Challenges and Considerations

• Non-linearity: The relationship between light intensity and resistance is not perfectly linear, requiring calibration or logarithmic scaling in some advanced applications.
• Response Time Limitations: While considered quick, the response times (20ms rise, 30ms down) might not be suitable for extremely fast light-change detection.
• Drift: Component characteristics can slightly drift over time or with temperature, potentially requiring recalibration.
• Environmental Exposure: While coated, prolonged direct exposure to harsh weather (heavy rain, extreme temperatures beyond the specified range) can degrade performance and lifespan.
• Accuracy vs. Cost: For ultra-precise light measurements, dedicated digital lux sensors offer higher accuracy but at a greater cost and complexity.

Compatibility

• Microcontrollers: Highly compatible with most microcontrollers featuring analog input pins, including Arduino (Uno, Nano, Mega), Raspberry Pi (with an ADC HAT), ESP32, ESP8266, and PIC microcontrollers.
• Power Supplies: Works with common DC power supply voltages (e.g., 3.3V, 5V, 9V, 12V) when used in a voltage divider.
• Breadboards and Perfboards: Easily integrates with standard breadboards and perfboards for prototyping.
• Other Components: Works well in conjunction with LEDs, relays, transistors, op-amps, and other standard electronic components.

Future Enhancement Options

• Integration with IoT Platforms: Connect to Wi-Fi enabled microcontrollers (like ESP32) to send light data to cloud platforms for remote monitoring and control.
• Advanced Control Logic: Implement PID control or fuzzy logic for more sophisticated light-based automation.
• Calibration Routines: Develop software routines to calibrate the sensor against known light sources for improved accuracy.
• Multiple Sensors: Use an array of photoresistors for directional light sensing or to cover larger areas.
• Combined Sensing: Integrate with other sensors (e.g., temperature, humidity) to create a more comprehensive environmental monitoring system.
• Automated Gain Control: Implement circuits that adjust sensitivity based on ambient light to optimize readings across a wider range.

Benefits

• Cost-Effective Light Sensing: An affordable solution for adding light detection to any project.
• Ease of Use: Simple to wire and interface with microcontrollers.
• Versatility: Suitable for a broad spectrum of DIY electronics and automation tasks.
• Reliability: Epoxy coating ensures durability and consistent performance.
• Educational Value: Excellent component for learning about analog sensors and control systems.
• Energy Saving: Enables automatic lighting controls that reduce energy consumption.
• Smart Functionality: Empowers devices to react intelligently to their surroundings.
• Compact Design: Small footprint allows for integration into space-constrained projects.

Conclusion

The 5mm GL5516 Photoresistor from Bigyan Project is an indispensable component for anyone venturing into electronics projects that interact with light. Its reliable performance, ease of use, and broad compatibility make it a top choice for everything from simple light-activated projects to complex automation systems. By understanding its specifications and how to implement it in a voltage divider circuit, you can unlock a world of possibilities for creating responsive and intelligent electronic devices. Equip your next project with this fundamental sensor and bring your ideas to life.
