RC522 RFID Module for Arduino Projects

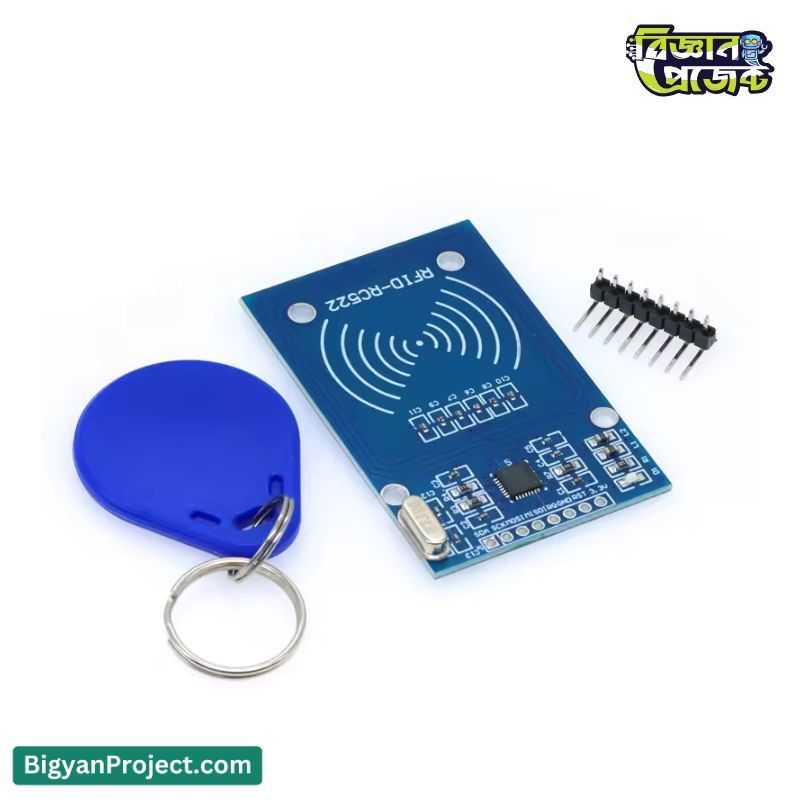

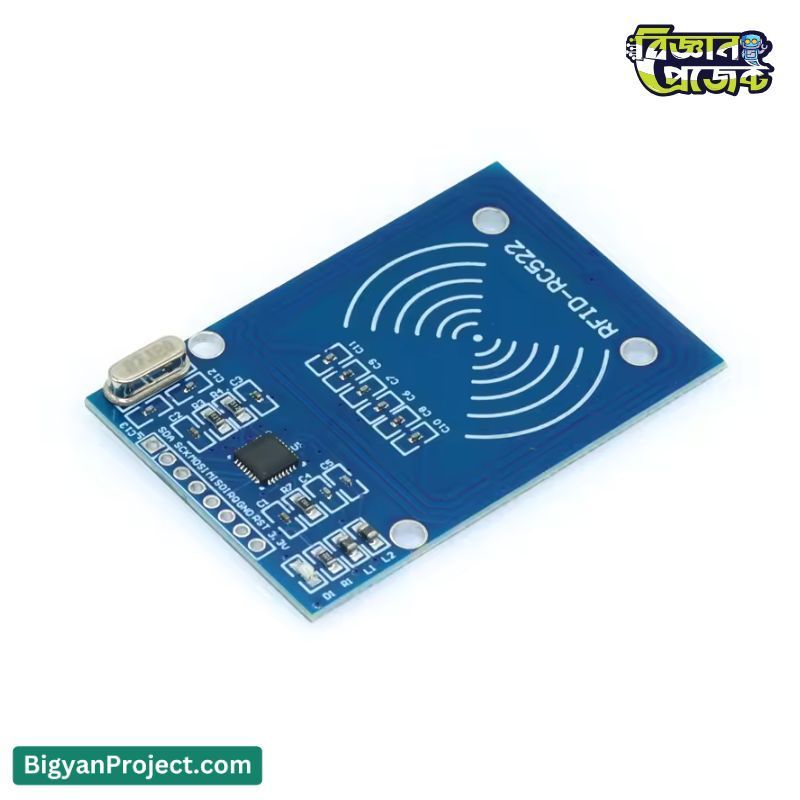

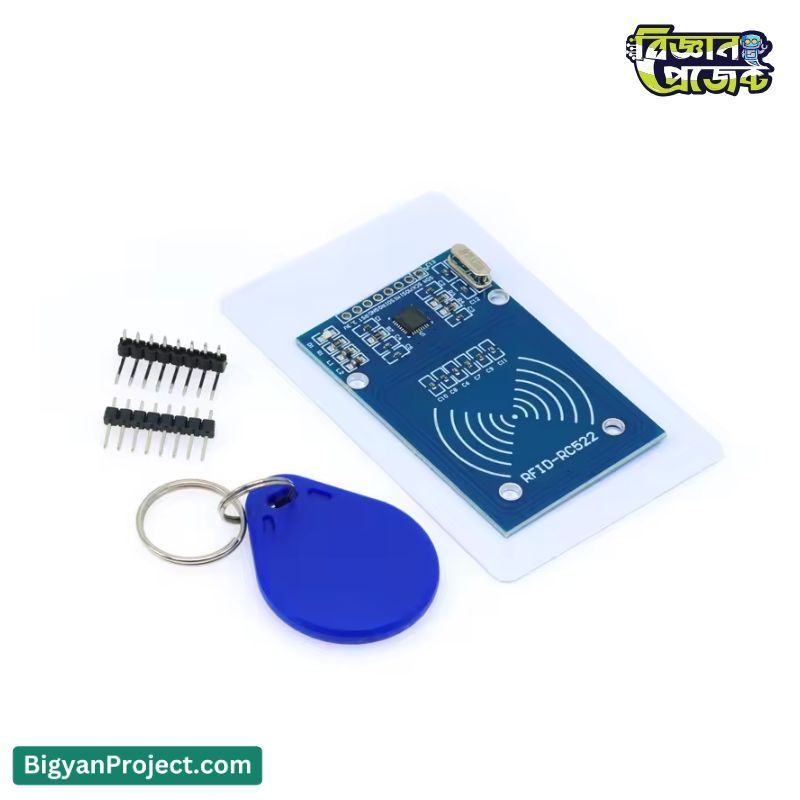

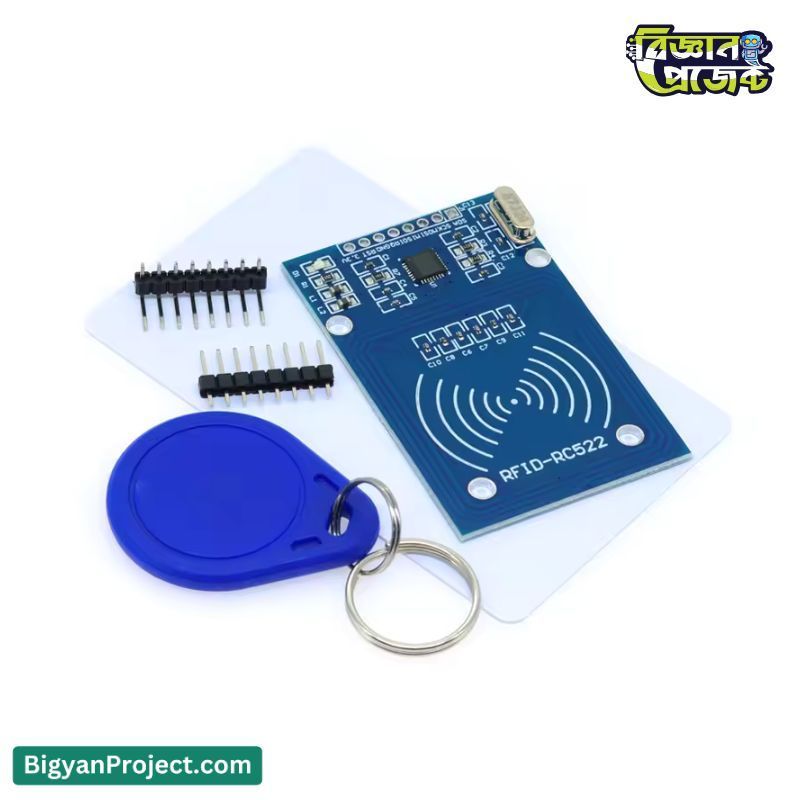

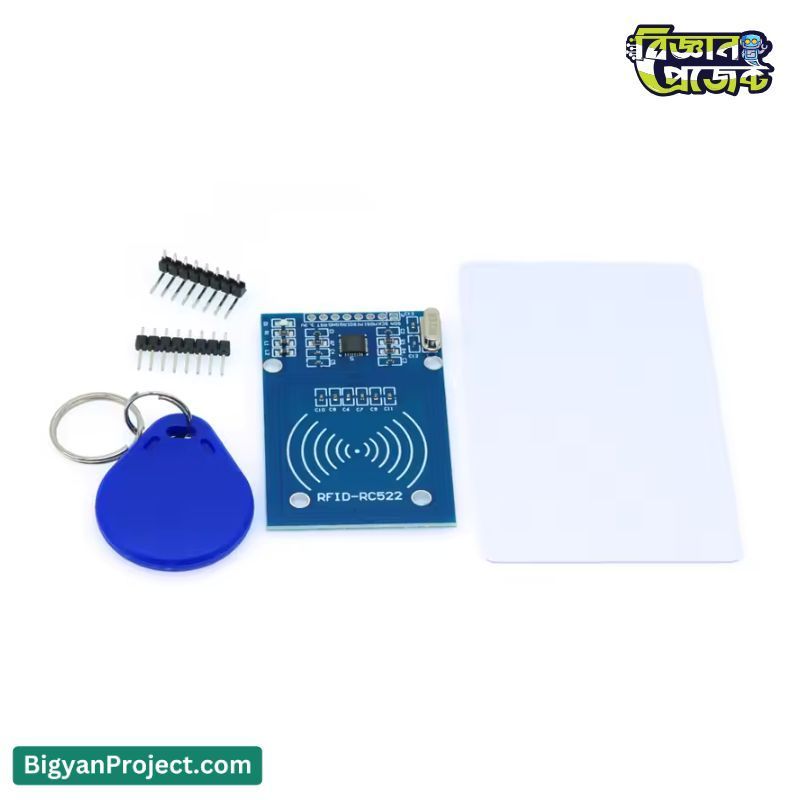

RC522 RFID Reader and Writer Module for Arduino and IoT Projects

The RC522 RFID Reader and Writer Module is a widely used and affordable component for building RFID-based security, access control, and automation systems. Designed to work with Arduino and other microcontrollers, this module allows you to read and write data from RFID cards and key fobs. With reliable SPI communication and low power consumption, the RC522 is an excellent choice for students, researchers, and makers. At Bigyan Project, we provide genuine components and resources to help you successfully implement your RFID projects.

Product Specifications

Features

• Low power consumption and compact design
• Supports multiple communication interfaces
• Compatible with a wide range of microcontrollers
• High data transfer rate with reliable performance
• Includes RFID card and key fob for testing
• Widely supported with Arduino libraries and examples

Applications / Use Cases

• Smart door lock and access control systems
• Library book management systems
• Attendance tracking devices
• Cashless payment systems
• IoT automation projects
• Student science and engineering projects

User Guide / How to Use

To get started with the RC522 RFID Module, connect it to your Arduino using SPI pins. Install the RFID library available in the Arduino IDE, load the example code, and open the serial monitor. Place an RFID card or key fob near the module, and you will see the unique ID displayed. From here, you can expand the project by adding access control logic, database integration, or IoT connectivity. At Bigyan Project, we recommend beginners to start with simple read-and-display projects before moving to advanced applications.

Frequently Asked Questions (FAQs)

• Q: Can I use the RC522 RFID module with Arduino Uno?
  A: Yes, it is fully compatible with Arduino Uno and other Arduino boards.
• Q: What is the maximum reading distance of this module?
  A: The RC522 can read tags up to 5 cm, depending on the tag size and orientation.
• Q: Does this module support writing to RFID cards?
  A: Yes, the RC522 can both read and write data to compatible RFID cards.
• Q: Can I connect this to Raspberry Pi or ESP32?
  A: Yes, the module works with Raspberry Pi, ESP32, ESP8266, and many other controllers.
• Q: What power supply do I need?
  A: The RC522 requires a 3.3V power supply for proper operation.

Challenges and Considerations

• Short reading distance compared to long-range RFID readers
• Requires 3.3V level shifting for certain microcontrollers
• Environmental interference can reduce performance
• Not suitable for industrial-grade long-range tracking

Compatibility

• Works with Arduino Uno, Nano, Mega, Leonardo
• Compatible with Raspberry Pi and Raspberry Pi Pico
• ESP8266 and ESP32 supported through libraries
• STM32 and other microcontrollers with SPI/I2C/UART

Future Enhancement Options

• Integration with IoT cloud platforms for remote access control
• Expansion with GSM or WiFi modules for mobile-based control
• Data logging and analytics for attendance systems
• Improved antenna design for better reading range

Benefits

• Affordable and beginner-friendly
• Open-source support with many tutorials
• Compact size suitable for portable projects
• Reliable and widely tested in academic projects
• Available at Bigyan Project with technical guidance

Conclusion

The RC522 RFID Reader and Writer Module is a reliable, affordable, and versatile solution for anyone interested in RFID technology. Whether you are a student working on a school project, a hobbyist exploring automation, or an engineer developing IoT applications, this module provides everything you need to get started. With its wide compatibility and extensive support, the RC522 remains one of the most popular RFID modules worldwide. At Bigyan Project, we ensure you get original components along with proper guidance to make your project a success.
