Mini Traffic LED Module 5V DIY Science Project

Bright 5V Mini Traffic Light LED Module for Arduino, ESP32, Raspberry Pi | DIY Science Projects by Bigyan Project

Product Overview

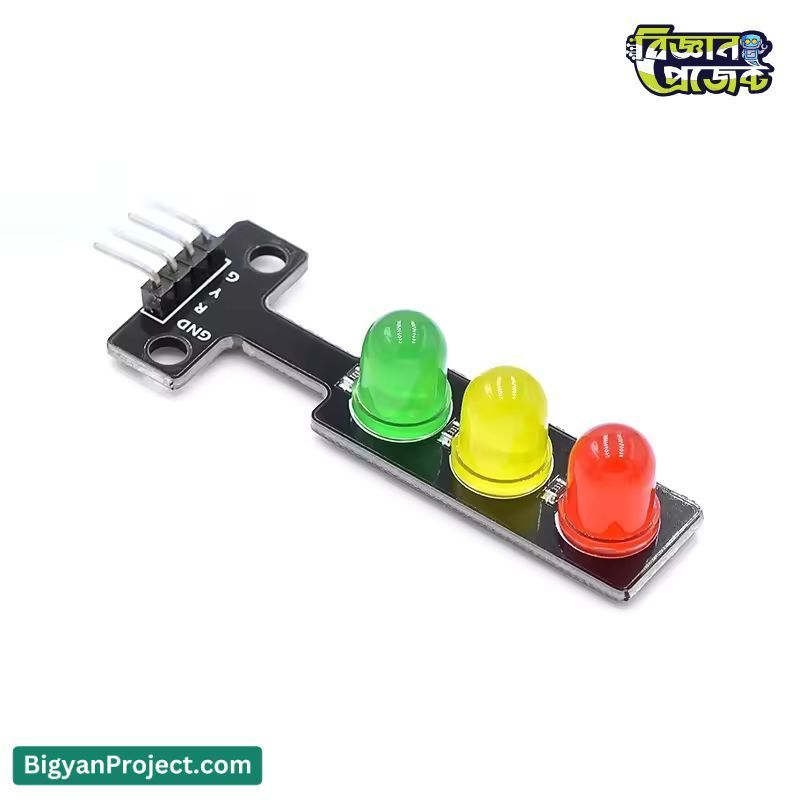

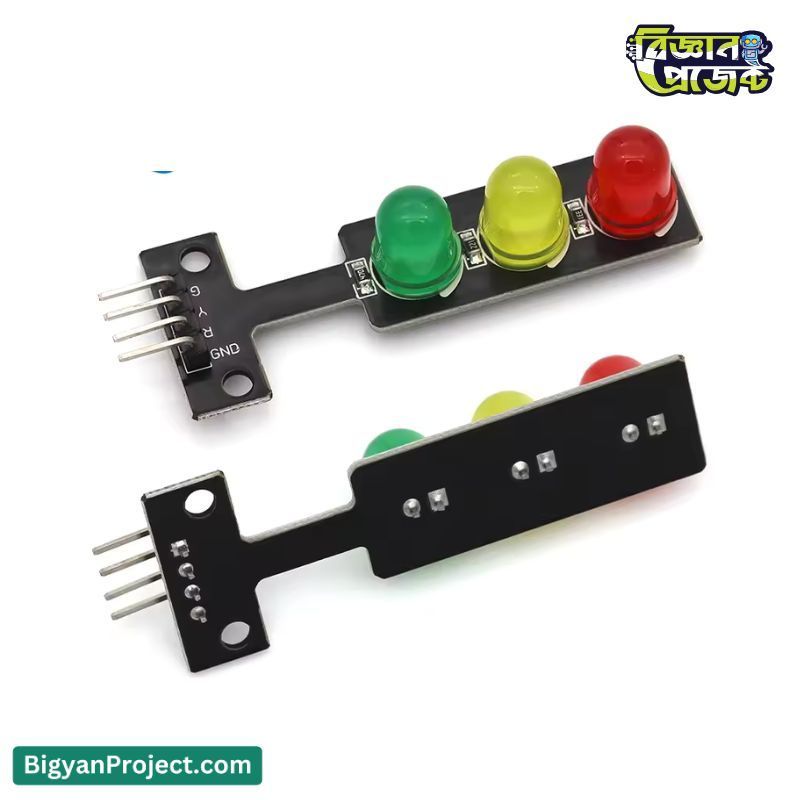

Introducing the Mini Traffic Light LED Module from Bigyan Project, a compact and versatile component designed to bring realistic traffic control simulations to your DIY electronics projects. This module features three high-brightness LEDs – Red, Yellow, and Green – housed in a convenient unit with built-in resistors, making it incredibly easy to integrate into your Arduino, ESP32, ESP8266, or Raspberry Pi projects. Perfect for educational purposes, creating miniature city models, traffic signal prototypes, or any application requiring visual traffic indicators. The common cathode design ensures straightforward control over each LED independently, allowing for dynamic and responsive light sequencing. Get started on your next science project with Bigyan Project and add a professional touch to your creations.

Product Specifications

Features

• Integrated Red, Yellow, and Green LEDs for a complete traffic signal simulation.
• Built-in resistors simplify wiring and protect the LEDs.
• Operates on a standard 5V DC power supply, compatible with most microcontrollers.
• Common cathode design allows for easy and independent control of each LED.
• High-brightness LEDs ensure clear visibility.
• Compact form factor ideal for space-constrained projects and breadboard use.
• Durable plastic construction for reliable performance.
• Direct digital signal input for straightforward integration with development boards.

Applications / Use Cases

• Educational demonstrations of traffic control systems.
• Building miniature city models and urban planning simulations.
• Prototyping traffic signal controllers for smart city projects.
• Creating interactive art installations or exhibits.
• Developing warning or indicator lights for DIY projects.
• Robotics projects requiring visual cues or signaling.
• Hobbyist electronics and maker projects.
• Learning basic electronics and microcontroller programming.

User Guide / How to Use

This Mini Traffic Light LED Module is designed for simple integration. Connect the pins to your microcontroller's digital output pins and a 5V power source.

• Power (VCC): Connect to the 5V pin of your microcontroller.
• Ground (GND): Connect to the Ground pin of your microcontroller.
• Red LED Control: Connect to a digital output pin. Set this pin HIGH to turn the red LED ON, and LOW to turn it OFF.
• Yellow LED Control: Connect to another digital output pin. Set this pin HIGH to turn the yellow LED ON, and LOW to turn it OFF.
• Green LED Control: Connect to a third digital output pin. Set this pin HIGH to turn the green LED ON, and LOW to turn it OFF.

You will need to write a simple program on your microcontroller to control the digital pins, sequencing the LEDs to simulate traffic light patterns.

Frequently Asked Questions (FAQs)

• Q: What microcontrollers is this module compatible with?
  A: It is compatible with Arduino, ESP32, ESP8266, Raspberry Pi, and any other microcontroller that provides 3.3V or 5V digital logic.
• Q: Do I need to use external resistors?
  A: No, this module comes with built-in resistors, simplifying your wiring.
• Q: How do I control the individual LEDs?
  A: Each LED (Red, Yellow, Green) has a dedicated control pin. You can turn them on or off by sending a HIGH or LOW digital signal from your microcontroller.
• Q: Can this module be powered by 3.3V?
  A: While it's designed for 5V operation, the LEDs themselves often function with 3.3V, but for optimal brightness and consistent signaling, 5V is recommended. The control logic works with both 3.3V and 5V microcontrollers.

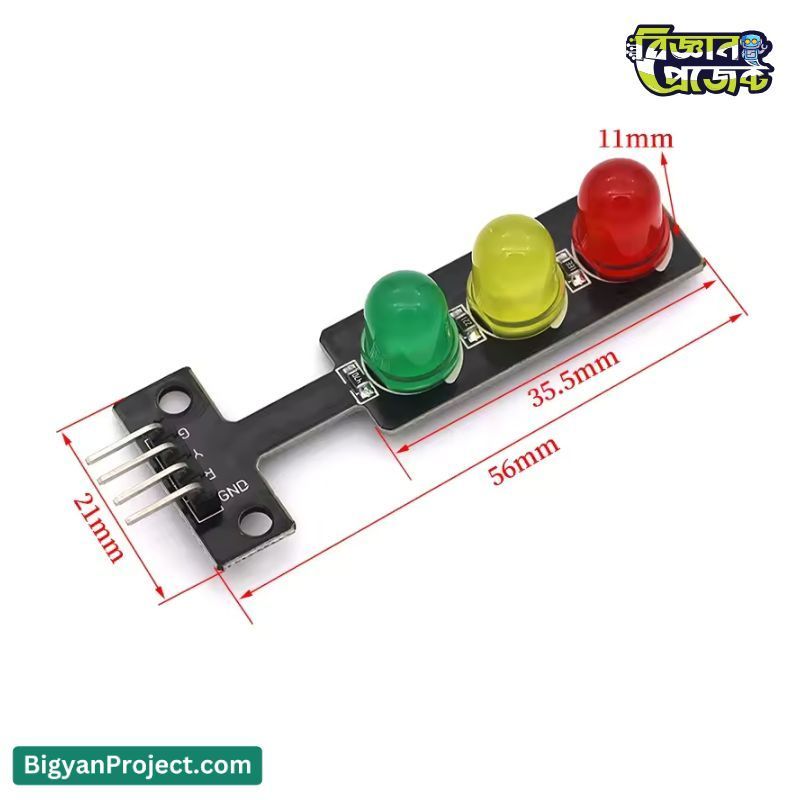

• Q: What is the size of the LEDs on the module?
  A: The individual LED lights have a diameter of 8mm (0.3 inches).
• Q: Is this module suitable for outdoor use?
  A: This module is designed for indoor prototyping and hobbyist use. It is not weatherproof or suitable for outdoor environments without additional protection.

Challenges and Considerations

• While the module has built-in resistors, ensure your microcontroller's output current capabilities are sufficient for driving three LEDs simultaneously, especially if your microcontroller's voltage is significantly lower than 5V or if you are driving many other components.
• The module is designed for digital control; it does not inherently understand traffic light timing protocols. You must program the timing sequences yourself.
• For projects requiring very specific signal timing or high-power LEDs, alternative solutions might be necessary.
• Ensure correct pin connections to avoid damaging the microcontroller or the module.

Compatibility

• Microcontrollers: Arduino boards (Uno, Nano, Mega, etc.), ESP32, ESP8266, Raspberry Pi (all models), and other 3.3V/5V logic level microcontrollers.
• Development Platforms: Arduino IDE, PlatformIO, MicroPython, CircuitPython, etc.
• Power Sources: Standard 5V DC power supplies, USB power banks, microcontroller's 5V output pin.

Future Enhancement Options

• Integrate with sensors (e.g., light sensors, distance sensors) to create adaptive traffic light systems.
• Combine multiple modules to simulate complex intersections or town layouts.
• Add sound effects to simulate traffic noise or alarms.
• Incorporate PWM (Pulse Width Modulation) for smoother transitions or dimming effects if supported by the LEDs and programming.
• Control with a wireless module (e.g., Bluetooth, Wi-Fi) for remote operation.

Benefits

• Simplifies the process of adding traffic lights to DIY projects.
• Cost-effective solution for visual signaling needs.
• Encourages learning and experimentation in electronics and programming.
• Enhances the realism and educational value of science projects.
• Compact and easy to integrate, saving valuable prototyping time.
• Reliable performance for hobbyist and educational applications.

Conclusion

The Mini Traffic Light LED Module from Bigyan Project is an indispensable component for anyone looking to add realistic traffic simulation to their electronics projects. Its ease of use, built-in features, and broad compatibility make it a top choice for students, educators, and hobbyists alike. Whether you're building a smart city model, an educational tool, or a unique interactive display, this module provides a high-quality, reliable, and visually engaging solution. Purchase yours today from Bigyan Project and illuminate your next great invention!
