5-Channel TCRT5000 IR Line Tracking Sensor Module

5-Channel TCRT5000 Infrared Line Tracking Sensor Module for Robotics and Automation

Product Overview

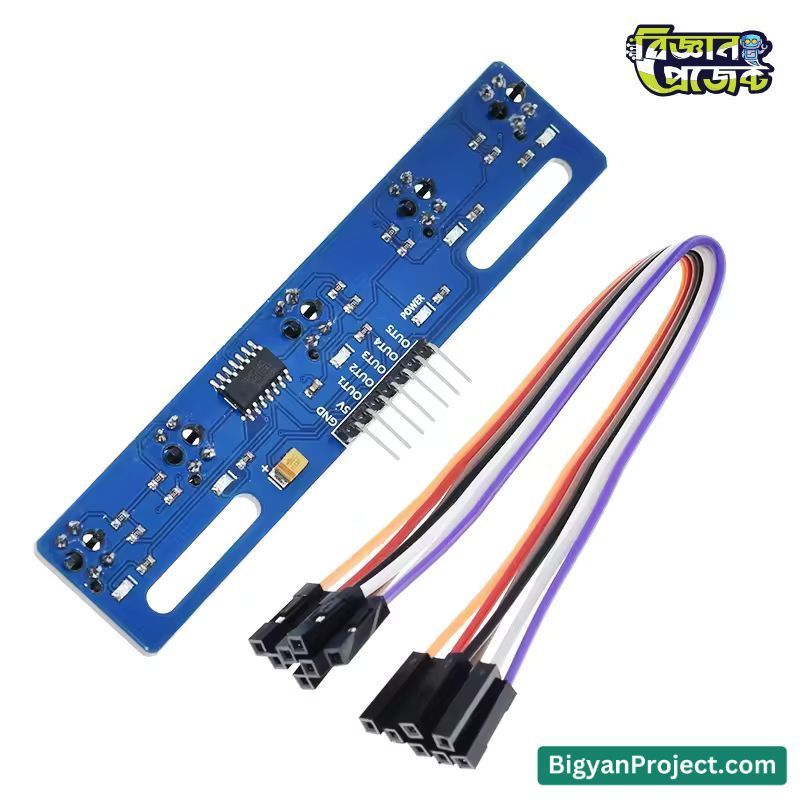

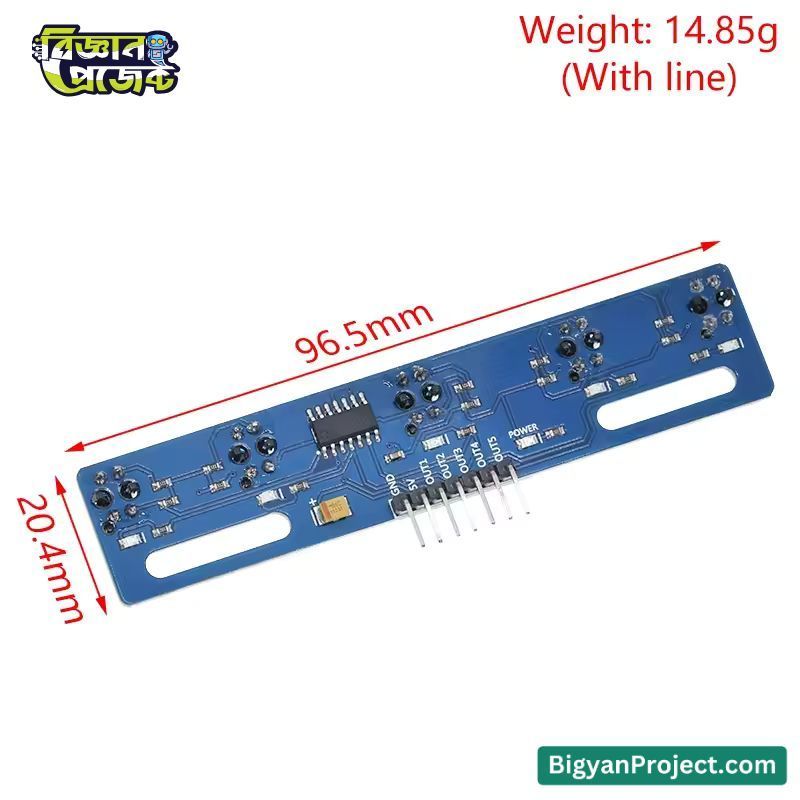

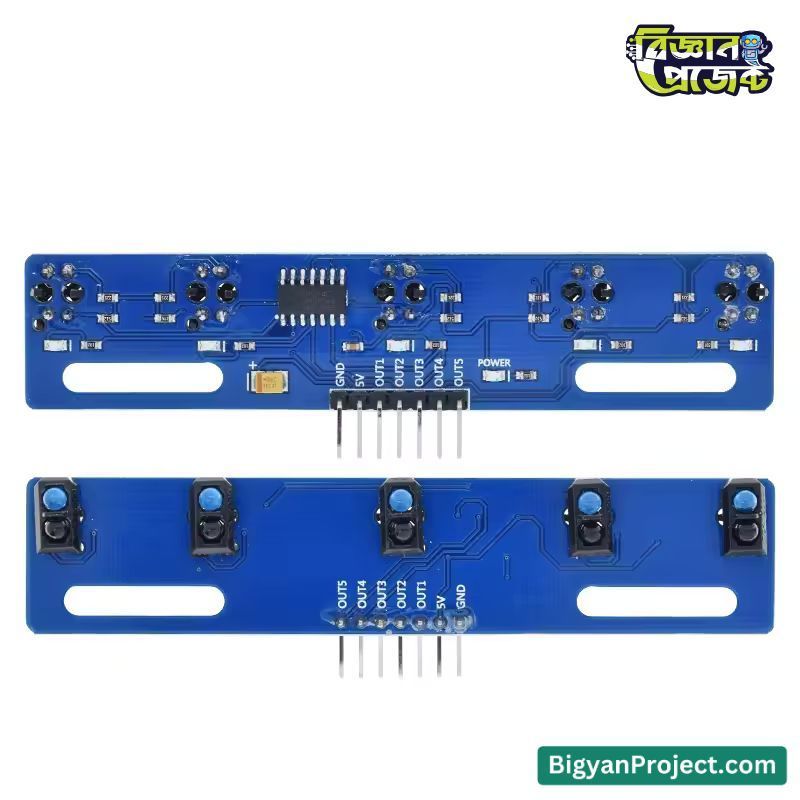

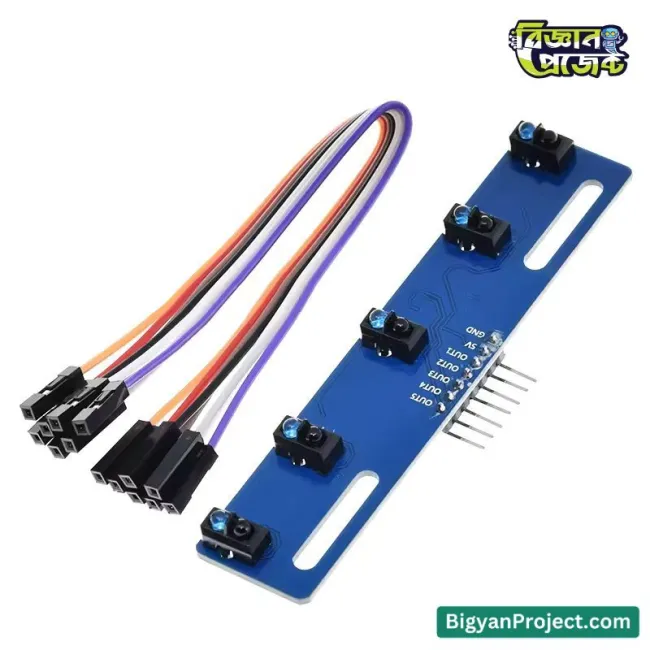

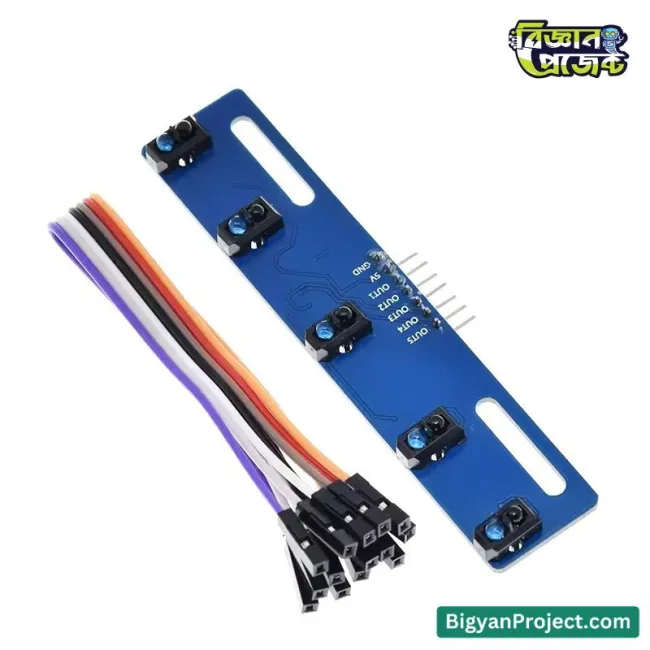

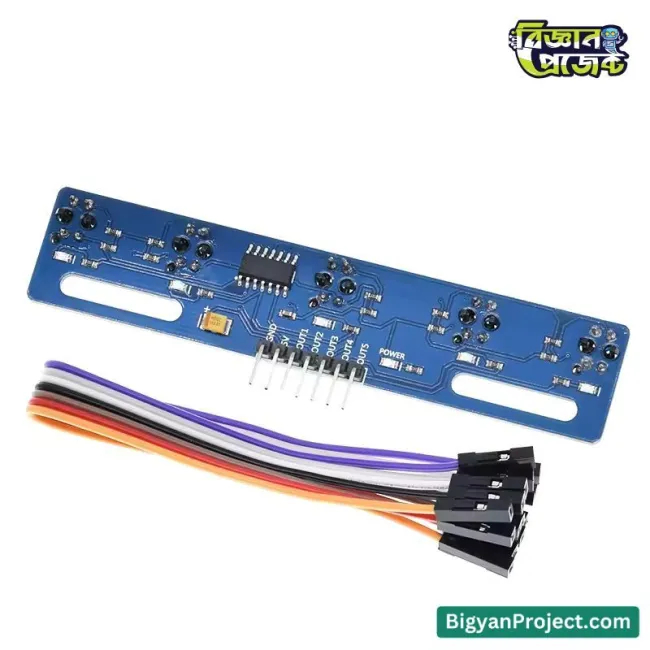

The 5-Channel TCRT5000 Infrared Line Tracking Sensor Module from Bigyan Project is a high-precision solution for robotics, automation, and DIY electronics projects. This module integrates five independent TCRT5000L IR reflective sensors, enabling accurate black/white line detection, obstacle avoidance, and surface contrast recognition. With a digital output interface and 3.3V-5V voltage compatibility, it seamlessly works with popular platforms like Arduino, STM32, Raspberry Pi, and ESP8266. Ideal for educational STEM projects, industrial automation, and smart vehicle systems, this sensor module offers reliable performance in diverse environments with temperature resistance up to 105°C.

Product Specifications

Key Features

• Multi-channel infrared detection for precise positioning
• Digital output simplifies microcontroller integration
• Wide voltage compatibility works with most development boards
• Adjustable detection sensitivity for different surfaces
• Compact design with mounting holes for easy installation
• High temperature resistance for industrial environments
• Low power consumption for battery-operated projects
• Clear status indicators with onboard LEDs

Applications and Use Cases

This versatile sensor module from Bigyan Project serves numerous applications across different domains. In robotics, it enables line-following robots to navigate complex paths accurately. Industrial automation systems use it for conveyor belt tracking and object counting. Educational institutions incorporate it into STEM learning kits for teaching sensor fundamentals. Smart vehicle developers implement it for autonomous parking guidance systems. Additionally, it finds use in home automation for security systems and smart appliances that require surface detection capabilities.

User Guide and How to Use

To implement this sensor module effectively, connect the VCC pin to your microcontroller's 3.3V or 5V supply and GND to common ground. Each sensor channel's digital output connects to individual GPIO pins. For Arduino users, sample code is available to read sensor states and implement logic. The optimal detection distance is achieved by adjusting the sensor height between 5-10mm above the surface. Calibration involves testing on sample surfaces to determine the threshold values. Bigyan Project provides detailed documentation with wiring diagrams and programming examples for quick project integration.

Frequently Asked Questions

Q: Can this sensor detect colors other than black and white?
A: While primarily designed for black/white contrast, it can differentiate between other colors based on reflectivity, though with less accuracy than dedicated color sensors.

Q: What's the maximum scanning speed for line following?
A: With its 10ms response time, the module supports robot speeds up to 0.5m/s when properly implemented in control algorithms.

Q: How does ambient light affect performance?
A: The modulated IR signal minimizes ambient light interference, but direct sunlight may require shielding or sensitivity adjustment.

Challenges and Considerations

While highly effective, users should consider several factors for optimal performance. Highly reflective surfaces may require sensitivity adjustments. Consistent sensor height maintenance is crucial for reliable detection. Environmental factors like dust or moisture accumulation on sensors can affect readings. For complex tracking patterns, sensor data fusion with other modules like ultrasonic sensors may be beneficial. Bigyan Project recommends prototyping on actual application surfaces before final implementation.

Compatibility Information

This module demonstrates broad compatibility with popular platforms. It works natively with Arduino Uno, Mega, and Nano boards. STM32 developers can interface it through standard GPIO. Raspberry Pi users may need level shifting for 3.3V operation. The digital outputs integrate easily with PLC systems in industrial applications. Numerous libraries and sample codes are available for platforms like MicroPython, making it accessible for beginners and experts alike at Bigyan Project.

Future Enhancement Options

The modular design allows for several advanced implementations. Users can incorporate machine learning algorithms for adaptive thresholding. Wireless connectivity modules like ESP-01 can enable IoT capabilities. Combining multiple units creates comprehensive perimeter detection systems. Integration with motor drivers and controllers enables complete autonomous systems. Bigyan Project continually develops add-on modules and tutorials to expand application possibilities with this versatile sensor platform.

Product Benefits

Choosing this sensor module from Bigyan Project offers multiple advantages. The multi-channel design provides superior spatial resolution compared to single sensors. Robust construction ensures longevity in educational and industrial environments. The straightforward interface reduces development time for prototypes and final products. Cost-effectiveness makes it accessible for hobbyists and commercial applications alike. Comprehensive support resources lower the learning curve for new users while offering depth for advanced implementations.

Conclusion

The 5-Channel TCRT5000 Infrared Line Tracking Sensor Module represents an optimal balance of performance, versatility, and value. Whether for educational purposes at Bigyan Project, commercial automation solutions, or advanced robotics research, this module delivers reliable sensing capabilities. Its combination of precise detection, environmental resilience, and ease of integration makes it a preferred choice for developers worldwide. With continuous support and development from Bigyan Project, this sensor module adapts to evolving technological requirements while maintaining backward compatibility with existing systems.
