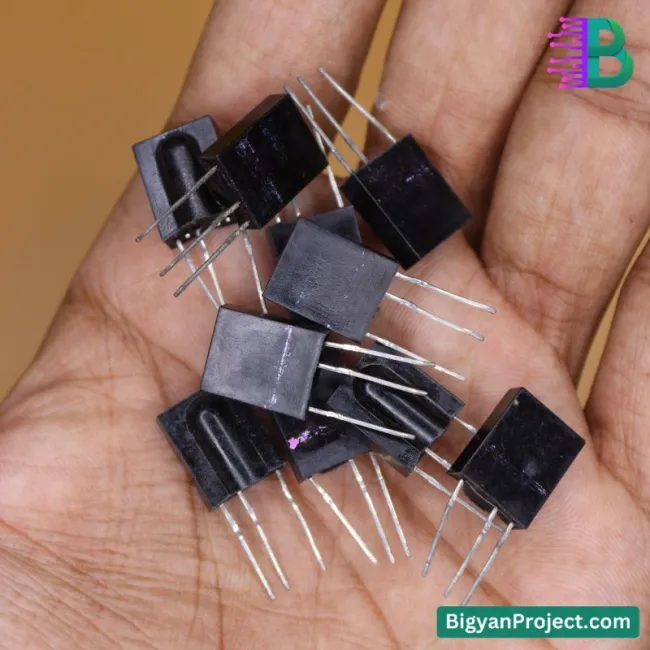

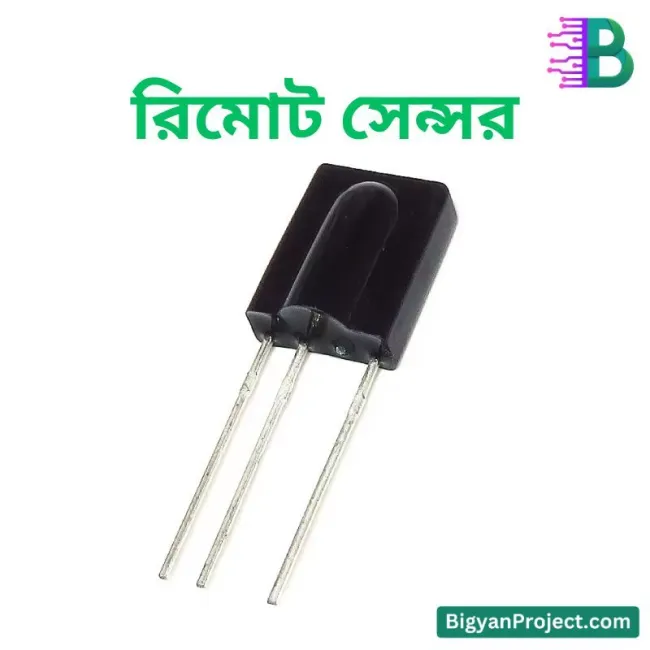

TSOP1738 IR Receiver Sensor for Remote Control

Reliable TSOP1738 IR Receiver Module for DIY and Remote Control Systems

The TSOP1738 IR Receiver Module is a widely used component in remote control and embedded system applications. Designed to receive infrared signals typically at 38kHz, this module is capable of decoding standard remote control protocols with precision and stability. Whether you're working on a DIY electronics project, integrating a sensor in a robotics system, or automating a smart home device, the TSOP1738 offers the performance and reliability you need.

At Bigyan Project, we offer high-quality TSOP1738 IR sensors suitable for both beginners and professionals in electronics. This sensor is engineered for low power consumption and high immunity to ambient light, making it ideal for a variety of environments and applications.

Product Specifications

Features

• High sensitivity to 38 kHz modulated infrared signals
• Noise-filtered output for stable data reception
• TTL and CMOS logic level compatibility
• Built-in preamplifier and demodulator
• Robust performance even in bright environments
• Compact design ideal for embedded applications
• Wide supply voltage range from 2.7V to 5.5V

Applications

• TV and multimedia remote control receivers
• Home automation systems
• Arduino and Raspberry Pi projects
• Obstacle detection in robotics
• Wireless data communication for short range
• Industrial automation and sensor-based triggers

User Guide / How to Use

Using the TSOP1738 IR Receiver Module is simple. Connect the VCC and GND pins to the power supply (3.3V or 5V depending on your microcontroller), and the OUT pin to any digital input pin on your board (like an Arduino or ESP32). Using an IR remote control, you can send signals to the module. The output pin will go LOW whenever a valid IR signal is received, which can then be decoded using an IR library in your microcontroller’s development environment.

Libraries such as IRremote for Arduino simplify the process of receiving and decoding IR signals. The module works effectively within 5 meters when paired with a standard IR remote control.

Frequently Asked Questions (FAQs)

• Is the TSOP1738 compatible with Arduino? Yes, it is fully compatible with Arduino and other microcontrollers like ESP8266, ESP32, and Raspberry Pi.
• What is the frequency of the TSOP1738? It is designed to receive IR signals modulated at 38 kHz, which is standard for most remote controls.
• Can I use this sensor outdoors? While it has high ambient light immunity, very bright sunlight can reduce its performance. It is recommended for indoor or controlled lighting conditions.
• How do I know if the sensor is working? You can view the output using a serial monitor in your development board, or connect an LED to visualize the signal reception.
• What IR remotes work with this sensor? Most TV, DVD, and appliance remotes using 38 kHz IR signals are compatible.

Challenges and Considerations

• The sensor may not perform well under direct sunlight or in very bright environments
• It requires modulated IR signals — constant IR light won't trigger it
• Correct orientation and signal angle are important for reliable detection

Compatibility

• Arduino Uno, Nano, Mega
• Raspberry Pi (via GPIO)
• ESP32, ESP8266 (NodeMCU)
• STM32, PIC, and other microcontroller platforms
• Compatible with standard TV and media remote controls

Future Enhancement Options

• Pair with IR LED for full transmitter-receiver communication
• Integrate into smart home systems with voice assistants
• Use with machine learning for gesture or signal pattern recognition
• Combine with motor drivers for contactless robotic control

Benefits

• Easy integration with popular development boards
• Cost-effective and widely available
• Accurate signal processing with minimal code
• Reliable performance for remote sensing
• Backed by Bigyan Project’s trusted sourcing

Conclusion

The TSOP1738 IR Receiver Module is a compact and powerful tool for integrating infrared signal reception into any electronics or automation project. Its ease of use, strong performance, and wide compatibility make it a top choice for hobbyists and engineers alike. At Bigyan Project, we ensure our sensors are tested and ready to meet your project needs with confidence.

Whether you're working on a home automation system, building a custom robot, or just experimenting with remote control inputs, the TSOP1738 will deliver the accuracy and reliability you expect. Explore more sensors and modules from Bigyan Project for your next innovation.
