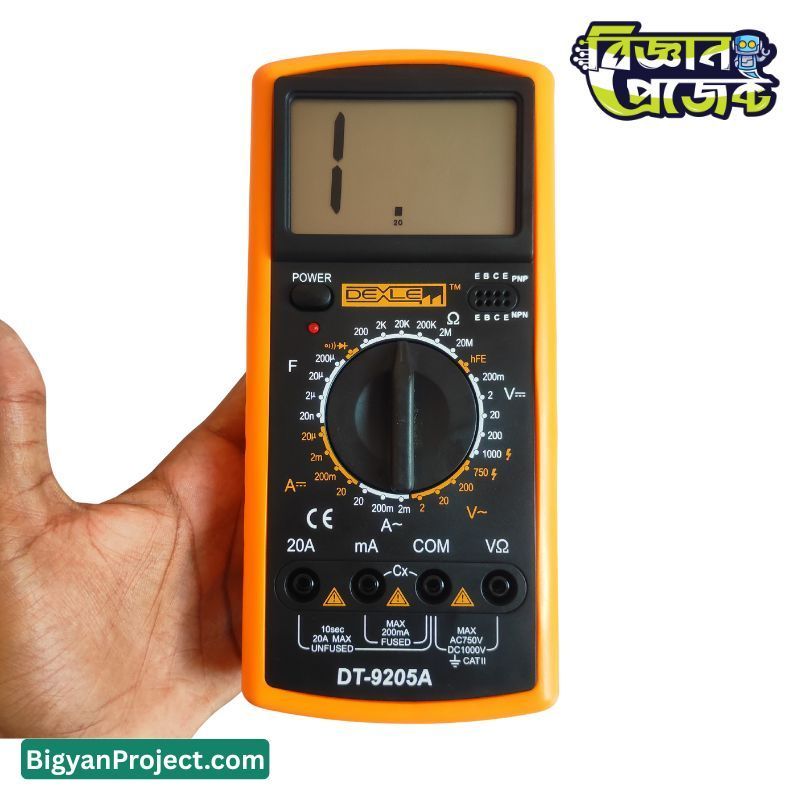

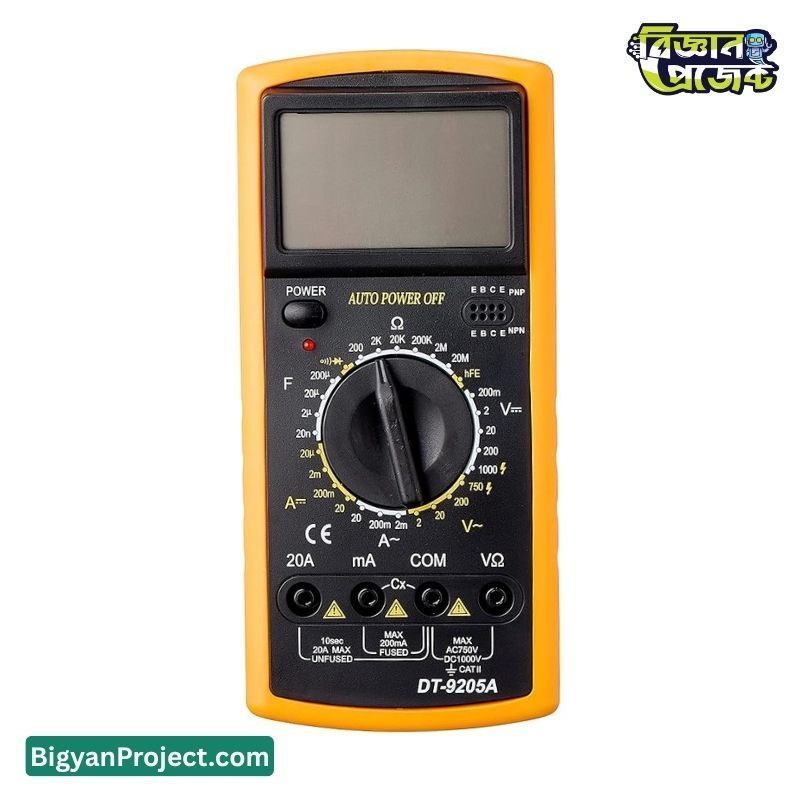

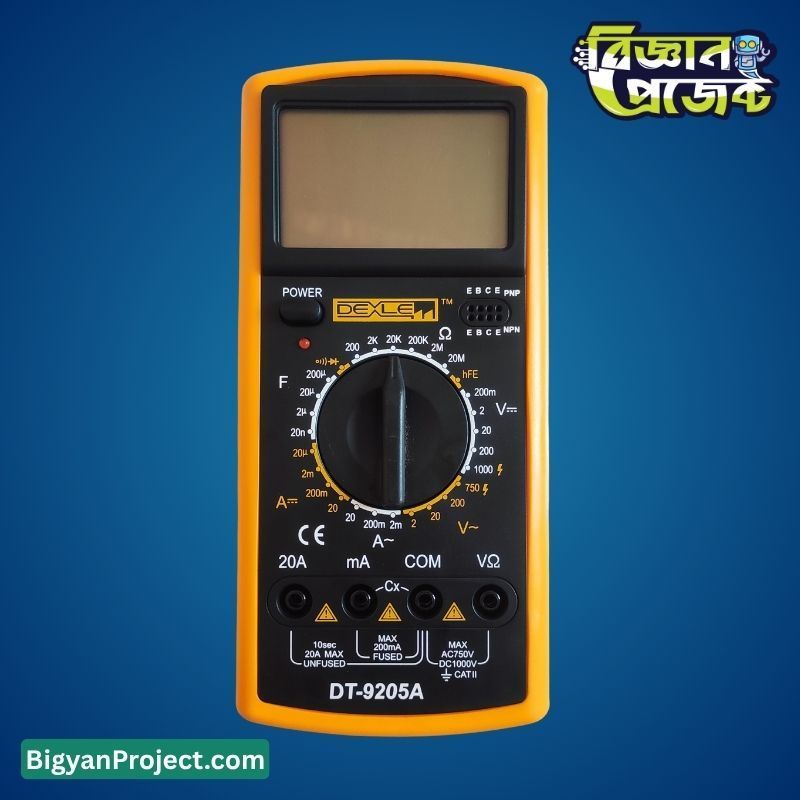

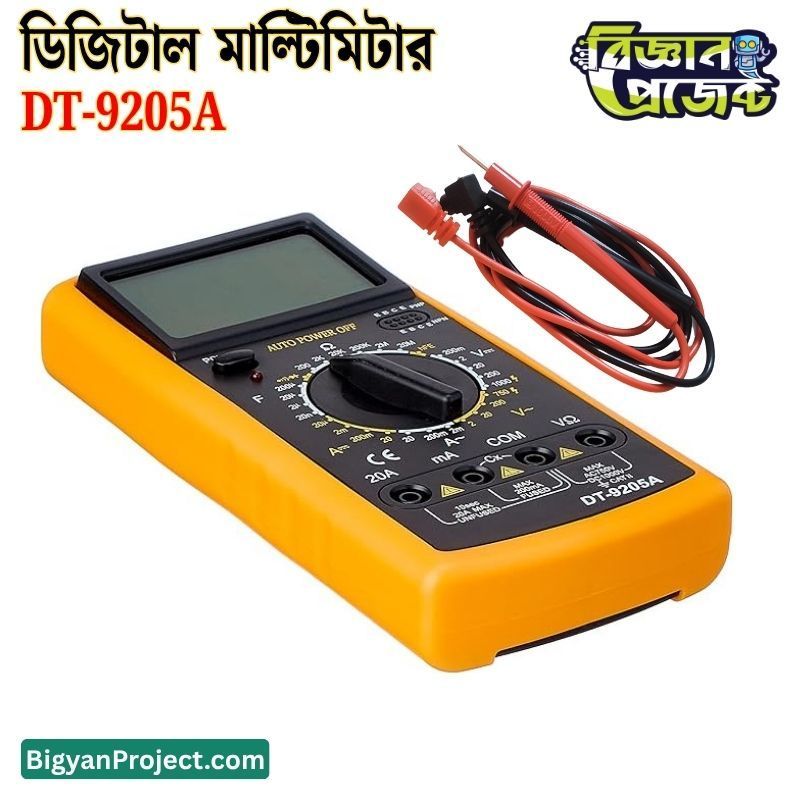

Digital Multimeter DT-9205A with Voltage, Current & hFE Test

DT-9205A Professional Digital Multimeter for Precise Electrical Measurement

The DT-9205A Digital Multimeter is a dependable and accurate measuring instrument designed for electrical testing, electronics troubleshooting, and technical education. Equipped with a wide set of essential features—DC/AC voltage, DC/AC current, resistance, capacitance, diode test, continuity, and hFE transistor measurement—this multimeter is ideal for hobbyists, students, and engineers in Bangladesh.

Its large 1999-count LCD display ensures easy visibility, while the durable casing makes it suitable for both indoor technical labs and outdoor field use. As part of the Bigyan Project (বিজ্ঞান প্রজেক্ট) recommended tools, the DT-9205A offers a practical balance of affordability, accuracy, and versatility for anyone working with electronics.

Product Specifications

Features

• High-accuracy DC/AC voltage measurement up to 1000V/700V
• Fused protection on mA range for improved safety
• Large 1999-count LCD display for easy readings
• Built-in hFE transistor test socket
• Continuity buzzer for quick wiring checks
• Durable body suitable for lab, workshop, and field environments
• Beginner-friendly dial layout with clear markings
• Reliable performance trusted by Bigyan Project users in Bangladesh

Applications / Use Cases

• Electronics circuit building and debugging
• Household electrical testing and repair
• Battery and power supply diagnostics
• Component-level testing in DIY and robotics projects
• Use in schools, colleges, and polytechnic labs
• Small workshop and hobby electronics development

User Guide / How to Use

• Select the required mode on the rotary dial (V, A, Ω, F, Diode, Continuity, hFE)
• Connect black probe to COM and red probe to the correct terminal (VΩ/mA/20A)
• For voltage: place probes across the circuit in parallel
• For current: place probes in series with the load
• For resistance: disconnect power from the circuit before measuring
• Use diode/continuity mode for testing components and wiring faults
• Insert transistors into the hFE socket to measure gain
• Follow CAT II safety precautions when working with high voltage

Frequently Asked Questions (FAQs)

• Q: Does this model support temperature measurement?
  A: The photographed DT-9205A unit does not include a temperature input, so TEMP measurement is not supported.
• Q: Is the 20A range fused?
  A: No, the 20A range is unfused and should be used only when necessary.
• Q: Can I test transistors with it?
  A: Yes, you can test NPN/PNP transistors using the built-in hFE socket.
• Q: Does it include a backlight?
  A: This variant of the DT-9205A does not have a backlight button.
• Q: Is it suitable for beginners and students?
  A: Absolutely. It is widely used by electronics learners and science students through Bigyan Project resources.

Challenges and Considerations

• 20A measurement is unfused, requiring careful handling
• Not intended for industrial CAT III/CAT IV electrical systems
• No display backlight, making low-light use difficult
• Temperature measurement is not available on this unit
• Weak battery can reduce accuracy

Compatibility

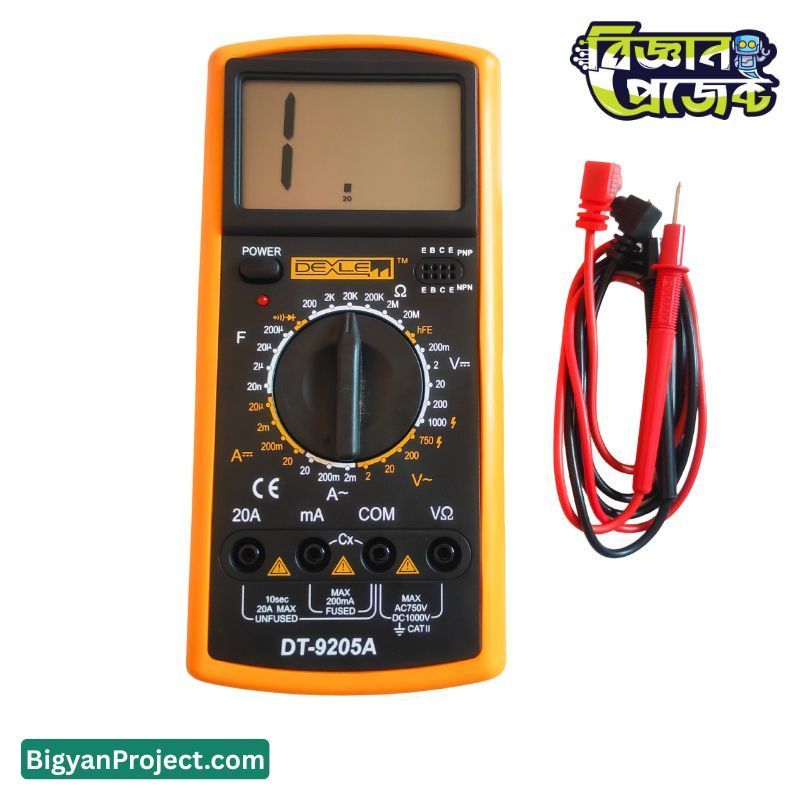

• Works with standard 4mm banana plug test leads
• Suitable for most low-voltage electronics projects
• Compatible with common NPN/PNP transistors for hFE testing
• Well-matched with DIY and learning kits from Bigyan Project

Future Enhancement Options

• Upgrade to silicone test leads for durability
• Use a multimeter stand for hands-free testing
• Add an external light source for dim environments
• Consider a CAT III or CAT IV meter for heavy-duty industrial usage
• Add a fast-response continuity probe for advanced work

Benefits

• Affordable and versatile for electronics learners
• Accurate measurement ideal for educational use
• Durable construction for long-term reliability
• Multiple functions combined into a single device
• Large LCD digits for easy readability

Conclusion

The DT-9205A Digital Multimeter is an excellent tool for electronics testing, repair, and education in Bangladesh. With essential measurement functions, a practical design, and dependable performance, it is a recommended choice for students, technicians, and DIY enthusiasts. Supported widely through Bigyan Project learning materials, this multimeter is a valuable addition to any electronics workspace.
