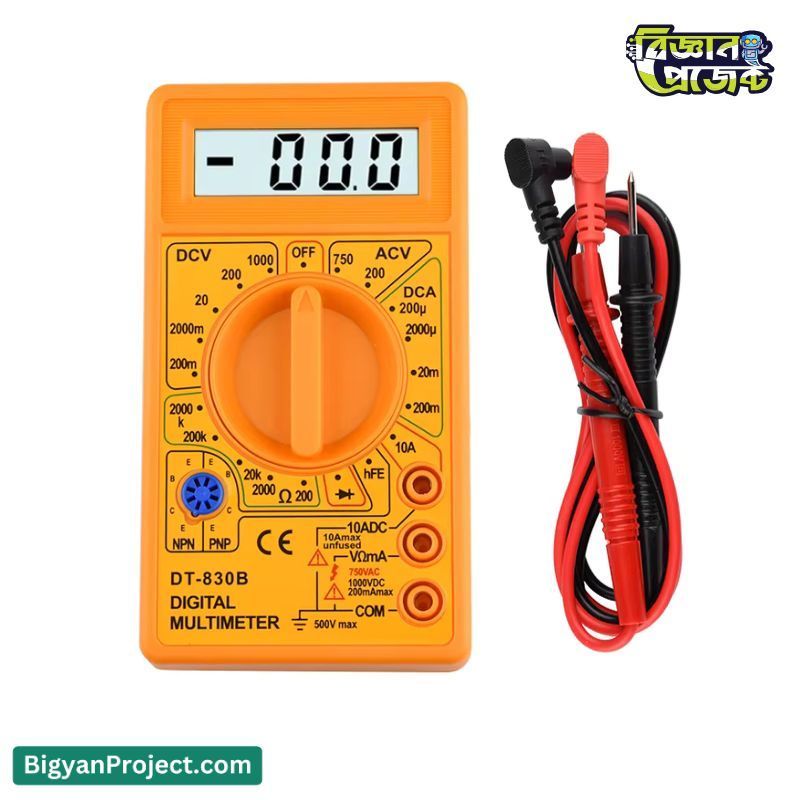

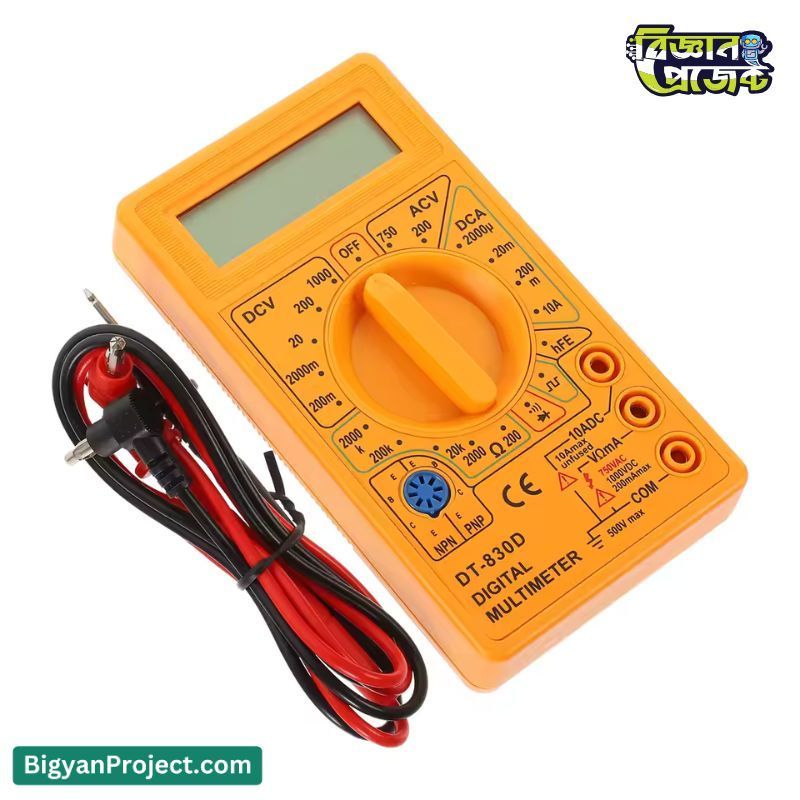

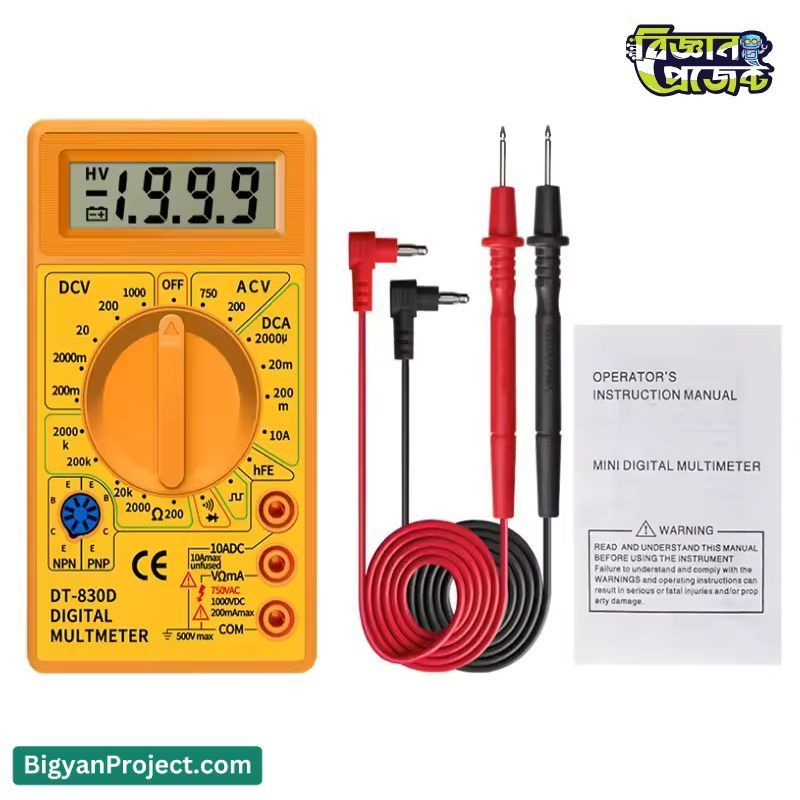

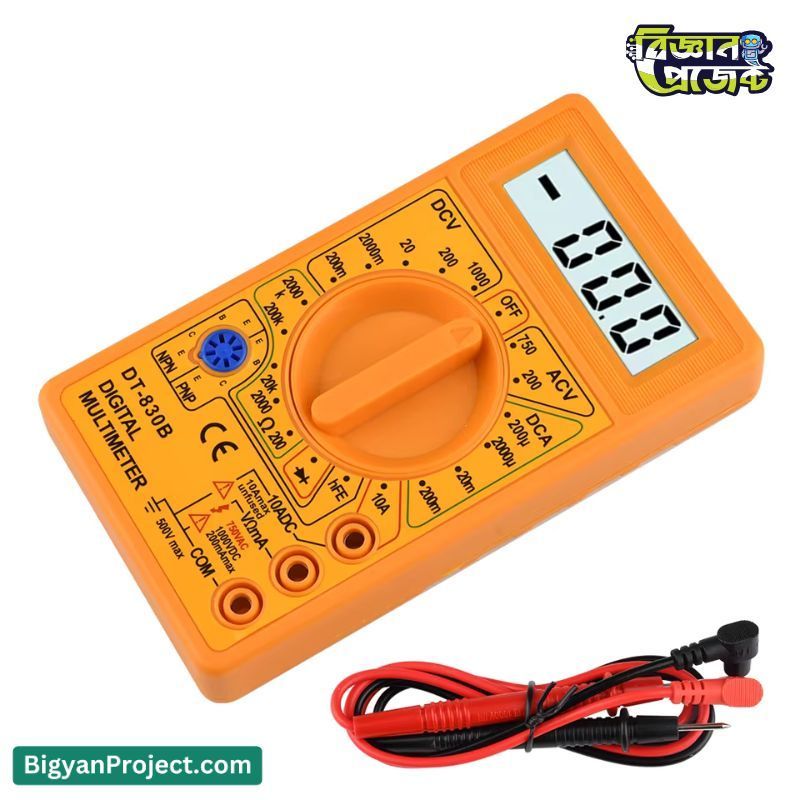

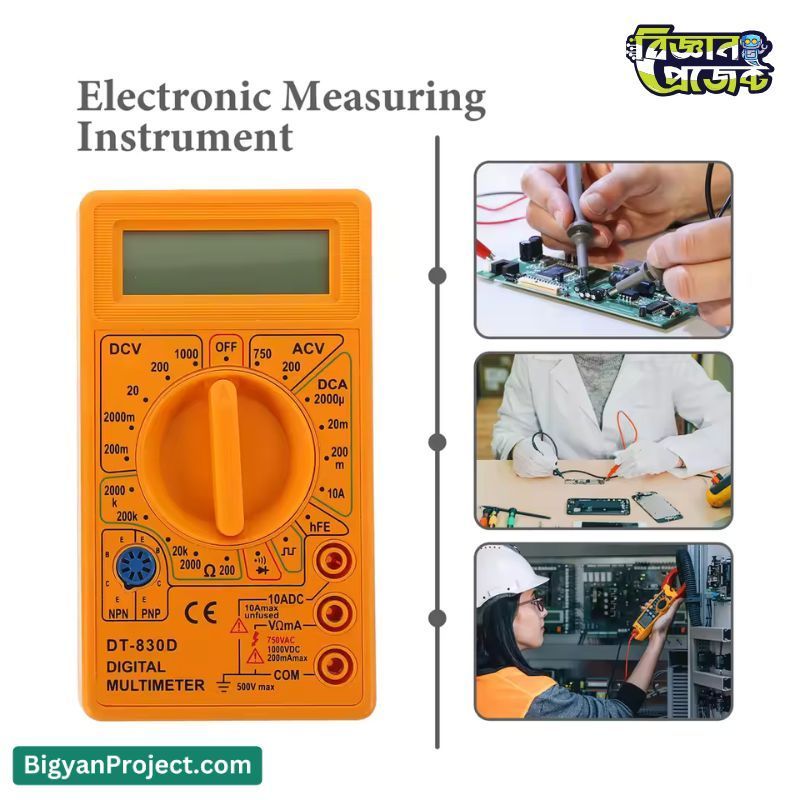

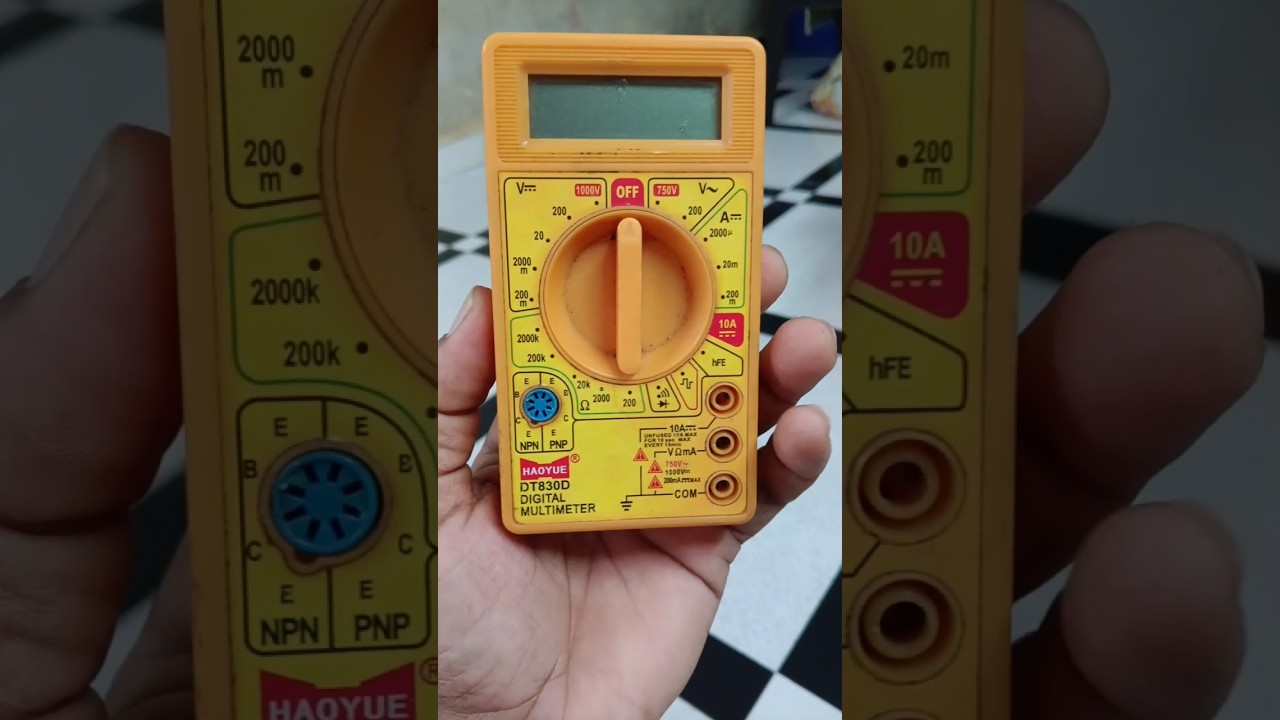

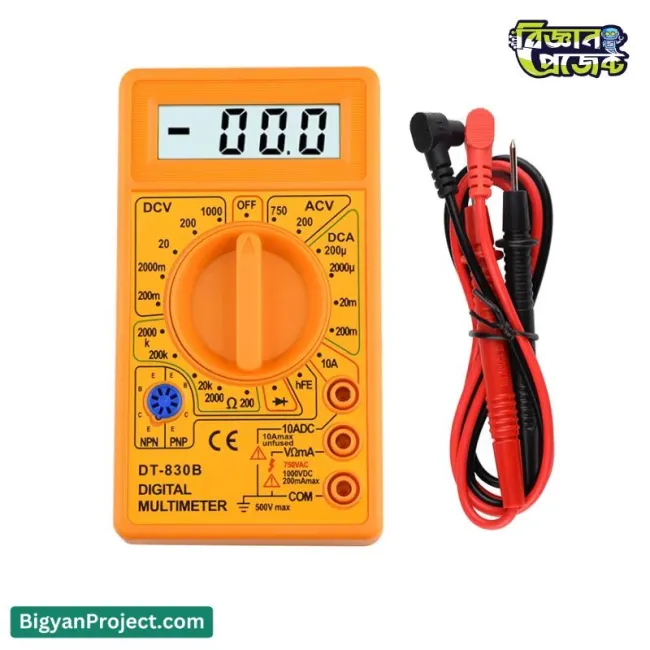

DT-830D Digital Multimeter Volt Amp Ohm Meter

DT-830D Digital Multimeter AC/DC Voltmeter Ammeter Ohm Tester with Buzzer

Discover the ultimate tool for your electronics workbench with the DT-830D Digital Multimeter, now available from Bigyan Project. Whether you are a student just starting your journey in electronics, a dedicated hobbyist working on a new DIY project, or need a reliable tool for household electrical repairs, the DT-830D is engineered to meet your needs. This compact and lightweight multimeter combines accuracy, versatility, and safety into one affordable package. It provides all the essential measurement functions, including AC/DC voltage, DC current, and resistance, along with diagnostic features like a continuity buzzer, diode test, and transistor (hFE) measurement. Its user-friendly design, complete with a large backlit LCD and a protective shell, makes it the perfect choice for anyone looking for a dependable and easy-to-use testing instrument. Trust the DT-830D for precise readings and safe operation every time.

Product Specifications

Features

• Clear 3 ½ digit LCD display with a maximum reading of 1999 for easy-to-read measurements.
• Bright backlight for excellent visibility in dimly lit environments or dark workspaces.
• Audible continuity buzzer provides instant feedback when testing circuits, wires, and fuses.
• Integrated diode and transistor (hFE) testing capabilities for comprehensive component analysis.
• Built-in data hold function to freeze the current measurement on the screen for easy recording.
• Overload protection on all ranges (except 10A) ensures user safety and protects the instrument.

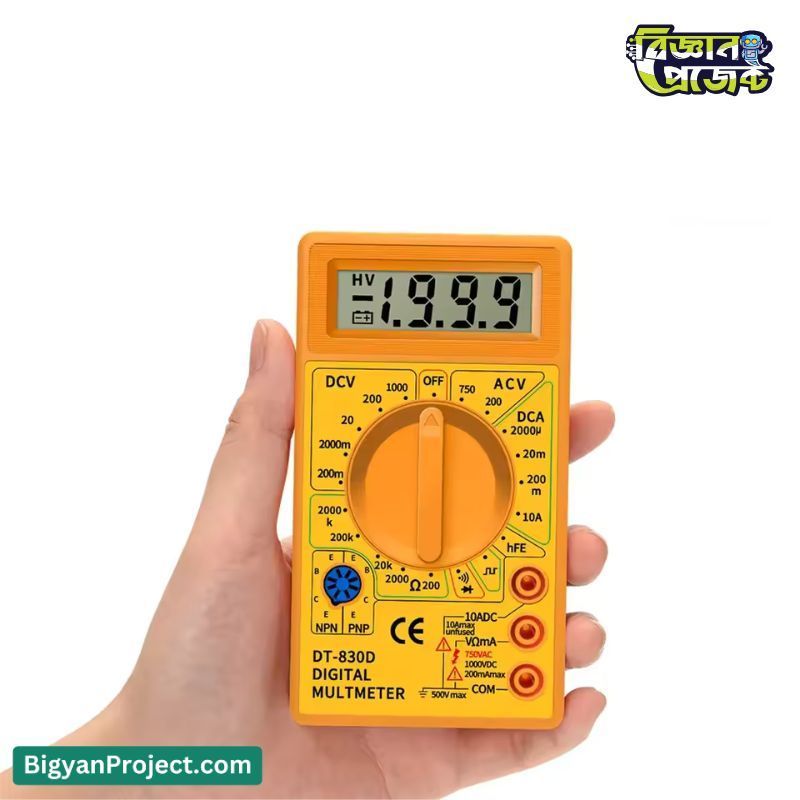

• A durable, protective outer shell provides drop protection and a comfortable grip.
• Convenient fold-out kickstand for hands-free viewing on your workbench.
• Low battery indicator to ensure you never run out of power unexpectedly during a task.

Applications / Use Cases

• Troubleshooting and repairing household appliances like fans, lights, and power adapters.
• Testing car batteries, alternators, fuses, and other automotive electrical systems.
• Building, debugging, and testing custom circuits for DIY electronics and RC hobby projects.
• Verifying voltage levels in outlets, extension cords, and power supplies.
• Measuring the resistance of resistors, sensors, and other electronic components.
• An essential educational tool for students learning the fundamentals of electricity and electronics.

User Guide / How to Use

Warning: Always ensure the test leads are in the correct ports and the rotary dial is set to the proper range before connecting to a circuit to avoid damage or injury.

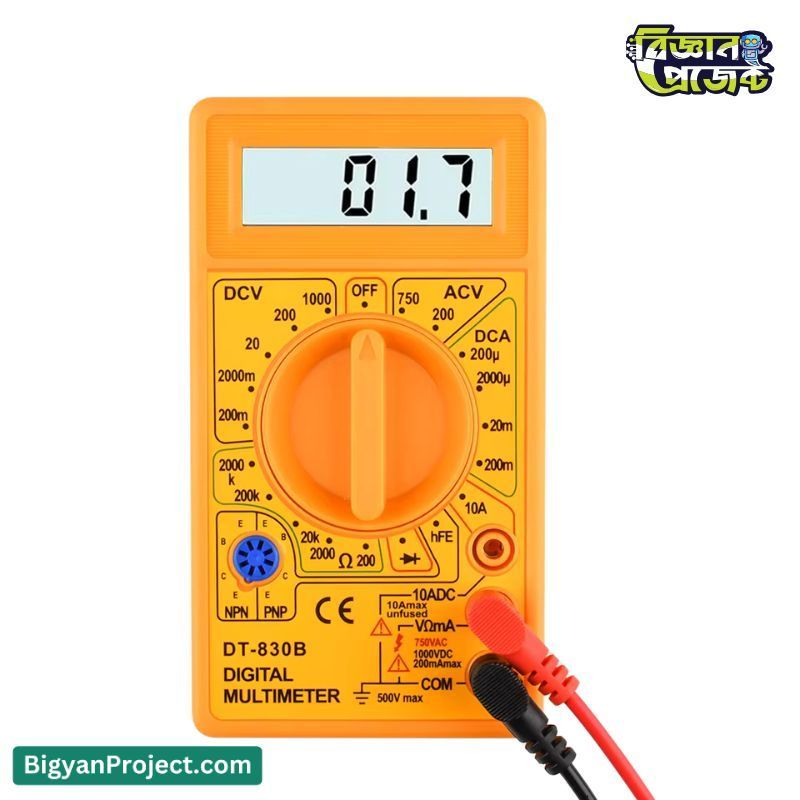

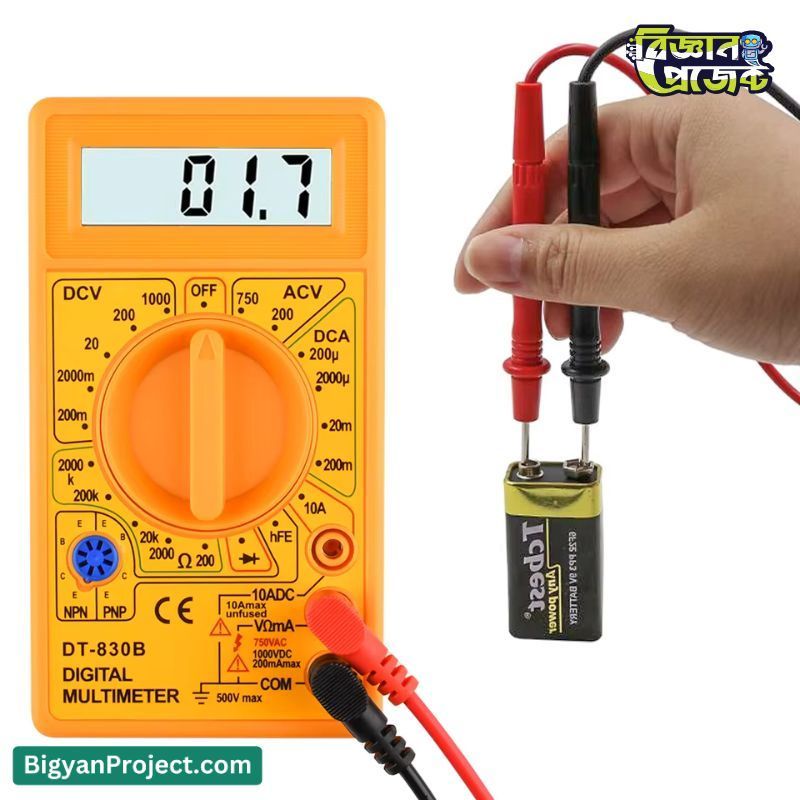

1. Measuring Voltage (AC/DC): Plug the black probe into the 'COM' port and the red probe into the 'VΩmA' port. Select the appropriate voltage range (ACV or DCV) on the dial that is higher than the expected voltage. Touch the probes to the points in the circuit you wish to measure.

2. Measuring DC Current: For currents up to 200mA, use the 'VΩmA' port. For currents between 200mA and 10A, move the red probe to the dedicated '10A' port. Remember, the 10A port is unfused. Place the multimeter in series with the circuit to measure current.

3. Measuring Resistance: With the probes in the 'COM' and 'VΩmA' ports, turn the dial to the desired resistance (Ω) range. Ensure the component being tested is not powered. Touch the probes across the component to get a reading.

4. Continuity Test: Set the dial to the continuity/buzzer symbol. Touch the probes together; the buzzer should sound. Use this to test for breaks in wires or traces.

Frequently Asked Questions (FAQs)

• Q: Does this multimeter come with a battery?
  A: No, the DT-830D requires one standard 9V (6F22) battery, which is not included in the package.
• Q: Can this device measure AC current (Amps)?
  A: This model is designed to measure DC current only. It can measure AC voltage but not AC current.
• Q: Is this DT-830D multimeter safe for beginners to use?
  A: Absolutely. With its straightforward interface and built-in overload protection, it is an ideal and safe choice for beginners. As with any electrical tool, basic safety precautions should always be followed.

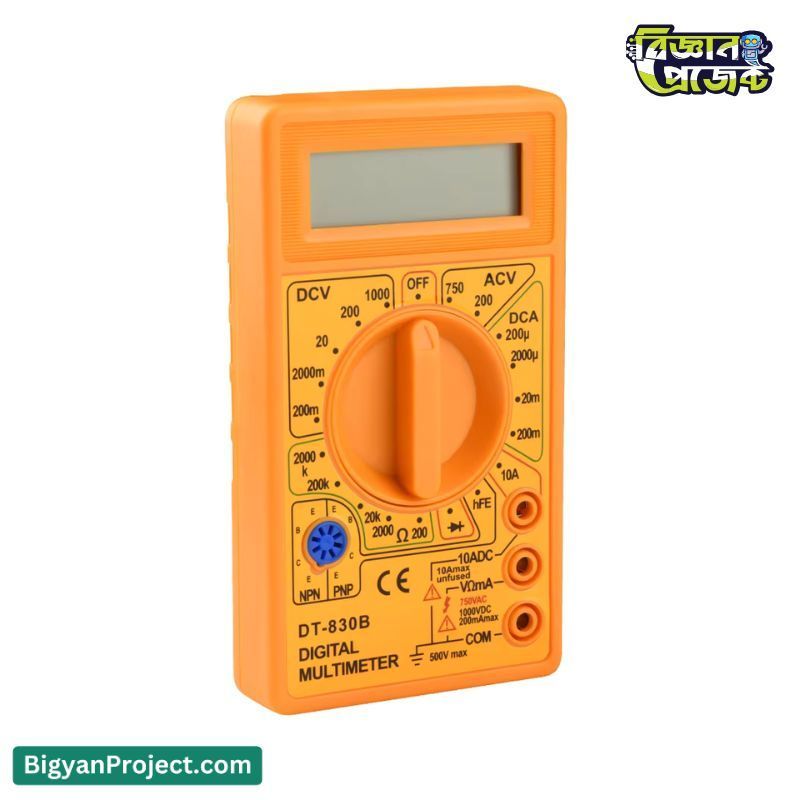

• Q: What is the main difference between the DT-830D and DT-830B models?
  A: The primary advantage of the DT-830D model, offered by বিজ্ঞান প্রজেক্ট, is the inclusion of the essential continuity buzzer, which is often absent in the DT-830B model.
• Q: Is the 10A current measurement range protected by a fuse?
  A: No, the 10A port on this multimeter is unfused. Measurements in this range should be brief (less than 10 seconds) to prevent overheating and damage.

Challenges and Considerations

• This is a manual-ranging multimeter, meaning you must select the correct measurement range before testing.
• The 10A DC current range is unfused, requiring careful and brief measurements to avoid damaging the device.
• This tool is intended for low-voltage electronics and household AC, not for high-power industrial applications.

Compatibility

• Works with standard electronic components such as resistors, capacitors (for continuity), diodes, and transistors.
• Compatible with most low-voltage DC circuits found in automotive, hobby, and battery-powered devices.
• Suitable for testing standard household AC voltage within its specified ranges.

Future Enhancement options

• Upgrade the standard test leads to sharper, silicone-based probes for better grip and durability.
• Use this multimeter as a foundation to learn more complex electronics principles and diagnostics.
• Build a dedicated component testing jig that pairs with the multimeter for faster analysis.

Benefits

• Affordably priced, making it accessible for students, beginners, and hobbyists on a budget.
• All-in-one instrument for a wide variety of essential electrical voltage, current, and resistance tests.

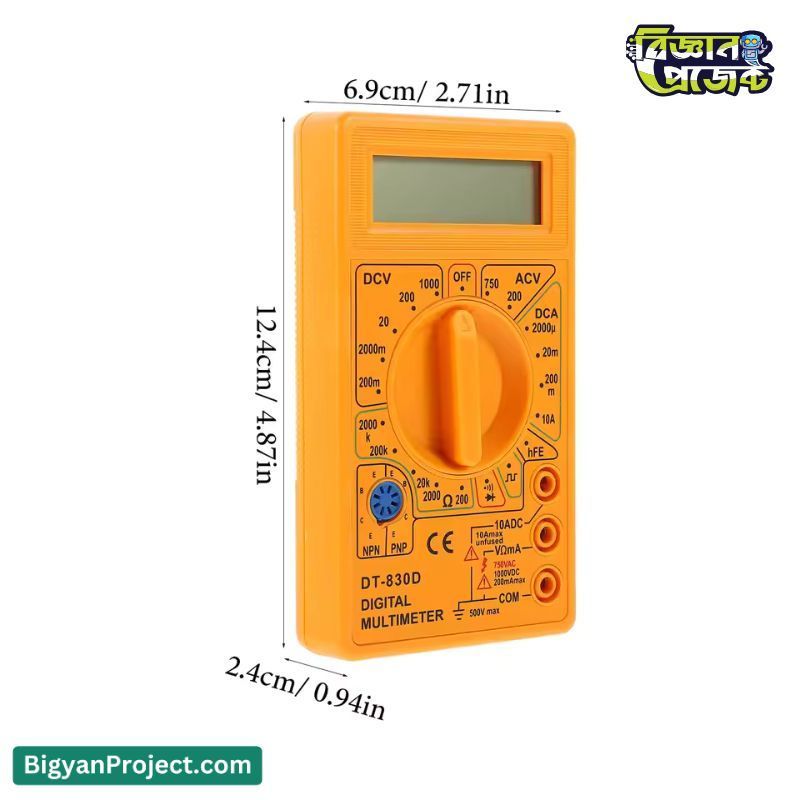

• Portable and lightweight design makes it easy to carry in a toolkit or pocket.
• Quickly confirm circuit integrity with the audible buzzer, saving time and effort.
• Provides a safe learning platform with overload protection to prevent common mistakes.

Conclusion

The DT-830D Digital Multimeter is an indispensable tool that offers incredible value and functionality. Its combination of essential measurement ranges, user-friendly features, and robust safety measures makes it the number one choice for a wide array of electrical testing tasks. For a reliable, accurate, and cost-effective solution for your projects, look no further. Order yours today from Bigyan Project and take the first step towards mastering electronics.
