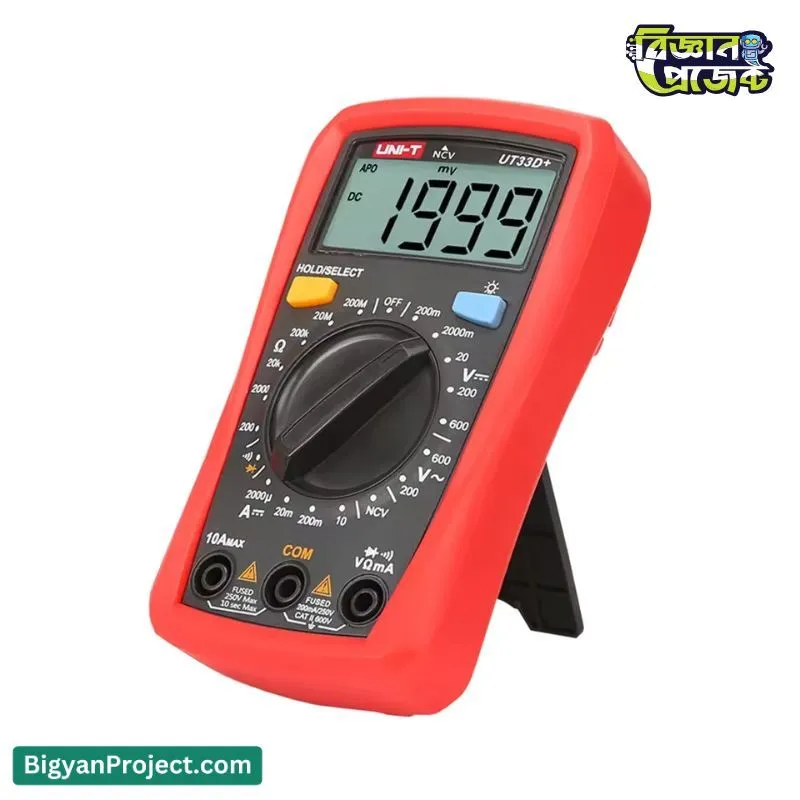

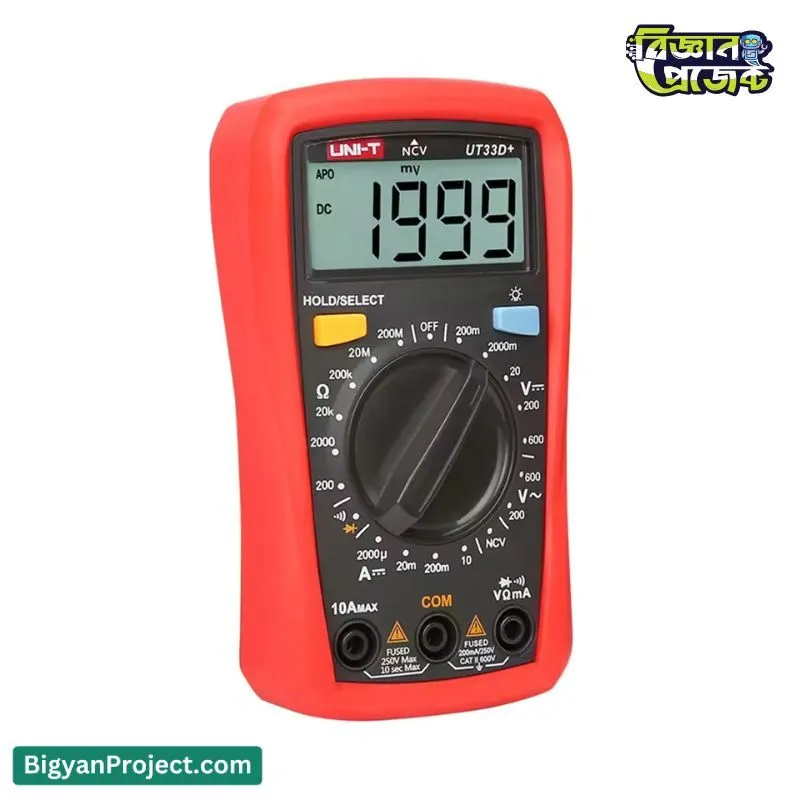

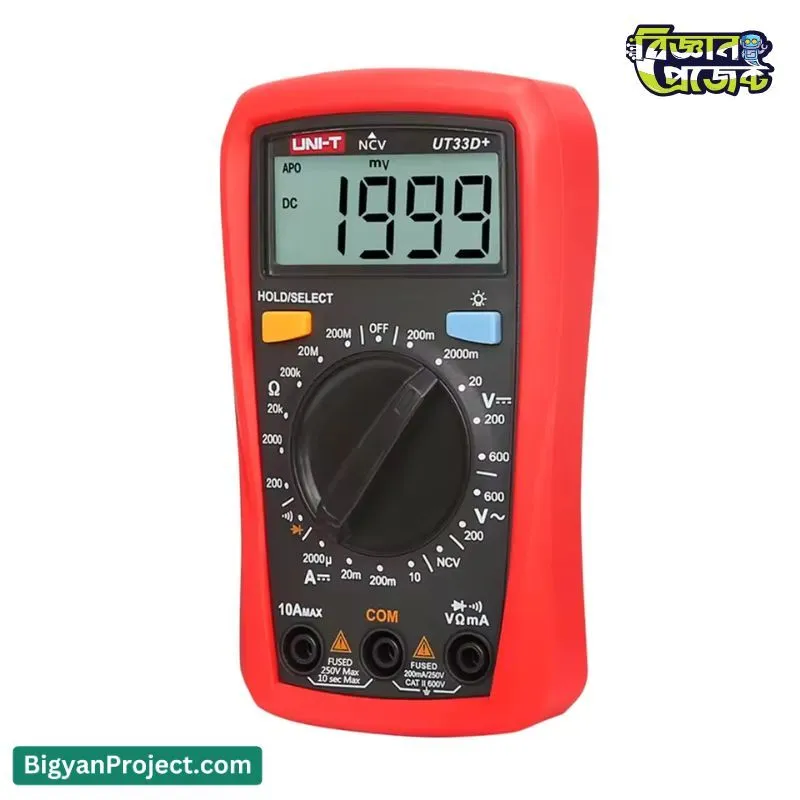

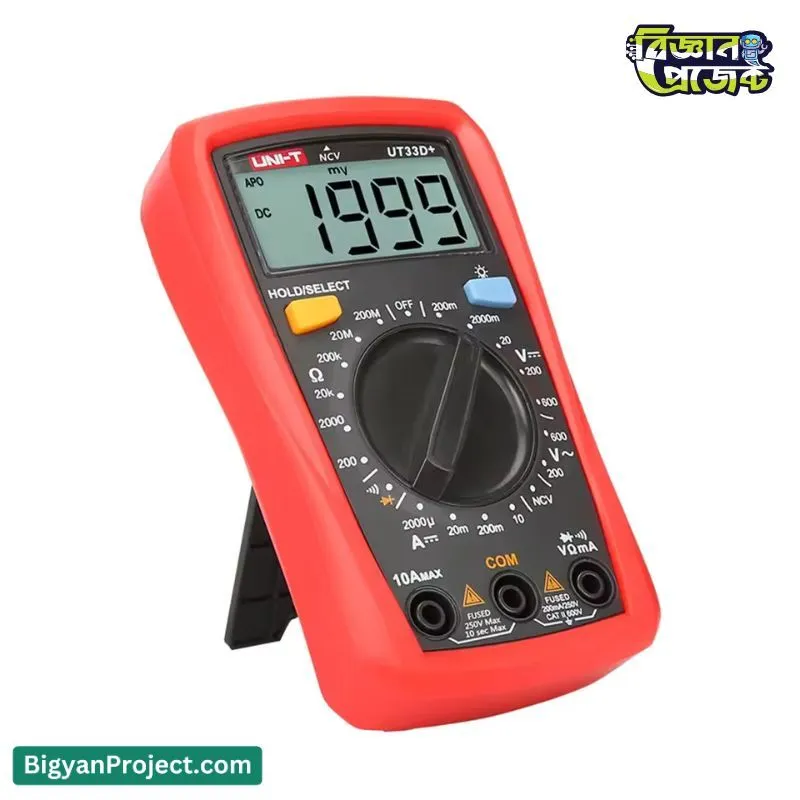

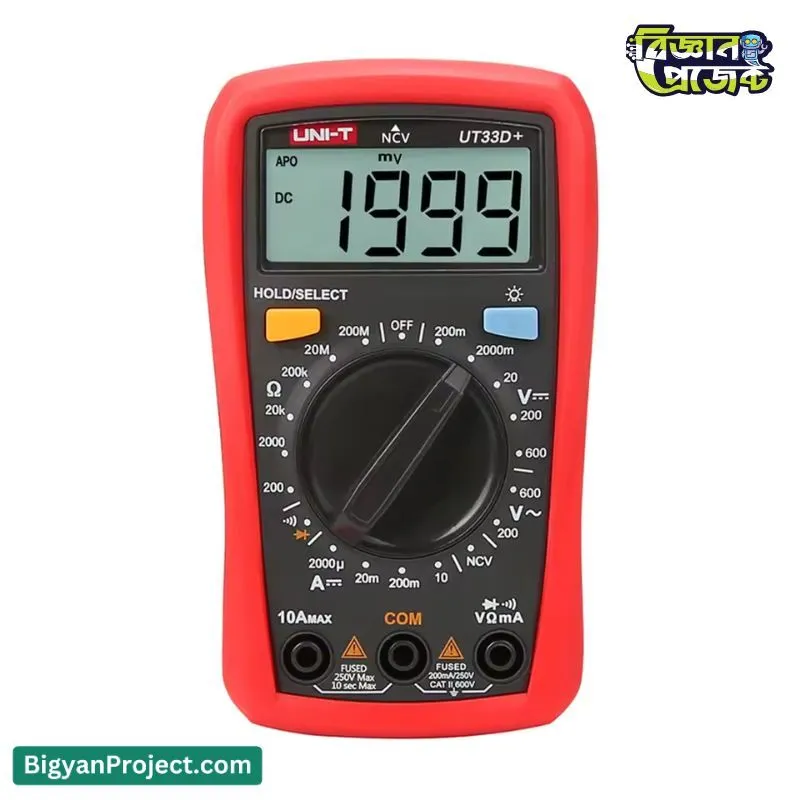

UNI-T UT33D+ NCV Digital Multimeter for Electronics DIY Projects

UNI-T UT33D+ Multipurpose Digital Multimeter with NCV Electrical Test Tool

Welcome to Bigyan Project, your trusted source for high-quality electronics components in Bangladesh. We are proud to present the UNI-T UT33D+ Digital Multimeter, an essential tool designed for reliability, accuracy, and safety. This compact and robust multimeter is the perfect companion for students, DIY electronics hobbyists, and professional technicians alike. Engineered to withstand the rigors of daily use, it has passed a 2-meter drop test, ensuring it can handle accidental bumps and falls in your workshop or in the field. The standout feature of the UT33D+ is its integrated Non-Contact Voltage (NCV) detection, which allows you to quickly and safely identify the presence of live electrical wires without making any physical contact. Whether you are troubleshooting a complex printed circuit board (PCB), performing routine maintenance on household appliances, or building your next great invention with parts from বিজ্ঞান প্রজেক্ট, this multimeter delivers the performance you need. Its large, backlit LCD screen ensures that readings are clear and easy to see in any lighting condition, while the ergonomic design provides a comfortable grip for prolonged use. For anyone serious about electronics in Bangladesh, the UNI-T UT33D+ is an indispensable, affordable, and highly capable measuring instrument.

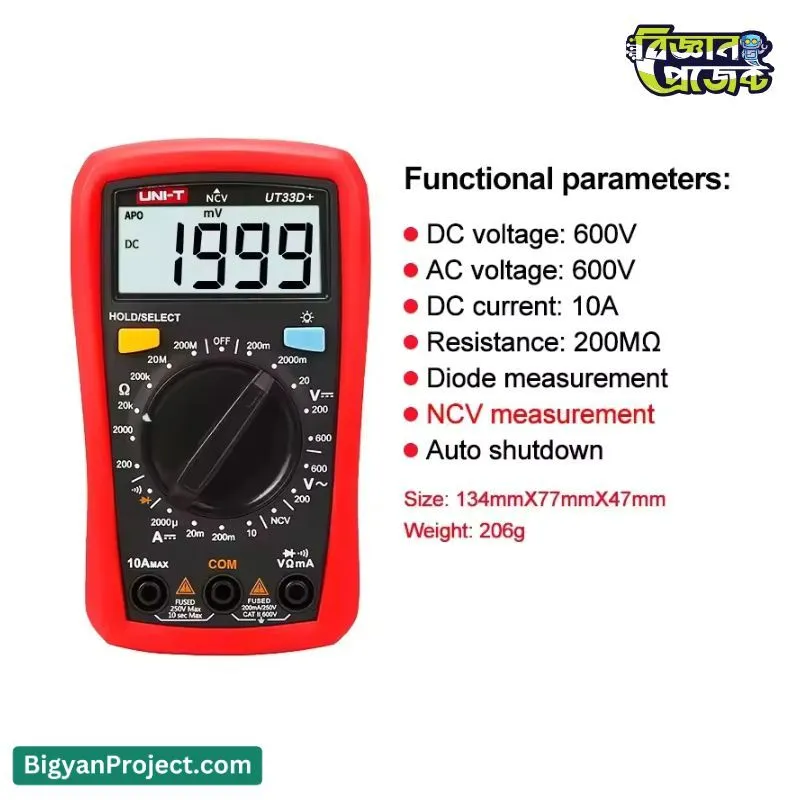

Product Specifications

Features

• Enhanced Safety with NCV: Detect live voltage from a safe distance without touching wires, perfect for initial safety checks before starting work.

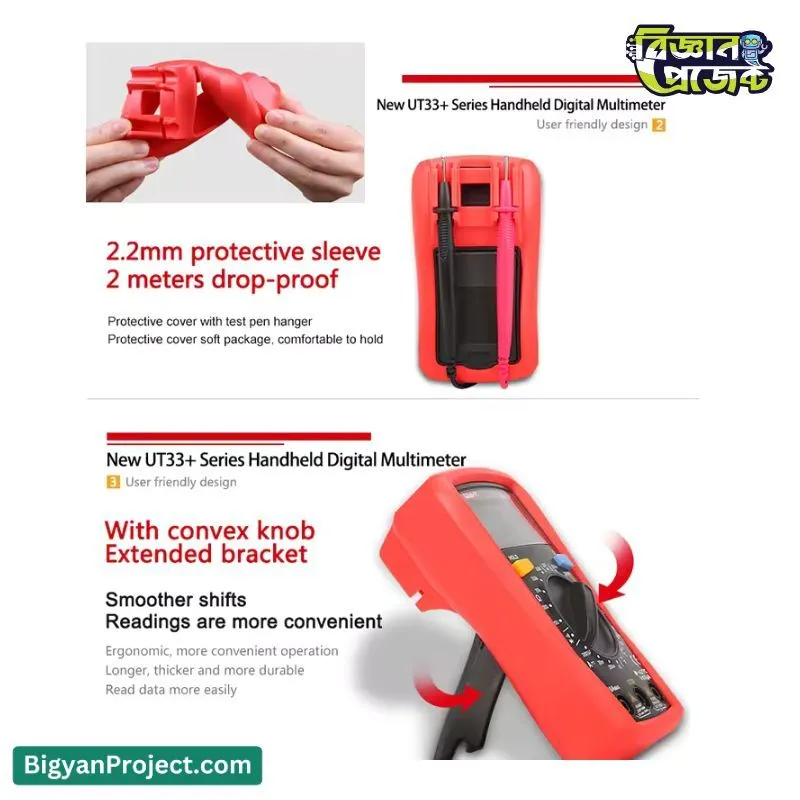

• Robust and Durable Design: Built to last with a protective cover and certified to survive a 2-meter drop, making it ideal for busy workshops and educational environments.
• Clear Backlit Display: The large LCD screen with a bright backlight ensures that measurements are easily readable even in dimly lit areas.
• Audible Continuity Test: Quickly identify short circuits or complete circuits with a loud and clear buzzer, speeding up your diagnostic process.
• Comprehensive Measurement Capabilities: Accurately measures all essential values including DC/AC Voltage, DC Current, and Resistance.
• User-Friendly Ergonomics: Features a comfortable grip, a convenient test probe holder for easy storage, and an intuitive rotary dial for range selection.
• Energy Efficient: Includes auto power-off and auto backlight-off functions to conserve battery life, ensuring the meter is ready when you need it.

Applications and Use Cases

• Electronics Prototyping and DIY Projects: An essential tool for verifying component values and troubleshooting circuits for all your creative ideas from Bigyan Project.
• Educational and Training Purposes: A safe, reliable, and affordable multimeter for students learning the fundamentals of electronics and electrical engineering.

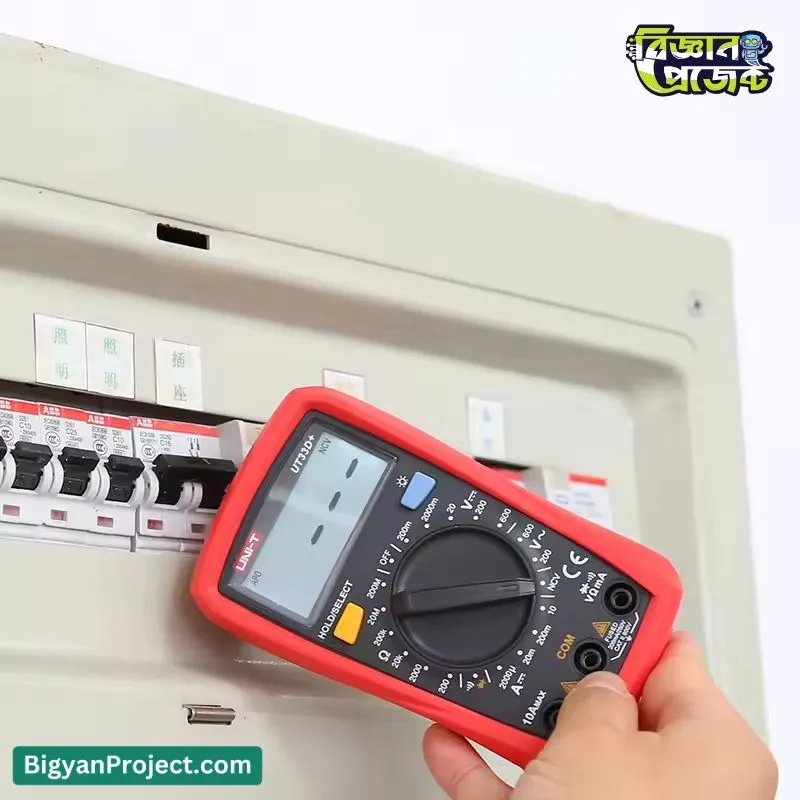

• Household Electrical Repairs: Safely check outlets, switches, extension cords, and appliance wiring around the home.
• Mobile Phone and Gadget Repair: Perfect for diagnosing issues on small PCBs, checking battery voltage, and testing component continuity.
• Automotive Diagnostics: Useful for checking battery levels, testing fuses, and troubleshooting basic electrical issues in cars and motorcycles.

User Guide / How to Use

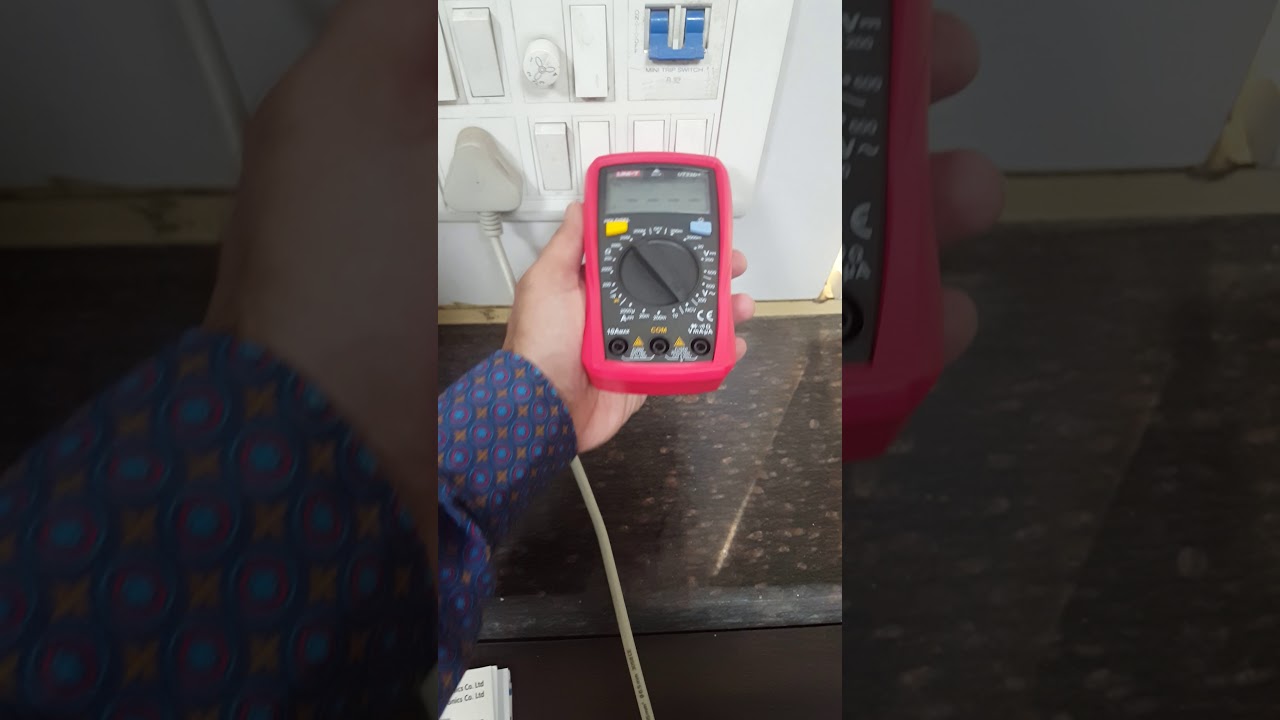

Operating the UNI-T UT33D+ is straightforward. Always begin by inserting the black probe into the 'COM' jack and the red probe into the 'VΩmA' jack (or the '10A' jack for high current measurements). To Measure Voltage (AC/V~ or DC/V-): Turn the rotary dial to the appropriate voltage setting that is higher than your expected measurement. Touch the probes to the circuit points to get a reading. To Measure Resistance (Ω): Turn the dial to the desired resistance range. Ensure the component is not powered. Place the probes across the component to measure its resistance. To Use the NCV Function: Turn the dial to the 'NCV' setting. Bring the top edge of the multimeter near a suspected live wire. The meter will beep and flash its light with increasing intensity as it gets closer to the voltage source. No contact is needed.

Frequently Asked Questions (FAQs)

• Q: What type of batteries does the UNI-T UT33D+ use?
  A: It uses two standard 1.5V AAA batteries, which are widely available.
• Q: Are the test leads included in the package from Bigyan Project?
  A: Yes, a standard set of high-quality test leads (probes) is included with the multimeter.
• Q: Can this multimeter measure AC current?
  A: No, the UT33D+ model is designed to measure DC current only. For AC current, you would need a different model.
• Q: What does "manual range" mean?
  A: It means you need to select the approximate measurement range using the rotary dial before taking a reading. This provides greater control and accuracy for experienced users.

Challenges and Considerations

• As a manual ranging multimeter, the user needs to have a general idea of the value they are measuring to select the correct range on the dial.
• This model does not measure capacitance, temperature, or AC current, making it specialized for core electrical measurements.
• The 10A current measurement port is typically unfused, so caution must be exercised to avoid overloading the circuit.

Compatibility

• Fully compatible with standard electronic components such as resistors, diodes, and transistors for testing purposes.
• Suitable for low-voltage DC circuits commonly found in hobby electronics, Arduino projects, and robotics from বিজ্ঞান প্রজেক্ট.
• Capable of safely measuring standard household AC voltage (up to 600V) in outlets and wiring.

Future Enhancement Options

• Pair this multimeter with a set of alligator clip probes or fine-point needle probes for more versatile and hands-free testing.
• Combine it with a benchtop power supply and a soldering iron to create a complete electronics workstation for your projects.
• Use it alongside an oscilloscope for more advanced circuit analysis and signal visualization.

Benefits

• Affordability: Get professional-grade features and reliability at a price point that is accessible for students and hobbyists.
• Safety: The NCV feature and CAT II 600V rating provide crucial layers of protection when working with live circuits.
• Durability: With its rugged housing and 2-meter drop protection, this is a tool built to withstand years of use.
• Versatility: An all-in-one solution for the most common electrical testing needs in a wide range of applications.

Conclusion

The UNI-T UT33D+ Digital Multimeter stands out as a top choice for anyone in need of a reliable, safe, and feature-rich testing tool. Its combination of durability, essential measurement functions, and the invaluable NCV detector makes it a superior instrument in its class. When you purchase from Bigyan Project, you are not just getting a product; you are getting a dependable tool to fuel your passion for electronics, backed by a local source you can trust. Make the smart choice for your workbench today.
