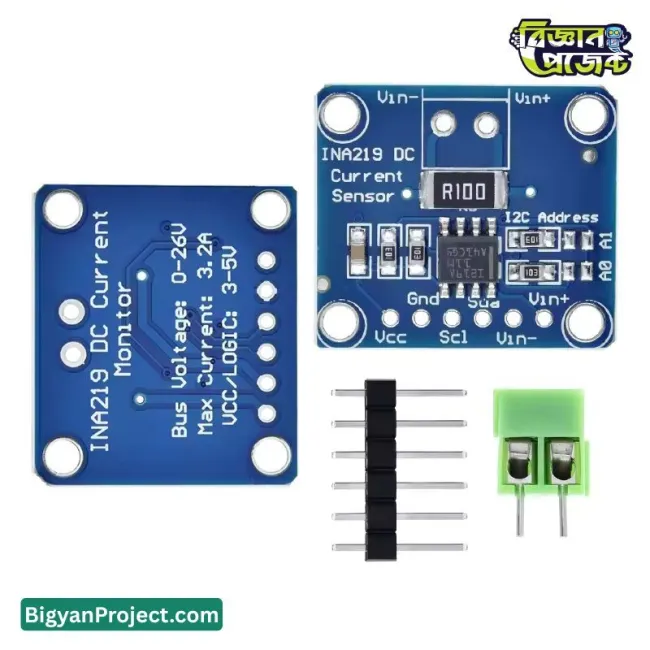

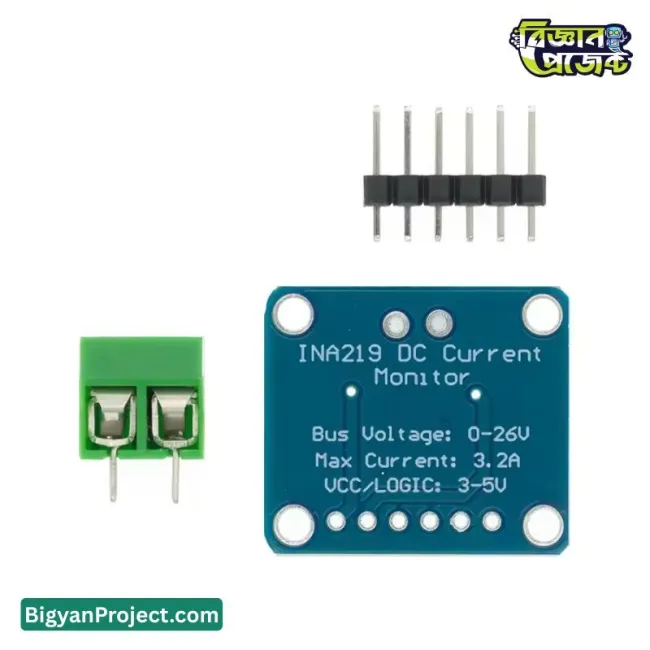

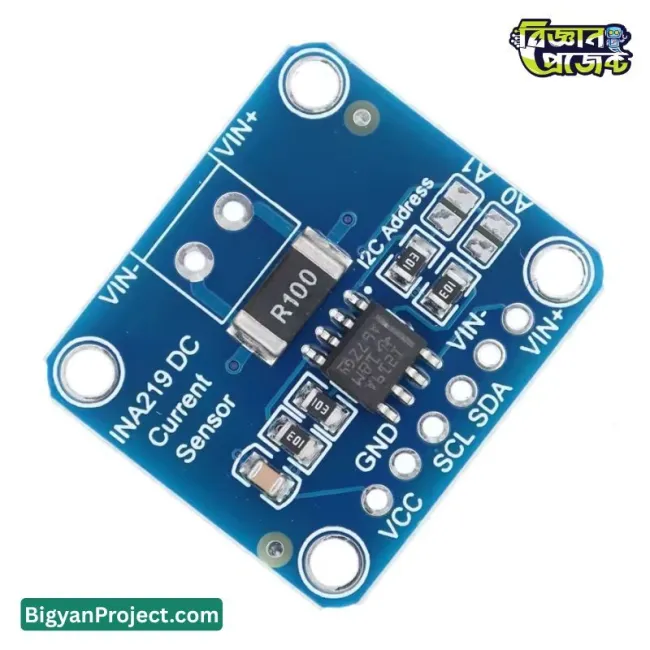

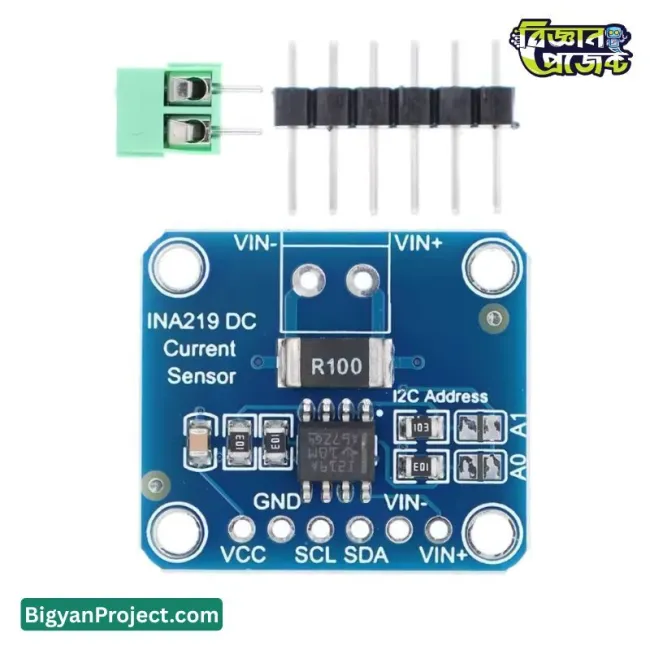

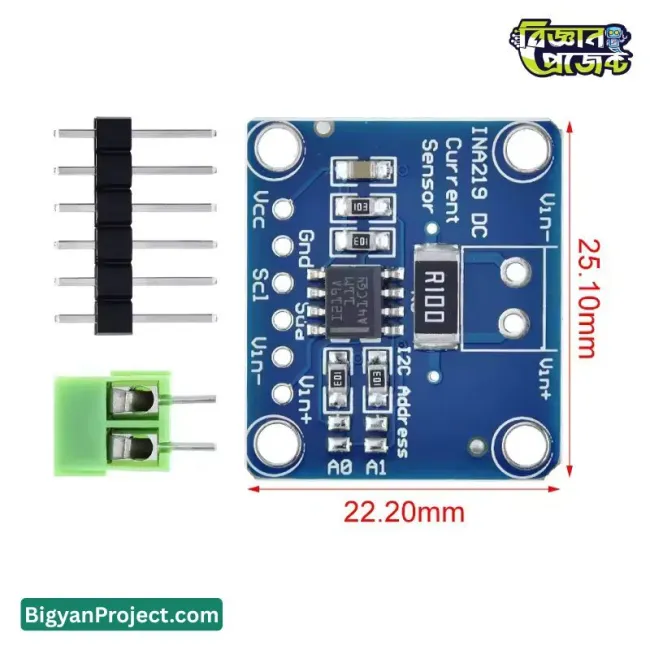

INA219 Bi-Directional Current Voltage Power Sensor Module I2C

MCU-219 INA219 High Side DC Current, Voltage and Power Monitor I2C Sensor Module

The INA219 / MCU-219 Power Monitoring Sensor Module is a precision digital current and voltage measurement solution designed for embedded systems, robotics, and power electronics development. Unlike traditional current meters that measure on the low side of a circuit, the INA219 performs high-side current sensing, allowing accurate measurement without disturbing the ground reference of the system.

This module integrates the Texas Instruments INA219 chip with a precision 0.1Ω shunt resistor and internal 12-bit ADC. Through a simple I2C interface, a microcontroller can read bus voltage, current consumption, and calculated power in real time. Because it operates from 3V to 5V logic, it works seamlessly with Arduino, ESP32, Raspberry Pi, and other development boards commonly used by makers and students working with Bigyan Project electronics learning materials.

The module is especially useful for monitoring battery-powered devices, motor load analysis, solar charging systems, and power management circuits where stable and reliable measurement is required.

Product Specifications

Features

• Bi-directional current measurement capability
• High-side sensing without disturbing system ground
• Measures voltage, current and calculated power
• 12-bit precision ADC with stable readings
• Adjustable I2C address for multiple modules
• Low power consumption
• Integrated precision shunt resistor
• Software calibration registers
• Noise filtering through programmable averaging
• Compact breakout board design

Applications / Use Cases

• Battery monitoring systems
• Robotics motor load monitoring
• Solar charging and energy harvesting systems
• Power supply efficiency testing
• Embedded electronics development
• Smart home energy monitoring
• Electric vehicle small prototypes
• Educational laboratory experiments from Bigyan Project
• Portable electronics power analysis
• Overcurrent detection systems

User Guide / How to Use

• Power the module using 3V to 5V from the microcontroller
• Connect SDA to MCU SDA and SCL to MCU SCL pins
• Connect VIN+ to the positive supply of the load
• Connect VIN− to the positive terminal of the device being powered
• Ensure the module ground is common with MCU ground
• Install an INA219 compatible library in the development environment
• Read bus voltage, shunt voltage, current and power through I2C commands
• Adjust calibration values if a custom shunt resistor is used

Frequently Asked Questions (FAQs)

• Q: Can INA219 measure battery level?
  A: Yes, it can measure both battery voltage and the current being drawn, allowing estimation of battery usage.
• Q: Why is high-side measurement important?
  A: High-side sensing measures current without changing the circuit ground reference, preventing system instability.
• Q: Can I use multiple INA219 modules together?
  A: Yes, selectable I2C addresses allow up to four modules on one I2C bus.
• Q: Does it work with ESP32 and Raspberry Pi?
  A: Yes, it supports any I2C-compatible controller.
• Q: Can I measure charging and discharging current?
  A: Yes, the module supports bi-directional current measurement.

Challenges and Considerations

• Motor electrical noise may cause unstable readings
• Requires common ground for accurate voltage measurement
• Maximum measurable current depends on shunt resistor
• Not intended for AC current measurement
• Exceeding 26V input may damage the sensor

Compatibility

• Arduino Uno, Nano, Mega
• ESP8266 and ESP32
• Raspberry Pi
• STM32 development boards
• PIC microcontrollers
• Any I2C compatible embedded system used in Bigyan Project training kits

Future Enhancement Options

• Replace shunt resistor to extend current range
• Integrate with IoT monitoring dashboards
• Combine with data logging SD card module
• Wireless monitoring via WiFi or GSM
• Battery health monitoring algorithms

Benefits

• Accurate real-time power monitoring
• Prevents overcurrent damage
• Improves battery management
• Simplifies power analysis
• Reduces need for external multimeters
• Ideal for learning and prototyping electronics

Conclusion

The INA219 power monitoring module provides a compact and reliable method for measuring DC voltage, current, and power in electronic circuits. With simple wiring, I2C communication, and high accuracy, it is an essential tool for students, hobbyists, and engineers working on embedded electronics and robotics projects. It integrates perfectly into development and educational ecosystems such as Bigyan Project where power analysis is a fundamental learning topic.
