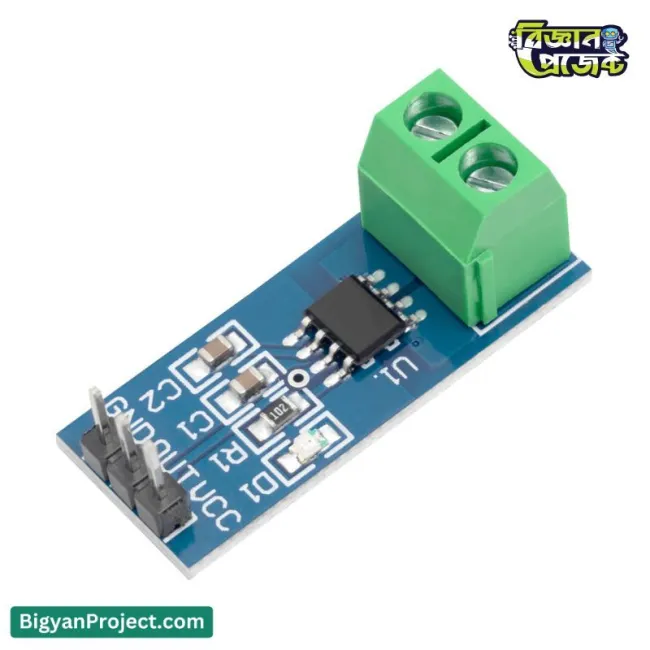

ACS712 Current Sensor Module 5A/20A/30A

ACS712 AC/DC Current Measurement Sensor Module (5A/20A/30A)

Unlock precise current monitoring in your projects with the ACS712 Hall Effect Current Sensor Module, now available at Bigyan Project. This compact and powerful sensor is an essential tool for students, hobbyists, and electronics enthusiasts across Bangladesh who need a reliable and affordable way to measure both AC and DC current. Based on the ACS712ELC chip, this module provides a simple analog voltage output that is directly proportional to the current passing through it. Whether you are building a smart power supply, monitoring battery usage, or creating an over-current protection system for your robotics project, this sensor provides the critical data you need. Its ease of use with popular microcontrollers like Arduino makes it a top choice for any DIY electronics project. At বিজ্ঞান প্রজেক্ট, we offer this versatile sensor in 5A, 20A, and 30A versions, ensuring you have the perfect component for your specific application's power requirements.

Product Specifications

Key Features

• High Accuracy Sensing: Utilizes the Hall effect for precise, low-offset current measurement.
• Measures Both AC and DC: A single module can handle a wide variety of electrical loads, from DC motors to household AC appliances.
• Simple Analog Output: Provides a straightforward analog voltage that can be easily read by the ADC of most microcontrollers, including Arduino.
• Galvanic Isolation: The current path is internally isolated from the sensor's electronics, enhancing the safety of your control circuits.
• Multiple Range Options: Choose from 5A, 20A, or 30A models to get the best resolution for your specific project's current range.
• Compact and Lightweight: The small form factor allows for easy integration into crowded projects and PCBs.

Applications and Use Cases

The versatility of the ACS712 makes it ideal for countless projects. Here are just a few ideas you can build with components from Bigyan Project:

• DIY Digital Ammeter: Combine with an Arduino and an LCD/OLED screen to create a real-time current display.
• Over-Current Protection: Design circuits that can automatically shut down a device if the current exceeds a safe limit.
• Battery Charger Monitor: Track the charging and discharging current of Li-ion or Lead-Acid batteries to manage battery health.
• Robotics and Motor Control: Monitor the current draw of motors to detect stalls or measure power consumption.
• Solar Power Monitoring: Measure the current generated by solar panels or consumed by the load in an off-grid system.
• AC Load Detection: Determine if an AC appliance (like a light or fan) is turned on or off.

User Guide / How to Use

Getting started with the ACS712 sensor is simple. Follow these basic steps:

1. Connections: Connect the module's VCC pin to the 5V output of your microcontroller (e.g., Arduino) and the GND pin to ground. Connect the OUT pin to one of the analog input pins on your microcontroller.
2. Measuring Current: Pass the current-carrying wire you want to measure through the terminal block on the sensor. Ensure the connections are secure, especially for high currents.
3. Reading the Value: In your code, read the analog voltage from the OUT pin. The value will be a number between 0 and 1023 on a 10-bit ADC like the one on an Arduino Uno.
4. Converting to Amps: The reading at zero current will be around 2.5V (a raw ADC reading of about 512). To calculate the current, first convert the ADC reading back to voltage, then subtract the 2.5V offset, and finally divide by the sensor's sensitivity (e.g., 0.185V/A for the 5A version). The formula is: Current = (AnalogVoltage - 2.5) / Sensitivity.

Frequently Asked Questions (FAQs)

• Q: Can this sensor measure the current from a wall socket?
  A: Yes, the ACS712 can measure AC current. However, working with mains voltage is extremely dangerous and should only be attempted by users with the proper knowledge and safety precautions.
• Q: How do I choose between the 5A, 20A, and 30A versions?
  A: Choose the version with the lowest maximum rating that is still safely above the highest current you expect to measure. A lower range provides higher sensitivity and more precise readings for smaller currents.
• Q: Is this sensor compatible with a Raspberry Pi?
  A: A Raspberry Pi does not have a built-in Analog-to-Digital Converter (ADC). You can use this sensor with a Pi by adding an external ADC module (like the MCP3008) to read the analog output.
• Q: Why is my reading fluctuating even with no current?
  A: The analog output can be susceptible to noise. For more stable readings, you can average multiple readings in your code or add a small capacitor (e.g., 0.1uF) between the OUT pin and GND to act as a low-pass filter.
• Q: Where can I buy a genuine ACS712 sensor in Bangladesh?
  A: You can purchase a high-quality ACS712 Current Sensor Module directly from our online shop, Bigyan Project, with delivery available all over Bangladesh.

Challenges and Considerations

• Magnetic Field Interference: The sensor's accuracy can be affected by strong external magnetic fields. For best results, keep it away from magnets, transformers, and high-current wires.
• Resistive Heating: At the upper end of its measurement range, the internal conductor of the sensor can generate some heat. Ensure proper ventilation for continuous high-current applications.
• Bandwidth Limitation: The sensor has a limited bandwidth (around 80 kHz), making it unsuitable for measuring very high-frequency AC currents.

Compatibility

• Arduino (Uno, Nano, Mega, Pro Mini, etc.)
• ESP8266 and ESP32 Series
• STM32 and other ARM microcontrollers
• Any microcontroller with an available Analog-to-Digital Converter (ADC) pin
• Raspberry Pi (requires an external ADC module)

Future Enhancement Options

• Implement software-based calibration in your code to nullify the zero-current offset for maximum accuracy.
• Integrate the sensor with an IoT platform like Blynk or ThingSpeak to monitor current remotely.
• Combine the sensor with a relay module to create a smart switch that trips on an over-current condition.

Benefits

• Cost-Effective Monitoring: An incredibly affordable way to add current sensing capabilities to any project.
• Enables Smart Projects: Use current data to make your projects more intelligent, efficient, and safe.
• Simple to Interface: With only three pins (VCC, GND, OUT), integration is beginner-friendly.
• Educational Value: A great component for learning about sensors, ADCs, and power principles.

Conclusion

The ACS712 Current Sensor Module is a must-have component for any electronics workbench. Its reliability, simplicity, and affordability make it the go-to choice for current measurement in countless DIY projects. By providing crucial data on power consumption, it allows you to build safer, smarter, and more efficient devices. Order yours today from বিজ্ঞান প্রজেক্ট and take the next step in advancing your electronics skills.
