Water Level Sensor Module for Arduino ESP32 ESP8266

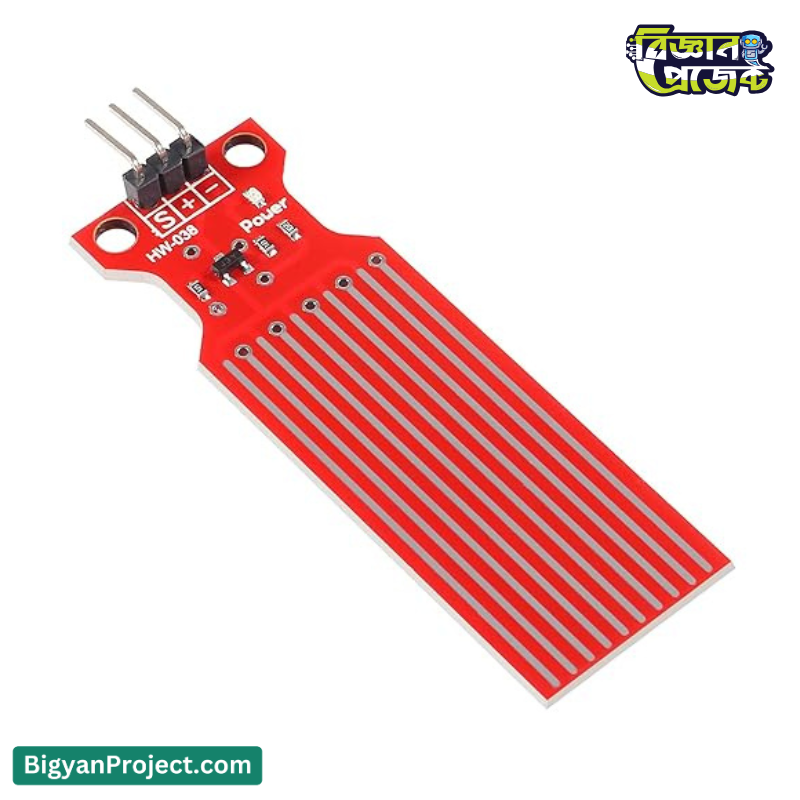

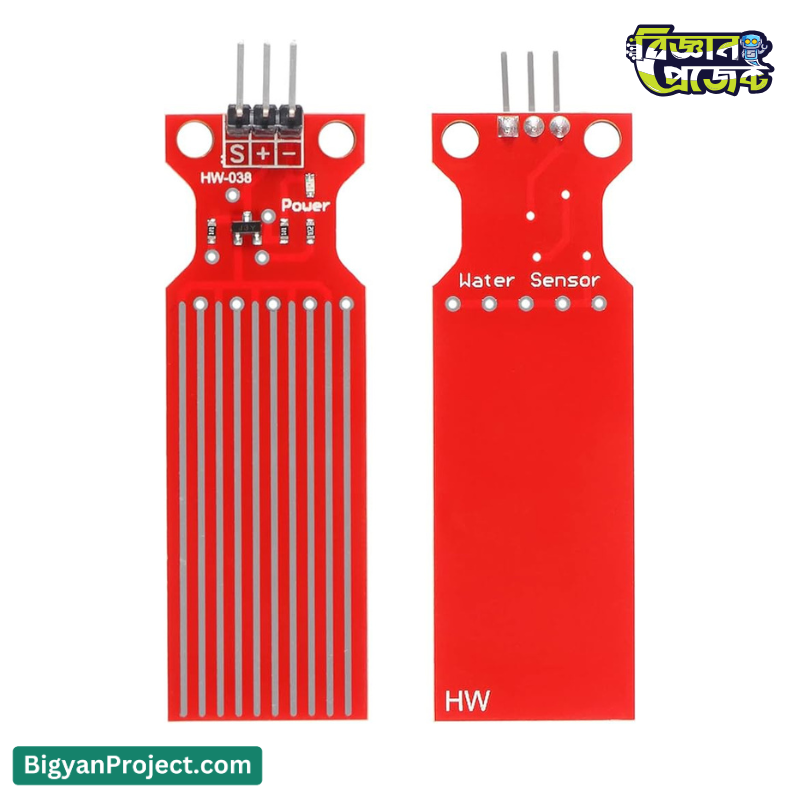

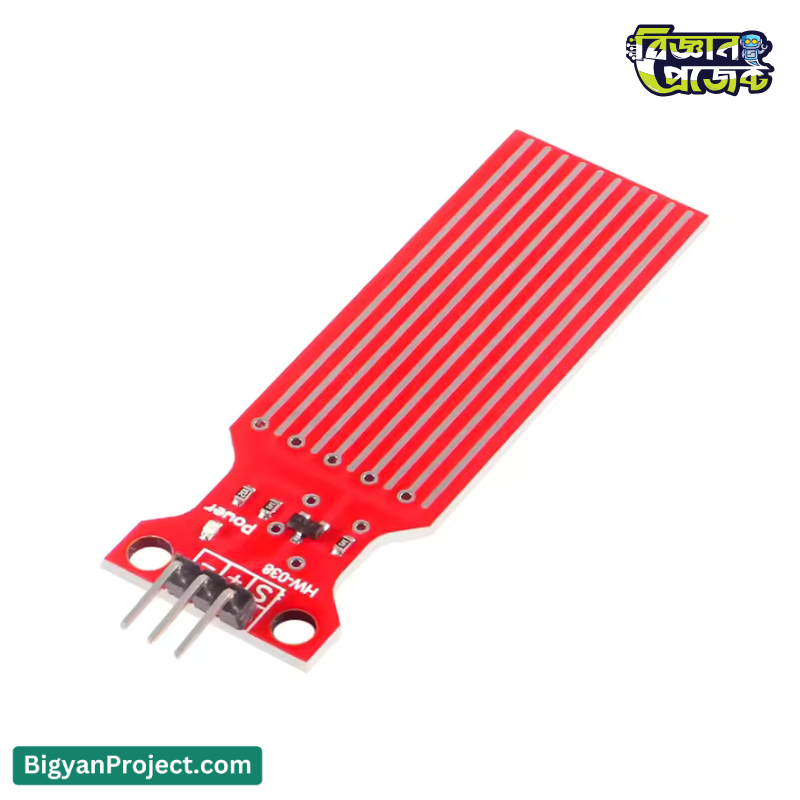

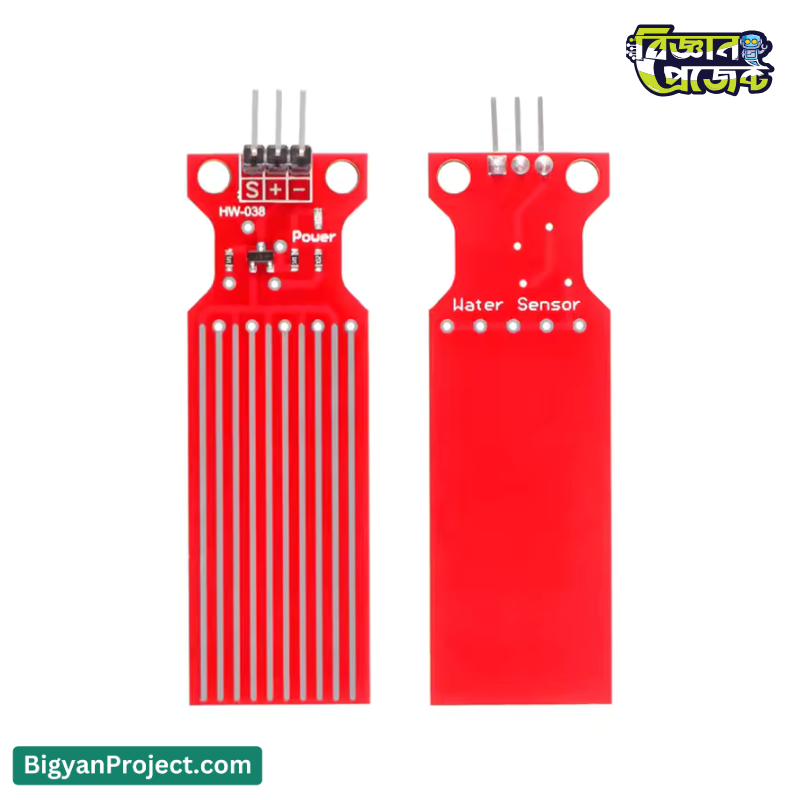

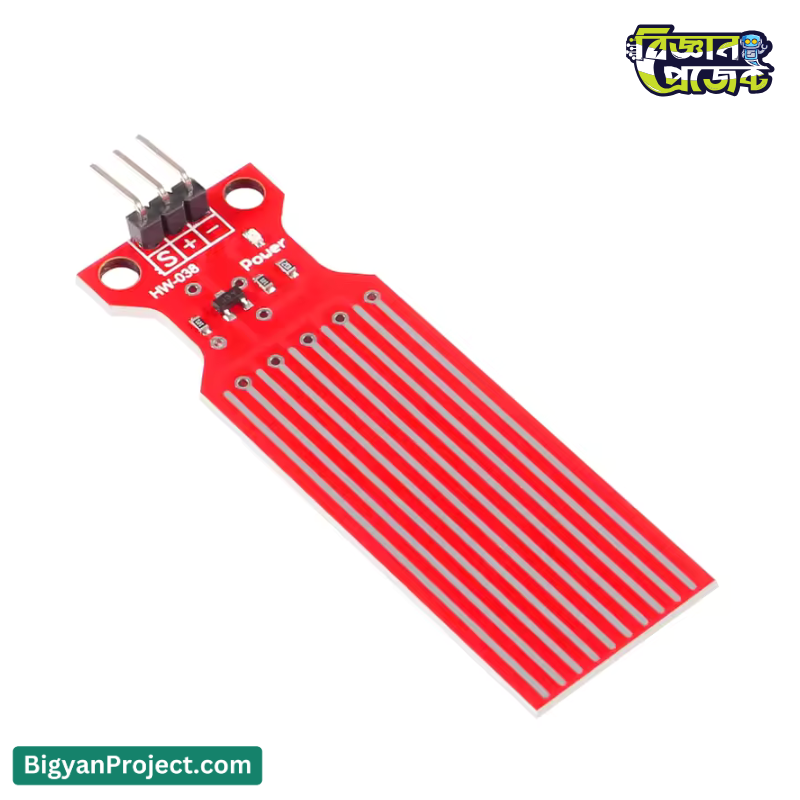

Smart Rain and Water Level Sensor Module for Arduino, ESP32, ESP8266, Raspberry Pi

The Smart Rain and Water Level Sensor Module is a reliable electronic component designed for DIY projects, automation systems, and educational experiments. With support for popular development boards such as Arduino, ESP32, ESP8266, and Raspberry Pi, this sensor provides accurate water detection and monitoring for a wide range of applications. Whether you are building a smart irrigation system, a rainwater harvesting setup, or a science project, this sensor from Bigyan Project ensures high performance with simple integration.

Product Specifications

Features

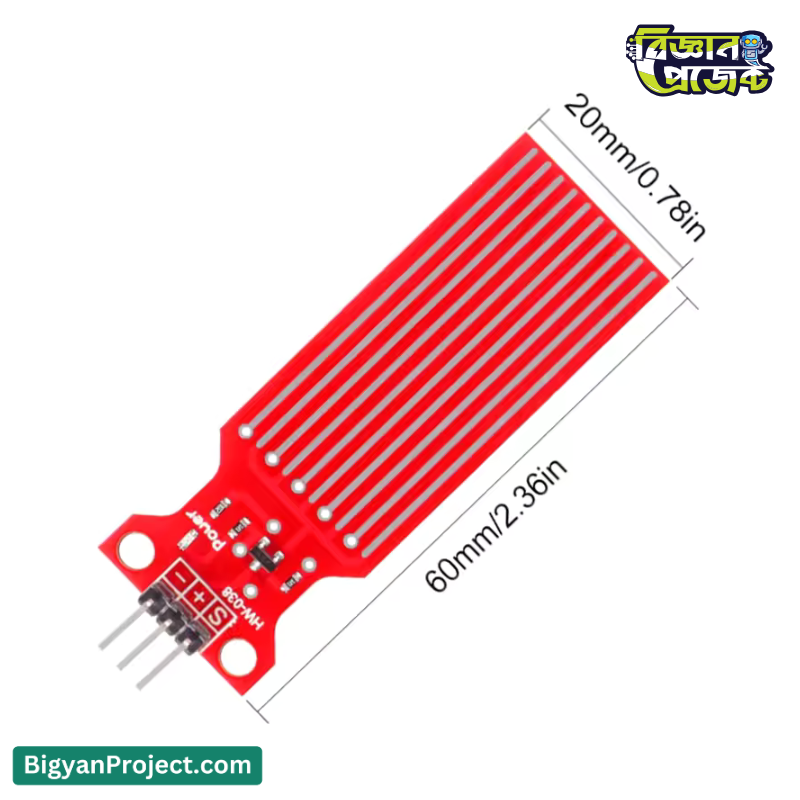

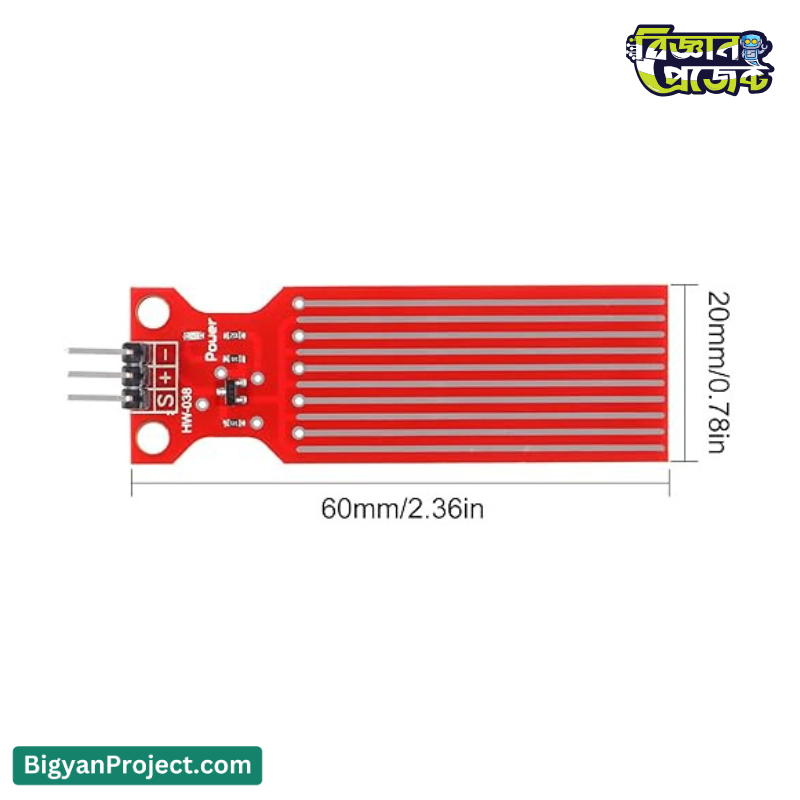

• Lightweight and compact design for easy integration into small projects
• Low power consumption under 20mA for energy efficiency
• Analog output for direct connection with microcontrollers
• Reliable water drop and liquid level detection
• Compatible with Arduino, ESP32, ESP8266, and Raspberry Pi
• Durable FR4 double-sided HASL construction
• Simple installation and user-friendly design

Applications / Use Cases

• Rain detection systems for smart homes
• Automatic irrigation and gardening systems
• Water tank monitoring and management
• DIY electronics and robotics projects
• Educational experiments and science fair projects
• Flood detection and water leakage alerts

User Guide / How to Use

Using the water level sensor is simple and beginner-friendly. Connect the sensor to your development board (Arduino, ESP32, ESP8266, or Raspberry Pi) by wiring the VCC pin to a 3V–5V power source, the GND pin to ground, and the signal pin to an analog input pin. Once connected, the board will read varying analog values depending on the water level detected. These values can then be programmed to trigger alerts, activate motors, or log data for monitoring purposes.

Frequently Asked Questions (FAQs)

• What voltage does this sensor operate on?
  It operates on DC 3V - 5V.
• Can this sensor work with Raspberry Pi?
  Yes, it can be used with Raspberry Pi through an ADC module since it provides analog output.
• Is it waterproof?
  The sensor is water-sensitive but not waterproof. It should not be submerged completely in water.
• How do I know if the sensor is detecting water?
  The analog output value will increase when water touches the sensor’s detection area.
• Can I use this for long-term outdoor projects?
  Yes, but it is recommended to protect the sensor with a waterproof casing for durability.

Challenges and Considerations

• The sensor is not fully waterproof and requires protective housing for outdoor use
• Limited operating temperature range of 10°C - 30°C
• Analog output may require calibration for different applications
• Short detection length may limit use in large water tanks

Compatibility

• Arduino Uno, Mega, Nano, and other boards
• ESP32 and ESP8266 based modules
• Raspberry Pi (with ADC converter)
• Other microcontroller platforms supporting analog input

Future Enhancement Options

• Waterproof sensor coating for extended outdoor applications
• Digital output version for plug-and-play integration
• Integration with IoT platforms for real-time monitoring
• Extended detection length for industrial water tanks

Benefits

• Affordable and cost-effective solution for water detection
• Easy to integrate into both hobby and professional projects
• Supports a wide range of microcontroller boards
• Accurate detection of rainfall, droplets, and water level changes
• Available at Bigyan Project with reliable customer support

Conclusion

The Rain and Water Level Sensor Module is a versatile, compact, and affordable component for DIY electronics, smart projects, and educational experiments. It provides reliable water detection with low power consumption and is highly compatible with Arduino, ESP32, ESP8266, and Raspberry Pi. Whether you are working on a school science fair project, an IoT-based water monitoring system, or an automated home irrigation solution, this sensor is a perfect choice. Bigyan Project offers this sensor with assurance of quality and easy integration for all your innovative ideas.
