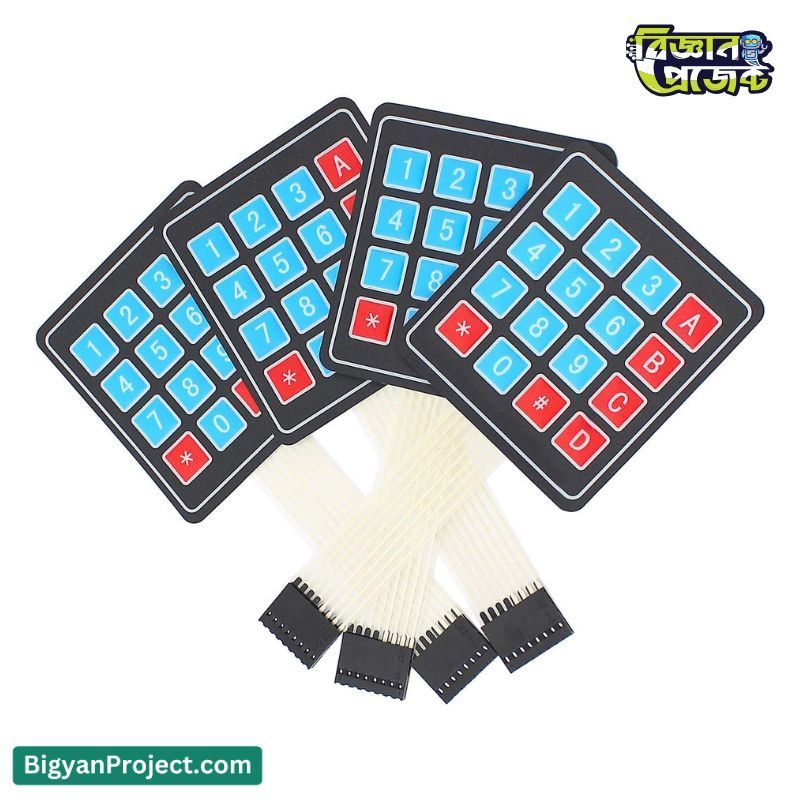

4x4 Keypad 16 Key Membrane Switch for Arduino ESP32

4x4 Keypad Membrane Switch for Arduino and ESP32 - A Versatile Input Device for DIY Projects

The 4x4 Keypad Membrane Switch is a highly functional and versatile input device designed for use in a wide range of electronics projects. Perfect for Arduino and ESP32-based projects, this keypad allows users to interact with systems seamlessly. Whether you’re building a password-based security system, a remote-controlled robot, or an interactive musical keypad, this 4x4 membrane switch offers ease of use, durability, and flexibility. Ideal for DIY electronics enthusiasts, engineers, and hobbyists, this keypad is an essential tool for creating innovative and interactive systems.

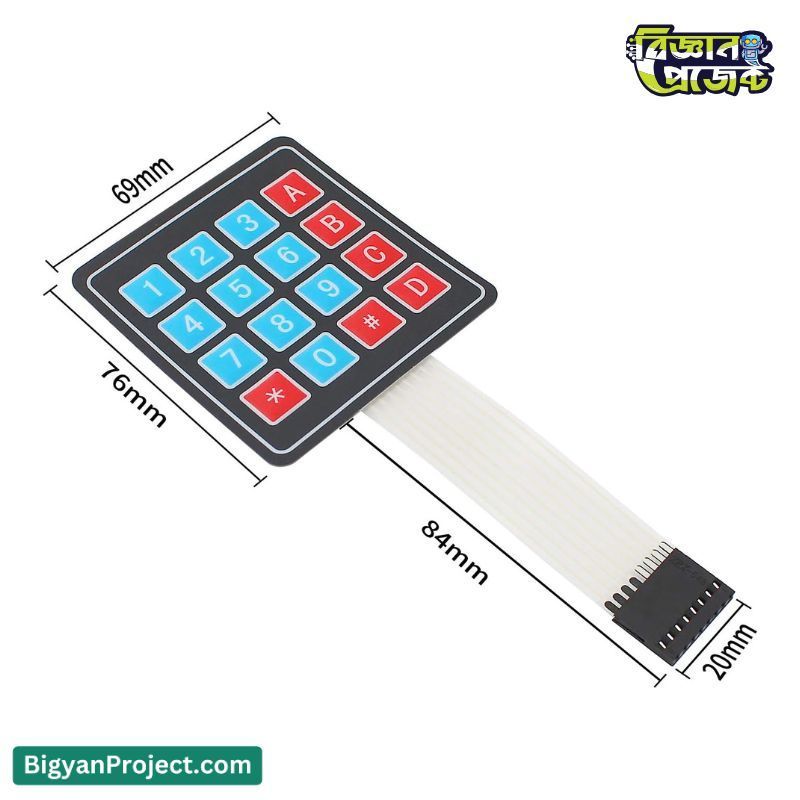

Product Specifications

Features

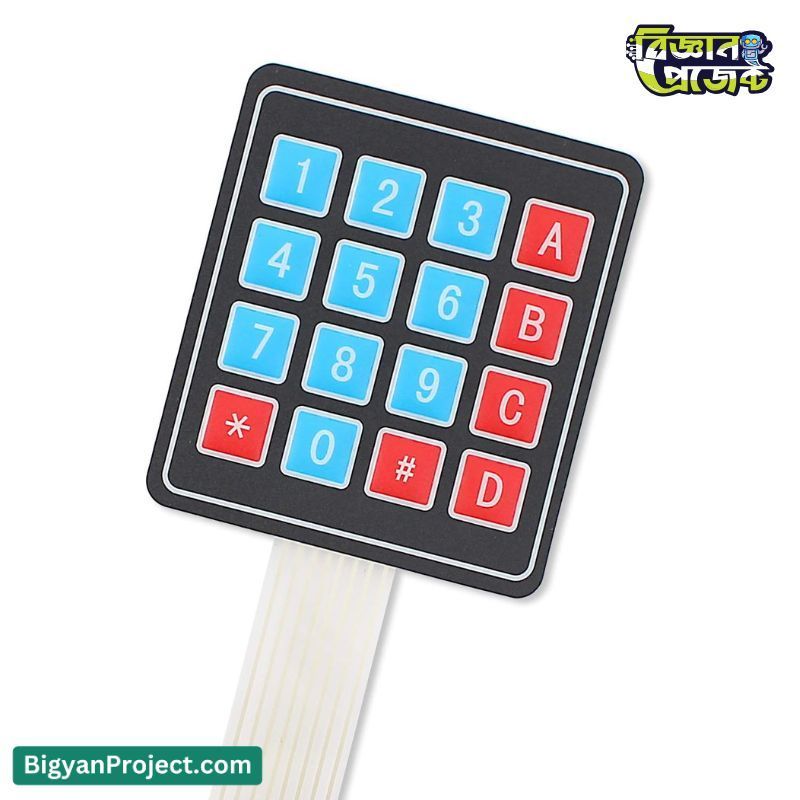

• Compact 4x4 key matrix layout with 16 keys for easy user input

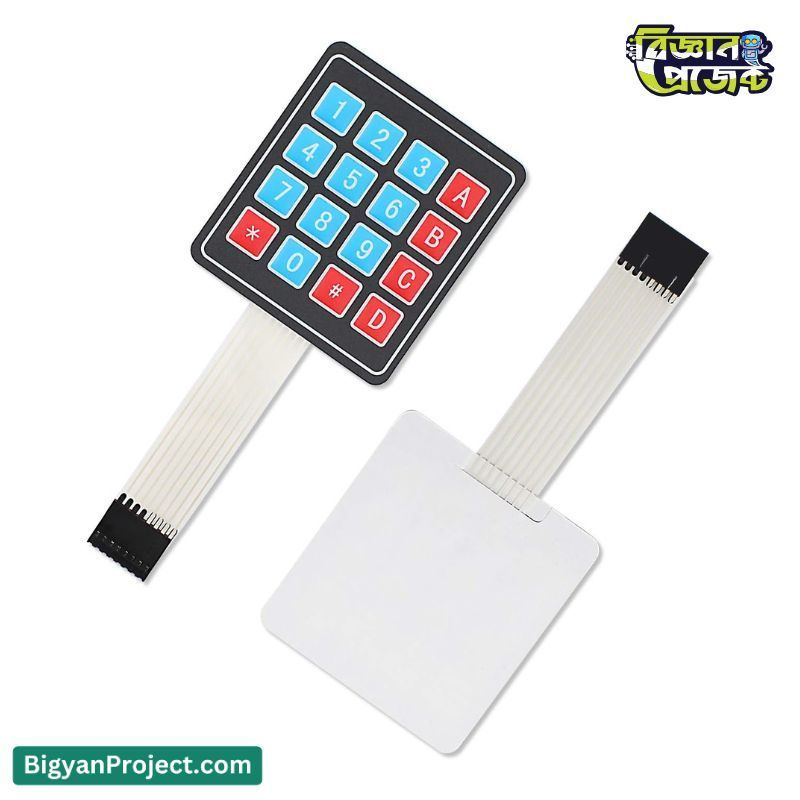

• Ultra-thin design with adhesive backing for easy mounting
• Perfectly compatible with Arduino, ESP32, and other development boards
• Durable tactile switches with a long lifespan of up to one million presses
• Wide range of applications from security systems to consumer electronics
• Operating temperature range of -40°C to +80°C, ensuring reliability in various environments

Applications / Use Cases

The 4x4 Keypad Membrane Switch is used in a wide array of projects and industries:

• Password security systems, home automation systems, and access control systems
• Interactive game controllers, musical devices, and creative electronics projects
• Robotics for remote-controlled robots, drones, and autonomous systems
• Consumer electronics such as mobile phones, remote controls, and calculators
• Medical equipment control switches for medical devices
• Home appliances like washing machines, microwave ovens, and other smart devices

User Guide / How to Use

Using the 4x4 Keypad Membrane Switch is simple and requires basic knowledge of microcontroller interfacing. To get started, follow these steps:

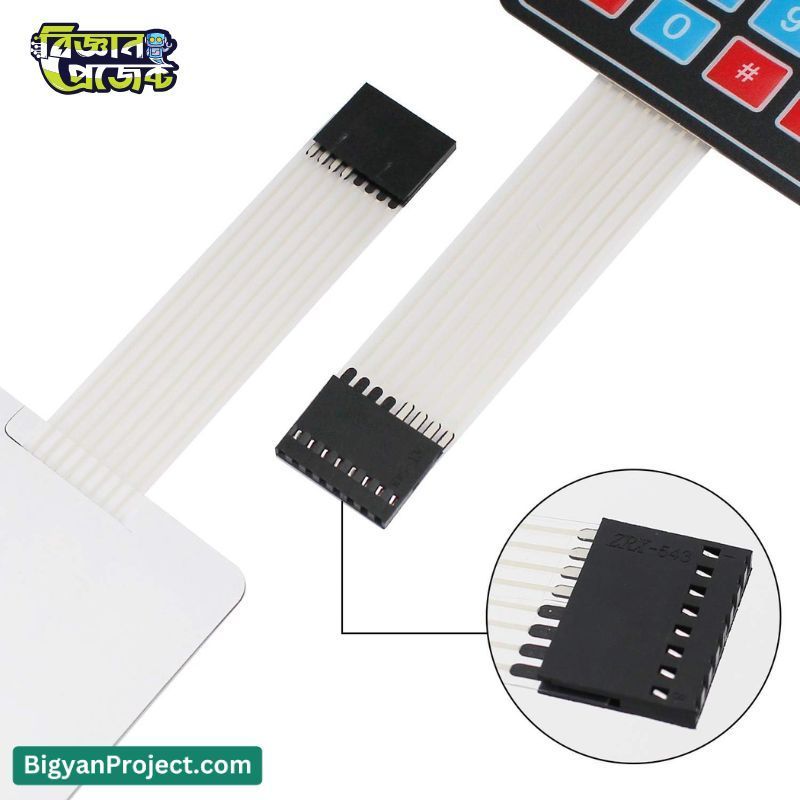

• Connect the 8-pin header to the corresponding pins on your development board (Arduino, ESP32, etc.) using jumper wires.
• Use a 2.54mm pin header to ensure a secure connection between the keypad and your development board.
• Load the necessary code onto your microcontroller to interface with the keypad, ensuring proper handling of keypress events.
• Start integrating the keypad into your project for input purposes, such as password entry, menu navigation, or other applications.

Frequently Asked Questions (FAQs)

Here are some commonly asked questions regarding the 4x4 Keypad Membrane Switch:

• Q: Is this keypad compatible with all Arduino models?
• A: Yes, the 4x4 keypad is compatible with any Arduino model, including Arduino Uno, Nano, Mega, and more. It works with any microcontroller that supports matrix keypads.
• Q: How do I mount this keypad?
• A: The keypad has an adhesive backing, making it easy to mount on any flat surface. Simply peel off the protective film and press it into place.
• Q: Can I use this keypad for robotics projects?
• A: Yes, this keypad is widely used in robotics for controlling remote robots and other electronics projects.

Challenges and Considerations

While the 4x4 Keypad Membrane Switch is highly reliable and easy to use, there are a few challenges to consider:

• Careful wiring is needed to ensure that all 16 keys are properly mapped to the corresponding input pins of the microcontroller.
• The keypad’s thin design can make it susceptible to damage if handled improperly. Proper mounting is important to ensure longevity.

Compatibility

The 4x4 Keypad Membrane Switch is compatible with a wide range of development boards, including:

• Arduino (Uno, Mega, Nano, etc.)
• ESP32
• Other microcontrollers that support matrix keypads and are compatible with 2.54mm headers.

Future Enhancement Options

Future enhancements for the 4x4 Keypad Membrane Switch could include:

• Adding more keys (e.g., 5x5 or 6x6 matrices) for increased input options in complex systems.
• Improved durability with reinforced materials for enhanced reliability in industrial environments.

Benefits

By integrating the 4x4 Keypad Membrane Switch into your project, you can:

• Provide a user-friendly interface for input and interaction with your system.
• Save space and reduce the complexity of your design with its compact size and matrix layout.
• Achieve long-term reliability with tactile switches that can withstand up to one million presses.
• Enhance the functionality of your electronics projects, whether for security, automation, robotics, or consumer electronics.

Conclusion

The 4x4 Keypad Membrane Switch is a highly versatile and reliable component that is perfect for a wide variety of electronics projects. Whether you are building a password system, a robotics controller, or a musical keypad, this input device provides the functionality, durability, and ease of integration that you need. At Bigyan Project or বিজ্ঞান প্রজেক্ট, we offer the best quality keypads to suit your needs, making your projects more interactive and user-friendly. Invest in the 4x4 Keypad Membrane Switch for your next DIY project and unlock the potential of interactive electronics!
