MQ-6 LPG Gas Sensor Module for Arduino and Raspberry Pi

MQ-6 Gas Sensor Module for Combustible Gas Detection

The MQ-6 gas sensor module is a highly sensitive and reliable solution for detecting combustible gases such as LPG, propane, iso-butane, and natural gas. Designed for use with Arduino, Raspberry Pi, ESP8266, and other microcontrollers, this sensor provides both analog and digital outputs, making it suitable for a wide range of safety and automation projects. With fast response, stable performance, and easy integration, the MQ-6 is a must-have sensor for engineers, students, and DIY enthusiasts. At Bigyan Project, we provide high-quality electronic components and sensor modules that meet educational, industrial, and project-based needs.

Specifications

Features

• High sensitivity to LPG, propane, and iso-butane
• Dual output: analog voltage and digital TTL signal

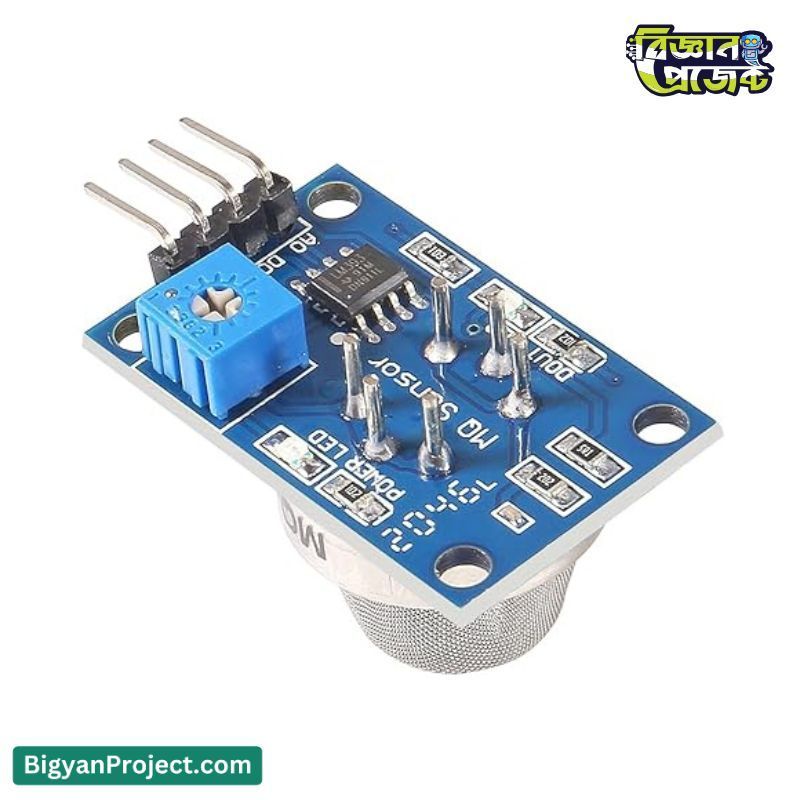

• Compact design with onboard power indicator
• Stable performance with long service life
• Rapid response and recovery time

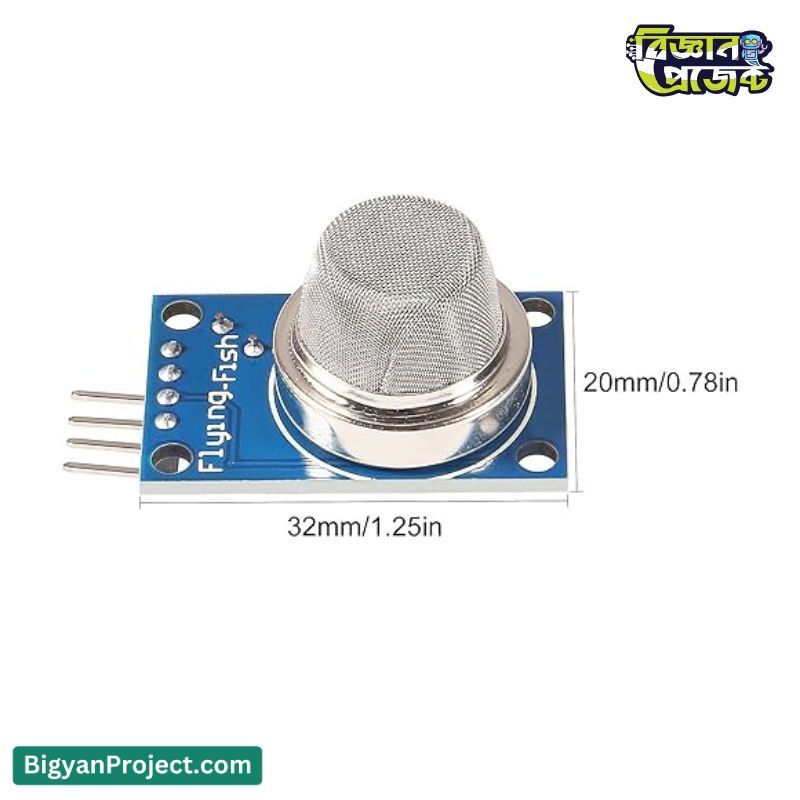

• Four mounting holes for easy installation
• Reliable for both industrial and educational projects

Applications / Use Cases

• Gas leakage detection and alarm systems
• Smart home and IoT-based safety devices
• Industrial gas monitoring solutions
• Portable gas detector projects
• Educational experiments and STEM learning
• DIY electronics and robotics projects from Bigyan Project

User Guide / How to Use

To use the MQ-6 gas sensor, connect the module to a 5V DC power supply. The VCC pin goes to 5V, GND to ground, DO to a digital input pin on your microcontroller, and AO to an analog input pin. After powering up, allow the sensor to warm up for around 20 seconds. During this time, the internal heater stabilizes the sensor for accurate readings. The analog output provides a variable voltage depending on the gas concentration, while the digital output gives a logic signal that can trigger alarms or relays when a set threshold is reached.

Frequently Asked Questions (FAQs)

• Q: Can I use this sensor with Arduino?
  A: Yes, the MQ-6 works perfectly with Arduino and is widely used in DIY and educational projects.
• Q: How long does the sensor take to warm up?
  A: It requires around 20 seconds to stabilize after power-up.
• Q: What gases can the MQ-6 detect?
  A: It detects LPG, propane, iso-butane, natural gas, and even smoke.
• Q: Is this sensor reusable?
  A: Yes, it has a long life and can be used in multiple projects with consistent performance.
• Q: Can it trigger an alarm system directly?
  A: Yes, the DO pin can be connected to a relay or buzzer for direct alarm activation.

Challenges and Considerations

• Requires proper ventilation for accurate measurement
• Initial warm-up time is necessary before stable readings
• Sensor performance may vary slightly with temperature and humidity
• Calibration may be required for precise detection levels

Compatibility

• Arduino Uno, Mega, Nano
• Raspberry Pi series
• ESP8266 and ESP32 modules
• Other microcontrollers supporting analog or digital input

Future Enhancement Options

• Integration with IoT platforms for real-time monitoring
• Wireless connectivity using Wi-Fi or Bluetooth modules
• Advanced calibration for industrial-grade accuracy
• AI-based gas detection and pattern recognition

Benefits

• Cost-effective and reliable gas detection
• Easy to integrate into different projects
• Supports both beginners and advanced developers
• Versatile use in safety, education, and research
• Available at Bigyan Project for students and professionals

Conclusion

The MQ-6 gas sensor module is a powerful and versatile tool for detecting combustible gases like LPG, propane, and iso-butane. With dual output signals, stable performance, and wide compatibility, it is suitable for safety systems, industrial monitoring, and educational experiments. Whether you are a student building a DIY project, an engineer designing a safety device, or a researcher working on IoT solutions, the MQ-6 is an excellent choice. Get the MQ-6 gas sensor module today from Bigyan Project and experience reliable performance with professional support.
