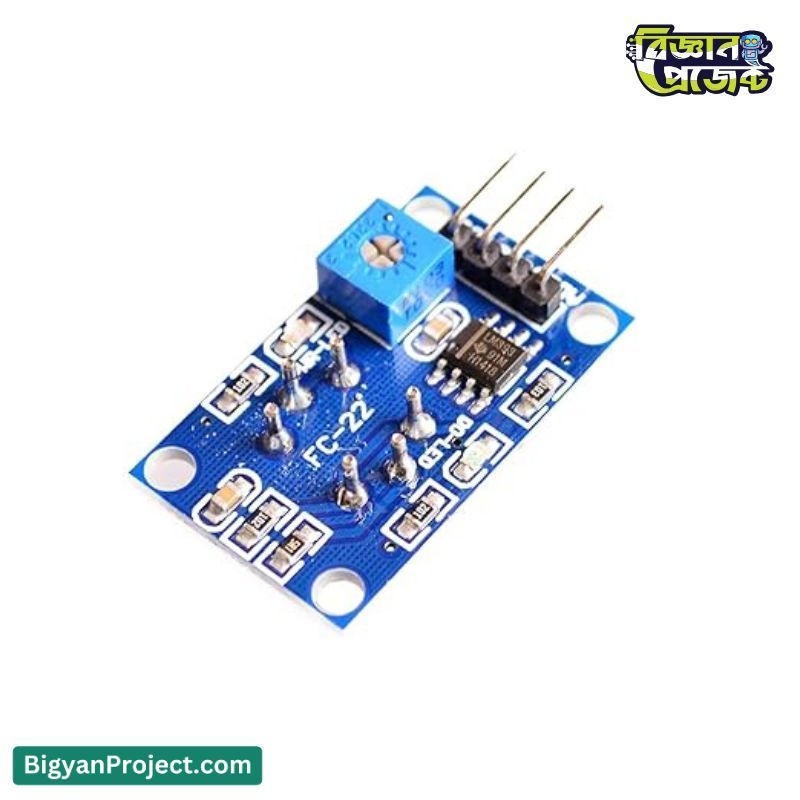

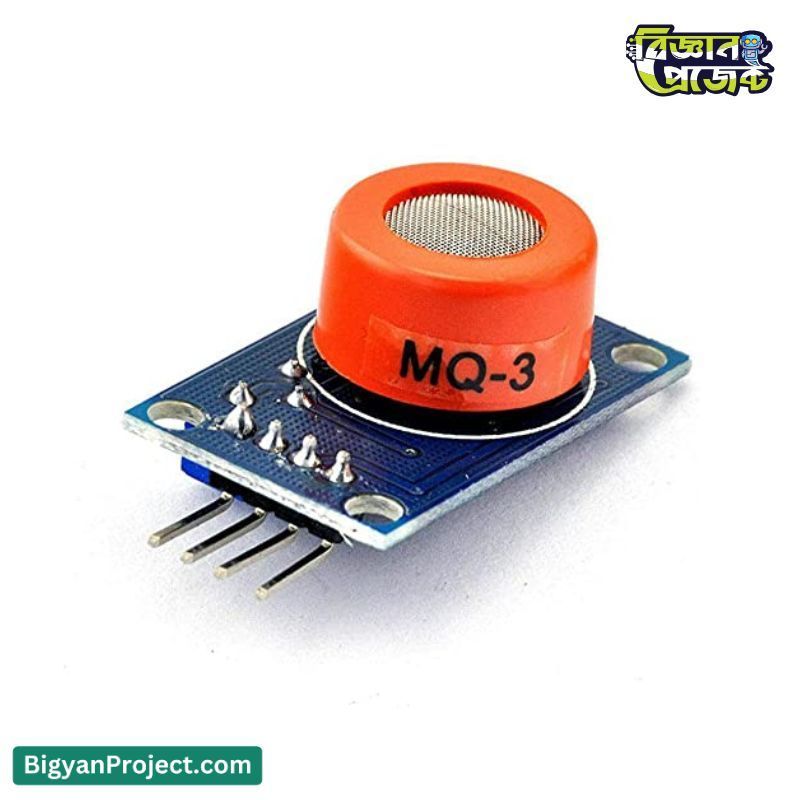

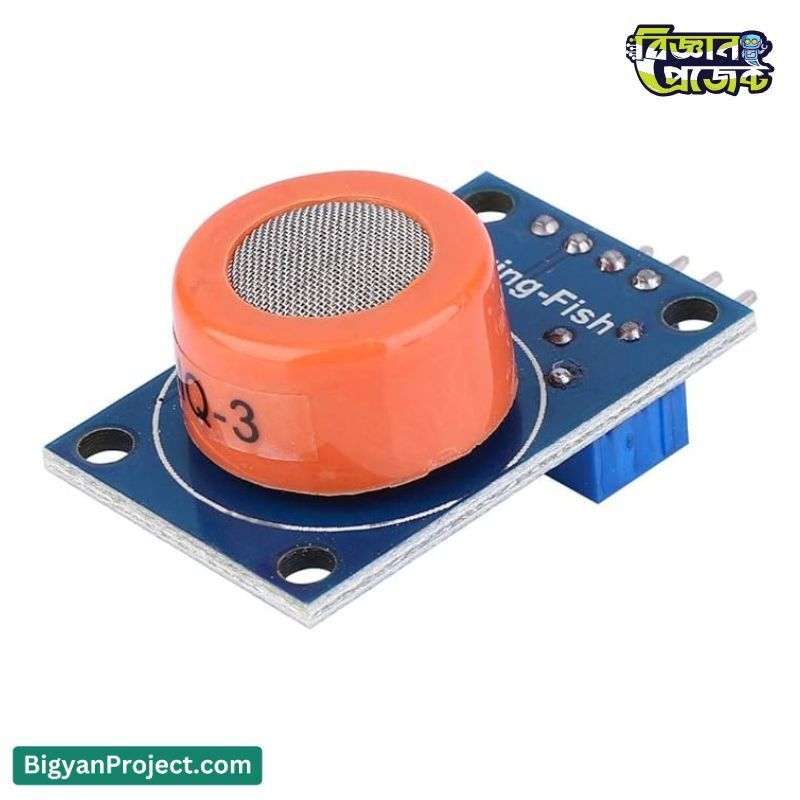

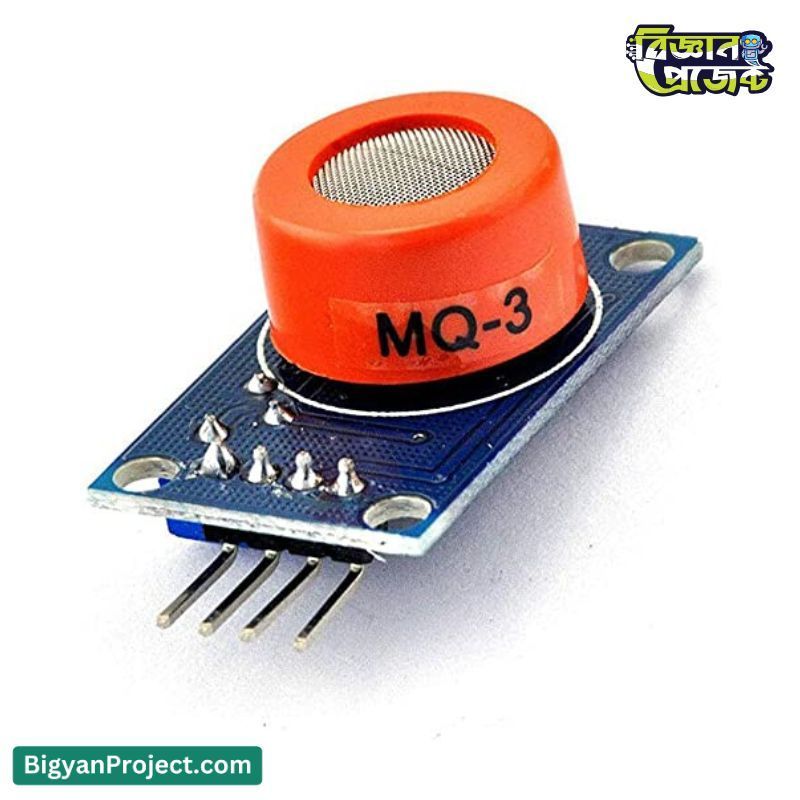

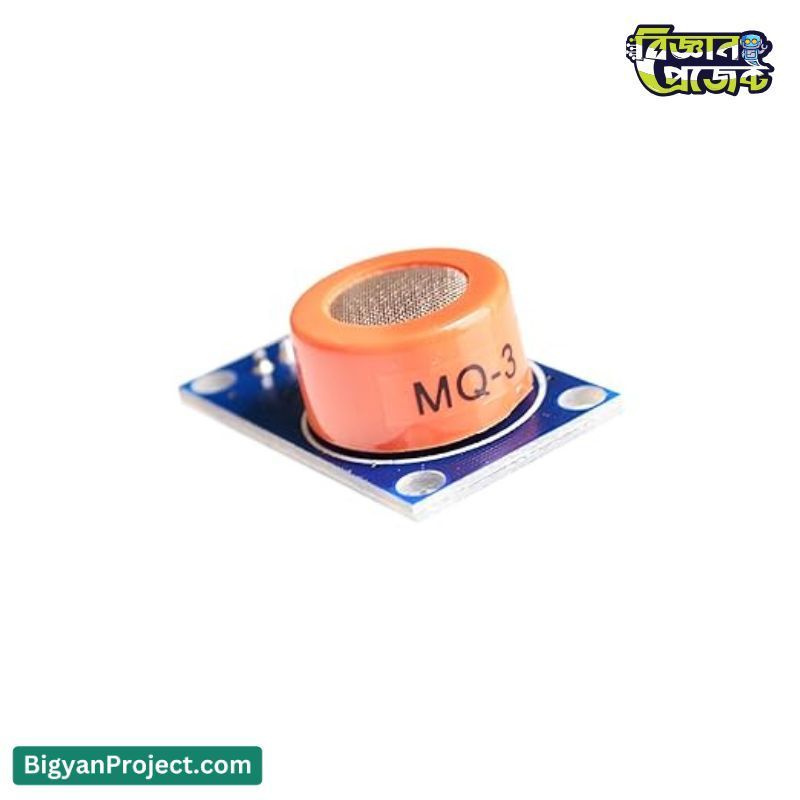

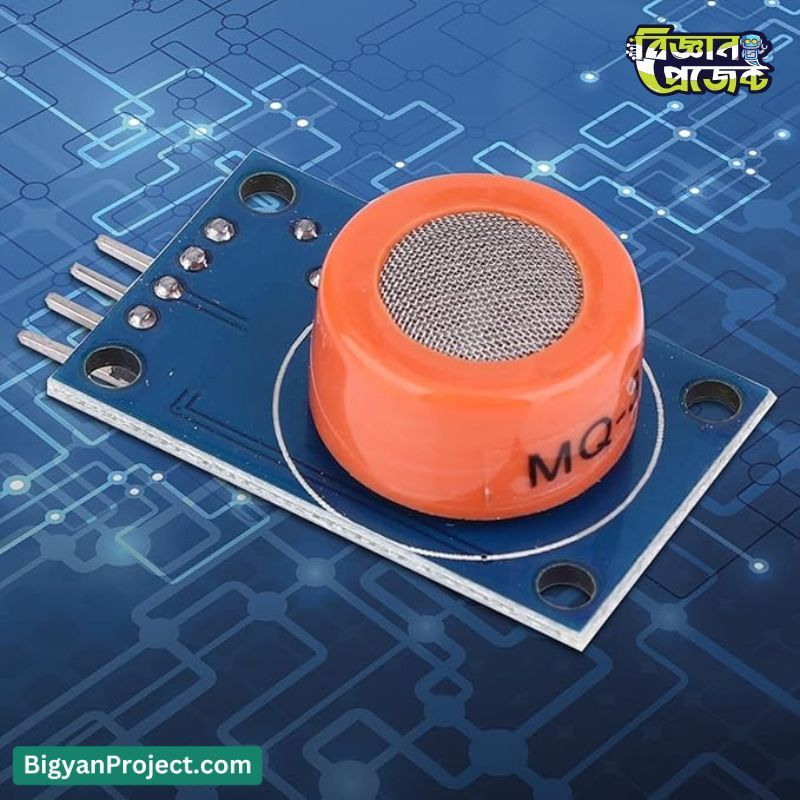

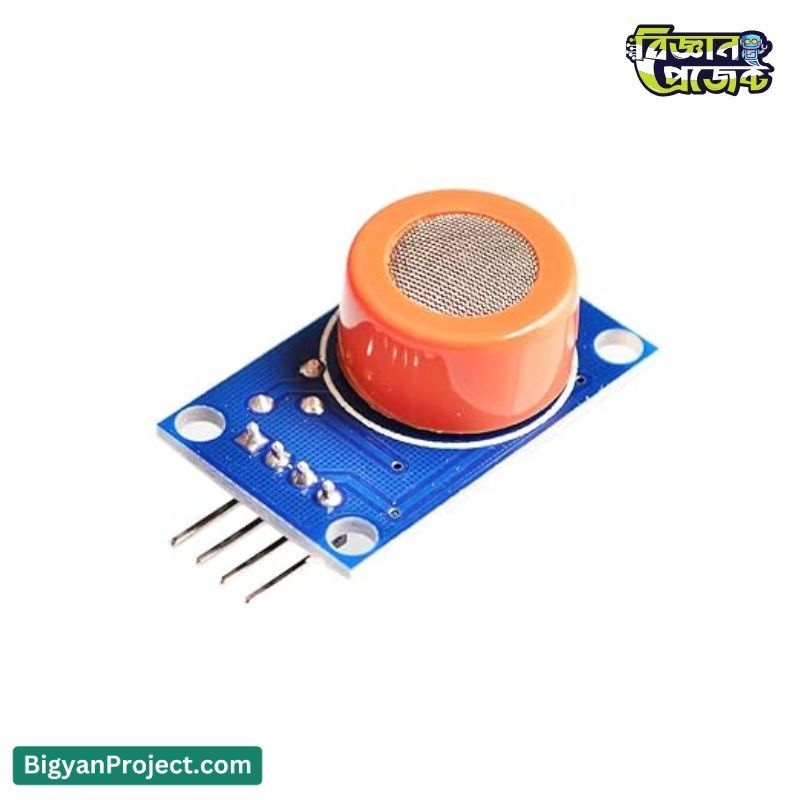

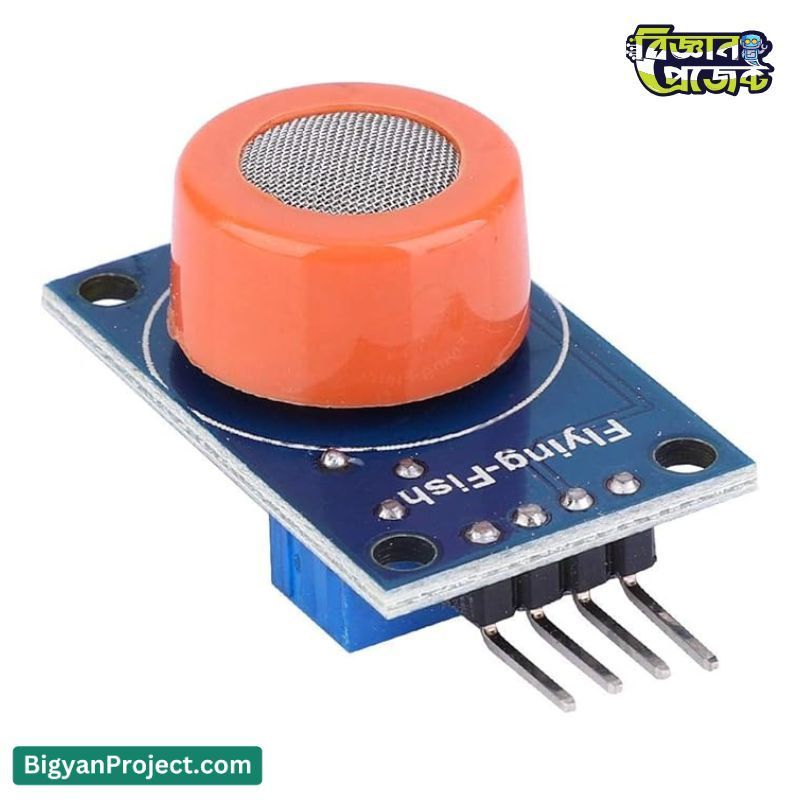

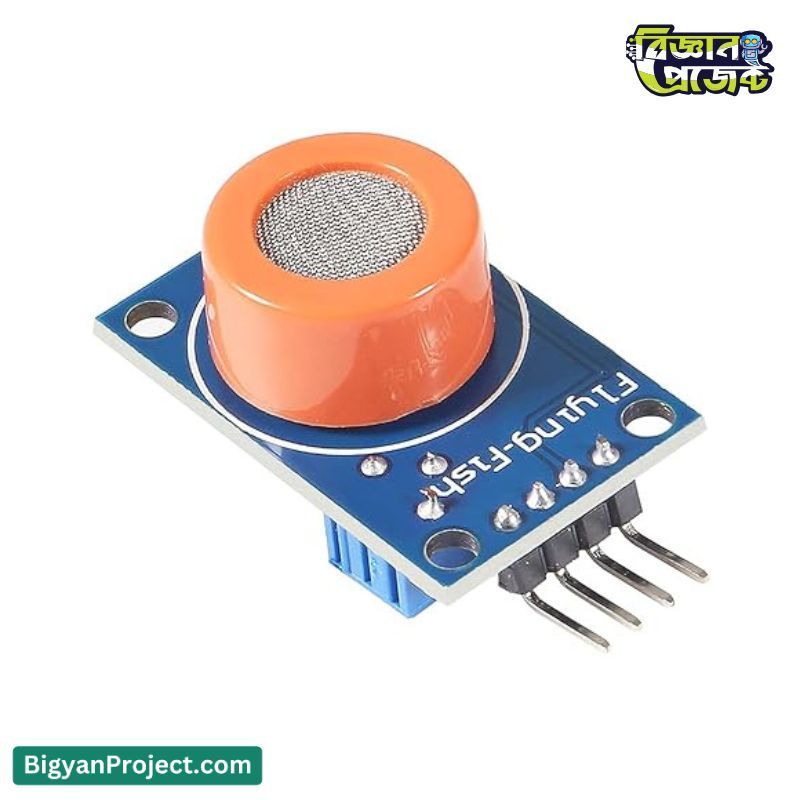

MQ-3 Alcohol Sensor Module Ethanol Gas Detector

MQ-3 Alcohol Sensor Module for Ethanol Gas Detection and DIY Projects

The MQ-3 alcohol sensor module is a reliable gas detection solution designed to measure alcohol vapor and ethanol concentration in the air. It is a versatile module used in educational projects, DIY electronics, Arduino and Raspberry Pi experiments, and safety monitoring systems. With both analog and digital output options, the MQ-3 module delivers stable performance at low cost, making it an excellent choice for students, hobbyists, engineers, and professionals. Available at Bigyan Project, this sensor ensures quality and long-term durability.

Product Specifications

Features

• High sensitivity to alcohol vapor and ethanol
• Dual output: Analog and digital signals
• Stable performance with long service life
• Quick response and fast recovery characteristics
• Low-cost module suitable for multiple applications

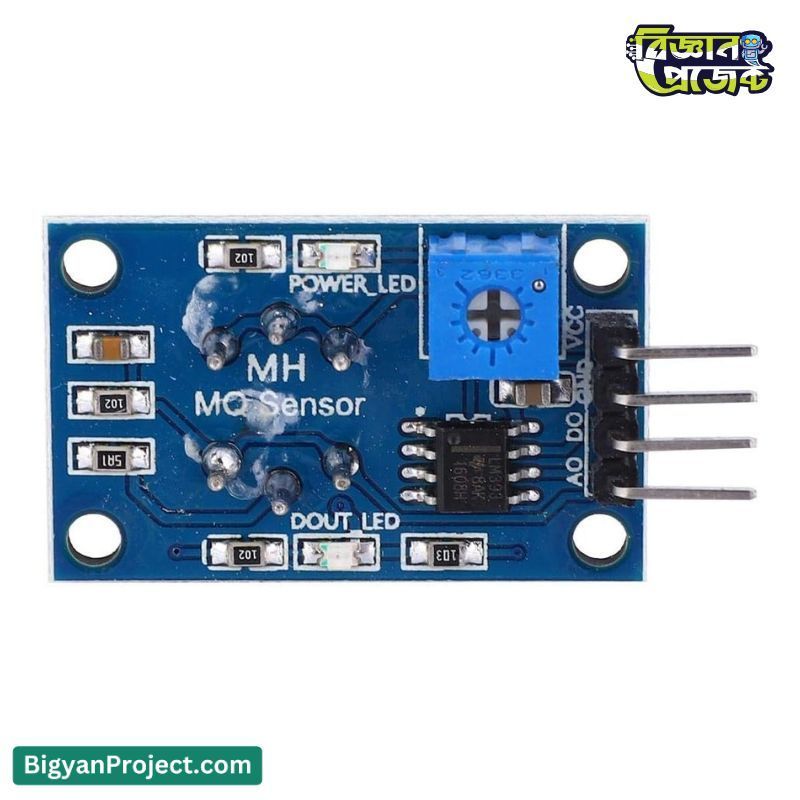

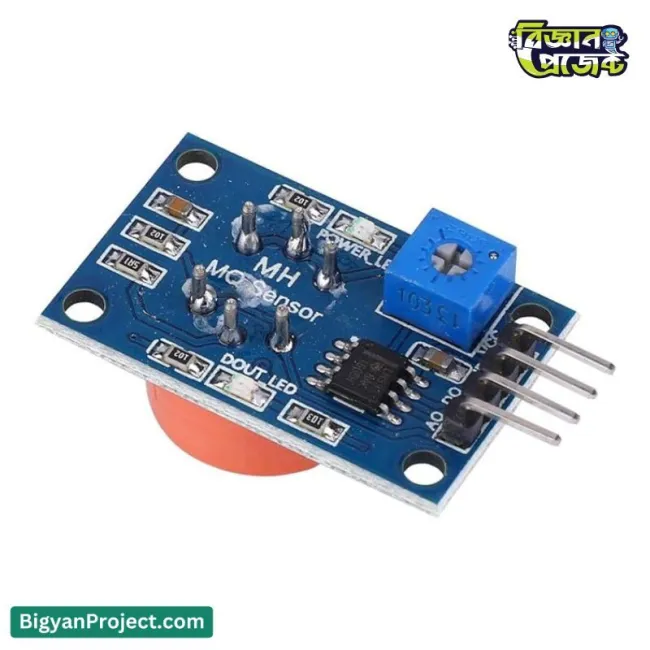

• Compact PCB design with mounting holes for easy installation
• Compatible with Arduino, Raspberry Pi, ESP8266, and other microcontrollers

Applications / Use Cases

• DIY alcohol breath analyzer projects
• Student science projects and university experiments
• Safety alarm systems for flammable gas detection
• IoT-based monitoring systems
• Embedded systems with microcontroller integration
• Prototype development for industrial gas monitoring

User Guide / How to Use

Using the MQ-3 alcohol sensor module is simple and beginner-friendly. Connect the VCC pin to 5V power, GND to ground, AO to an analog input, and DO to a digital input of your microcontroller. After powering on, allow the sensor to warm up for 20 seconds before taking readings. For higher accuracy, a full 48-hour calibration period is recommended. The analog output provides a voltage proportional to gas concentration, while the digital output delivers a threshold-based signal. With Arduino or Raspberry Pi code, you can easily display readings or trigger alarms based on alcohol levels.

Frequently Asked Questions (FAQs)

• Q: Can the MQ-3 sensor detect gases other than alcohol?
  A: Yes, it is also sensitive to flammable gases such as natural gas, smoke, and city gas, but it is most accurate for alcohol detection.
• Q: How long does it take to get accurate readings?
  A: Initial readings stabilize after about 20 seconds, but full calibration may take up to 48 hours for precise measurements.
• Q: Can I use this with Arduino or Raspberry Pi?
  A: Yes, the MQ-3 is fully compatible with Arduino, Raspberry Pi, ESP8266, and most microcontrollers.
• Q: Is this sensor reusable?
  A: Yes, the MQ-3 sensor has a long life span and can be used multiple times as long as it is not exposed to extreme conditions.
• Q: Where can I get genuine MQ-3 sensors?
  A: You can find original MQ-3 sensor modules at Bigyan Project for reliable performance.

Challenges and Considerations

• Requires warm-up and calibration for accurate data
• Performance may vary under extreme humidity or temperature
• Not suitable for professional alcohol testing in law enforcement
• Sensor heating is normal but must be considered in project design

Compatibility

• Arduino Uno, Mega, Nano
• Raspberry Pi models
• ESP8266 and ESP32 boards
• Other 5V logic microcontrollers

Future Enhancement Options

• Integration with IoT dashboards for remote alcohol monitoring
• Adding machine learning models for gas pattern analysis
• Smartphone app connectivity for real-time alerts
• Improved calibration algorithms for higher accuracy

Benefits

• Affordable and easy-to-use gas detection solution
• Supports both beginners and advanced electronics projects
• Versatile for education, prototyping, and safety monitoring
• Backed by availability at Bigyan Project for trusted quality

Conclusion

The MQ-3 alcohol sensor module is a powerful yet affordable tool for detecting alcohol vapor and ethanol in the air. Its dual outputs, compatibility with Arduino and Raspberry Pi, and simple design make it suitable for students, educators, DIY enthusiasts, and engineers. While it requires proper calibration, the sensor’s stable performance ensures reliability in both learning and practical applications. If you are looking for a trusted source to get genuine MQ-3 sensors, Bigyan Project offers quality modules for your experiments and projects.
