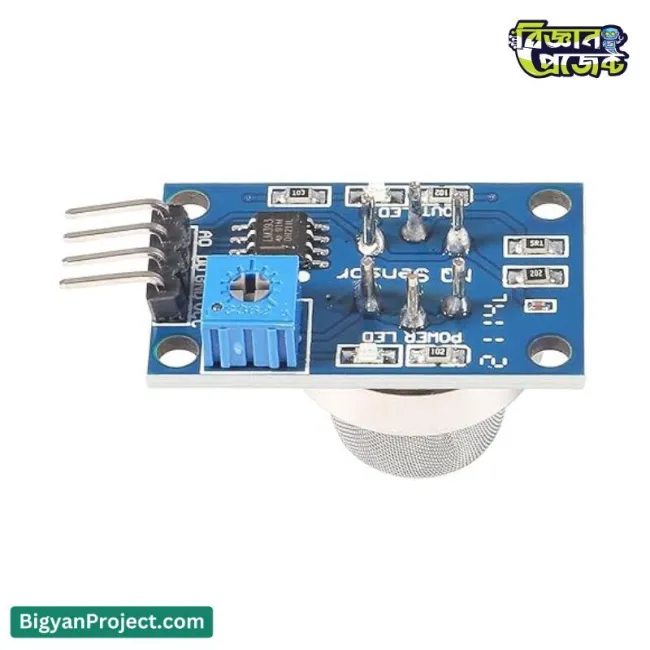

MQ-4 Methane Gas Sensor Module for Arduino & DIY

MQ-4 Methane Gas Sensor Module for Natural Gas Detection

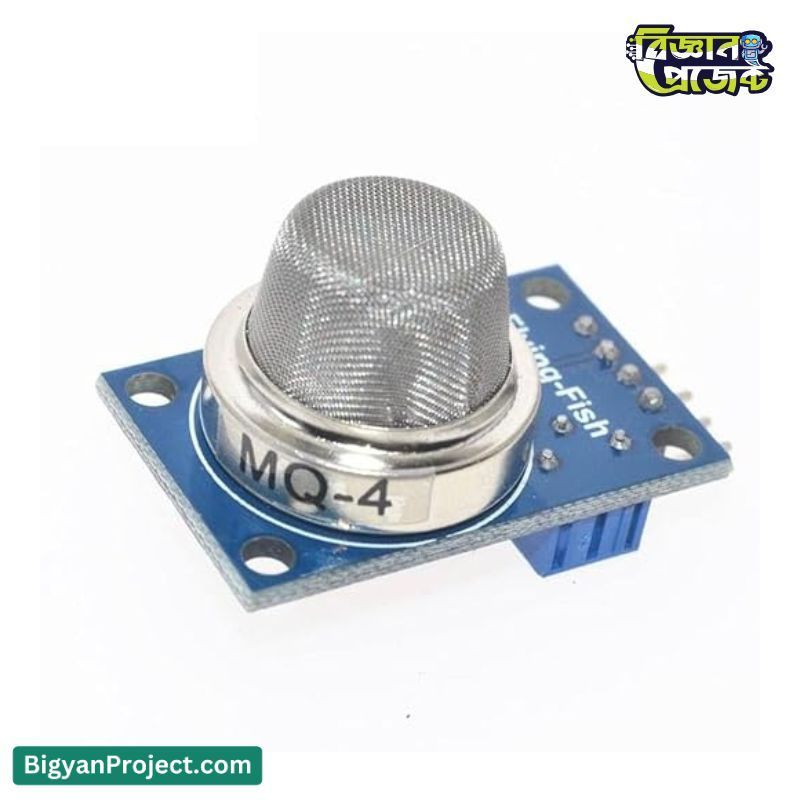

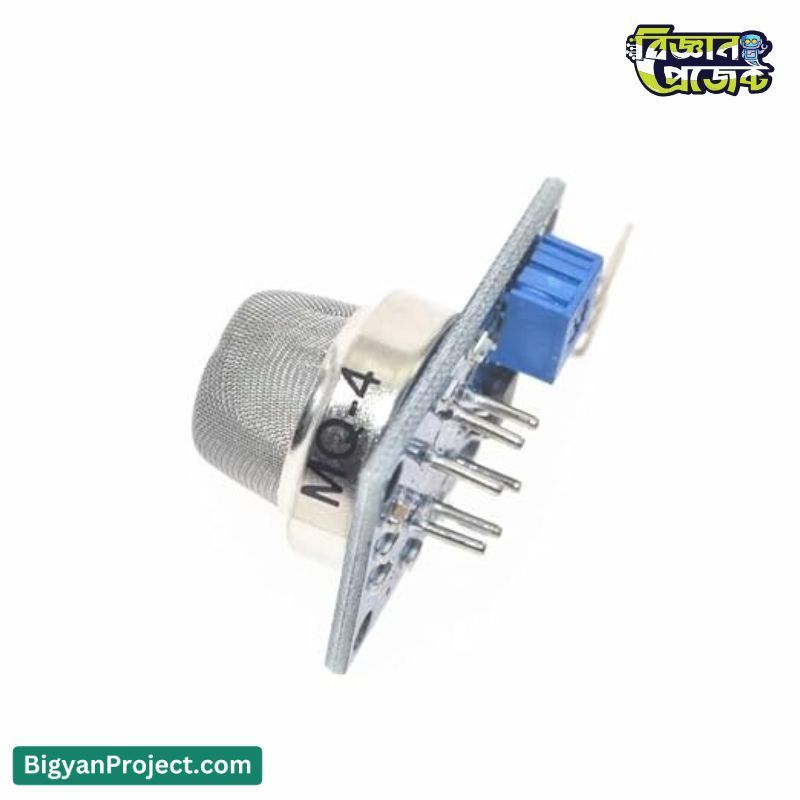

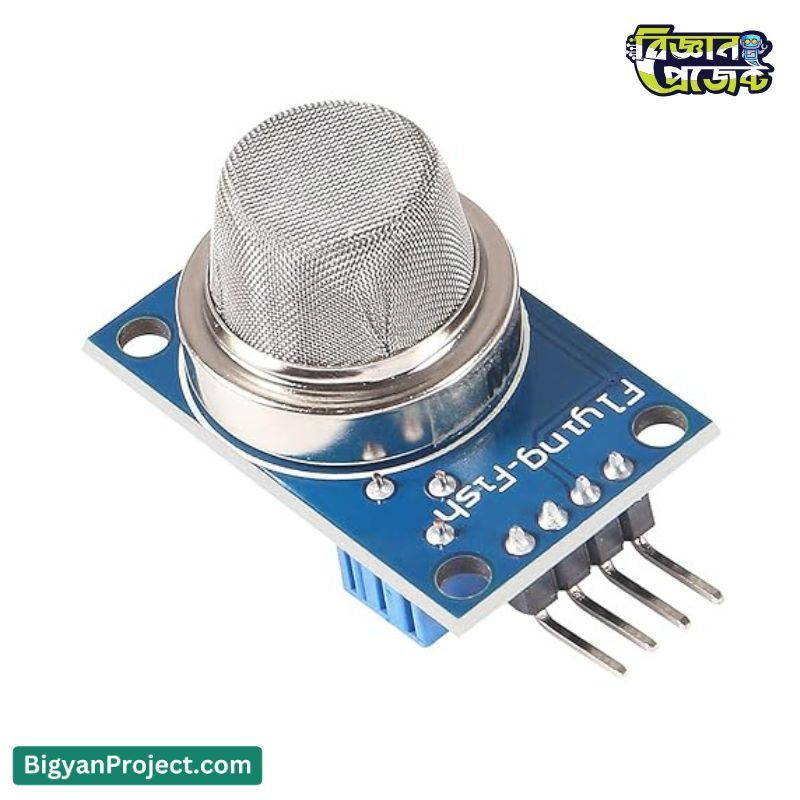

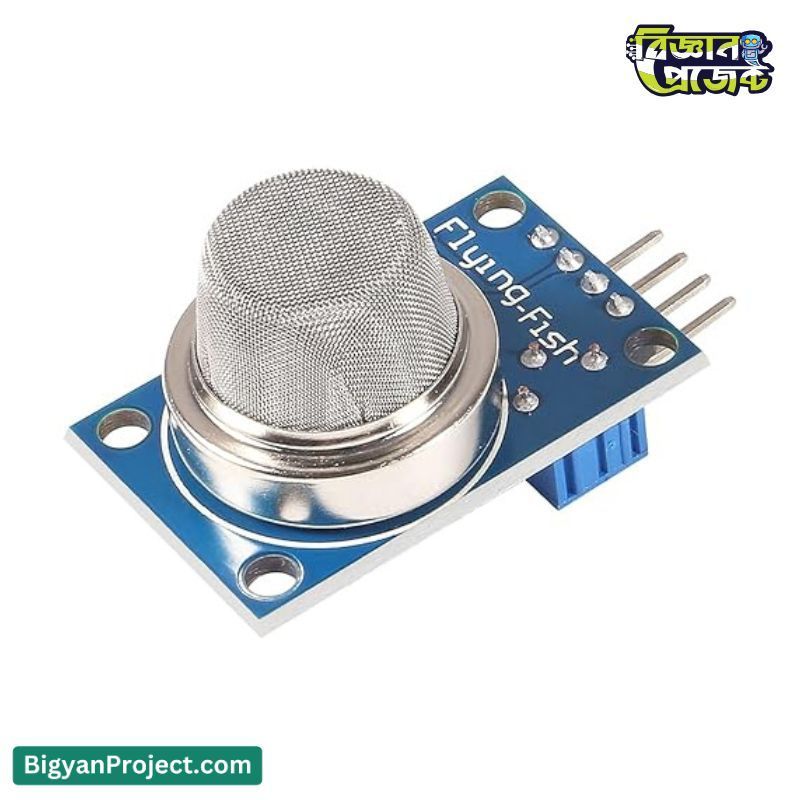

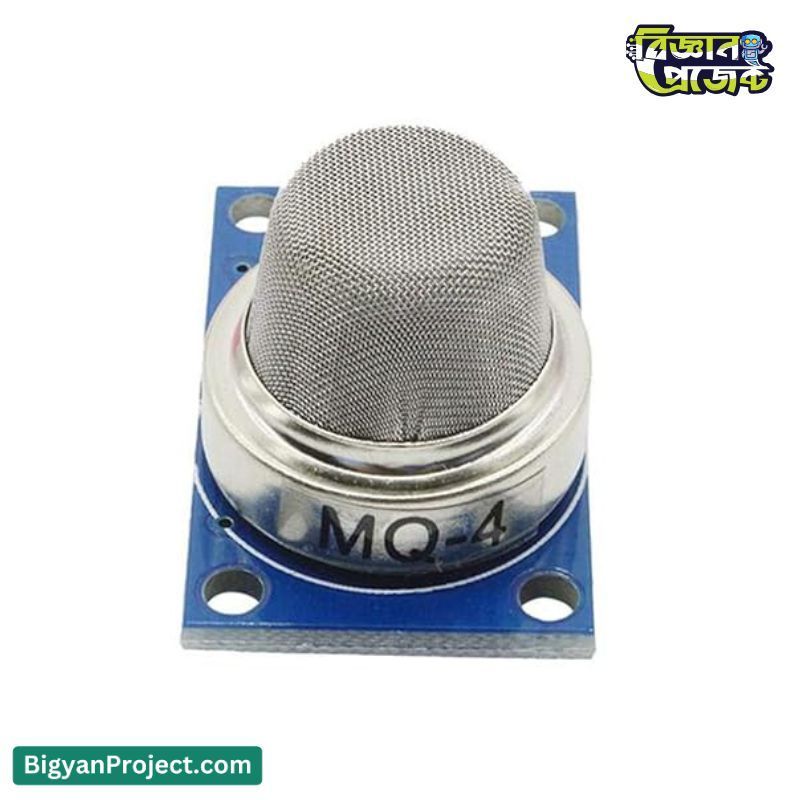

The MQ-4 Methane Gas Sensor Module is a reliable and affordable sensor for detecting methane, natural gas, propane, and butane. It is designed to be compatible with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms. Whether you are building a DIY gas detection project, a smart home automation system, or an industrial safety device, this sensor provides the accuracy and stability you need. Available at Bigyan Project, this sensor is suitable for students, hobbyists, engineers, and professionals who want to detect gas leaks with confidence.

Specifications:

Features:

• High sensitivity to methane and natural gas
• Supports both analog and digital output
• Fast response time after short warm-up period

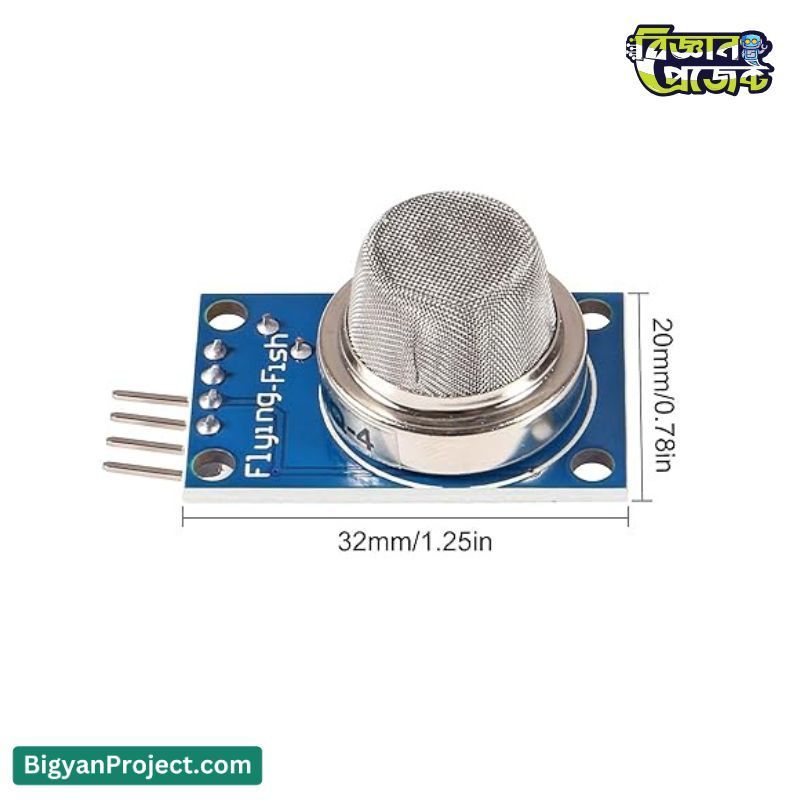

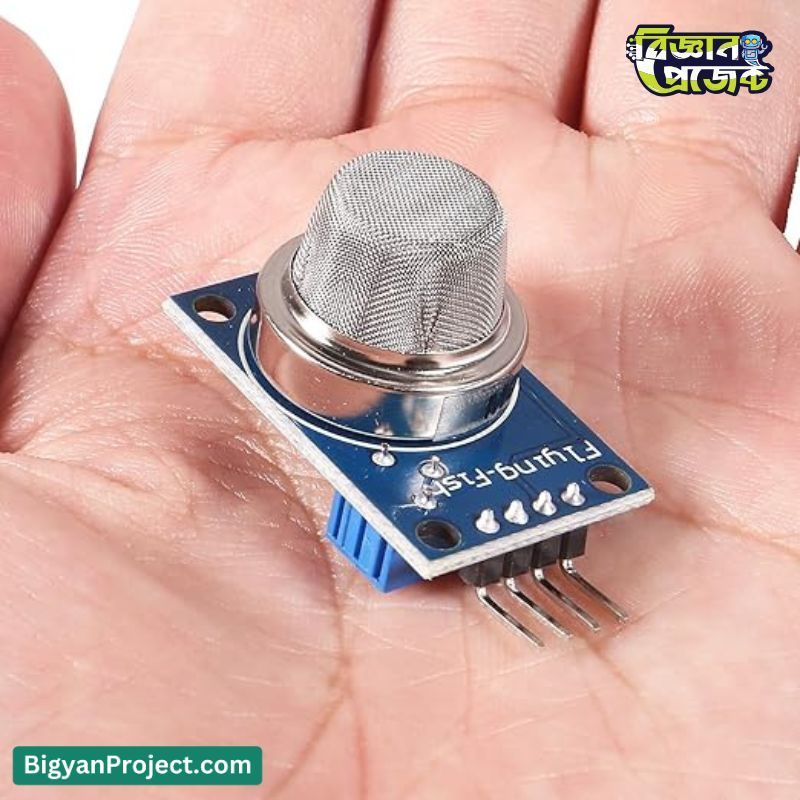

• Compact size suitable for DIY and embedded systems
• Low power consumption for continuous monitoring
• Reliable performance in gas leakage detection applications

Applications / Use Cases:

• Home gas leak detection systems
• Smart home safety monitoring devices
• Industrial and laboratory gas monitoring
• Arduino and Raspberry Pi based automation projects
• DIY electronics and educational projects from Bigyan Project

User Guide / How to Use:

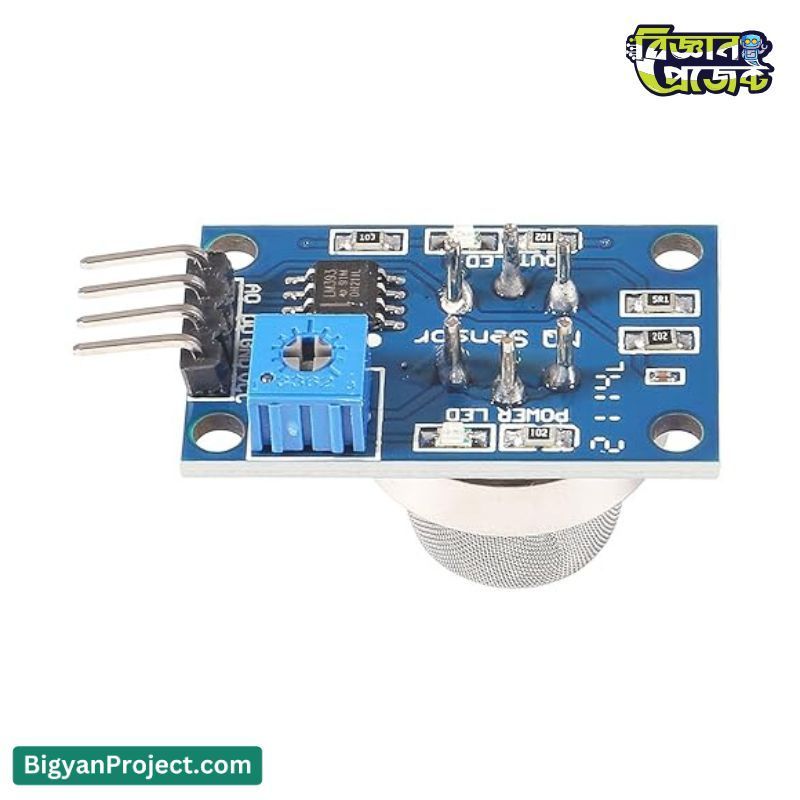

To use the MQ-4 Methane Gas Sensor Module, connect the VCC pin to a 5V power source and GND to ground. The digital output (DO) pin provides a binary signal when the gas concentration exceeds the threshold, while the analog output (AO) pin provides variable voltage proportional to the gas level. Before taking measurements, allow the sensor to warm up for around 20 seconds. Place the module in the area where gas detection is required and connect it to your Arduino, ESP32, or Raspberry Pi for real-time monitoring. For better accuracy, calibrate the sensor in clean air before deployment.

Frequently Asked Questions (FAQs):

• Q: How long does the MQ-4 sensor take to warm up?
  A: It requires about 20 seconds for stable readings after power is applied.
• Q: Can I use this sensor directly with Arduino?
  A: Yes, it is fully compatible with Arduino, Raspberry Pi, and ESP32.
• Q: What gases can this sensor detect?
  A: Primarily methane, but it also responds to propane, butane, and LPG.
• Q: Is it safe if the sensor becomes warm?
  A: Yes, the heating element inside the sensor naturally produces heat during operation.
• Q: Can this be used for commercial gas detection systems?
  A: It is mostly intended for DIY and educational use, but can be integrated into larger systems with proper calibration.

Challenges and Considerations:

• Requires a warm-up period before accurate measurement
• Sensitivity may vary with temperature and humidity
• Calibration is necessary for reliable results
• Not suitable as a sole safety device in hazardous environments

Compatibility:

• Arduino boards (UNO, Nano, Mega)
• Raspberry Pi (all models)
• ESP8266 and ESP32 modules
• Other 5V microcontrollers

Future Enhancement Options:

• Integration with IoT platforms for remote gas monitoring
• Wireless notification system via Wi-Fi or GSM
• Combination with multiple gas sensors for multi-gas detection
• AI-based gas concentration prediction and analysis

Benefits:

• Affordable gas detection solution from Bigyan Project
• Easy integration with microcontrollers and DIY projects
• Reliable and consistent output readings
• Helps in preventing accidents caused by gas leakage
• Compact and durable design for long-term use

Conclusion:

The MQ-4 Methane Gas Sensor Module is a dependable solution for anyone looking to detect methane and other combustible gases. Its compatibility with Arduino, Raspberry Pi, and DIY systems makes it ideal for both beginners and professionals. Whether you are a student learning electronics, a hobbyist building safety devices, or an engineer designing gas monitoring systems, this sensor will serve your purpose. Available now at Bigyan Project, this sensor ensures quality, affordability, and ease of use in one complete package.
