Arduino Pro Mini ATmega328P 5V 16MHz Small Microcontroller Module

Arduino Pro Mini ATmega328P 5V 16MHz Microcontroller Module

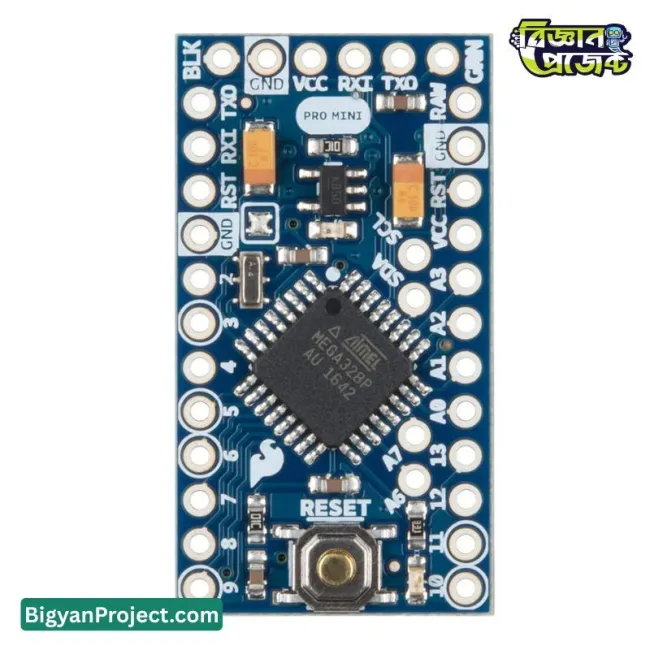

The Arduino Pro Mini ATmega328P 5V 16MHz is a compact and efficient microcontroller board designed for embedded electronics projects where space, power efficiency, and flexibility matter. With the same processing power as the classic Arduino Uno, this board delivers stable performance using the ATmega328P running at 16MHz. Its small footprint makes it ideal for robotics, DIY electronics, IoT systems, wearable devices, and educational projects. Bigyan Project frequently recommends this board for students, hobbyists, and makers who need reliable performance in a lightweight form.

Product Specifications

Features

• Compact size ideal for embedded and portable projects
• Stable ATmega328P performance at 16MHz
• Multiple I/O pins for sensors and modules
• Supports UART, PWM, and analog input operations
• Can be powered through RAW or regulated VCC
• Compatible with Arduino IDE
• Low power consumption for battery-operated systems
• Popular choice for robotics and automation projects at Bigyan Project

Applications / Use Cases

• DIY robotics and automation
• IoT devices and smart home projects
• Wearable electronics
• Sensor monitoring systems
• RC and drone controllers
• Educational electronics and STEM learning
• Custom embedded controllers for small products

User Guide / How to Use

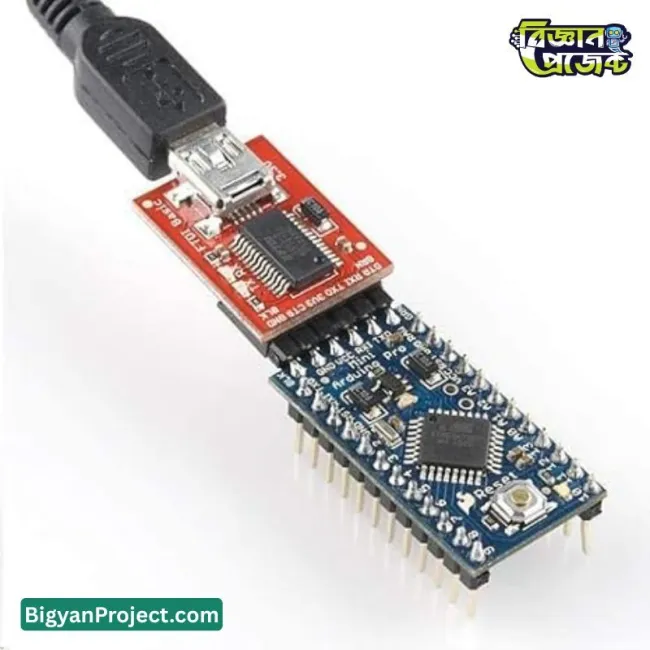

• Connect an FTDI programmer to the Pro Mini for uploading code
• Select "Arduino Pro Mini (5V, 16MHz, ATmega328)" in Arduino IDE

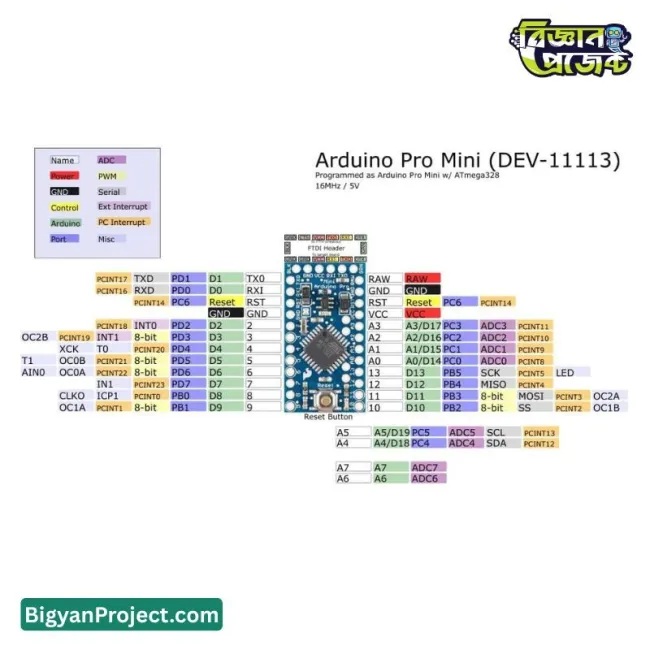

• Connect sensors or modules to the appropriate digital or analog pins

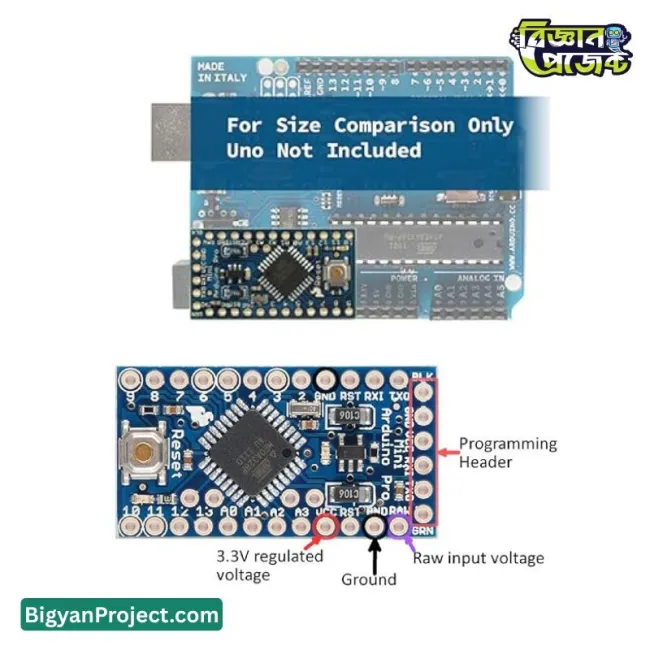

• Use RAW pin for 6–12V input or VCC for regulated 5V
• Upload your sketch and test I/O functionality
• Place the board into your final circuit after successful bench testing

Frequently Asked Questions (FAQs)

• Q: Can I program the Pro Mini without USB?
  A: Yes. Use an FTDI or USB-to-TTL adapter for programming.
• Q: Is it compatible with Arduino Uno code?
  A: Yes. Most Arduino sketches run without modification.
• Q: Can I supply 5V directly?
  A: Yes, but use the VCC pin, not RAW.
• Q: Does it support I2C and SPI?
  A: Yes. ATmega328P fully supports both protocols.
• Q: Is it suitable for battery-powered projects?
  A: Yes, its low power design makes it ideal for portable electronics.

Challenges and Considerations

• Requires an external FTDI adapter for programming
• No onboard USB port like Arduino Uno
• Requires careful voltage selection (RAW vs VCC)
• Limited onboard power regulation
• Not suitable for high-current peripherals directly

Compatibility

• Arduino IDE (Windows, macOS, Linux)
• Common sensors: DHT11, DHT22, Ultrasonic, IR, Flame, LDR
• Modules: Bluetooth HC-05, NRF24L01, RF modules, GPS
• Motor drivers: L298N, L293D, TB6612FNG
• Works with most Bigyan Project starter kits

Future Enhancement Options

• Add wireless communication using Bluetooth or RF
• Attach OLED or LCD display for live monitoring
• Expand I/O with shift registers or I/O extenders
• Integrate with cloud IoT platforms
• Create a custom PCB using this board as the core controller

Benefits

• Compact yet powerful microcontroller solution
• Highly cost-effective for students and makers
• Reliable performance for automation and IoT devices
• Excellent learning tool for Arduino programming
• Perfect for small enclosures or products

Conclusion

The Arduino Pro Mini ATmega328P 5V 16MHz is a versatile microcontroller board ideal for robotics, DIY electronics, and compact embedded systems. Its stable performance, extensive pin support, and compatibility with Arduino IDE make it a favorite choice among hobbyists and engineers. Bigyan Project recommends this board for anyone looking to build efficient, space-saving electronic projects.
