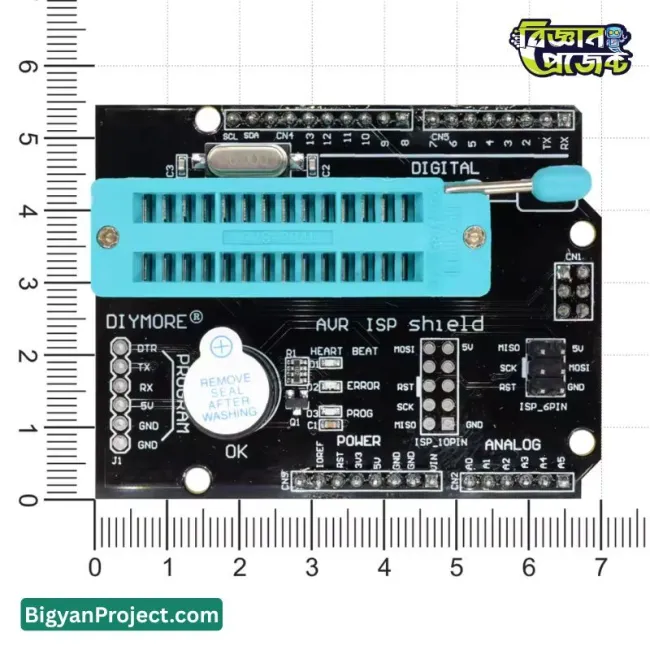

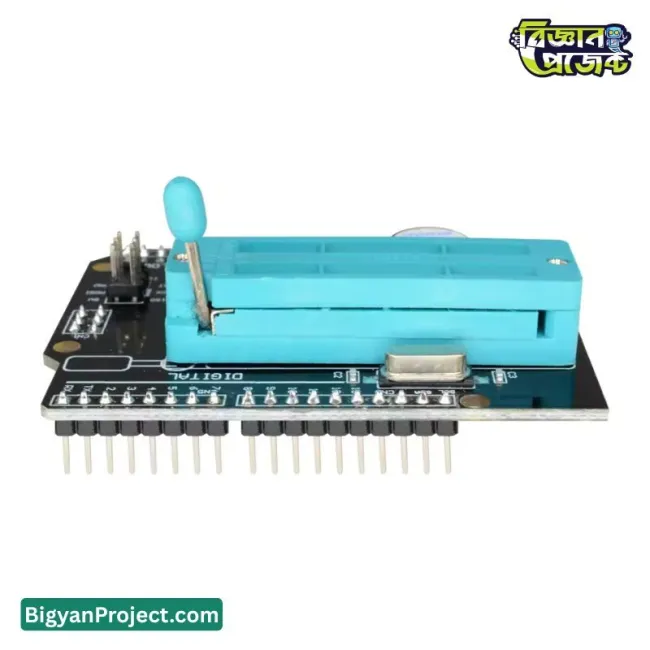

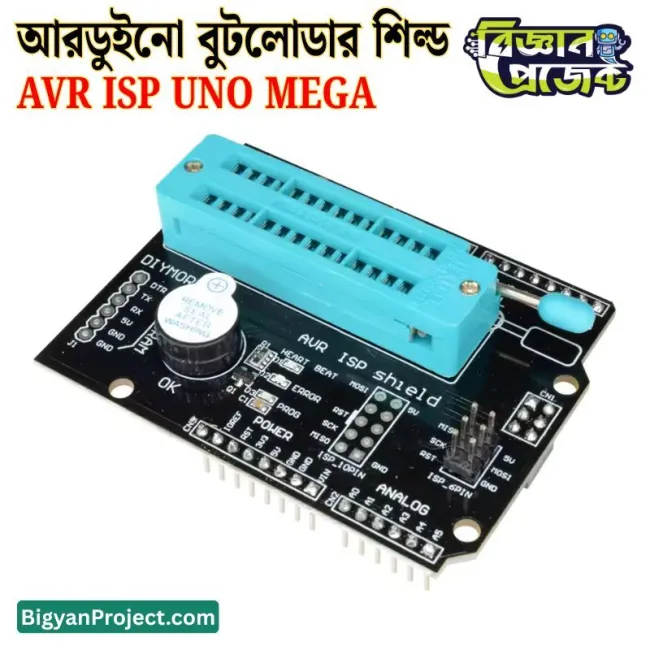

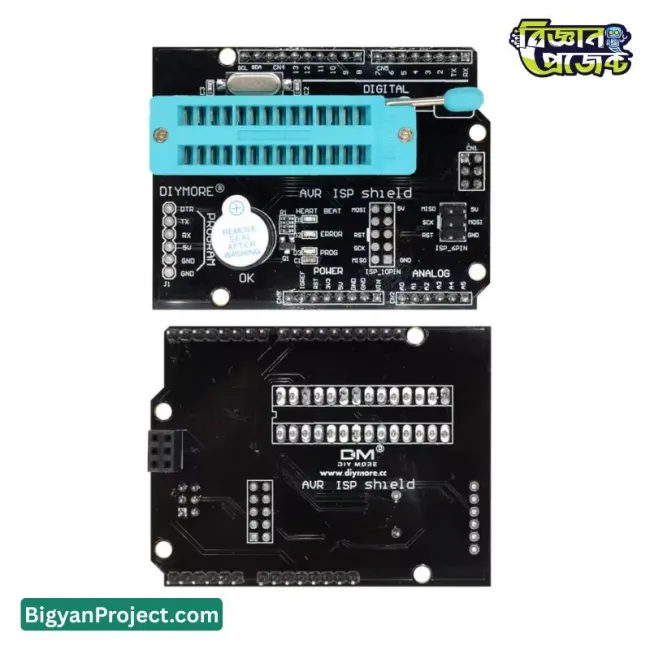

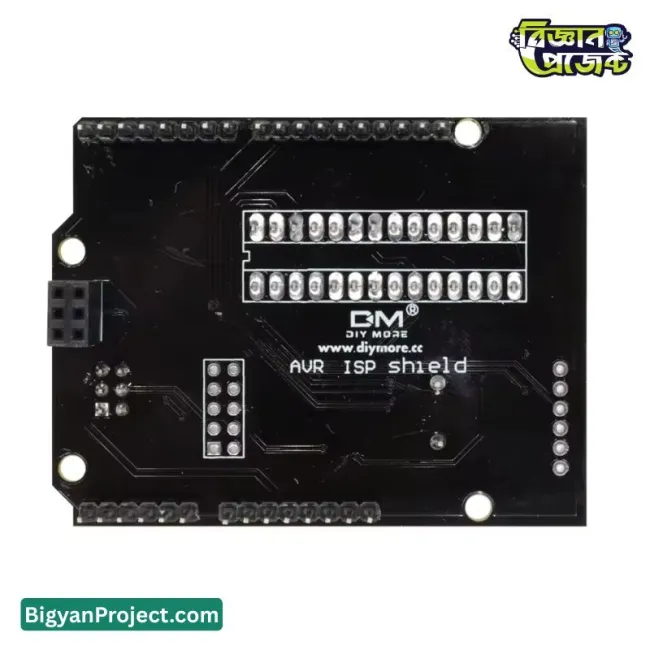

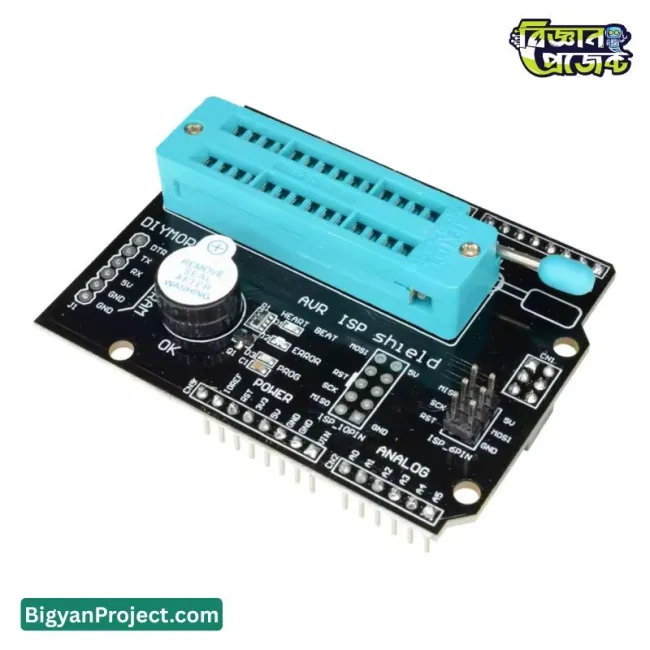

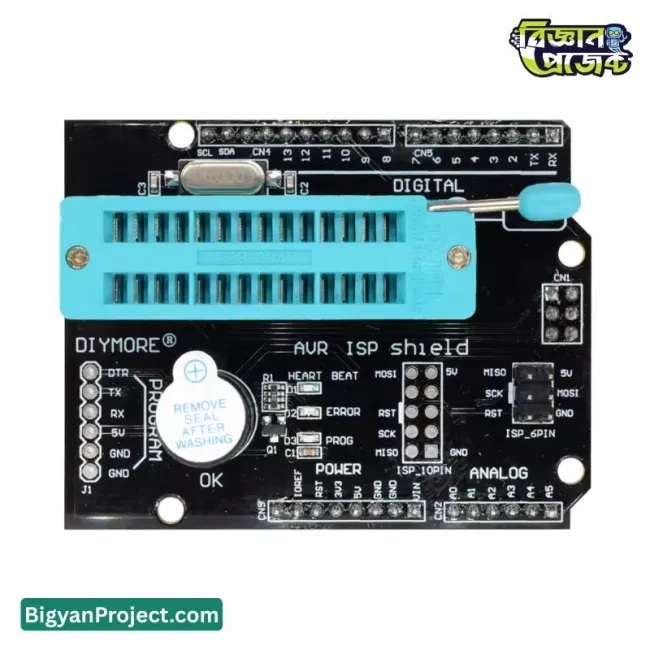

AVR ISP Bootloader Burner Shield for Arduino R3 - Mega2560

AVR ISP High-Precision Bootloader Programming Shield for Arduino R3/Mega2560

The AVR ISP High-Precision Bootloader Programming Shield is a professional-grade solution designed for developers, hobbyists, and educators working with Arduino-compatible boards and ATmega microcontrollers. Engineered for accuracy and efficiency, this shield simplifies bootloader burning, fuse bit configuration, and direct MCU programming. It is ideal for DIY electronics, robotics, embedded systems, and mass production environments where quick and reliable bootloader flashing is essential.

With on-board LED indicators, buzzer feedback, ISP interfaces, and USB-to-TTL converters (FT232RL and CH340G), the shield delivers a seamless development experience. Whether you are prototyping, teaching microcontroller programming, or making custom Arduino-compatible boards, this module enhances workflow and reduces the possibility of human error. Bigyan Project (বিজ্ঞান প্রজেক্ট) recommends this module for anyone working extensively with ATmega chips.

Specifications

Features

• Dedicated 28P socket for programming ATmega328P, ATmega168P, and ATmega8 chips
• Dual USB-to-TTL interface (FT232RL and CH340G) for stable uploading to microcontrollers
• ISP 6PIN and 10PIN connectors for external board bootloader burning
• HEART BEAT LED acts as a breathing light to indicate proper power status
• PROG LED flashes during programming for visual progress tracking
• ERROR LED provides instant error feedback during failed write operations
• Buzzer alert system improves burn verification speed for batch programming
• Compatible with Arduino IDE tools and standard AVR ISP workflows
• Perfect for educational setups, teaching embedded programming concepts
• Reliable for mass production testing and firmware deployment

Applications / Use Cases

• Burning bootloaders on Arduino UNO R3 and Mega2560 boards
• Programming blank ATmega328P chips for custom Arduino projects
• Producing DIY Arduino-compatible boards for robotics and electronics
• Teaching microcontroller programming in labs and educational environments
• Batch programming in production lines for hardware manufacturing
• Repairing corrupted bootloaders on Arduino boards
• Prototyping new embedded products that use ATmega microcontrollers

User Guide / How to Use

• Insert the programmer shield onto an Arduino UNO R3 or Mega2560 between the ICSP pins
• Place an ATmega328P/168P/8 chip in the 28P locking socket if programming standalone MCUs
• Connect the module to a computer using the FT232RL or CH340G USB interface
• Select the appropriate programmer type from the Arduino IDE settings
• Choose “Burn Bootloader” to flash bootloader firmware into the connected MCU
• Wait for LED indicators and buzzer signals to confirm programming status
• Use ISP 6PIN or 10PIN ports to program external Arduino or custom boards

Frequently Asked Questions (FAQs)

• Q: Can this shield program blank ATmega328P chips?
  A: Yes, the 28P locking socket is specifically designed for programming new ATmega328P chips.
• Q: Does it support Arduino Nano?
  A: No, this module does not support direct Nano programming. Only UNO R3, Mega2560, and Pro Mini (5V 16M) boards are compatible.
• Q: Do I need additional drivers?
  A: FT232RL and CH340G may require drivers depending on your operating system.
• Q: Does the buzzer always beep twice?
  A: Only successful fuse writing and bootloader burning produce two beeps. Fewer or no beeps indicate failure.
• Q: Is this suitable for beginners?
  A: Yes, the module is very beginner-friendly and recommended by Bigyan Project for learning AVR programming.

Challenges and Considerations

• Incorrect board selection in Arduino IDE may prevent successful burning
• Loose chip placement in the 28P socket can cause programming errors
• Using unofficial USB drivers may cause unstable connections
• Some ATmega chips may require fuse bit adjustments before flashing
• Ensure stable 5V supply to avoid incomplete programming cycles

Compatibility

• Arduino UNO R3
• Arduino Mega2560
• Arduino Pro Mini (5V 16M)
• ATmega328P microcontrollers
• ATmega168P and ATmega8 chips
• ISP-based external boards

Future Enhancement Options

• Adding OLED display for real-time status information
• Expanding support for more AVR microcontrollers
• Integrating automated scripts for batch programming lines
• Adding secure bootloader flashing options
• Adding jumper-selectable voltage settings for 3.3V systems

Benefits

• Reliable and fast bootloader burning with audio and LED feedback
• Supports both standalone chips and Arduino-compatible boards
• Highly efficient for production and educational environments
• Integrates multiple interfaces for flexible programming options
• Recommended by Bigyan Project for consistent development needs

Conclusion

This AVR ISP Programming Shield is a powerful, flexible, and user-friendly tool for anyone working with Arduino and ATmega microcontrollers. With dual USB interfaces, clear visual indicators, buzzer feedback, and broad compatibility, it is ideal for prototyping, learning, and professional production. A valuable addition to any electronics lab or maker workspace.
