Type-C Arduino UNO R3 SMD Board

Type-C Arduino UNO R3 SMD ATMEGA328PB Development Board

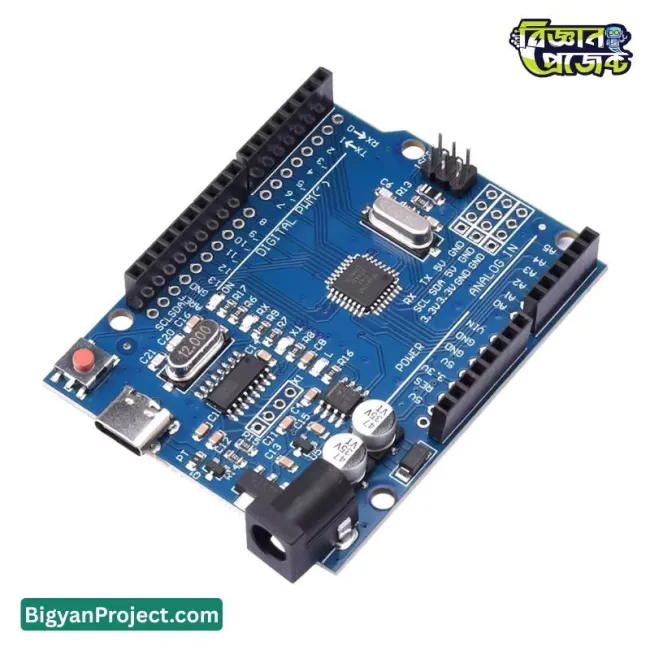

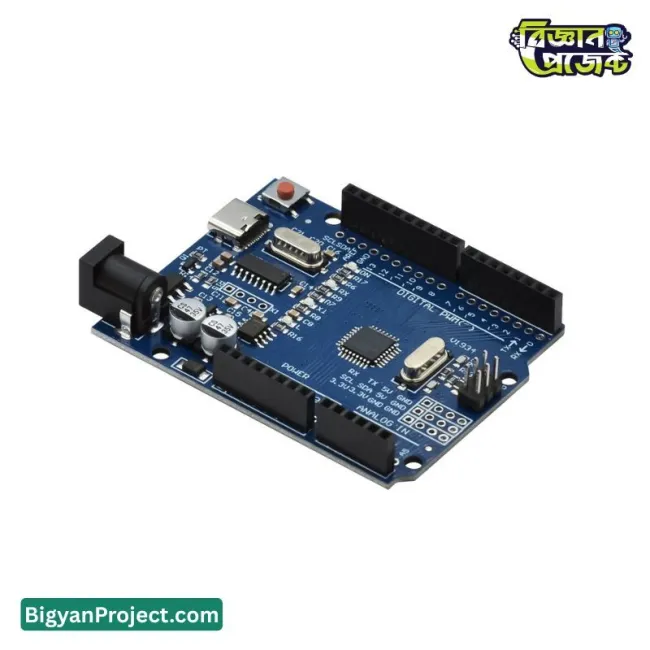

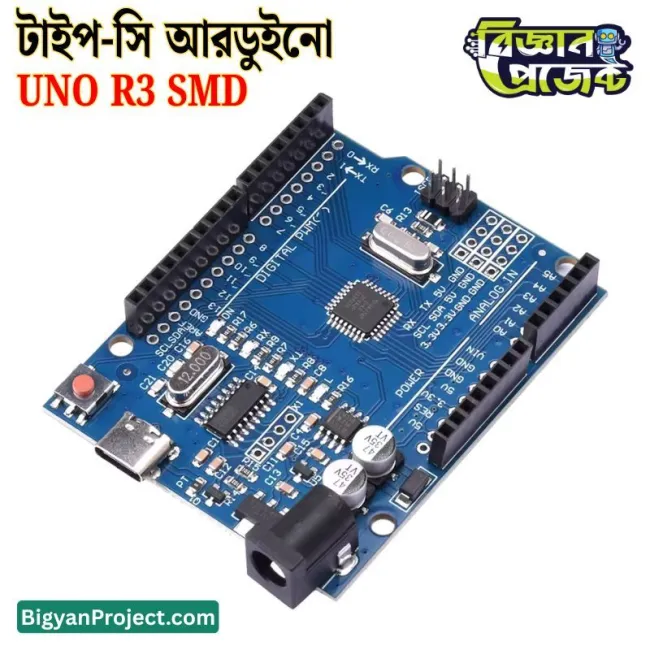

The Type-C Arduino UNO R3 SMD ATMEGA328PB Development Board is a modern microcontroller board designed for learning, prototyping, and embedded electronics projects. Built on the popular UNO R3 layout and powered by the ATMEGA328PB-AU microcontroller, this board features a USB Type-C interface for reliable power and data connectivity. Its SMD design improves durability and consistency, making it suitable for classrooms, robotics projects, and DIY electronics supported by Bigyan Project and similar STEM initiatives.

Product Specifications

Features

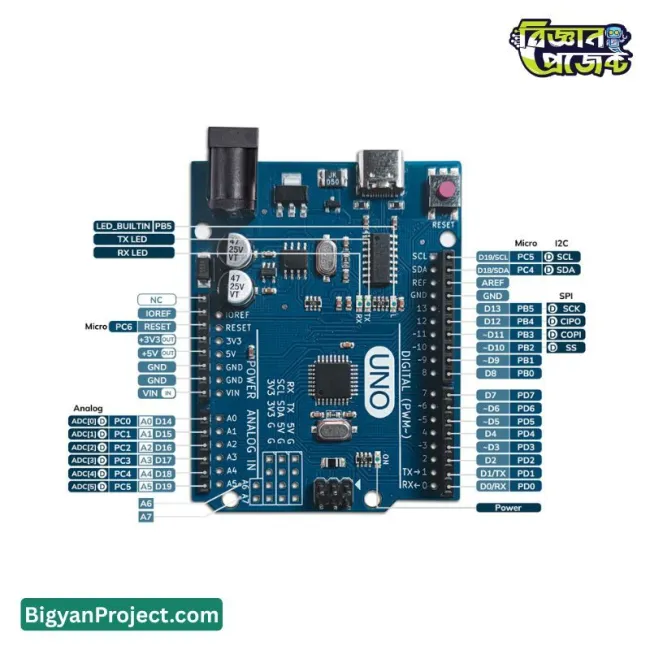

• Standard Arduino UNO R3 pin layout

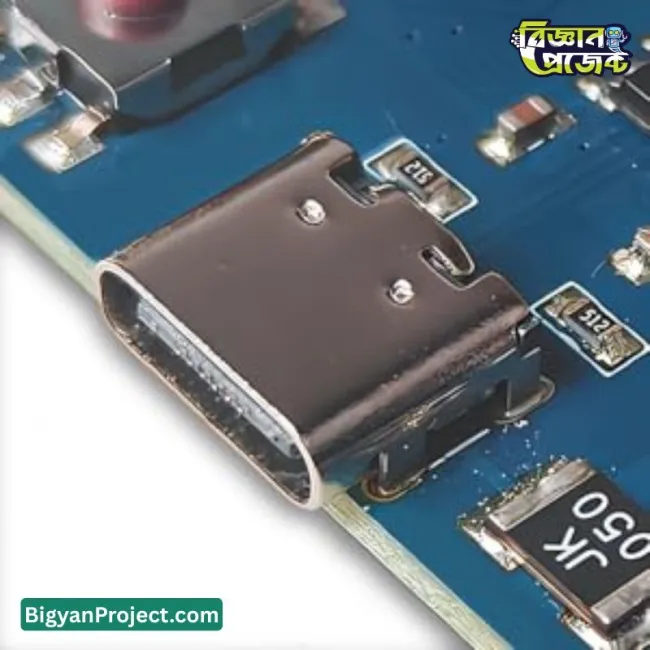

• USB Type-C port for modern connectivity
• ATMEGA328PB microcontroller with stable performance
• SMD design for better durability
• CH340G interface for easy programming
• Compatible with Arduino IDE and libraries

Applications and Use Cases

• Arduino learning and training projects
• Robotics control systems
• DIY electronics and prototyping
• Sensor and actuator interfacing
• Automation and control experiments
• Educational kits from Bigyan Project

User Guide / How to Use

• Connect the board using a USB Type-C cable
• Install Arduino IDE on your computer
• Select Arduino UNO as the board
• Choose the correct COM port
• Upload your sketch and start testing

Frequently Asked Questions (FAQs)

• Q: How many analog input pins are available?
  A: The board provides 6 analog input pins (A0–A5).
• Q: Is this board compatible with UNO shields?
  A: Yes, it follows the standard UNO R3 form factor.
• Q: Does it require a special driver?
  A: CH340 driver may be required depending on the OS.

Challenges and Considerations

• CH340 driver installation may be needed
• Limited memory compared to newer 32-bit boards
• Not designed for high-power loads directly

Compatibility

• Arduino IDE compatible
• Supports most Arduino UNO shields
• Works with common sensors and modules
• Compatible with Windows, macOS, and Linux

Future Enhancement Options

• Add WiFi or Bluetooth modules externally
• Expand I/O using I2C or SPI devices
• Integrate IoT platforms via external modules

Benefits

• Easy to learn for beginners
• Modern USB Type-C interface
• Stable and proven UNO architecture
• Strong community and learning support from Bigyan Project

Conclusion

The Type-C Arduino UNO R3 SMD ATMEGA328PB Development Board offers a reliable and familiar platform with a modern USB interface. It is an excellent choice for education, robotics, and DIY electronics projects where stability, compatibility, and ease of use are essential.
