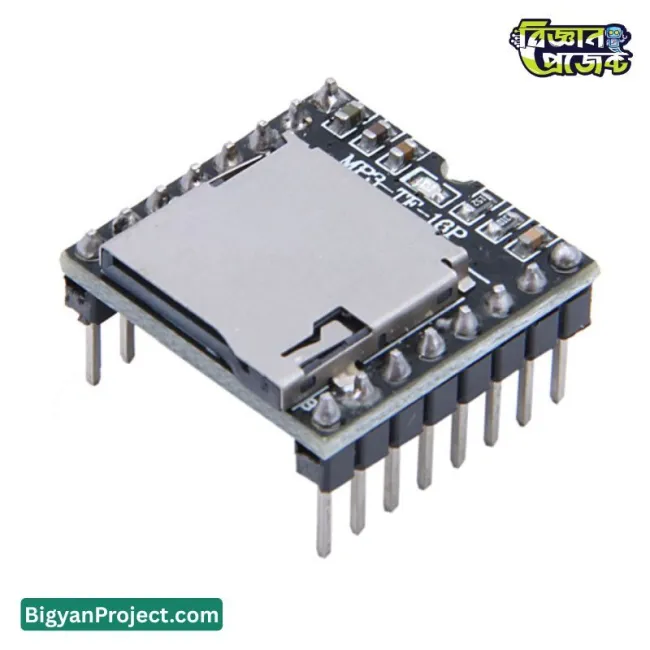

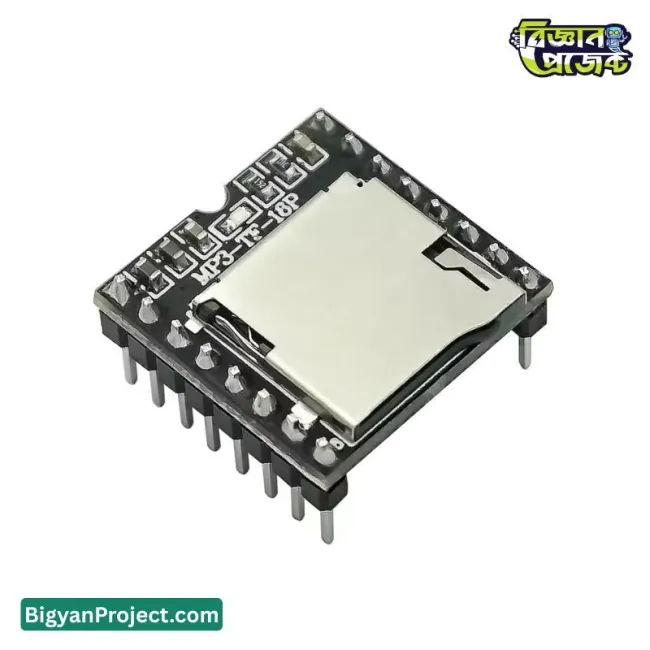

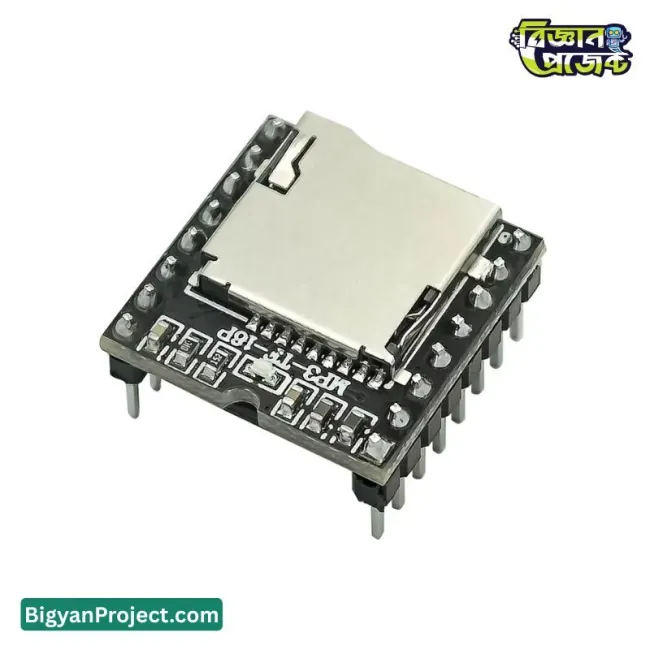

DFPlayer Mini MP3 Player Module V3.0 16P for Arduino ESP32

DFPlayer Mini V3.0 MP3 Sound Decoder Module with Built-in 3W Amplifier

The DFPlayer Mini MP3 Player Module V3.0 is a compact embedded audio playback module designed for microcontroller-based electronics projects. It enables developers, students, and hobbyists to easily add voice, music, and notification sounds into Arduino, ESP32, and automation systems without needing complex audio processing circuits. The module reads audio files directly from a TF (microSD) card and provides multiple control methods including UART serial commands, button control, and digital I/O triggering.

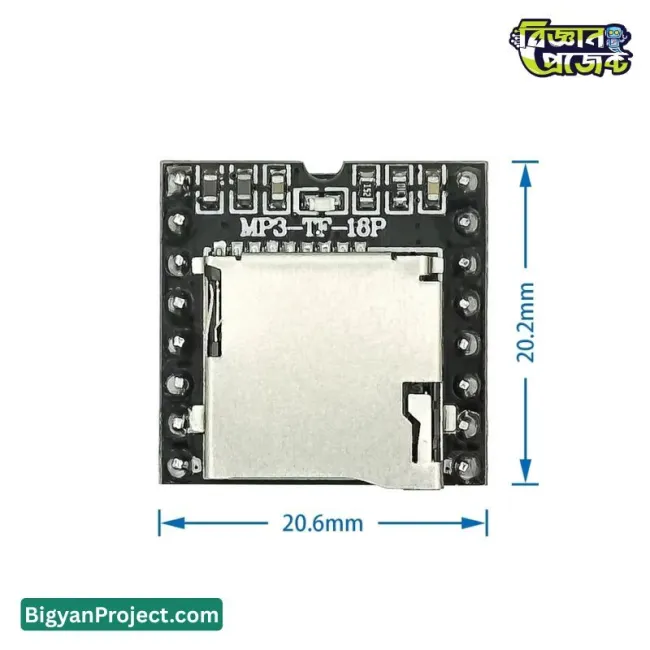

Unlike traditional audio solutions that require external decoding ICs and amplifiers, the DFPlayer Mini integrates a decoder, DAC, and a 3W mono amplifier on a tiny 20mm × 20mm PCB. This allows direct connection to a speaker, significantly simplifying wiring and reducing project cost. Because of its simplicity and reliability, it is widely used in robotics, talking devices, alarms, smart home projects, and educational electronics kits available through Bigyan Project.

The module supports common audio formats such as MP3, WAV, and WMA and can organize files into folders for structured playback. Developers can play specific tracks, control volume levels, loop audio, or trigger sounds from sensors. Whether building a talking robot, a security alert system, or an automated announcement system, this module provides a dependable and efficient audio interface.

Product Specifications

Features

• Integrated MP3 decoder and DAC audio processor
• Built-in 3W amplifier for direct speaker connection
• Supports UART serial control and standalone button operation
• Plays audio directly from TF microSD card
• Multiple audio formats supported
• Volume control with multiple adjustable levels
• Small PCB size suitable for embedded systems
• Folder and track addressing system
• Low power consumption suitable for battery projects

Applications / Use Cases

• Talking robots and educational robotics projects
• Fire alarm and safety alert systems
• Smart doorbell voice announcement system
• Home automation notification devices
• Interactive museum or exhibition displays
• Voice reminder and medicine alert devices
• Electronic toys and learning kits
• Talking vending machines or kiosks
• DIY audio greeting boxes

User Guide / How to Use

• Insert a FAT32 formatted microSD card
• Copy MP3 or WAV files to the card using numeric file naming (0001.mp3, 0002.mp3)
• Connect VCC to 5V or 3.3V power supply
• Connect GND to common ground with the microcontroller
• Connect TX and RX pins to Arduino or ESP32 serial pins
• Connect a 3W speaker to SPK+ and SPK- terminals
• Upload a simple serial control program to trigger audio playback
• Adjust volume using commands or button inputs

Frequently Asked Questions (FAQs)

• Q: Does the module require an external amplifier?
  A: No, it has a built-in 3W amplifier for small speakers.
• Q: What size memory card can be used?
  A: Up to 32GB microSD card formatted FAT16 or FAT32.
• Q: Can it work without Arduino?
  A: Yes, standalone button (AD Key) mode allows playback without a microcontroller.
• Q: Why is my module not initializing?
  A: Usually caused by wiring errors or missing common ground connection.
• Q: Can I connect headphones?
  A: Yes, use DAC_L and DAC_R pins with a proper audio jack circuit.

Challenges and Considerations

• Requires correct file naming for proper playback order
• Needs stable power supply to avoid noise or reset issues
• Long wires may introduce audio interference
• Speaker impedance must match recommended values
• Serial wiring must not be reversed

Compatibility

• Arduino Uno, Nano, Mega
• ESP32 development boards
• ESP8266 boards
• Raspberry Pi via serial communication
• PIC and AVR microcontrollers
• Sensor based trigger circuits

Future Enhancement Options

• Add external amplifier for louder audio output
• Integrate with Bluetooth or WiFi microcontrollers
• Use motion sensors for automatic announcements
• Create voice controlled automation systems
• Combine with LCD or OLED display modules

Benefits

• Simplifies audio integration in embedded electronics
• Reduces circuit complexity
• Low cost compared to full audio systems
• Easy to program using serial commands
• Widely supported in educational environments
• Available for robotics learners through Bigyan Project

Conclusion

The DFPlayer Mini V3.0 is one of the most practical solutions for adding audio functionality to electronics projects. Its compact design, integrated amplifier, and simple control interface make it ideal for beginners and advanced developers alike. Whether used in robotics, safety systems, or interactive devices, it provides reliable sound playback with minimal hardware requirements. For students and makers sourcing components from Bigyan Project, this module serves as a versatile and dependable embedded audio solution.
