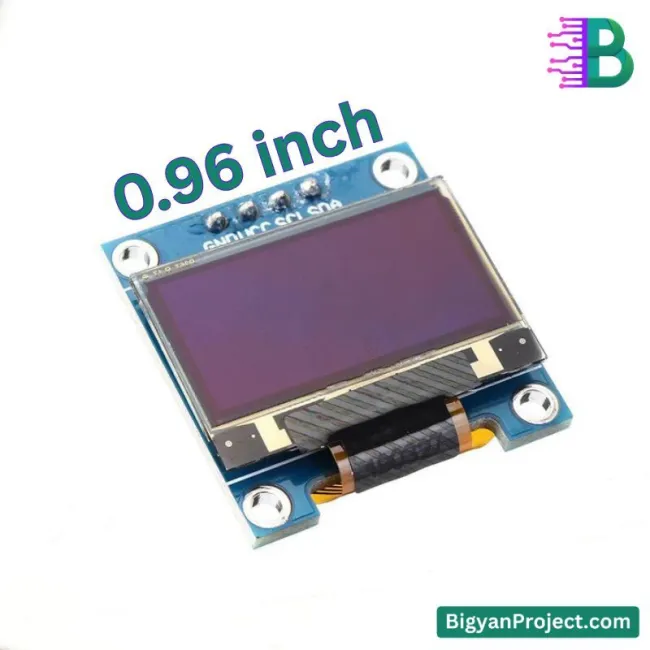

0.96 Inch Blue OLED Display Module I2C for Arduino

0.96 Inch I2C 128x64 OLED Display Module for Arduino and DIY Electronics

The 0.96 Inch I2C OLED Display Module is a high-quality, compact, and energy-efficient screen perfect for Arduino and other microcontroller projects. Featuring a resolution of 128x64 pixels, this blue OLED display offers a clear and sharp visual output, making it an ideal choice for a variety of electronics applications. With I2C communication as default and SPI support, it is flexible, easy to integrate, and suitable for both beginner and professional developers. At Bigyan Project, we bring you genuine, high-quality modules that meet your project requirements and academic needs.

Product Specifications:

Features:

• High-resolution 128x64 pixels screen for crisp visuals
• Ultra-low power consumption, ideal for battery-powered projects
• Supports both I2C and SPI communication protocols
• Wide operating voltage range from 3V to 5V DC
• Excellent viewing angle greater than 160 degrees
• Compact module size suitable for small devices
• Compatible with popular microcontroller platforms
• Self-illuminating OLED technology, no backlight required
• Durable design with operating temperature support up to 70°C
• Easy to integrate into DIY, academic, and professional projects

Applications / Use Cases:

• Arduino based display projects
• Weather monitoring systems
• Portable electronic gadgets
• DIY smart home devices
• Educational electronics and robotics projects
• Wearable technology displays
• Battery-powered display systems
• IoT devices requiring minimal power consumption
• Prototyping dashboards and sensor monitors
• Compact user interface displays for embedded systems

User Guide / How to Use:

• Connect VCC to 3.3V or 5V power supply
• Connect GND to ground
• Connect SCL to the clock pin of the microcontroller
• Connect SDA to the data pin of the microcontroller
• Use libraries like Adafruit SSD1306 and GFX for Arduino to control the display
• Initialize the display using I2C communication in the code
• Upload sample codes to display text, graphics, or sensor data
• Test and customize according to your project needs

Frequently Asked Questions (FAQs):

• Q: Is this OLED display compatible with Arduino Uno?
• A: Yes, it is fully compatible with Arduino Uno and other Arduino boards.
• Q: Does it support SPI communication?
• A: Yes, besides I2C, it can also be configured for SPI communication.
• Q: What is the operating voltage of this module?
• A: It operates safely between 3V and 5V DC.
• Q: Does it need a backlight?
• A: No, OLED displays are self-illuminating and do not require a backlight.
• Q: Can I use this module with STM32 boards?
• A: Yes, it is compatible with STM32 series as well.

Challenges and Considerations:

• Ensure proper voltage levels to avoid display damage
• Use pull-up resistors if necessary for stable I2C communication
• Carefully handle the fragile pins during soldering and wiring
• Use correct libraries and initialization codes for proper functioning
• Check the default I2C address when connecting multiple I2C devices

Compatibility:

• Arduino Uno, Mega, Nano, Leonardo
• STM32 series microcontrollers
• MSP430 family microcontrollers
• ESP32 and ESP8266 based projects
• 51 Series microcontrollers
• Raspberry Pi (with additional configuration)

Future Enhancement Options:

• Integrating touch functionality for interactive displays
• Using higher resolution OLED modules for advanced projects
• Connecting multiple displays for expanded screen area
• Adding Bluetooth or Wi-Fi connectivity for wireless display updates
• Creating complete wearable tech solutions with OLED screens

Benefits:

• Compact size fits in small enclosures and handheld devices
• Ultra-low power consumption extends battery life in projects
• High contrast and brightness make it readable in various lighting conditions
• Multiple communication options for flexible integration
• Easy coding and support through open-source libraries
• Durability and reliable performance in different environments
• Available at Bigyan Project with trusted quality assurance

Conclusion:

The 0.96 Inch I2C 128x64 Blue OLED Display Module is an excellent solution for a wide range of electronic, robotics, and IoT projects. With high resolution, low power usage, and easy integration, it is ideal for students, hobbyists, and professionals. At Bigyan Project, we ensure you get top-quality OLED modules suitable for your next innovation. Explore the possibilities with our electronics components and give your projects the professional touch they deserve.
