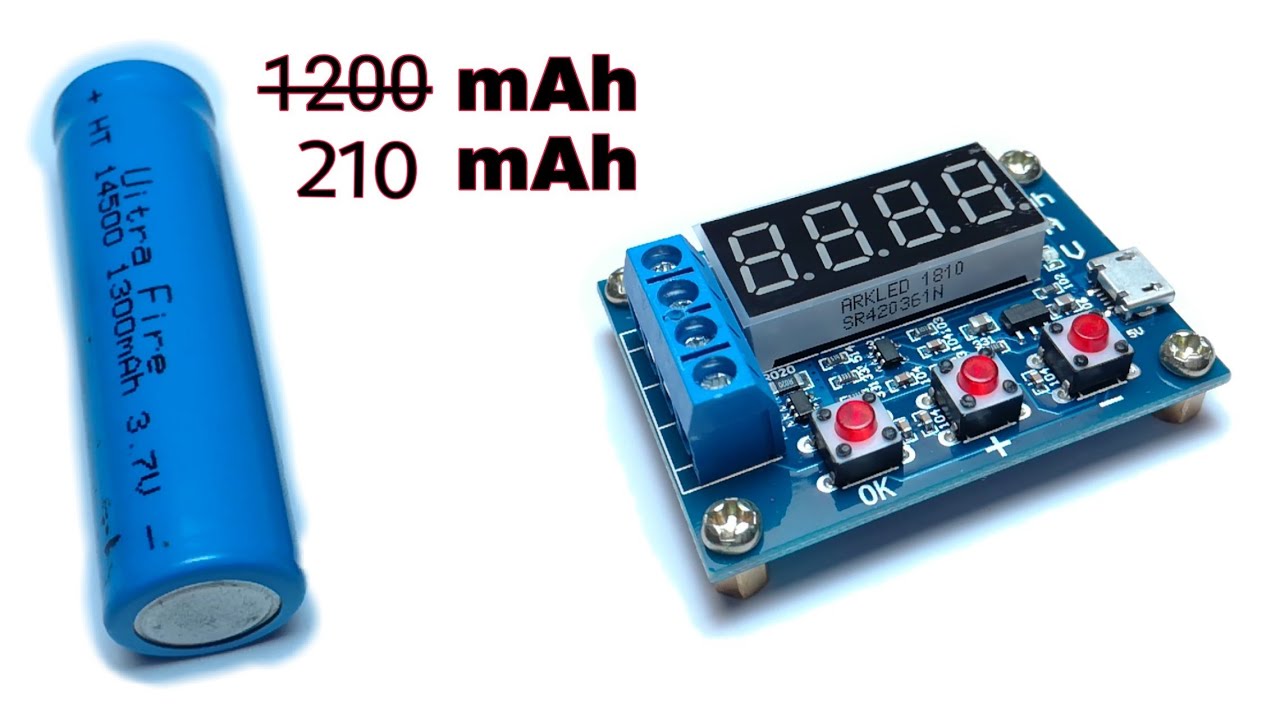

ZB2L3 18650 Li-ion Battery Capacity Tester & Discharge Meter

ZB2L3 18650 Li-ion Battery Capacity Tester & Discharge Meter

Product Overview / Introduction

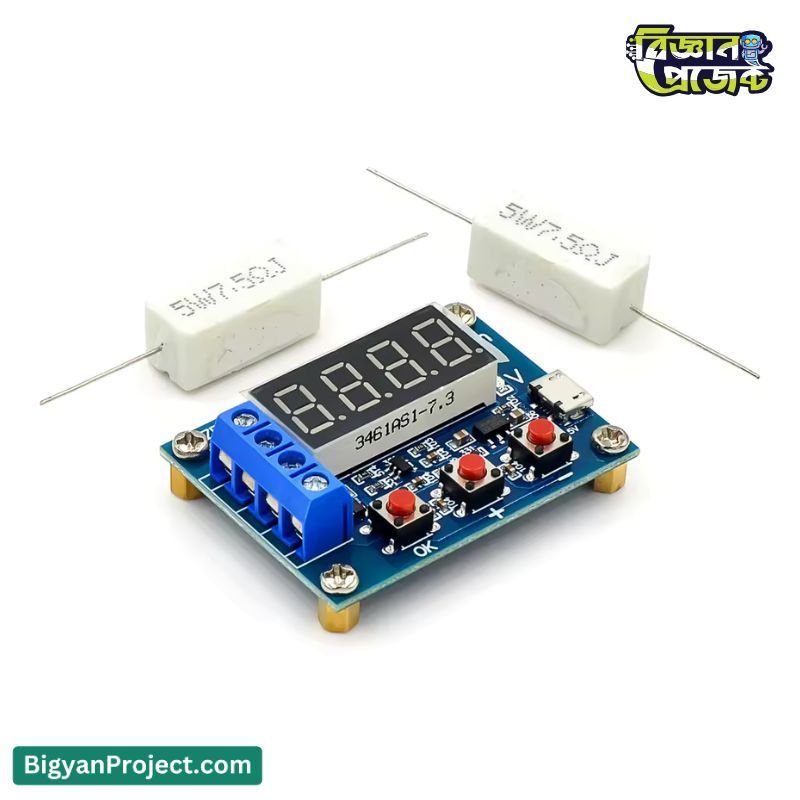

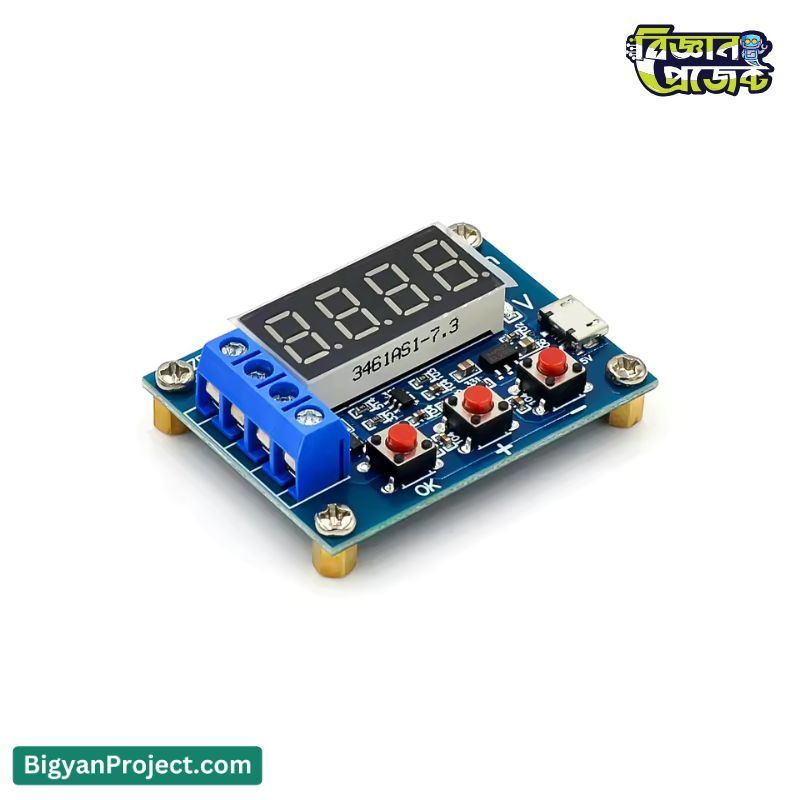

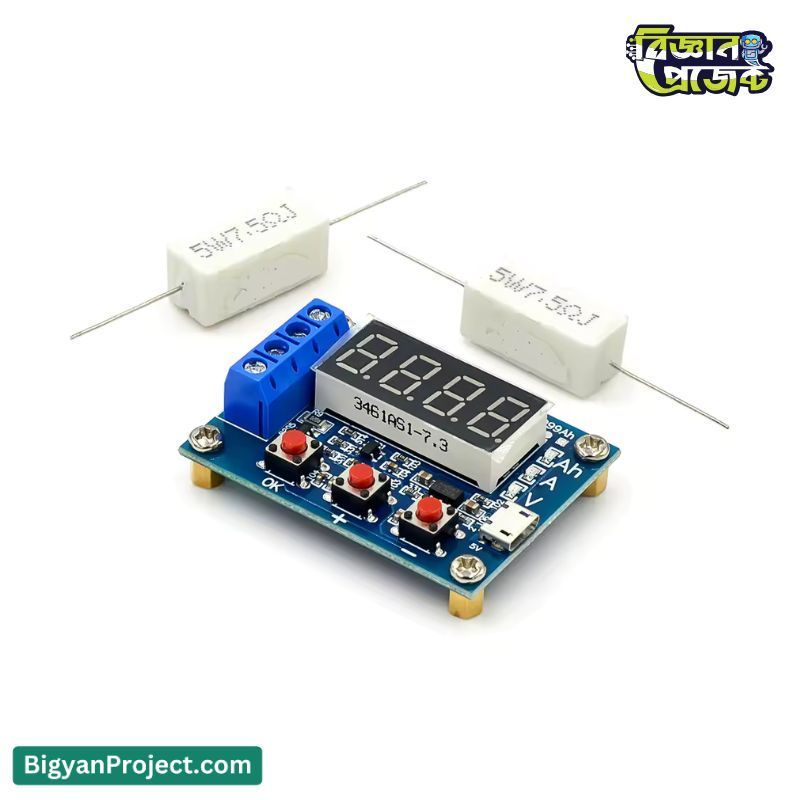

The ZB2L3 18650 Li-ion Battery Capacity Tester is a powerful and versatile tool designed to accurately measure the discharge capacity of batteries ranging from 1.2V to 12V. This tester is an essential device for evaluating the performance of 18650 Li-ion batteries and other rechargeable battery types, making it a valuable tool for DIY electronics enthusiasts, hobbyists, and science project creators. Whether you're working on a battery-powered electronics project or conducting research, this meter provides reliable and precise results for battery capacity testing.

With an easy-to-use design and the ability to measure battery capacity in real-time, this tester helps users to make informed decisions about battery performance. The ZB2L3 is designed with high precision, offering a maximum capacity range of up to 9999Ah (9999000mAh), which covers a wide spectrum of battery sizes. Whether you're a beginner or an experienced professional, this tester is a must-have for anyone dealing with rechargeable batteries in their electronics projects.

Product Specifications

Features

• Precise battery discharge capacity measurement from 1.2V to 12V
• Supports a wide range of battery types, including 18650 Li-ion batteries
• Real-time capacity measurement for accurate results
• Maximum capacity of 9999Ah for comprehensive testing
• Adjustable termination voltage for customized testing

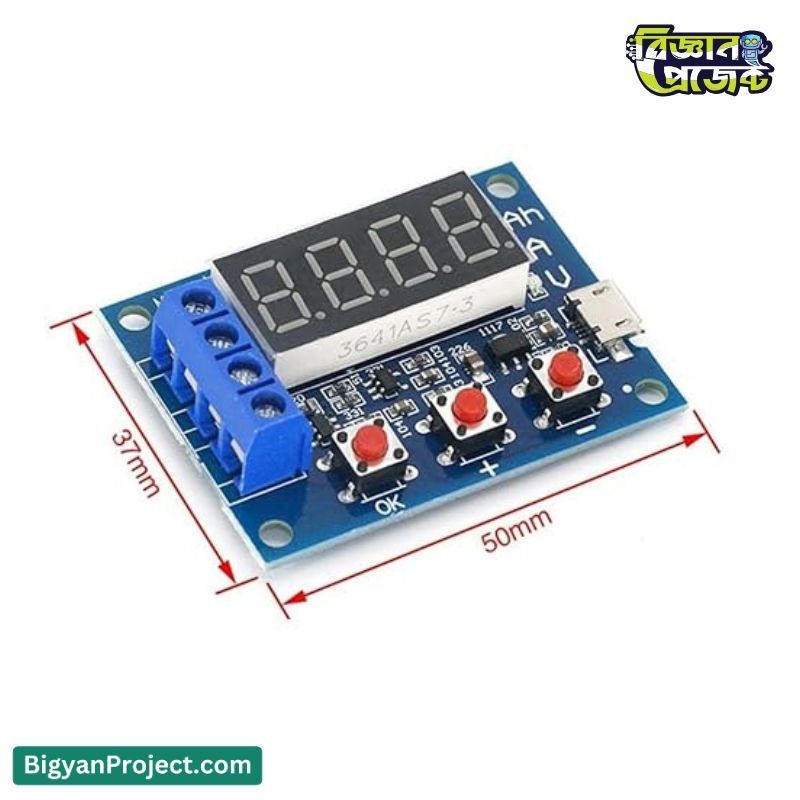

• Compact and portable design for easy handling

Applications / Use Cases

The ZB2L3 Battery Capacity Tester is perfect for a variety of applications, including:

• Testing 18650 Li-ion batteries for DIY electronics projects
• Battery performance evaluation for science experiments
• Testing battery capacity for power tools, electric vehicles, and more
• Research and development in battery technology
• Hobbyist projects and electronics design

User Guide / How to Use

To use the ZB2L3 Battery Capacity Tester, follow these simple steps:

• Ensure the battery is fully charged before testing.

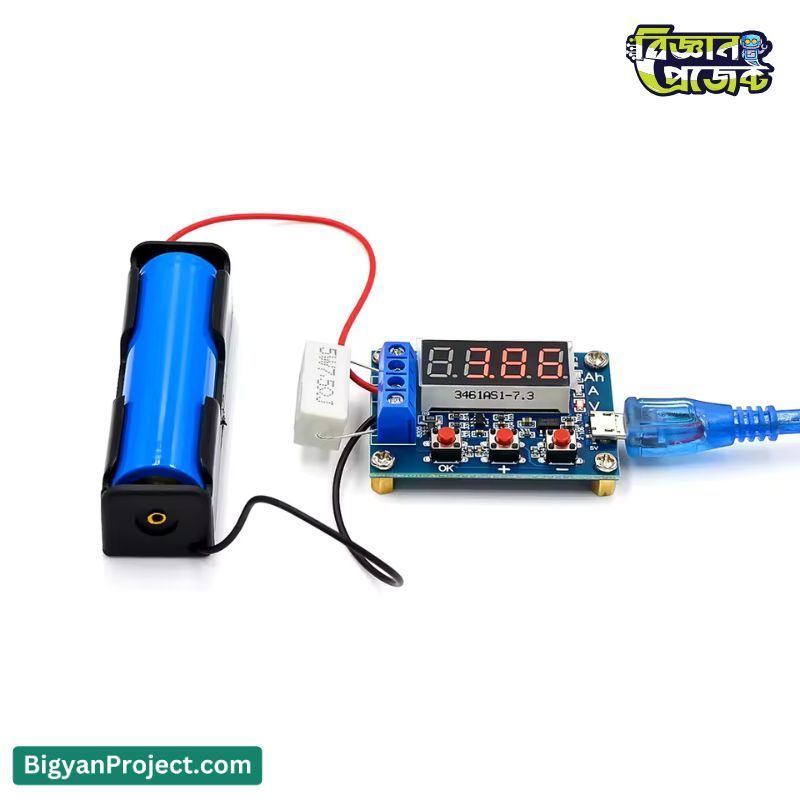

• Connect the positive terminal of the battery to the positive input and the negative terminal to the negative input of the tester.

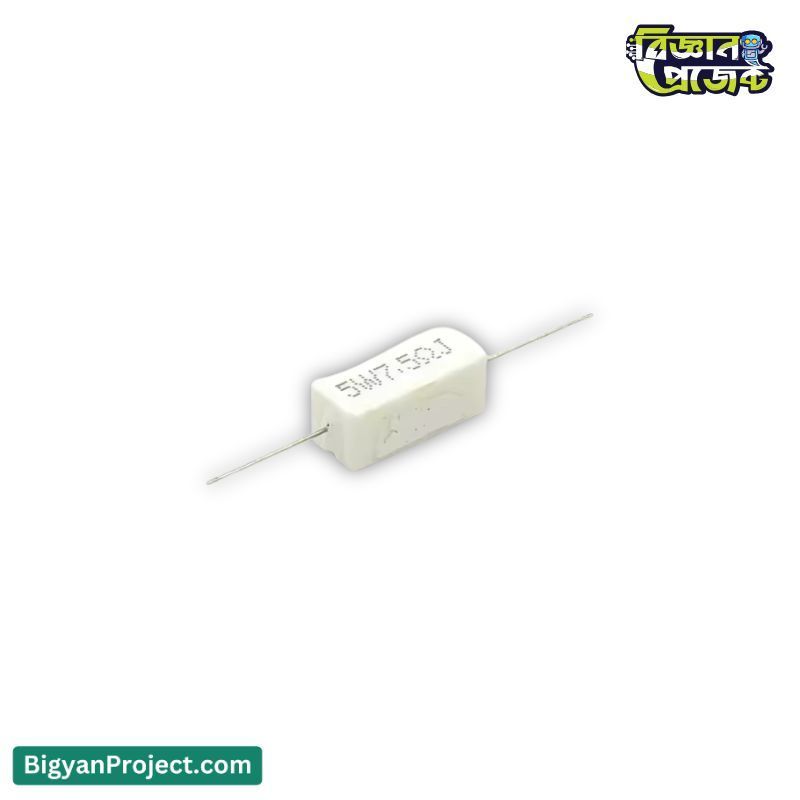

• Connect the load to the output terminals of the tester.
• Power the tester using a micro USB cable (do not power through a desktop or laptop USB).
• Press the "OK" button to start the test. The tester will automatically determine the termination voltage based on the battery's full charge voltage.
• Once the battery reaches the set termination voltage, the tester will stop the discharge, displaying the total discharged capacity.

Frequently Asked Questions (FAQs)

• Can this tester measure any type of rechargeable battery? Yes, the ZB2L3 supports testing for a wide range of rechargeable batteries including 18650 Li-ion batteries and more.
• Is the tester portable? Yes, it is designed with a compact form factor, making it easy to transport and use for on-the-go testing.
• What should I do if the tester shows an error code? Follow the error code guide provided in the manual. For example, Err1 means the battery voltage is above 15V.

Challenges and Considerations

While the ZB2L3 is a highly accurate and reliable tester, there are a few challenges to keep in mind:

• The discharge process generates heat, so make sure to use the tester in a well-ventilated area to avoid overheating.
• Ensure that the battery is connected correctly to avoid potential damage to the tester.
• Always check the battery's voltage before testing to ensure it is within the acceptable range.

Compatibility

The ZB2L3 Battery Capacity Tester is compatible with a wide range of battery types, including:

• 18650 Li-ion batteries
• Lead-acid batteries
• Other rechargeable battery types from 1.2V to 12V

Future Enhancement Options

In the future, enhancements could include:

• Support for higher voltage ranges (above 15V)
• Integration with wireless technology for remote monitoring
• Improved error detection and troubleshooting features

Benefits

• Accurate and real-time testing of battery capacity
• Portable and easy-to-use design
• Highly versatile, supporting various battery types
• Helps optimize battery performance for better project outcomes

Conclusion

The ZB2L3 18650 Li-ion Battery Capacity Tester is an essential tool for anyone working with rechargeable batteries. Its accuracy, ease of use, and versatility make it an indispensable device for hobbyists, students, and professionals alike. Whether you're testing batteries for DIY electronics, science experiments, or developing new technologies, this tester will provide you with reliable results to help you make informed decisions. Available exclusively at Bigyan Project, your trusted source for high-quality electronics tools and components.
