BMP280 Barometric Pressure & Altitude Sensor Module I2C/SPI

BMP280 I2C/SPI Precision Atmospheric Pressure, Temperature and Altitude Sensor Module

The BMP280 Barometric Pressure Sensor Module is a compact and highly accurate environmental sensing solution designed for measuring atmospheric pressure, ambient temperature, and approximate altitude. Built around a Bosch digital pressure sensor, this module delivers stable readings with extremely low power consumption, making it ideal for battery-powered and portable electronics.

Because atmospheric pressure varies with altitude, the BMP280 can also function as an altimeter, allowing developers and students to estimate elevation changes in real time. This makes it useful in weather monitoring systems, drones, robotics, GPS enhancement, indoor navigation, and IoT automation projects. The module supports both I2C and SPI communication protocols, allowing flexible integration with microcontrollers such as Arduino, ESP32, ESP8266, Raspberry Pi, and STM32. It is commonly used in educational and DIY electronics projects, including those developed by students working with Bigyan Project learning materials and tutorials.

The sensor provides precise measurements while maintaining minimal current draw. Its small size allows it to be easily mounted in compact embedded systems where space and power efficiency are critical.

Product Specifications

Features

• Measures atmospheric pressure, temperature, and approximate altitude
• Supports both I2C and SPI communication
• Low power consumption suitable for battery devices

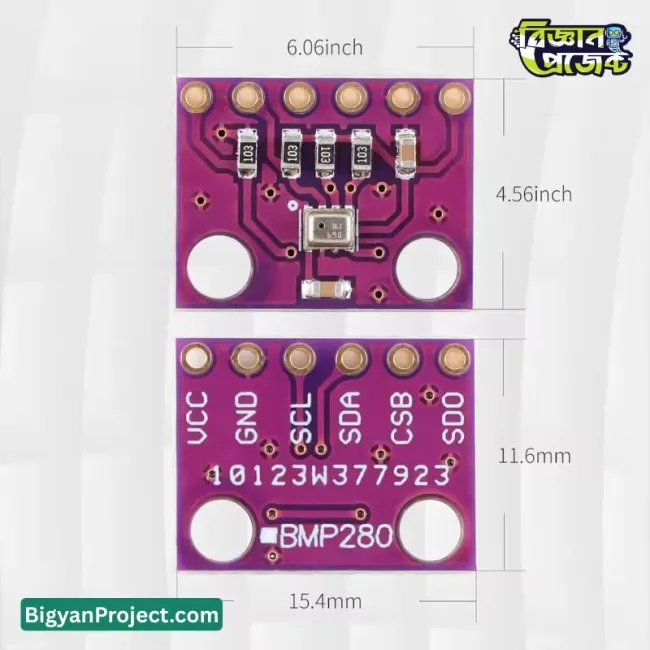

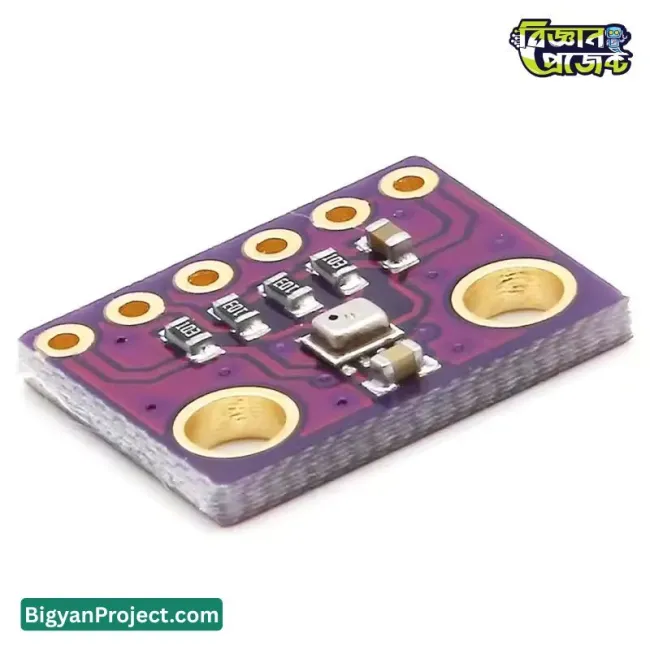

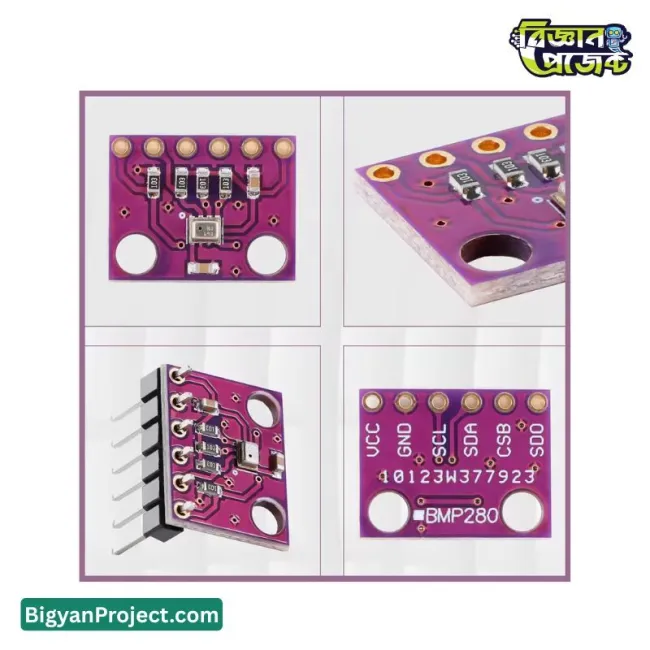

• Compact breakout board design
• High precision Bosch sensing element
• Stable and low-noise altitude measurement
• Suitable for indoor and outdoor environmental sensing
• Available libraries for Arduino and microcontrollers

Applications / Use Cases

• Weather monitoring stations
• Drone altitude measurement
• Robotics navigation systems
• Home automation and IoT systems
• Indoor floor detection and elevator detection
• Portable altimeter projects
• Educational STEM projects and experiments from Bigyan Project
• GPS accuracy enhancement systems

User Guide / How to Use

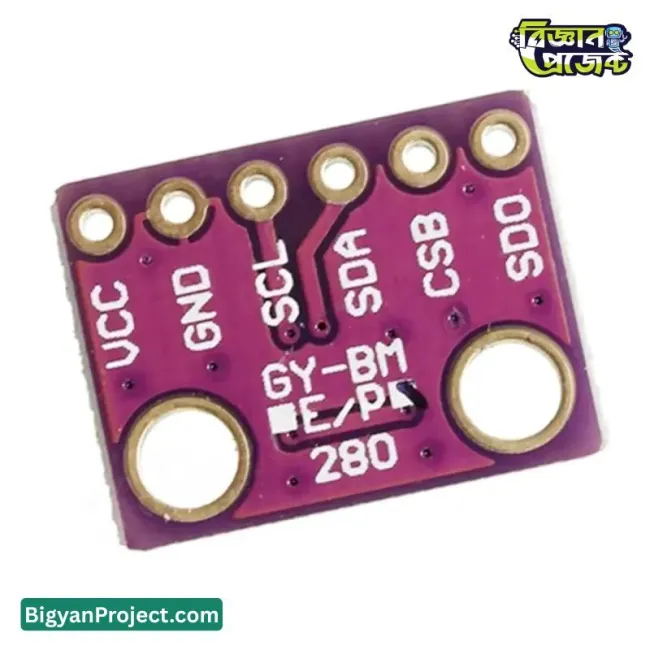

• Connect VCC to 3.3V supply
• Connect GND to common ground
• For I2C connect SDA and SCL to the microcontroller I2C pins
• For SPI connect SCK, MISO, MOSI, and CS pins
• Install BMP280 library in Arduino IDE
• Upload example code to read pressure and temperature
• Convert pressure readings to altitude using formulas or library functions

Frequently Asked Questions (FAQs)

• Q: Can I power the BMP280 from 5V?
  A: No. The sensor is designed for 3.3V operation. Use a 3.3V regulated supply or a logic level converter.
• Q: What is the difference between BMP180 and BMP280?
  A: BMP280 provides higher accuracy, lower noise, and lower power consumption compared to older BMP180 sensors.
• Q: Does it measure humidity?
  A: No. BMP280 measures only pressure and temperature.
• Q: Can it calculate altitude automatically?
  A: The sensor measures pressure and the microcontroller calculates altitude using a standard formula or library.
• Q: Is it suitable for outdoor weather monitoring?
  A: Yes, it is widely used in DIY weather stations including projects built by Bigyan Project learners.

Challenges and Considerations

• Requires 3.3V logic compatibility
• Needs calibration reference pressure for accurate altitude
• Sensitive to rapid temperature changes
• Incorrect wiring may prevent I2C detection
• Altitude values vary with weather pressure changes

Compatibility

• Arduino Uno (with level shifting recommended)
• Arduino Nano
• ESP8266 NodeMCU
• ESP32 Development Board
• Raspberry Pi
• STM32 Microcontrollers

Future Enhancement Options

• Add OLED display for live altitude display
• Integrate with GPS modules for navigation tracking
• Build a wireless weather station using WiFi
• Data logging with SD card module
• Cloud monitoring with IoT platforms

Benefits

• Improves GPS positioning accuracy
• Provides real-time environmental monitoring
• Very low power consumption
• Small size ideal for embedded systems
• Easy to integrate into DIY electronics
• Suitable for education and research

Conclusion

The BMP280 sensor module is a reliable and precise solution for measuring atmospheric pressure and estimating altitude in electronics and IoT projects. Its low power usage, compact design, and flexible communication interfaces make it an excellent choice for students, hobbyists, and developers working on environmental sensing systems with resources and guides available from Bigyan Project.
