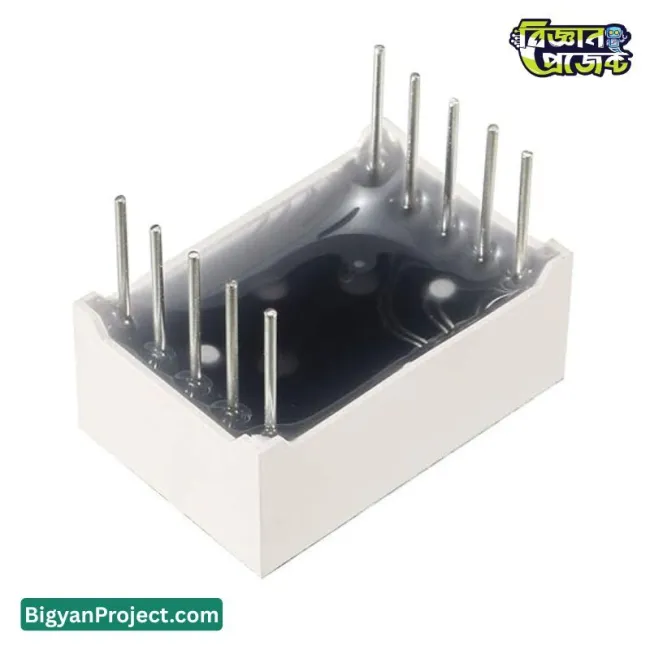

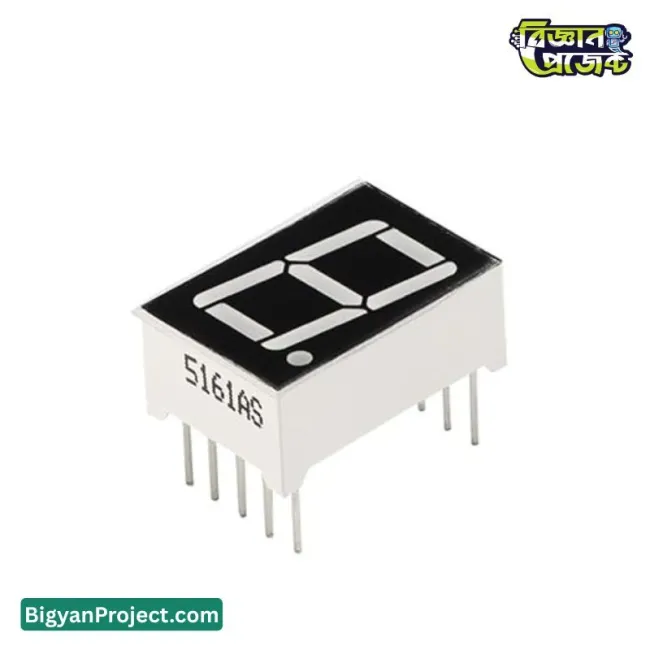

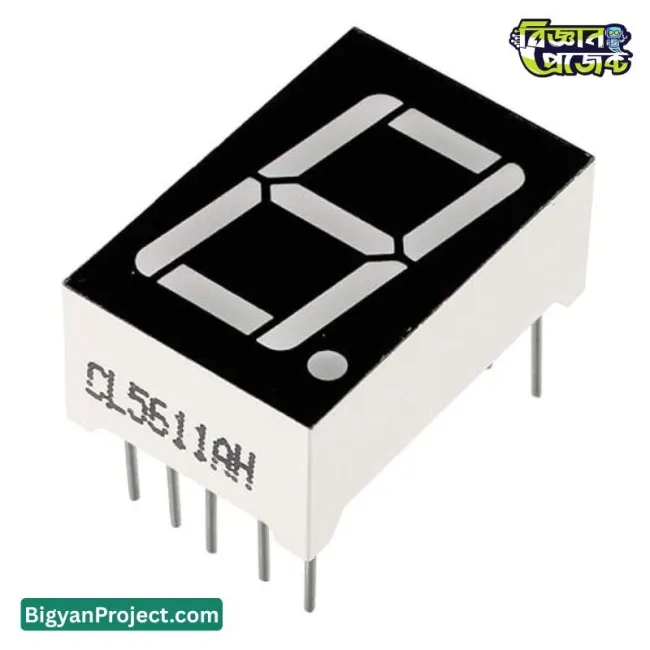

0.56 Inch 1 Digit Red 7 Segment LED Display 10 Pin

0.56 Inch 1 Digit Red 7 Segment LED Numeric Display Common Cathode 10 Pin

The 0.56 inch single digit red 7 segment LED display is a compact numeric indicator designed for electronic measurement and control systems. It provides a clear and readable numeric output using seven individual LED segments arranged to form digits 0–9. Due to its low power consumption and simple interface, the display is widely used in Arduino projects, digital counters, clocks, panel meters, and student learning kits. Many tutorials at Bigyan Project also use this type of display for basic electronics education and microcontroller practice.

This display uses a Common Cathode configuration, meaning all LED cathodes are internally connected together. Each segment is activated individually by applying a positive voltage to its corresponding pin through a current-limiting resistor. The bright red AlGaAs LED chips provide high contrast visibility even in indoor lighting conditions, while the standard 10-pin DIP layout allows easy installation on PCB boards and breadboards.

Product Specifications

Features

• Bright red LED segments for clear visibility
• Low current consumption suitable for battery projects
• Standard 10-pin DIP package
• Breadboard friendly pin spacing
• Easy interface with microcontrollers
• Reliable numeric display from 0 to 9
• High contrast black faceplate
• Suitable for educational electronics learning at Bigyan Project

Applications / Use Cases

• Digital clocks and timers
• Frequency counters
• Arduino and microcontroller projects
• Voltage and current meters
• Temperature display systems
• Scoreboards and simple calculators
• Industrial panel indicators
• Student robotics and DIY learning kits

User Guide / How to Use

• Identify the common cathode pins from the datasheet or segment diagram
• Connect common cathode pins to ground (GND)
• Connect each segment pin through a 220Ω–330Ω resistor
• Control segment pins using Arduino or logic IC outputs
• Apply HIGH signal to turn on a segment
• Combine segments to display digits 0–9
• Use multiplexing if operating multiple displays

Frequently Asked Questions (FAQs)

• Q: Is this a common anode display?
  A: No, this model is a Common Cathode display.
• Q: Do I need resistors?
  A: Yes, each segment must use a current limiting resistor to prevent LED damage.
• Q: Can it work with Arduino?
  A: Yes, it directly interfaces with Arduino digital pins.
• Q: What voltage is required?
  A: Each LED segment operates at approximately 2.2V forward voltage.
• Q: Can I connect multiple displays together?
  A: Yes, by using multiplexing techniques with a microcontroller.

Challenges and Considerations

• Requires current limiting resistors for every segment
• Brightness decreases if powered directly from weak GPIO pins
• Multiple displays require multiplexing programming
• Not suitable for long distance viewing
• Needs correct polarity wiring

Compatibility

• Arduino Uno, Nano, Mega
• ESP32 and ESP8266 boards
• 8051 and PIC microcontrollers
• BCD to 7 segment driver ICs (such as 7447/4511)
• Shift registers like 74HC595
• Educational kits used in Bigyan Project tutorials

Future Enhancement Options

• Add multiple digits using multiplexing
• Integrate with RTC modules for clock projects
• Use MAX7219 driver IC for easier control
• Combine with sensors to build smart meters
• Integrate into robotics status displays

Benefits

• Simple and beginner friendly
• Very low cost numeric display solution
• Easy to program and understand
• Reliable and durable LED technology
• Perfect for learning electronics and embedded systems

Conclusion

The 0.56 inch 1 digit red 7 segment LED display is a practical and educational component for electronics development. Its clear visibility, easy wiring, and compatibility with common microcontrollers make it an ideal choice for both beginners and advanced hobbyists. Whether building a counter, clock, or measurement device, this display provides a dependable numeric interface widely used in Bigyan Project learning resources.
