NTC 3 Pin Temperature Sensor Module for Arduino

NTC 3 Pin Temperature Sensor Module for Arduino – Precision Temperature Control for Electronics Projects

The NTC 3 Pin Temperature Sensor Module for Arduino is designed for precision temperature monitoring and control. This versatile module allows electronics enthusiasts, students, and hobbyists to easily integrate temperature sensing capabilities into their projects. Whether you’re working on a temperature-controlled fan system, environmental monitoring, or automation, this module offers reliable, accurate readings with a digital output that makes integration a breeze.

Product Overview / Introduction

The NTC 3 Pin Temperature Sensor Module for Arduino is an essential tool for anyone working with temperature-sensitive electronics projects. Built with an NTC thermistor, the module offers high sensitivity and accurate temperature readings. It operates with a wide range of 3.3V to 5V, making it ideal for most microcontroller projects. With its simple digital output (0 and 1), it is easy to interface with microcontrollers like Arduino, and can be used to trigger relays or other devices based on the detected temperature. The ability to adjust the temperature threshold via a potentiometer adds flexibility, making it suitable for various temperature control applications.

Product Specifications

Features

• High sensitivity NTC thermistor sensor
• Digital output (0 and 1) for easy microcontroller integration
• Adjustable temperature threshold via potentiometer
• Works with voltages from 3.3V to 5V, compatible with most microcontrollers

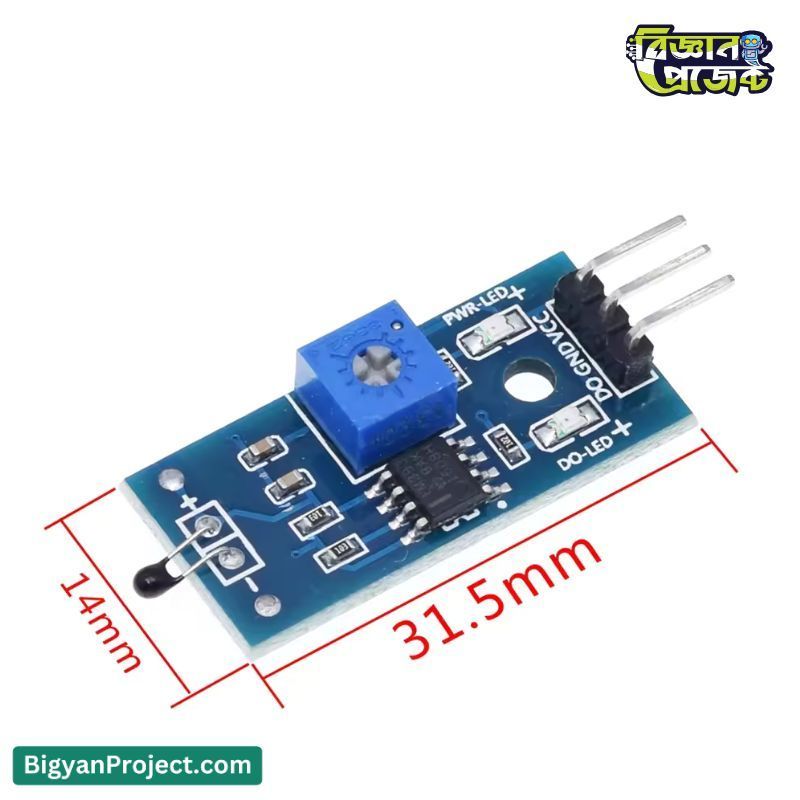

• Small and compact design (3.2cm x 1.4cm)
• LM393 wide voltage comparator for clean, stable output
• Easy installation with fixed bolt holes
• Temperature range from 20°C to 80°C

Applications / Use Cases

The NTC 3 Pin Temperature Sensor Module is perfect for a variety of applications, including:

• Temperature-sensitive projects requiring precise control
• Environmental monitoring systems
• DIY thermostat projects for controlling heating or cooling devices
• Temperature-controlled fan or heater systems
• Water temperature regulation for aquatic environments
• Automated agricultural systems

User Guide / How to Use

Using the NTC 3 Pin Temperature Sensor Module is simple. Follow these steps for integration:

1. Connect the module’s 3 pins (VCC, GND, and DO) to your Arduino board.
2. Power the module using a 3.3V to 5V supply.
3. Adjust the temperature threshold using the potentiometer on the module to set the desired temperature trigger point.
4. Monitor the digital output pin (DO) to detect the temperature change – it will switch between 0 and 1 based on the temperature threshold.
5. Use the output to trigger devices like fans, relays, or other systems to control temperature-sensitive devices.

Frequently Asked Questions (FAQs)

• What is the temperature range of the NTC sensor? The temperature range is from 20°C to 80°C.
• Can I use this module with an Arduino? Yes, this module is fully compatible with Arduino and other microcontroller platforms.
• How do I adjust the temperature detection threshold? You can adjust the threshold using the potentiometer on the module.
• What is the output type of this module? The module provides a digital output (0 and 1).
• Is this module suitable for DIY temperature control projects? Yes, this module is ideal for DIY projects that require temperature control, such as fan control or thermostat applications.

Challenges and Considerations

While the NTC 3 Pin Temperature Sensor Module offers accurate temperature readings, users should be aware that the module’s performance is dependent on ambient environmental conditions. Ensure that the sensor is placed in a location where temperature fluctuations are minimal, and consider additional calibration for precise results. The temperature range of 20°C to 80°C may not cover all applications, so it’s important to verify the module's suitability for your specific project before use.

Compatibility

This sensor module is compatible with most Arduino boards, including Arduino Uno, Arduino Nano, and Arduino Mega. It can also be used with other microcontrollers and development boards that support 3.3V to 5V operation. Additionally, the module can be integrated with relay modules and other temperature-controlled devices for automation tasks.

Future Enhancement Options

In the future, the NTC 3 Pin Temperature Sensor Module could be enhanced by incorporating wireless communication for remote monitoring or by expanding the temperature range to cover extreme conditions. Additionally, the integration of an analog output option could provide finer control for applications requiring continuous monitoring rather than just a binary output.

Benefits

With its high sensitivity and ease of use, the NTC 3 Pin Temperature Sensor Module for Arduino is an excellent addition to any project requiring temperature control or monitoring. The ability to adjust the temperature threshold makes it highly versatile, while its simple digital output ensures easy integration with microcontrollers. Whether you're a beginner or an advanced user, this module provides a reliable solution for your temperature-related needs.

Conclusion

In summary, the NTC 3 Pin Temperature Sensor Module for Arduino is a valuable tool for temperature-sensitive projects. With its adjustable temperature threshold, easy installation, and compatibility with various microcontroller platforms, it’s the ideal choice for DIY enthusiasts, students, and professionals. Its ability to provide reliable temperature monitoring and control makes it perfect for a range of applications, from environmental monitoring to automation systems. If you’re looking for an affordable, high-quality temperature sensor module, this is a great option for your next project.

For more information and to explore a wide range of Arduino-related products, visit Bigyan Project or বিজ্ঞান প্রজেক্ট, your go-to source for affordable and high-quality electronics and robotics solutions in Bangladesh.
