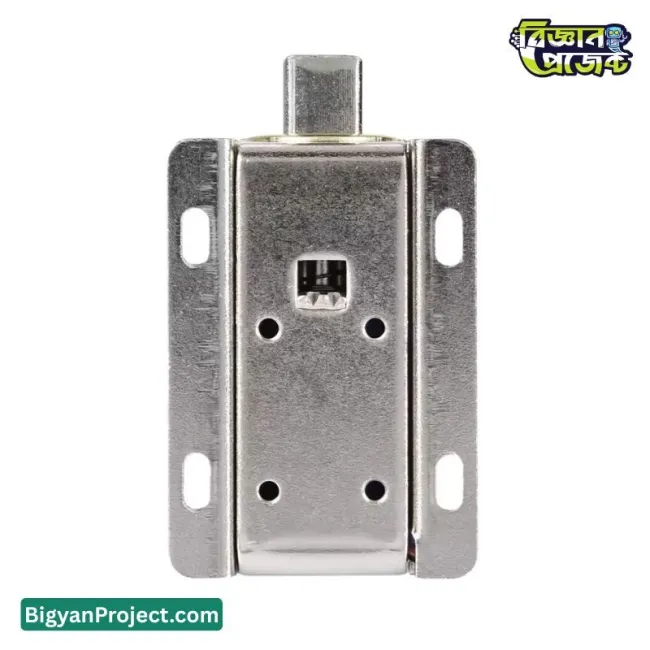

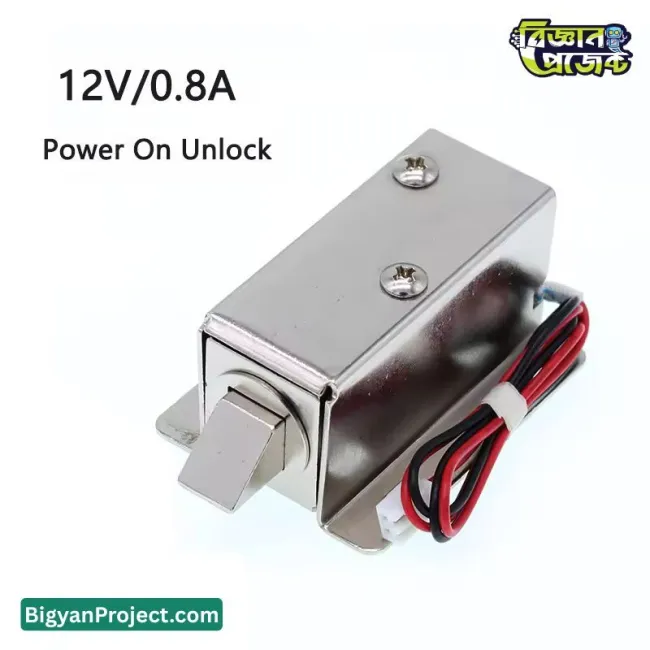

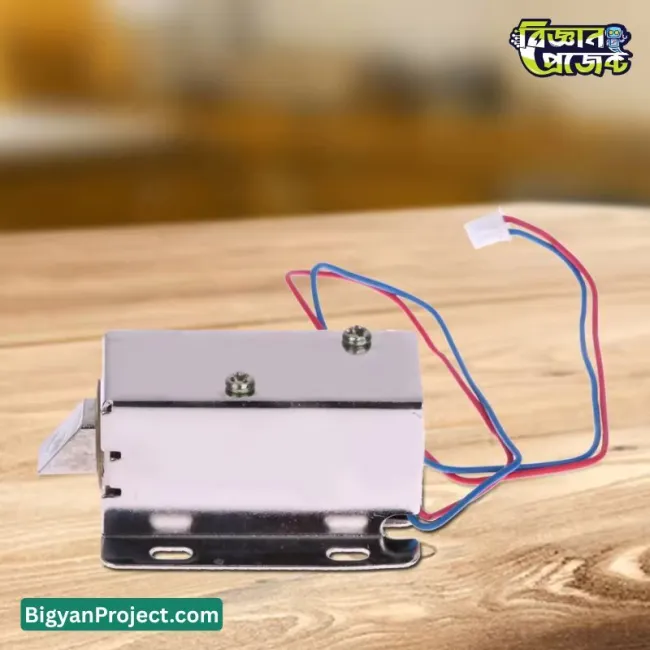

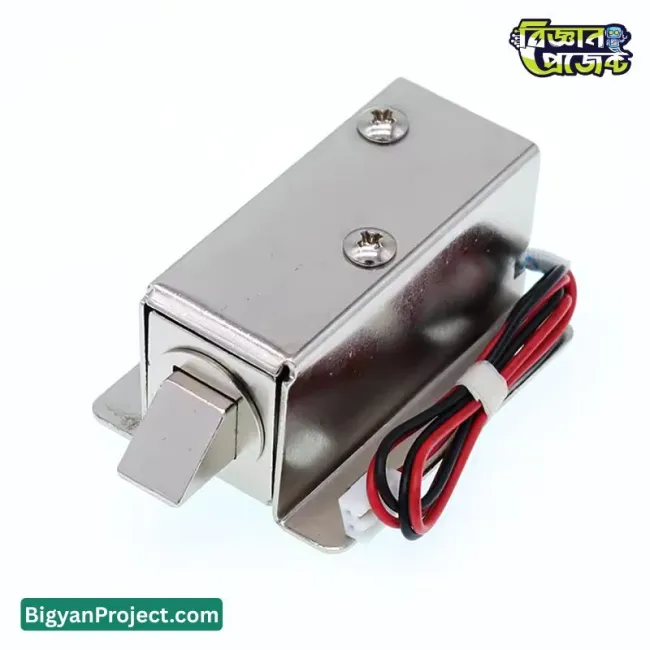

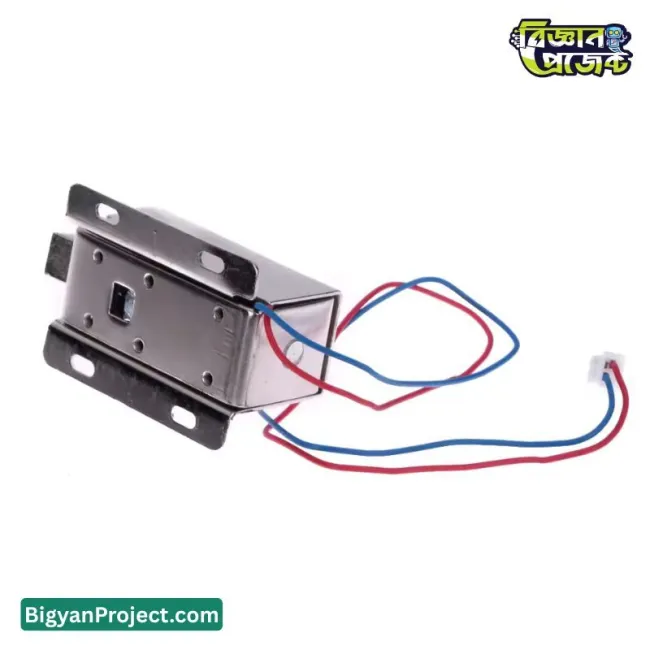

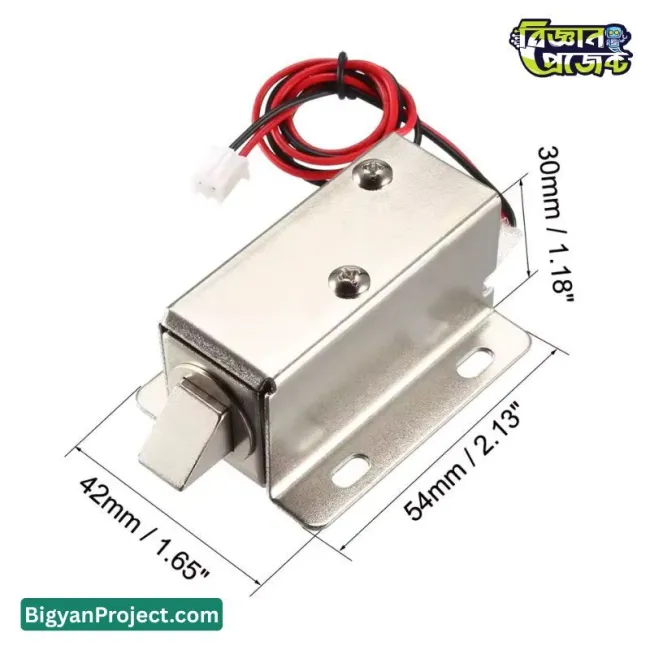

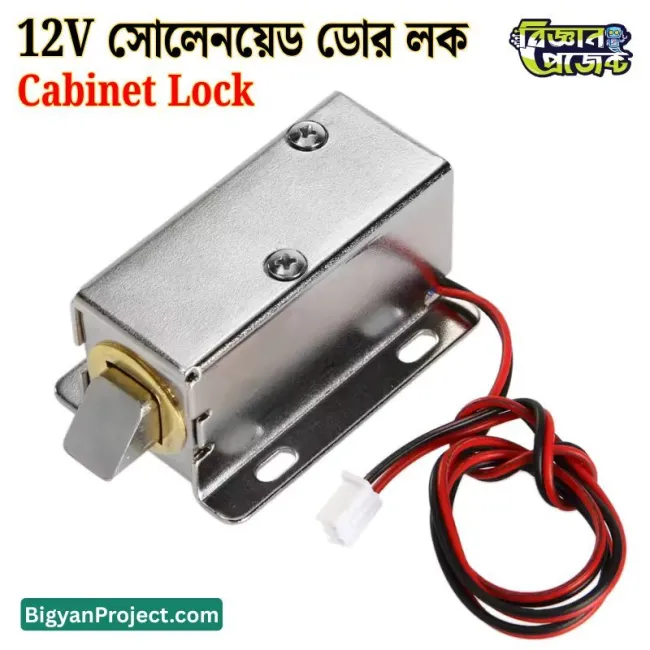

12V Solenoid Door Lock Electromagnetic Cabinet Lock

DC12V Solenoid Electromagnetic Door Lock for Secure Cabinet Systems

The DC12V Solenoid Door Lock is a compact and reliable electromagnetic locking solution designed for modern electronic security systems. Widely used in cabinets, drawers, safes, and access-controlled doors, this lock operates on a fail-secure principle, meaning it remains locked when power is off and unlocks instantly when energized. This behavior makes it ideal for controlled environments where security is a priority.

Engineered for low power consumption and stable performance, this solenoid-based lock is suitable for DIY electronics projects, institutional security setups, and automation systems. At Bigyan Project and বিজ্ঞান প্রজেক্ট, this type of solenoid lock is commonly used in student projects, Arduino-based access control systems, and industrial training kits.

Product Specifications

Features

• Compact solenoid-based electromagnetic locking mechanism
• Fail-secure operation for enhanced safety
• Low power consumption suitable for continuous use
• Fast response unlocking within one second
• Durable and rust-resistant body
• Easy integration with electronic control systems
• Ideal for DIY and professional security projects

Applications / Use Cases

• Electronic cabinet and drawer locking systems
• RFID and keypad-based access control projects

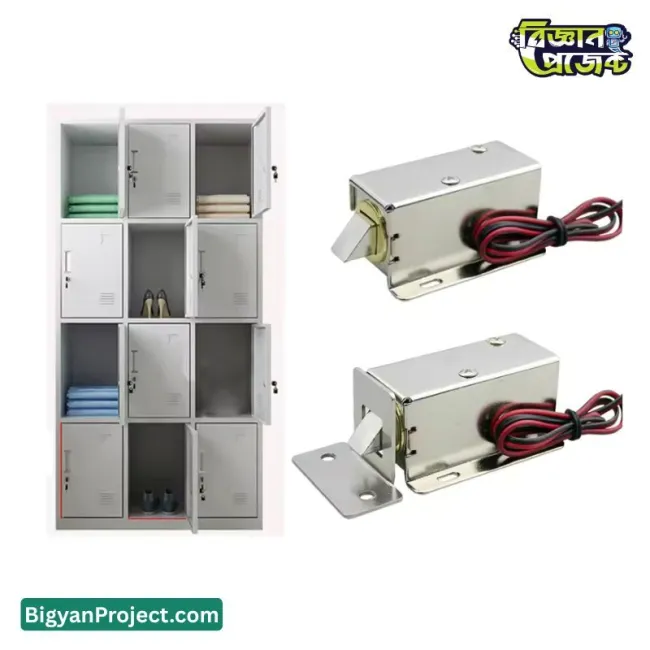

• Smart lockers and storage units
• School and laboratory equipment cabinets
• Office and industrial safety enclosures
• Arduino and ESP-based automation projects from Bigyan Project

User Guide / How to Use

• Mount the solenoid lock securely inside the cabinet or door frame
• Ensure proper alignment between bolt and strike plate
• Connect the lock to a stable DC12V power supply
• Integrate a relay, switch, or access controller in series
• Test locking and unlocking before final installation

Frequently Asked Questions (FAQs)

• Q: Does the lock stay closed if there is no power?
  A: Yes, it operates in fail-secure mode and remains locked when power is off.
• Q: Can this lock be used with Arduino or ESP modules?
  A: Yes, it is commonly used with Arduino, ESP8266, and ESP32 using a relay module.
• Q: Is it suitable for outdoor use?
  A: It is rust-proof but recommended for indoor or covered installations.
• Q: How fast does the lock unlock?
  A: The unlocking response time is approximately one second.

Challenges and Considerations

• Requires a stable DC12V power supply
• Not suitable for heavy doors due to compact size
• Proper alignment is essential for smooth operation
• Continuous power may generate mild heat in long usage

Compatibility

• Arduino Uno, Nano, Mega
• ESP8266 and ESP32 boards
• Relay modules and access control boards
• RFID readers and keypad systems
• Smart home and automation controllers

Future Enhancement Options

• Integration with IoT-based mobile control systems
• Connection with biometric access modules
• Battery backup system for power failure protection
• Smart monitoring using sensors and alerts

Benefits

• Improves security of cabinets and storage units
• Easy to install and maintain
• Reliable locking mechanism with fast response
• Supports educational and industrial projects
• Widely supported in Bigyan Project learning kits

Conclusion

The DC12V Solenoid Electromagnetic Door Lock is a practical and efficient solution for secure cabinet and access control applications. Its fail-secure design, compact form factor, and compatibility with popular microcontrollers make it a trusted choice for students, hobbyists, and professionals working with Bigyan Project and বিজ্ঞান প্রজেক্ট platforms.
