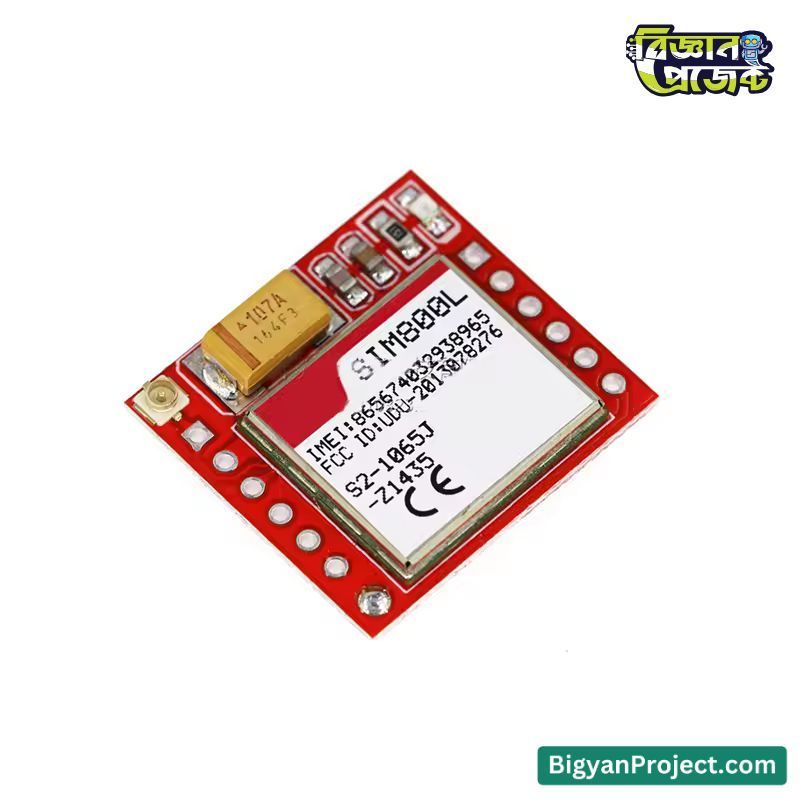

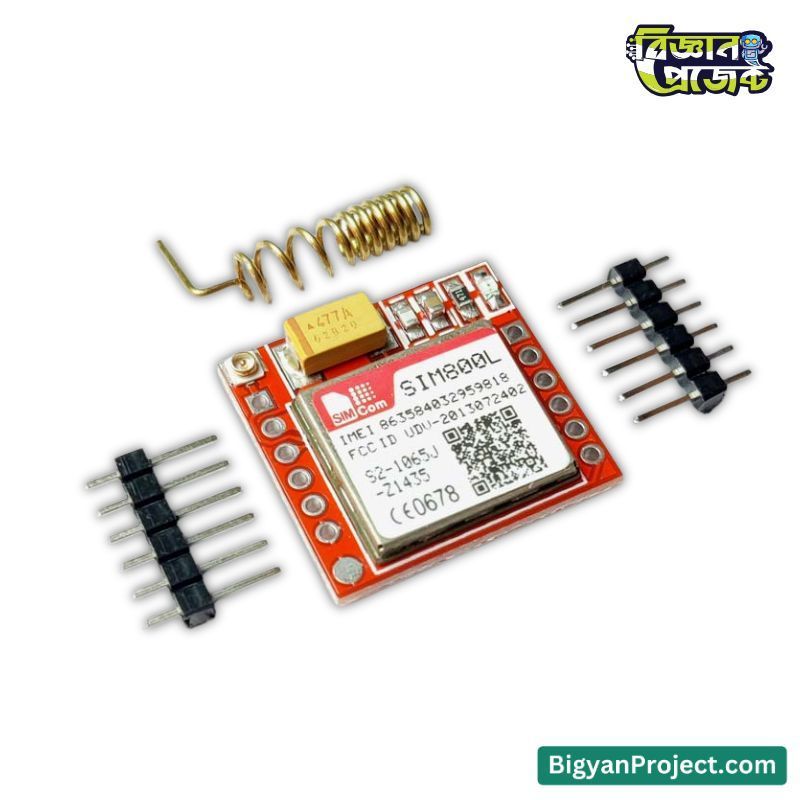

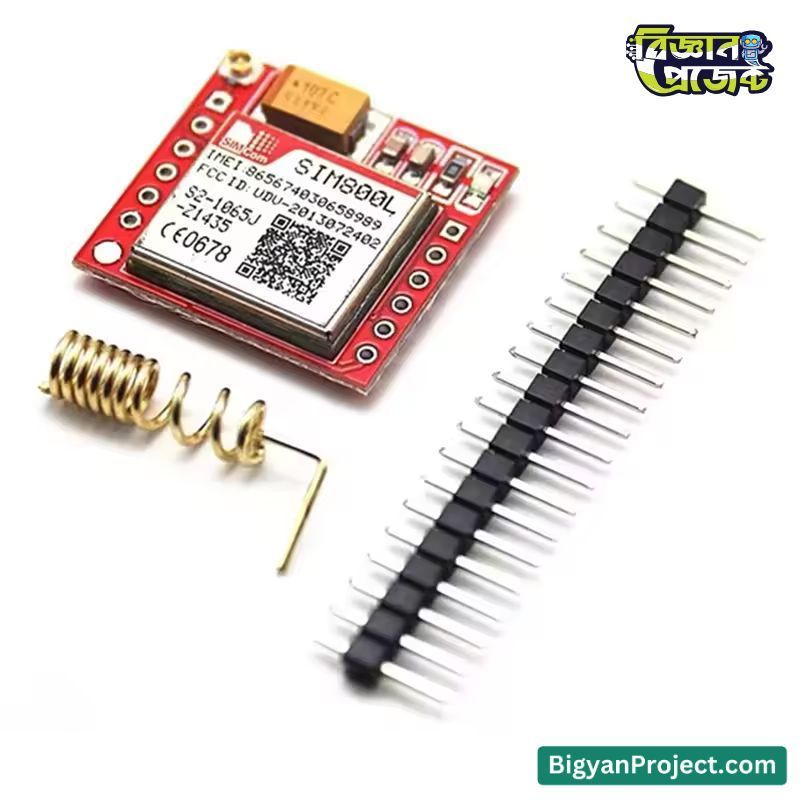

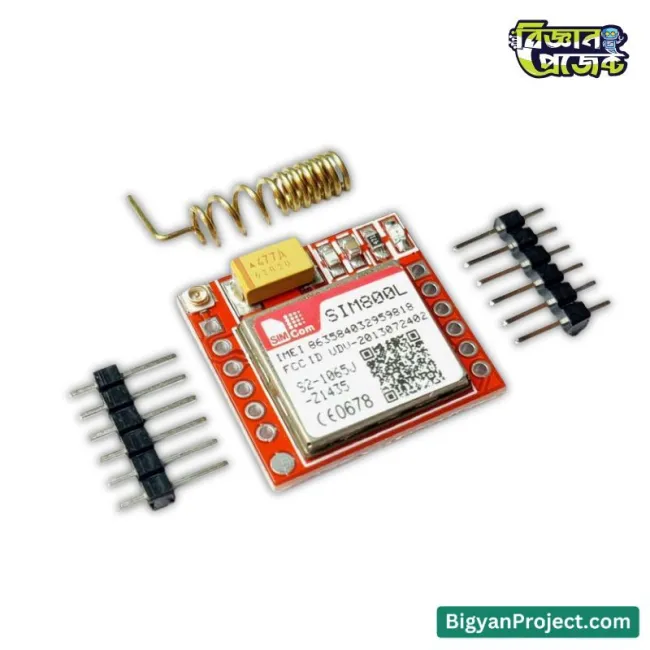

SIM800L GSM GPRS Module with Antenna

Advanced SIM800L GSM GPRS Module for IoT Projects

The SIM800L GSM GPRS Module is a reliable communication solution designed to add mobile network capabilities to your electronic projects. Whether you are working on home automation, industrial monitoring, or remote control systems, this compact and powerful board is engineered to deliver stable connectivity with quad-band support. Bigyan Project offers this high-quality module with an antenna and micro SIM slot for easy integration and strong signal reception, making it an ideal choice for hobbyists, students, and professionals alike.

Product Specifications

Features

• Quad-band GSM/GPRS support for global coverage

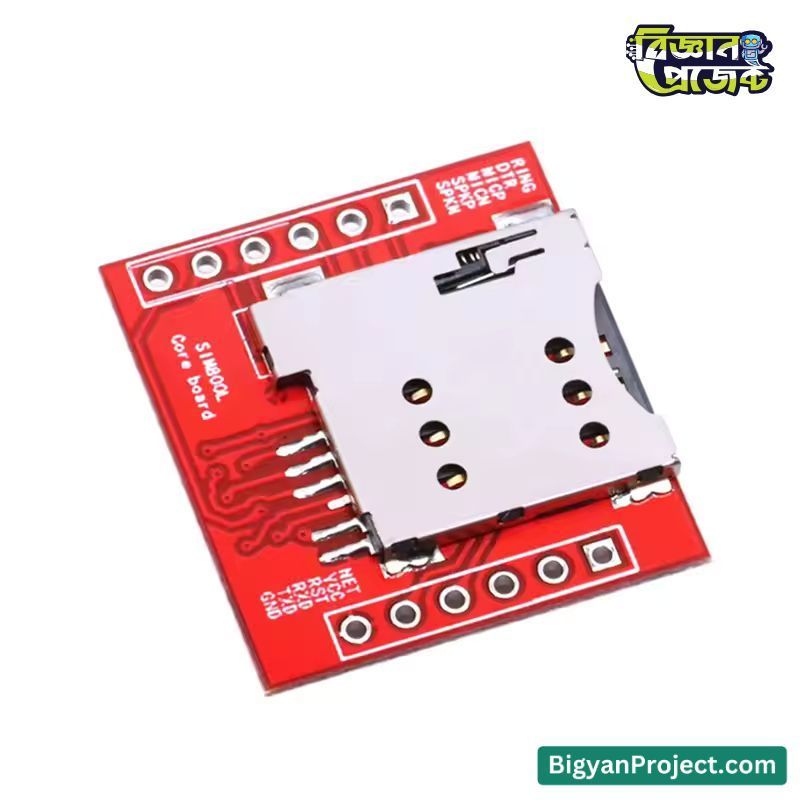

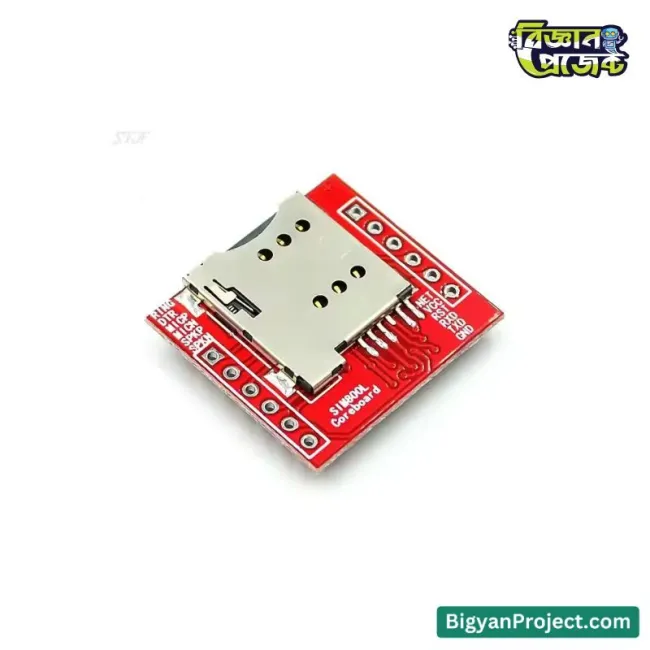

• Micro SIM card slot for easy network integration

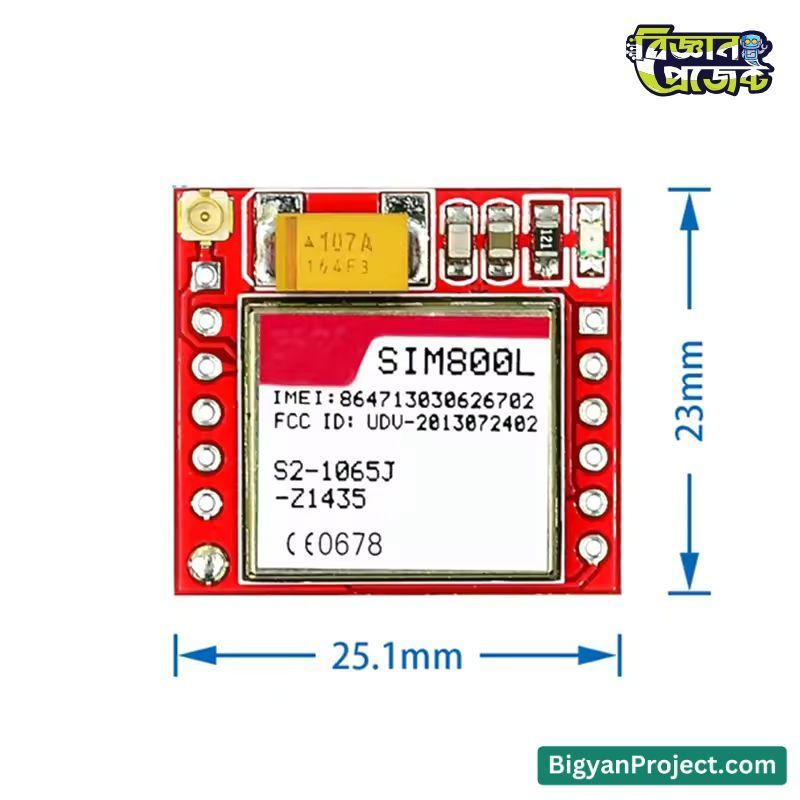

• Compact design suitable for space-constrained projects
• Low power consumption with sleep and idle modes
• Stable UART interface for reliable communication
• IPX antenna connector for strong signal reception
• LED indicator for module status monitoring
• Wide operating temperature range for harsh environments

Applications / Use Cases

• Home security and alarm systems with SMS alerts
• Remote control of electrical devices via SMS
• IoT projects requiring mobile data connectivity
• Smart agriculture monitoring and reporting
• Industrial automation with remote notifications
• GPS tracking systems with GSM communication
• Remote data logging and environmental sensing

User Guide / How to Use

To use the SIM800L GSM GPRS Module, first ensure you have a regulated 5V power supply capable of providing peak currents up to 2A for reliable operation. Insert a micro SIM card with active SMS or data services into the slot on the module. Connect the module's RX and TX pins to your microcontroller's UART interface, ensuring voltage levels do not exceed 2.8V to avoid damage. Use AT commands to configure and control the module for sending SMS, making calls, or establishing GPRS connections. Bigyan Project also provides support for integrating this module into popular platforms like Arduino and ESP32, making your development smoother.

Frequently Asked Questions (FAQs)

• Does this module work with 2G networks?
• Yes, the SIM800L supports quad-band 2G networks for global compatibility.
• What power supply should I use?
• Use a stable 5V power supply with at least 2A peak current capability.
• Can I use this with Arduino?
• Yes, it is fully compatible with Arduino, ESP32, Raspberry Pi, and other controllers with UART interface.
• How do I send SMS?
• By using standard AT commands over the serial interface to set up and send SMS messages.

Challenges and Considerations

• Requires careful power supply planning to avoid brownouts during peak transmission.
• Serial voltage levels must be adapted if using 5V logic controllers.
• Network coverage may vary by region, check local carrier support for 2G.
• Heat management is recommended for continuous operation in warm environments.

Compatibility

• Compatible with Arduino, ESP8266, ESP32, Raspberry Pi, and other microcontrollers supporting UART.
• Supports AT command sets for easy integration with existing software frameworks.
• Works with micro SIM cards from most global carriers supporting 2G networks.

Future Enhancement Options

• Integration with cloud services for IoT dashboards.
• Battery backup circuits for portable projects.
• Advanced automation with sensor fusion and machine learning on edge devices.
• Upgrading to 3G or LTE modules for better network coverage where 2G is phased out.

Benefits

• Affordable solution for adding GSM connectivity to any project.
• Easy to integrate with popular development boards.
• Low power operation supports battery-powered designs.
• Reliable SMS and GPRS communication for remote monitoring.
• Compact footprint for space-constrained enclosures.
• Trusted by hobbyists, students, and professionals at Bigyan Project for quality and support.

Conclusion

The SIM800L GSM GPRS Module is a versatile and cost-effective way to bring mobile network features to your electronics projects. With its reliable quad-band support, low power consumption, and easy-to-use UART interface, it is the perfect choice for remote monitoring, automation, and IoT systems. Bigyan Project is proud to offer this essential module to help you innovate and build smarter solutions with confidence.
