Fire Alarm Science Project Without Arduino

Complete DIY Fire Detection Kit Without Arduino

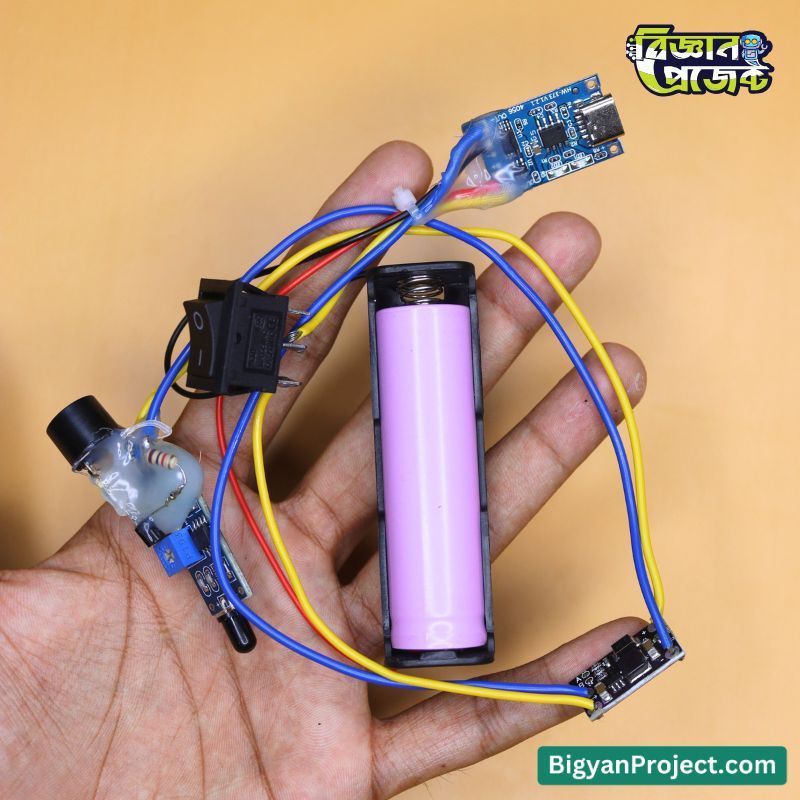

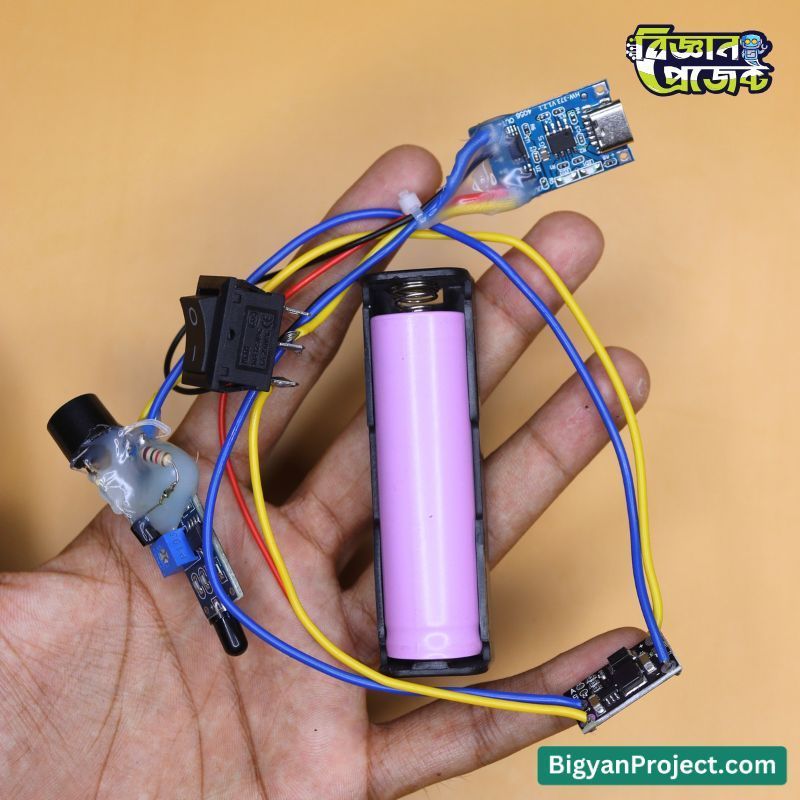

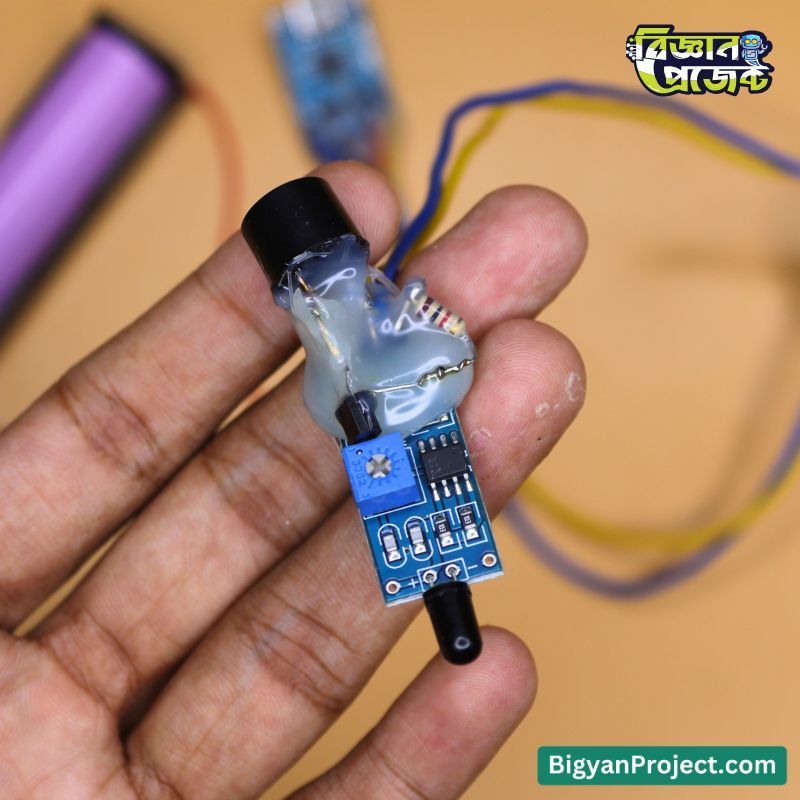

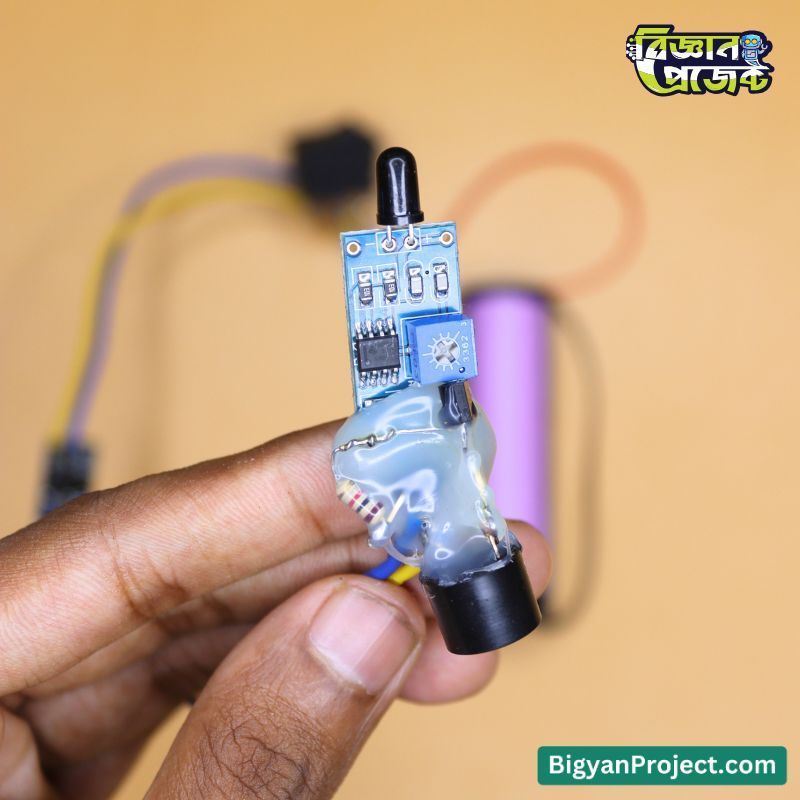

The Complete DIY Fire Detection Kit Without Arduino is a compact, reliable, and beginner-friendly science project designed for students, hobbyists, and educational institutions. This ready-to-use kit detects fire using a high-sensitivity flame sensor and triggers an instant alert through a loud active buzzer. It is designed without the need for any microcontroller like Arduino, making it easy to understand, assemble, and demonstrate. Ideal for science fairs and home learning, this kit helps users explore basic electronics and safety systems.

Powered by a rechargeable 18650 lithium-ion battery and equipped with a TP4056 charging module, the kit is energy-efficient and portable. The built-in voltage booster converts 3.7V to 5V, which is essential for operating the sensor and buzzer correctly. The project is designed with simplicity in mind, yet delivers a practical and useful outcome. It’s an excellent introduction to electronics and sensor-based automation systems, proudly offered by Bigyan Project.

Product Specifications:

Features:

• Fully functional without any Arduino or microcontroller
• Simple plug-and-play design with clearly defined connections
• Efficient fire/flame detection using IR sensor technology
• Loud and instant buzzer alert system
• Rechargeable and portable power system
• Safe and educational for school and college-level projects
• Step-up voltage regulator ensures steady 5V output
• Pre-tested components for easy setup

Applications / Use Cases:

• School science fair projects
• Practical electronics training for students
• Fire detection demo units in educational setups
• Basic home safety awareness kits
• DIY learning for beginners in electronics

User Guide / How to Use:

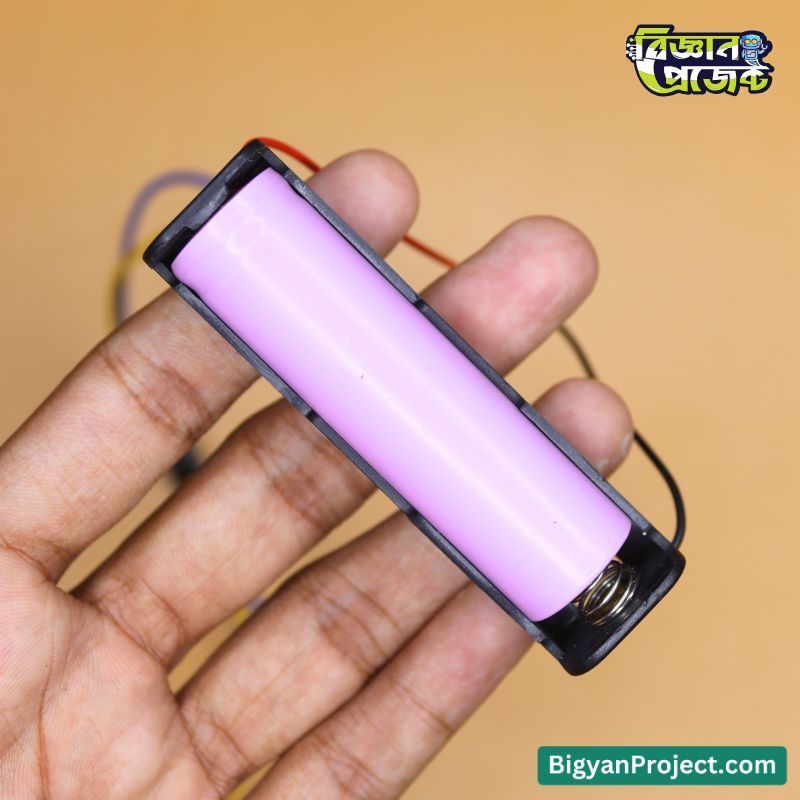

• Insert the 18650 battery into the battery holder
• Make all the connections as per the included circuit diagram
• Ensure the step-up module is delivering a stable 5V output
• Flip the rocker switch to power on the device

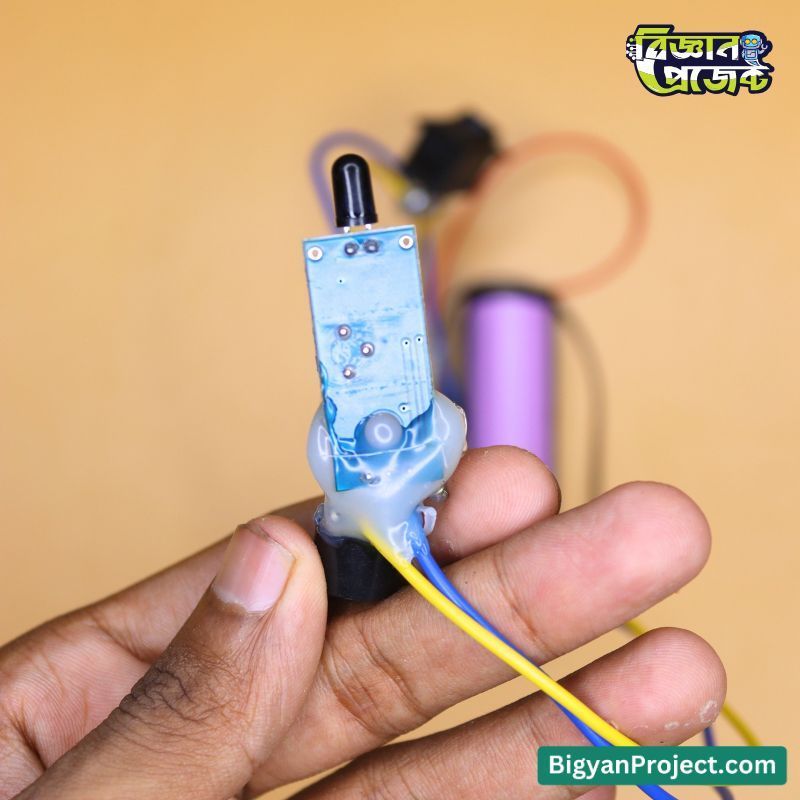

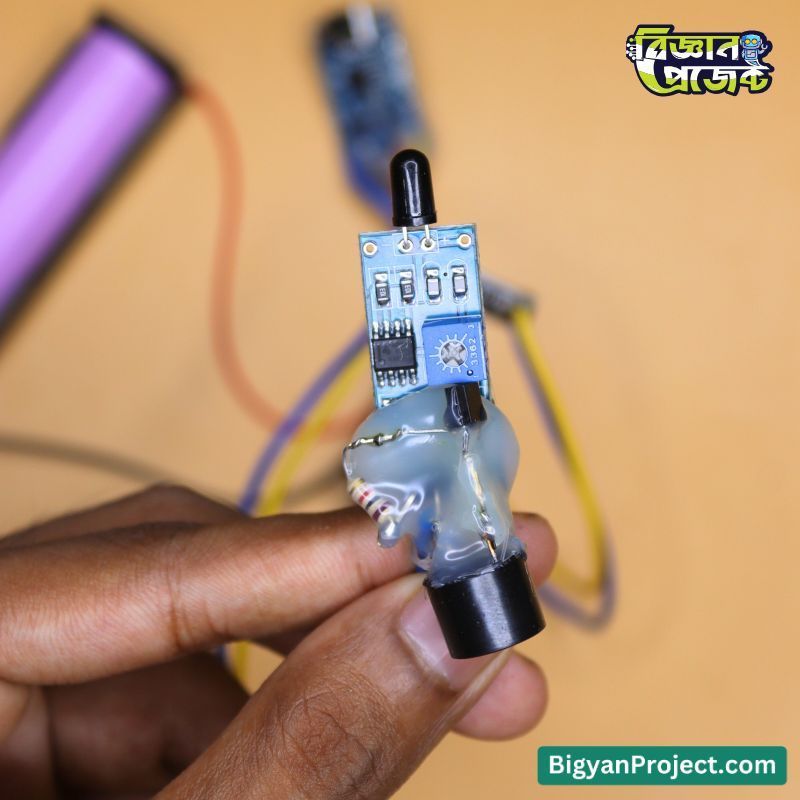

• Bring a small flame source near the sensor to test

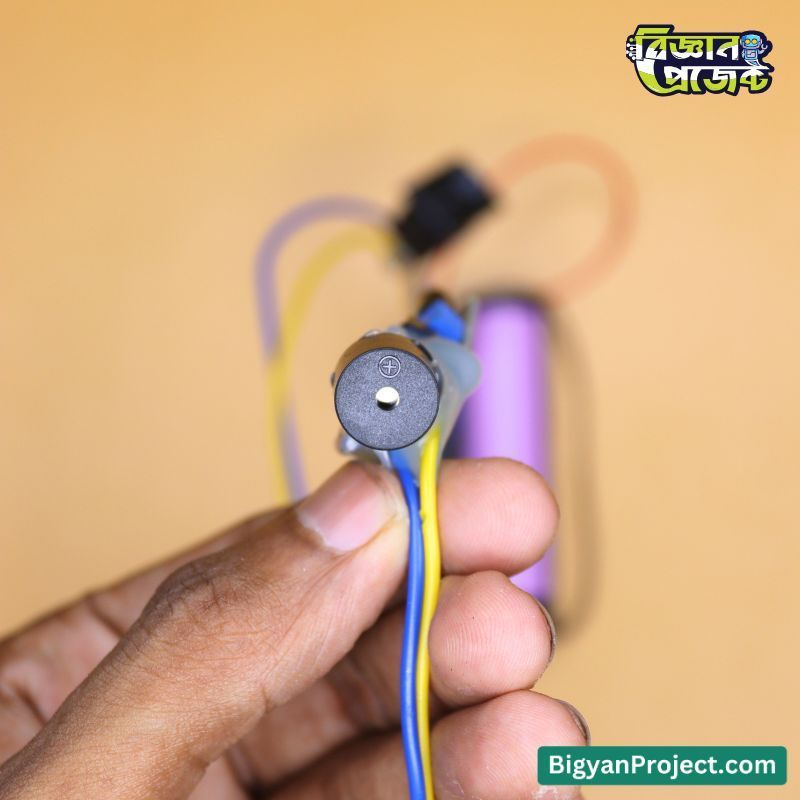

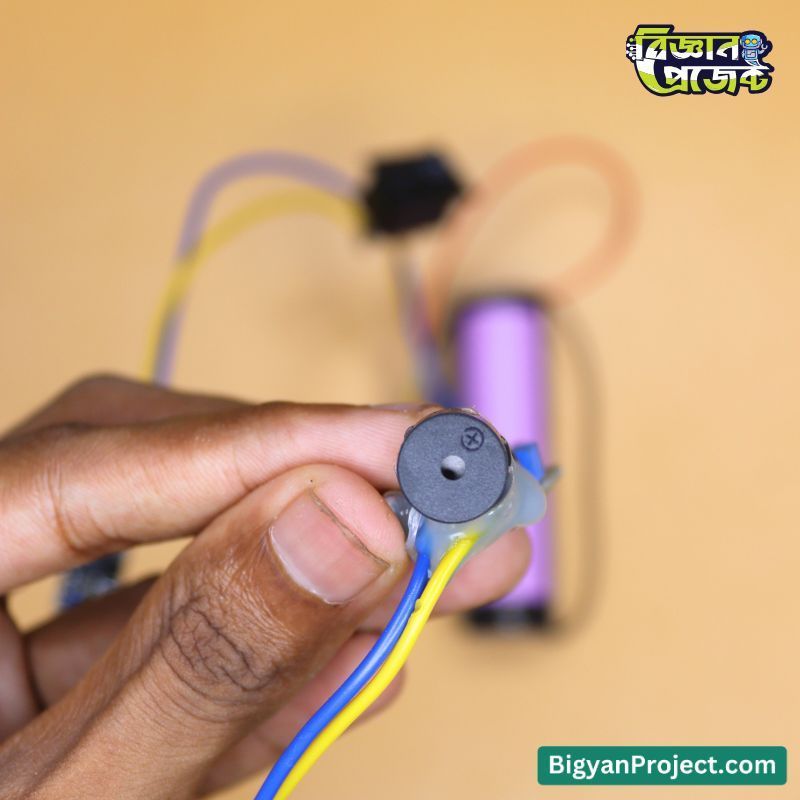

• The buzzer will sound immediately upon flame detection

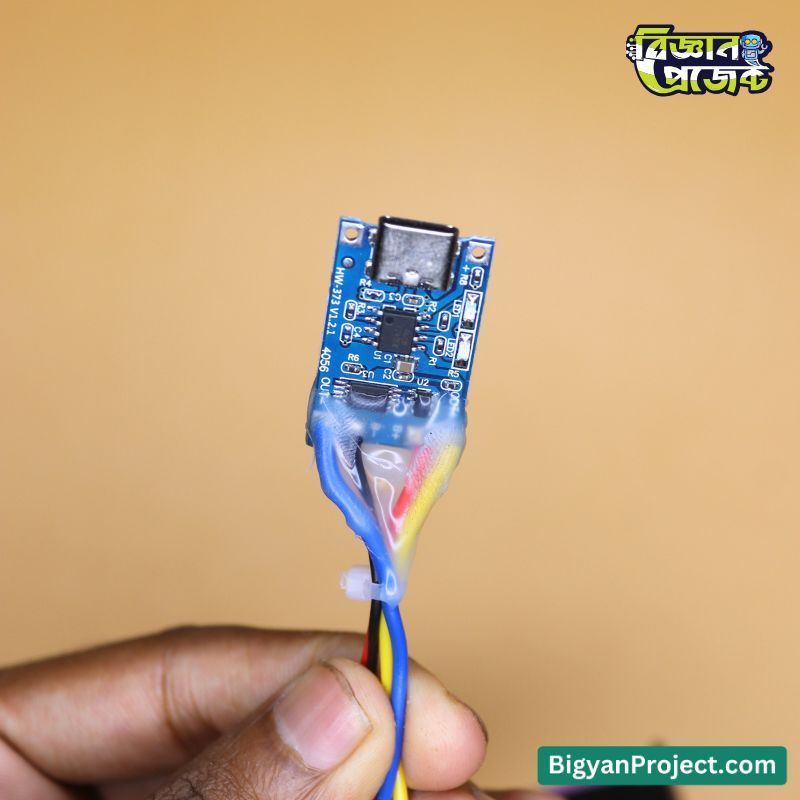

• Charge the battery using the TP4056 module when needed

Frequently Asked Questions (FAQs):

• Q: Does this project need Arduino?
  A: No, this kit works entirely without Arduino or any coding.
• Q: Is it safe for school use?
  A: Yes, it's designed for educational use with low-voltage components.
• Q: Can I reuse the parts in other projects?
  A: Absolutely, most components are reusable.
• Q: How long does the battery last?
  A: Battery life depends on usage but generally lasts for several hours per charge.
• Q: Can this detect smoke or only flame?
  A: It detects IR radiation from open flames, not smoke.

Challenges and Considerations:

• This kit detects flame but not smoke or gas
• The flame sensor has limited range and angle
• Battery should be charged and maintained properly
• Use in a well-ventilated and supervised environment for safety

Compatibility:

• Compatible with all 5V components like buzzers and IR modules
• All included parts are standard and reusable in other DIY electronics projects
• Not compatible with smart automation without additional circuitry

Future Enhancement Options:

• Add smoke or gas sensors for advanced fire safety
• Upgrade with microcontroller (like Arduino) for automation
• Include wireless alert system via Bluetooth or WiFi
• Attach LED indicators for visual alert alongside buzzer

Benefits:

• Great entry point into electronics and sensor-based systems
• Fully functional fire alarm without the complexity of coding
• Encourages hands-on learning through assembling
• Portable and cost-effective
• Available with support and guidance from Bigyan Project

Conclusion:

The Complete DIY Fire Detection Kit Without Arduino is an excellent science project for learning fire safety and basic electronics. With easy-to-understand components, no programming required, and a practical application, it stands out as an ideal educational tool. Whether you're preparing for a science exhibition or just learning electronics at home, this kit from Bigyan Project gives you everything you need to build and demonstrate a working fire alarm system.
